| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_116T01_9000001896_12911cztM0_level2.evt | modeM0/AS1A04_116T01_9000001896_12911cztM0_level2_quad_clean.evt |
| Size (bytes) | 547,908,480 | 112,904,640 |
| Size | 522.5 MB | 107.7 MB |
| Events in quadrant A | 3,287,972 | 803,131 |
| Events in quadrant B | 6,319,285 | 634,118 |
| Events in quadrant C | 3,035,324 | 802,631 |
| Events in quadrant D | 3,541,844 | 758,115 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13481 | 1 |
| B | 0 | 22844 | 0 |
| C | 0 | 12880 | 0 |
| D | 0 | 14382 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6033 | 111 | 1.839881% |
| B | 6033 | 1822 | 30.200564% |
| C | 6033 | 100 | 1.657550% |
| D | 6033 | 187 | 3.099619% |

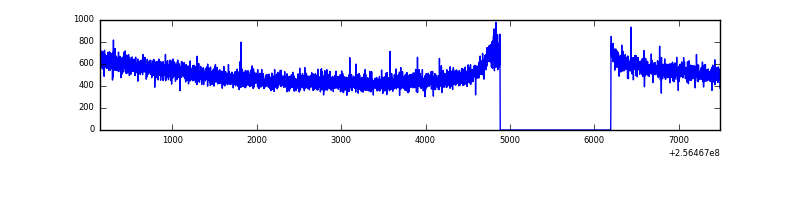

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7344 | 6035 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7344 | 6034 | 876 | 876 | 11.93% | 14.52% |  |
| C | 7344 | 6035 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7344 | 6035 | 69 | 69 | 0.94% | 1.14% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 71289 | 439.06 | 806 | 792 | 160.6 |
| A | 13 | 248 | 30085 | 182.44 | 806 | 792 | 160.6 |
| A | 1 | 162 | 28157 | 170.43 | 806 | 792 | 160.6 |
| B | 4 | 239 | 3287295 | 27344.4 | 657 | 643 | 120.2 |
| B | 3 | 64 | 306621 | 2545.69 | 657 | 643 | 120.2 |
| B | 3 | 209 | 50545 | 415.18 | 657 | 643 | 120.2 |
| C | 13 | 61 | 5635 | 27.78 | 777 | 783 | 174.7 |
| C | 8 | 222 | 3391 | 14.93 | 777 | 783 | 174.7 |
| C | 12 | 4 | 2312 | 8.75 | 777 | 783 | 174.7 |
| D | 1 | 52 | 458553 | 2517.01 | 772 | 753 | 181.9 |
| D | 8 | 195 | 66202 | 359.84 | 772 | 753 | 181.9 |
| D | 2 | 234 | 23877 | 127.14 | 772 | 753 | 181.9 |

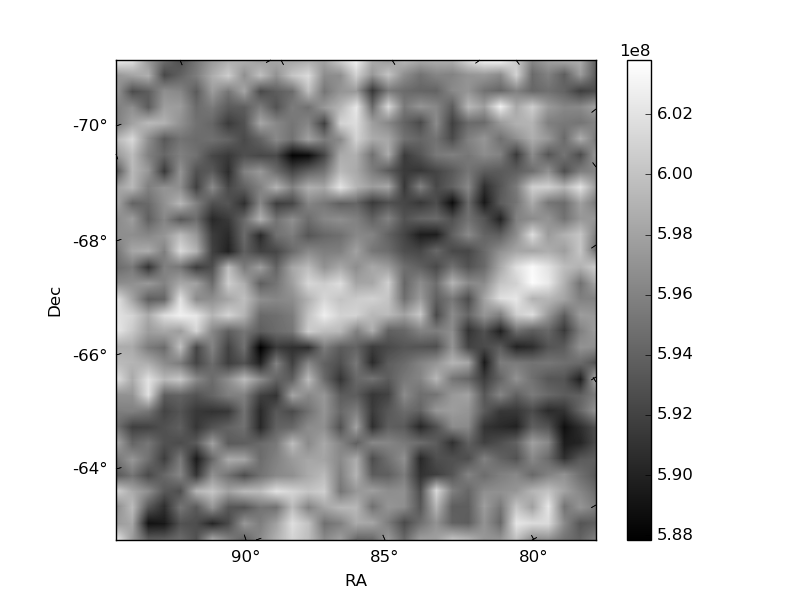

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

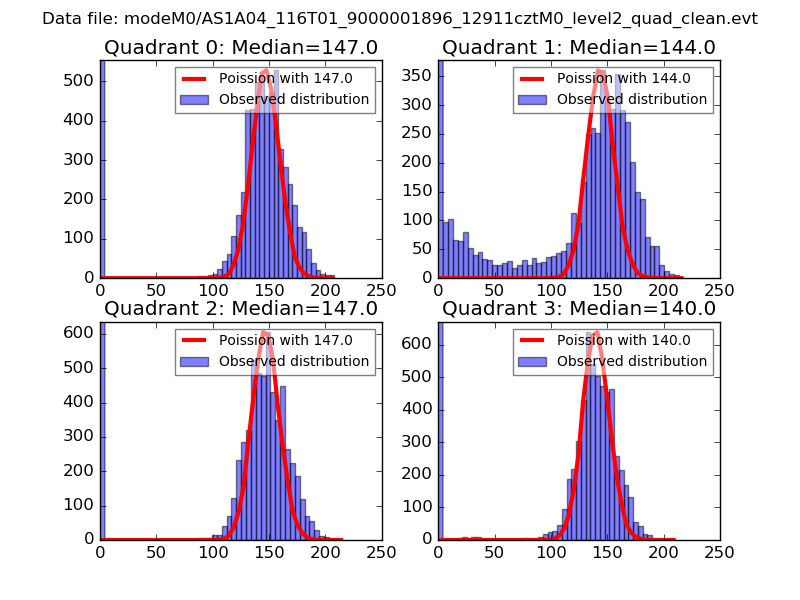

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

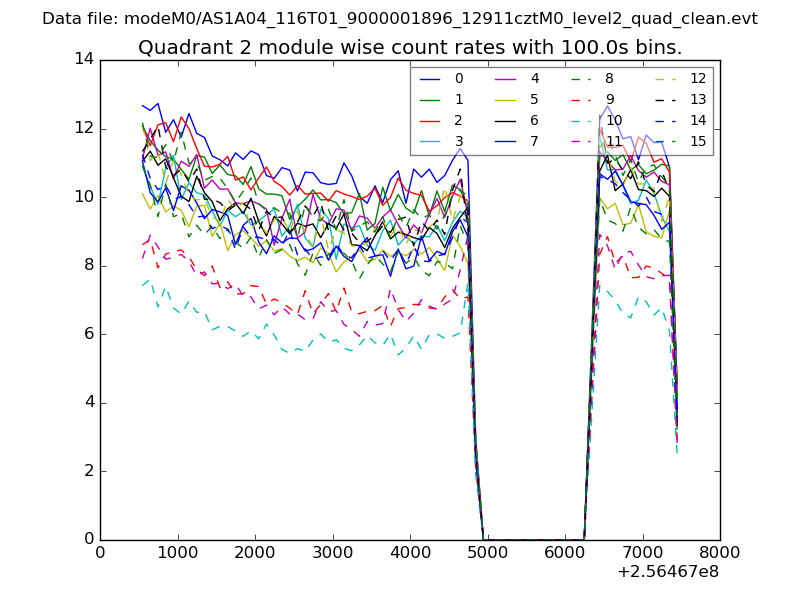

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

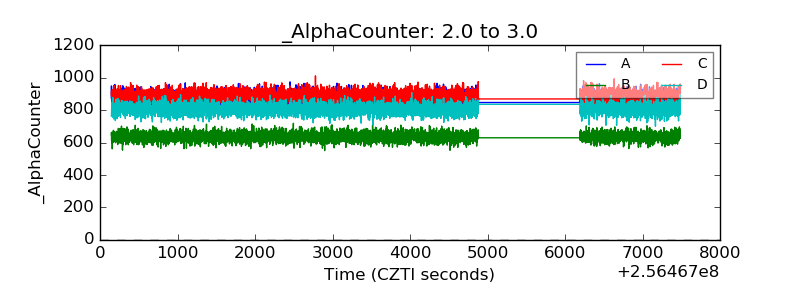

| Alpha Counter |  |
| _CPM_Rate |  |

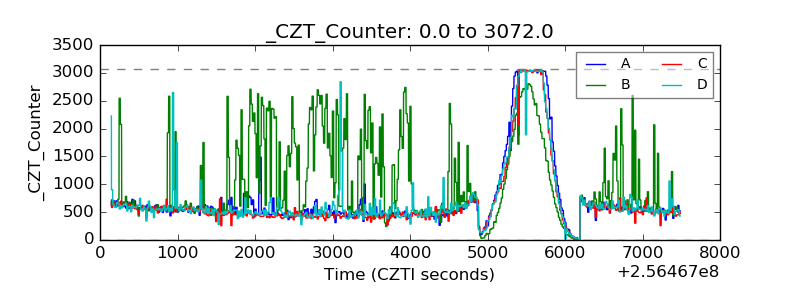

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

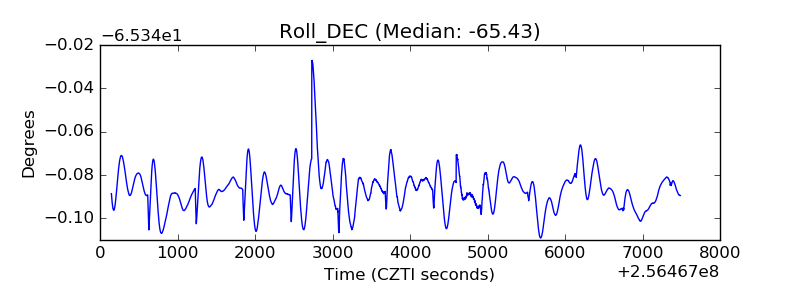

| _Roll_DEC |  |
| _Roll_RA |  |

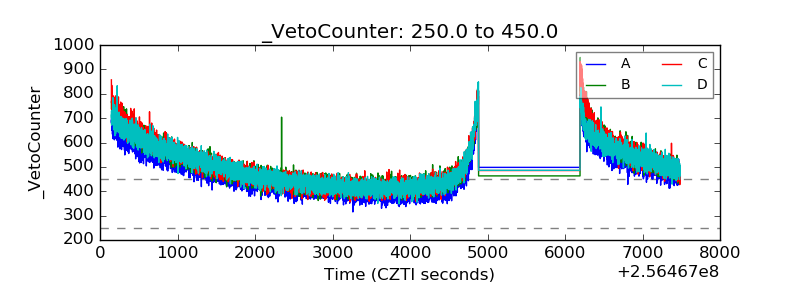

| Veto Counter |  |
