| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_116T01_9000001896_12912cztM0_level2.evt | modeM0/AS1A04_116T01_9000001896_12912cztM0_level2_quad_clean.evt |
| Size (bytes) | 588,093,120 | 130,072,320 |
| Size | 560.8 MB | 124.0 MB |
| Events in quadrant A | 3,468,632 | 919,687 |
| Events in quadrant B | 6,032,149 | 783,663 |
| Events in quadrant C | 3,209,452 | 914,845 |
| Events in quadrant D | 4,648,976 | 856,864 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14383 | 2 |
| B | 0 | 22280 | 1 |
| C | 0 | 13914 | 1 |
| D | 0 | 18266 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6663 | 106 | 1.590875% |
| B | 6663 | 1513 | 22.707489% |
| C | 6663 | 76 | 1.140627% |
| D | 6663 | 318 | 4.772625% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

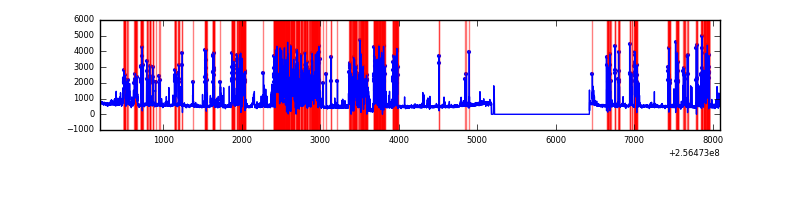

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7899 | 6666 | 11 | 11 | 0.14% | 0.17% |  |
| B | 7899 | 6666 | 712 | 712 | 9.01% | 10.68% |  |
| C | 7899 | 6666 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7899 | 6666 | 153 | 153 | 1.94% | 2.30% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 68107 | 394.1 | 856 | 841 | 170.7 |
| A | 12 | 189 | 30747 | 175.21 | 856 | 841 | 170.7 |
| A | 1 | 162 | 23956 | 135.43 | 856 | 841 | 170.7 |
| B | 4 | 239 | 2808731 | 20973.84 | 734 | 717 | 133.9 |
| B | 3 | 64 | 208976 | 1555.54 | 734 | 717 | 133.9 |
| B | 0 | 214 | 56588 | 417.32 | 734 | 717 | 133.9 |
| C | 13 | 61 | 6155 | 28.74 | 822 | 826 | 185.4 |
| C | 12 | 4 | 2396 | 8.47 | 822 | 826 | 185.4 |
| C | 8 | 222 | 2200 | 7.41 | 822 | 826 | 185.4 |
| D | 1 | 52 | 1135146 | 5940.86 | 808 | 787 | 190.9 |
| D | 8 | 195 | 391221 | 2044.78 | 808 | 787 | 190.9 |
| D | 2 | 234 | 26146 | 132.81 | 808 | 787 | 190.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

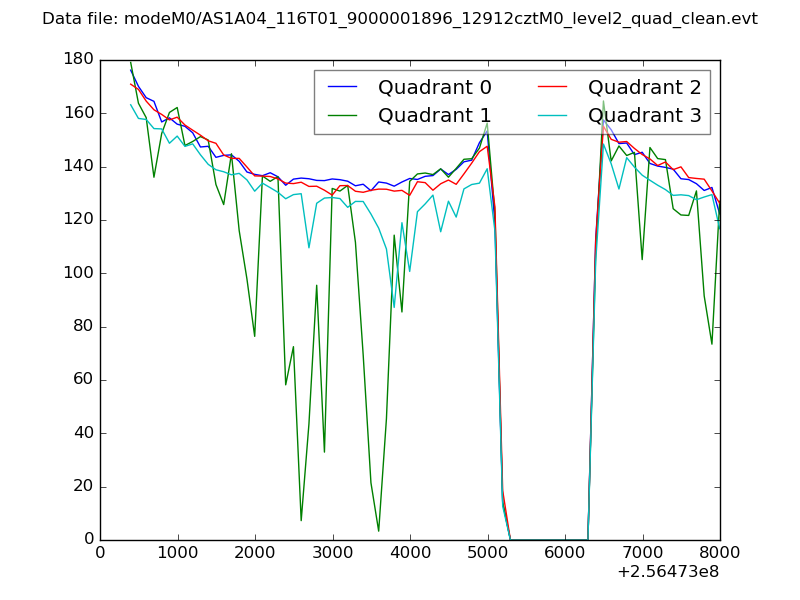

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

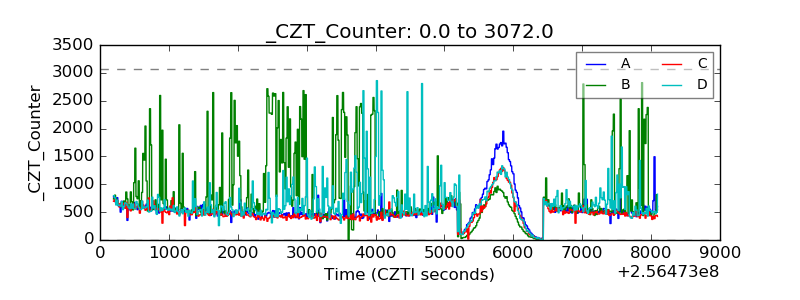

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

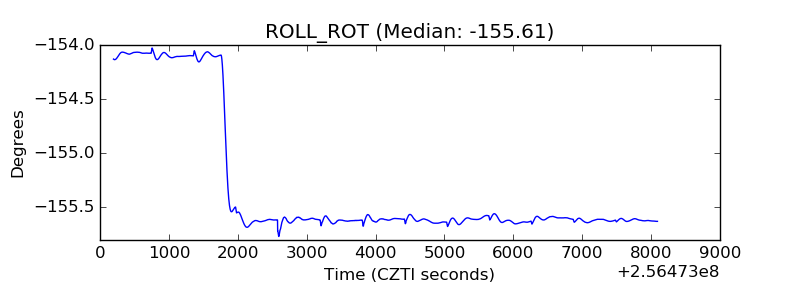

| _ROLL_ROT |  |

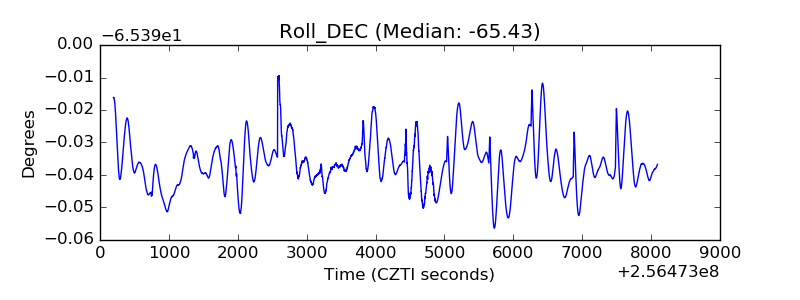

| _Roll_DEC |  |

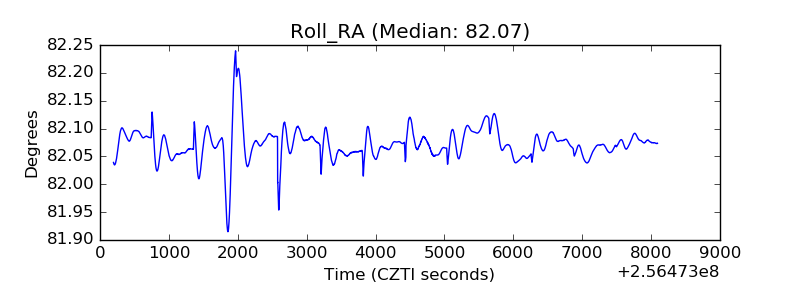

| _Roll_RA |  |

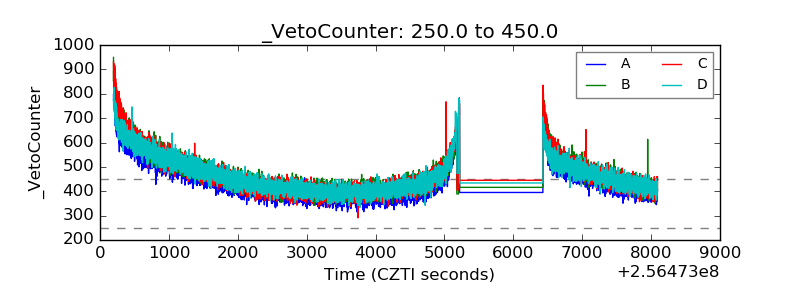

| Veto Counter |  |
