| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_116T01_9000001896_12919cztM0_level2.evt | modeM0/AS1A04_116T01_9000001896_12919cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,415,047,680 | 286,850,880 |
| Size | 1.3 GB | 273.6 MB |
| Events in quadrant A | 10,139,120 | 1,912,751 |
| Events in quadrant B | 12,031,144 | 1,762,067 |
| Events in quadrant C | 8,137,361 | 1,914,067 |
| Events in quadrant D | 11,288,793 | 1,815,561 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 380 | 0 |
| B | 0 | 380 | 0 |
| C | 0 | 380 | 0 |
| D | 0 | 380 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 42361 | 4 |
| B | 0 | 48348 | 3 |
| C | 0 | 37555 | 3 |
| D | 0 | 46367 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18614 | 305 | 1.638552% |
| B | 18614 | 2095 | 11.254969% |
| C | 18614 | 63 | 0.338455% |
| D | 18614 | 442 | 2.374557% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20445 | 18618 | 113 | 113 | 0.55% | 0.61% |  |
| B | 20445 | 18617 | 883 | 883 | 4.32% | 4.74% |  |
| C | 20445 | 18618 | 0 | 0 | 0.00% | 0.00% |  |
| D | 20445 | 18618 | 316 | 316 | 1.55% | 1.70% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 563863 | 1314.4 | 2122 | 2079 | 427.4 |
| A | 15 | 223 | 417420 | 971.77 | 2122 | 2079 | 427.4 |
| A | 15 | 174 | 370685 | 862.42 | 2122 | 2079 | 427.4 |
| B | 4 | 239 | 3745608 | 10252.68 | 1964 | 1915 | 365.1 |
| B | 3 | 64 | 394044 | 1073.9 | 1964 | 1915 | 365.1 |
| B | 0 | 214 | 83626 | 223.78 | 1964 | 1915 | 365.1 |
| C | 4 | 112 | 47636 | 95.75 | 2068 | 2072 | 475.9 |
| C | 13 | 61 | 15205 | 27.6 | 2068 | 2072 | 475.9 |
| C | 8 | 128 | 11954 | 20.77 | 2068 | 2072 | 475.9 |
| D | 1 | 52 | 3030343 | 6159.51 | 2041 | 1977 | 491.7 |
| D | 8 | 195 | 193912 | 390.38 | 2041 | 1977 | 491.7 |
| D | 2 | 14 | 137375 | 275.39 | 2041 | 1977 | 491.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

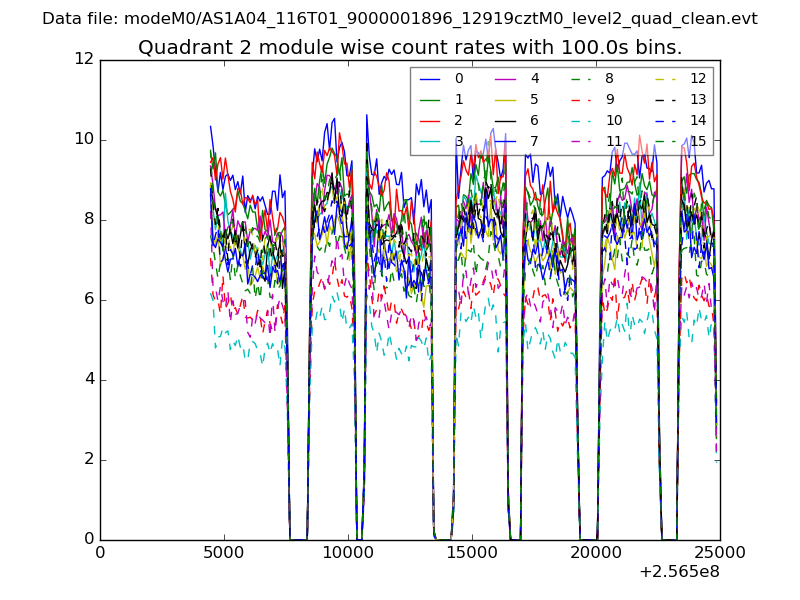

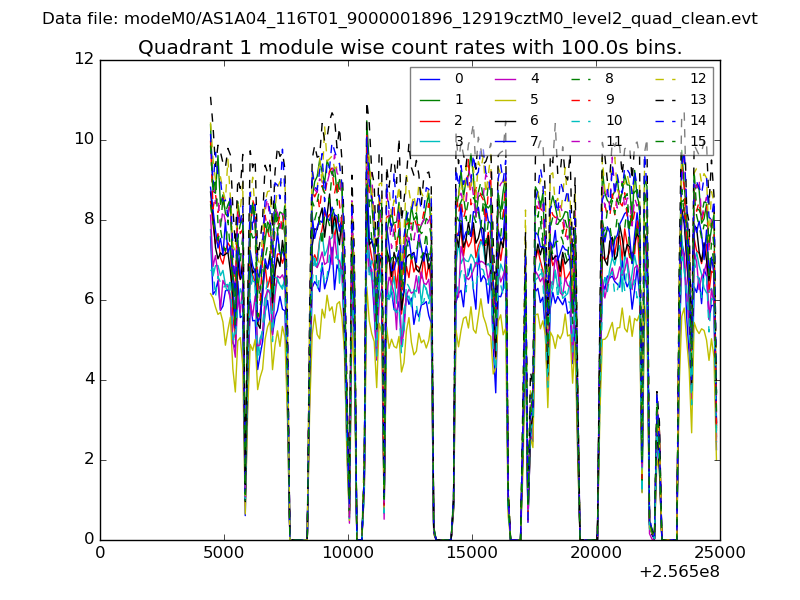

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

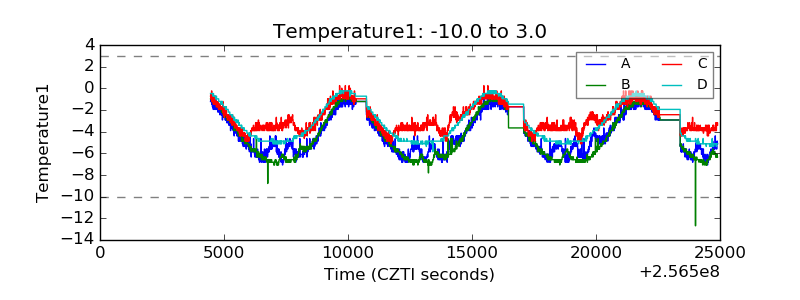

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

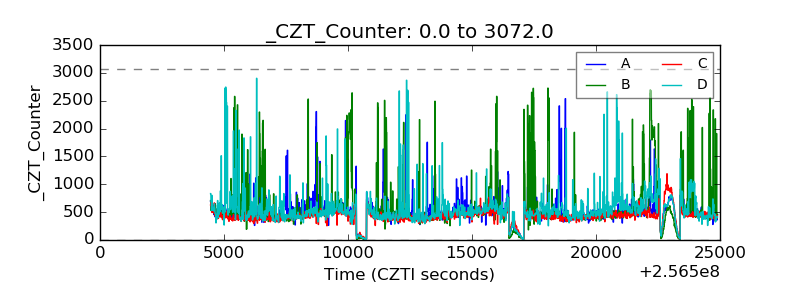

| CZT Counter |  |
| +2.5 Volts monitor |  |

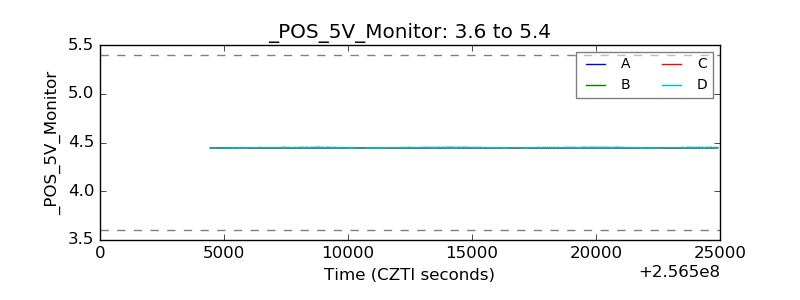

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

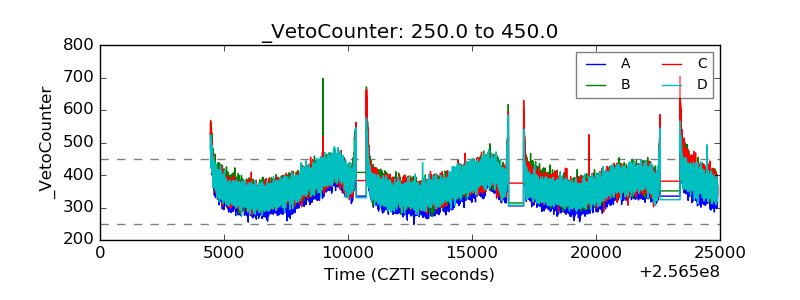

| Veto Counter |  |
