| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_116T01_9000001896_12920cztM0_level2.evt | modeM0/AS1A04_116T01_9000001896_12920cztM0_level2_quad_clean.evt |
| Size (bytes) | 579,965,760 | 112,351,680 |
| Size | 553.1 MB | 107.1 MB |
| Events in quadrant A | 3,741,200 | 753,289 |
| Events in quadrant B | 5,340,563 | 681,576 |
| Events in quadrant C | 3,252,946 | 757,640 |
| Events in quadrant D | 4,744,228 | 711,489 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15672 | 3 |
| B | 0 | 20593 | 2 |
| C | 0 | 14537 | 2 |
| D | 0 | 18979 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7150 | 128 | 1.790210% |
| B | 7150 | 1055 | 14.755245% |
| C | 7150 | 45 | 0.629371% |
| D | 7150 | 262 | 3.664336% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8897 | 7153 | 20 | 20 | 0.22% | 0.28% |  |
| B | 8897 | 7152 | 525 | 525 | 5.90% | 7.34% |  |
| C | 8897 | 7153 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8897 | 7153 | 173 | 173 | 1.94% | 2.42% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 146732 | 861.78 | 835 | 815 | 169.3 |
| A | 1 | 162 | 112154 | 657.56 | 835 | 815 | 169.3 |
| A | 12 | 189 | 66057 | 385.32 | 835 | 815 | 169.3 |
| B | 4 | 239 | 2120710 | 14626.62 | 766 | 747 | 144.9 |
| B | 3 | 64 | 158112 | 1085.73 | 766 | 747 | 144.9 |
| B | 0 | 214 | 42132 | 285.53 | 766 | 747 | 144.9 |
| C | 4 | 112 | 38131 | 198.65 | 819 | 822 | 187.8 |
| C | 14 | 234 | 10754 | 52.88 | 819 | 822 | 187.8 |
| C | 13 | 61 | 6055 | 27.86 | 819 | 822 | 187.8 |
| D | 1 | 52 | 1446874 | 7505.39 | 802 | 778 | 192.7 |
| D | 8 | 195 | 124900 | 644.21 | 802 | 778 | 192.7 |
| D | 2 | 14 | 84226 | 433.1 | 802 | 778 | 192.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

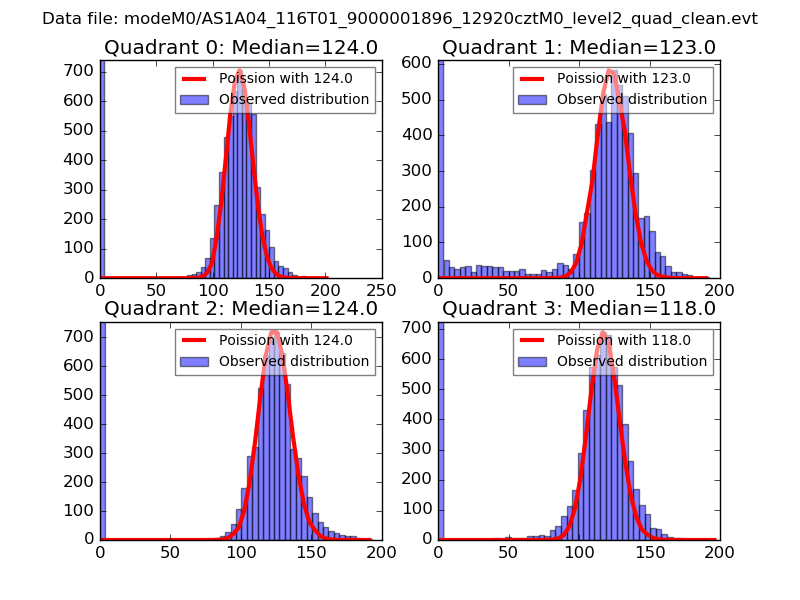

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

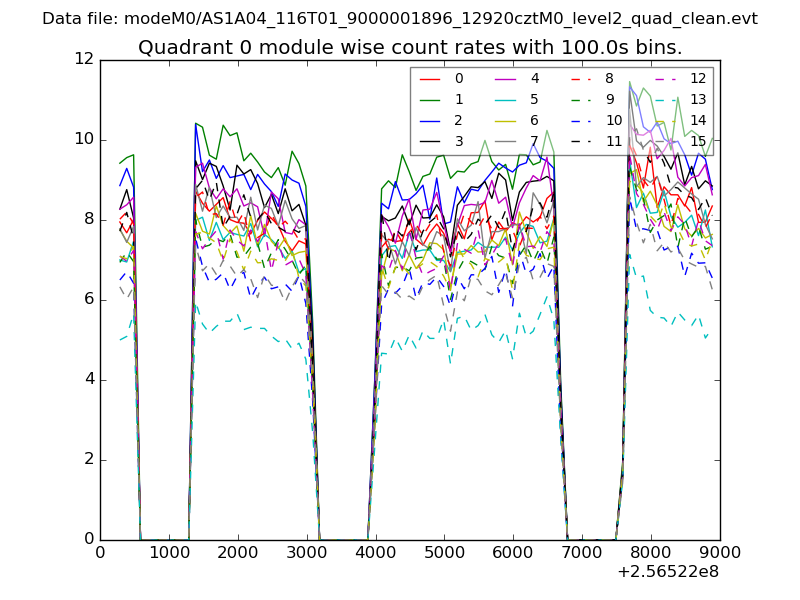

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

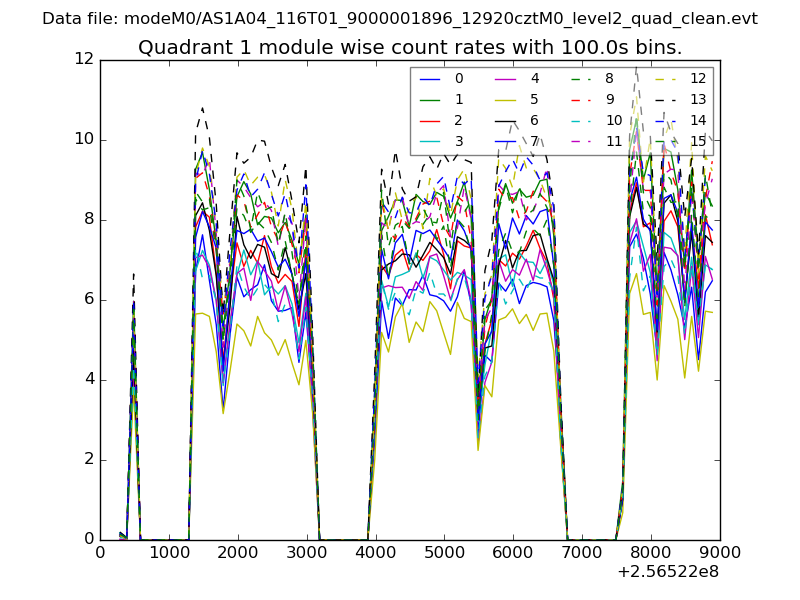

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

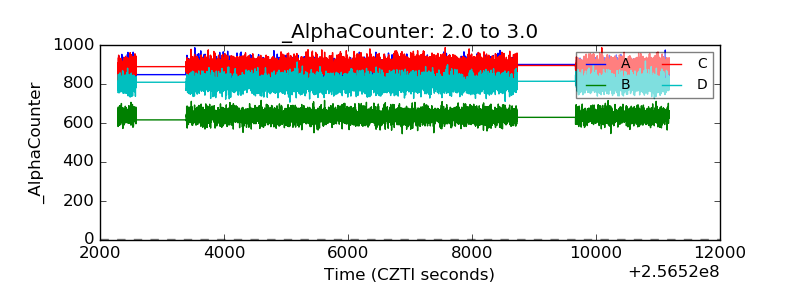

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

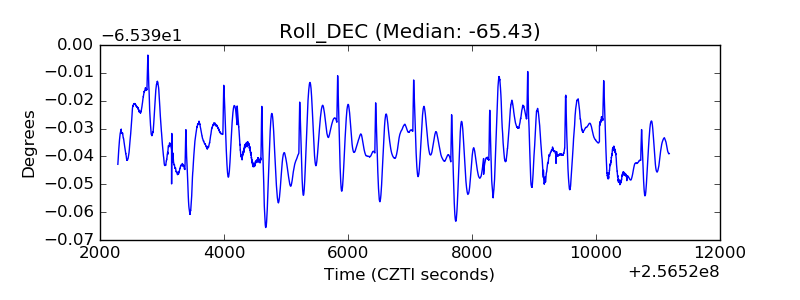

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
