| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_115T02_9000001900_12934cztM0_level2.evt | modeM0/AS1A04_115T02_9000001900_12934cztM0_level2_quad_clean.evt |
| Size (bytes) | 862,640,640 | 134,634,240 |
| Size | 822.7 MB | 128.4 MB |
| Events in quadrant A | 6,414,523 | 819,849 |
| Events in quadrant B | 6,692,800 | 826,471 |
| Events in quadrant C | 5,288,562 | 833,817 |
| Events in quadrant D | 6,938,408 | 788,853 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 240 | 0 |
| B | 0 | 240 | 0 |
| C | 0 | 240 | 0 |
| D | 0 | 240 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26839 | 3 |
| B | 0 | 27754 | 2 |
| C | 0 | 23817 | 2 |
| D | 0 | 28875 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 11676 | 160 | 1.370332% |
| B | 11676 | 596 | 5.104488% |
| C | 11676 | 29 | 0.248373% |
| D | 11676 | 394 | 3.374443% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

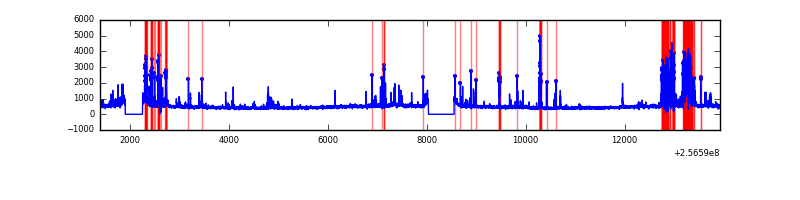

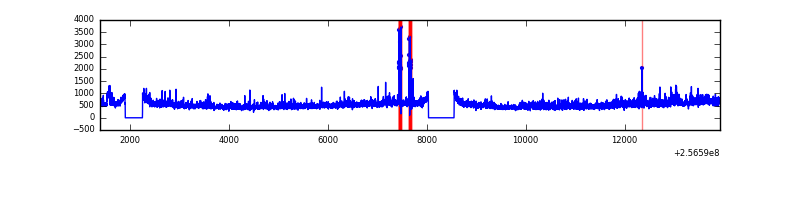

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 12547 | 11679 | 34 | 34 | 0.27% | 0.29% |  |
| B | 12547 | 11679 | 261 | 261 | 2.08% | 2.23% |  |
| C | 12547 | 11679 | 1 | 1 | 0.01% | 0.01% |  |
| D | 12547 | 11678 | 251 | 251 | 2.00% | 2.15% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 312080 | 1115.36 | 1382 | 1353 | 278.6 |
| A | 1 | 178 | 166785 | 593.82 | 1382 | 1353 | 278.6 |
| A | 1 | 161 | 142617 | 507.07 | 1382 | 1353 | 278.6 |
| B | 4 | 239 | 1018900 | 3934.02 | 1352 | 1316 | 258.7 |
| B | 3 | 64 | 291201 | 1120.71 | 1352 | 1316 | 258.7 |
| B | 0 | 197 | 42751 | 160.19 | 1352 | 1316 | 258.7 |
| C | 14 | 234 | 18687 | 55.46 | 1350 | 1359 | 312.5 |
| C | 13 | 61 | 9899 | 27.33 | 1350 | 1359 | 312.5 |
| C | 4 | 112 | 6386 | 16.09 | 1350 | 1359 | 312.5 |
| D | 1 | 52 | 1834585 | 5713.47 | 1325 | 1286 | 320.9 |
| D | 8 | 195 | 47533 | 144.13 | 1325 | 1286 | 320.9 |
| D | 2 | 234 | 36607 | 110.08 | 1325 | 1286 | 320.9 |

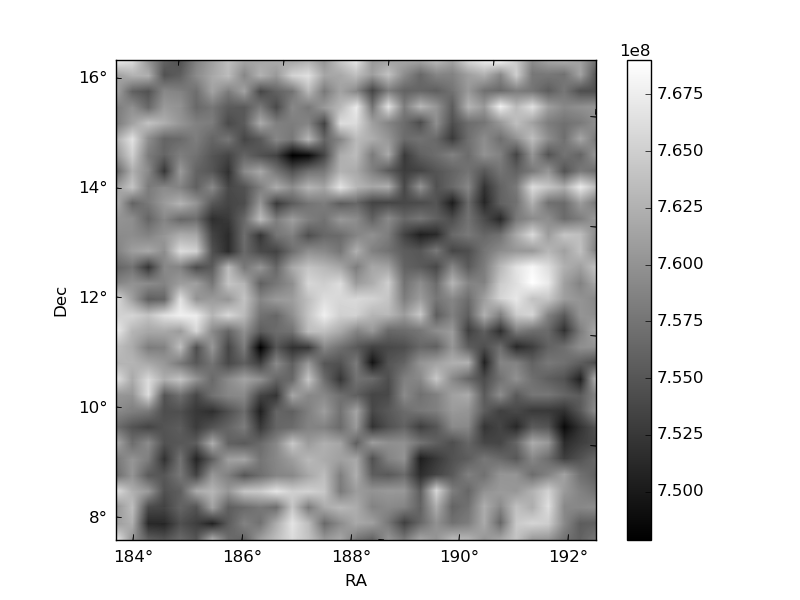

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

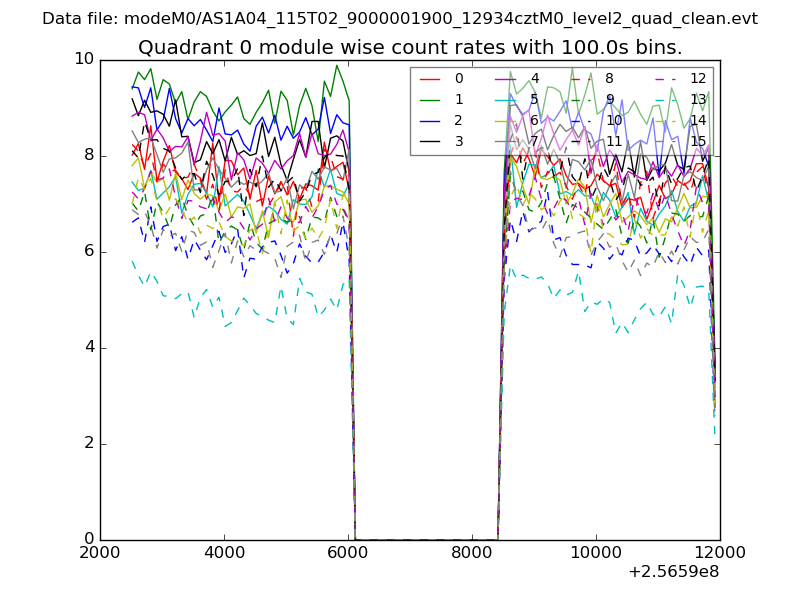

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

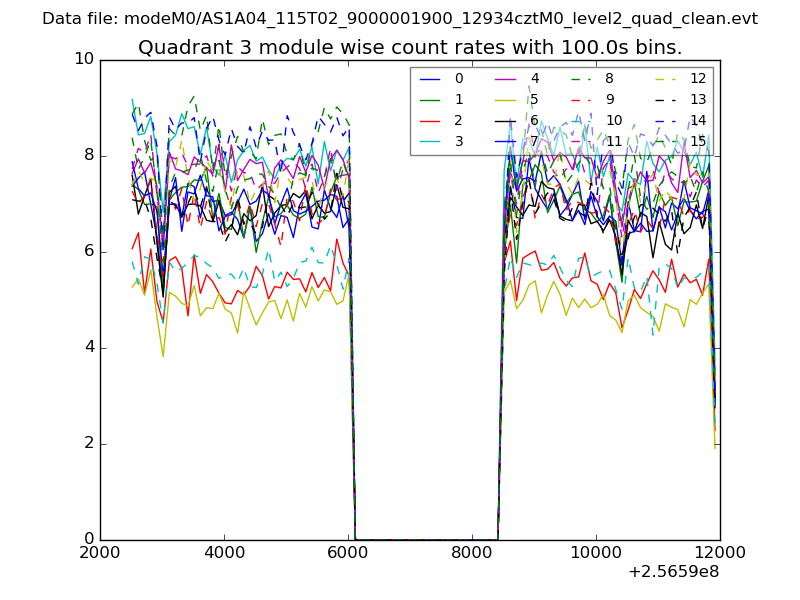

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

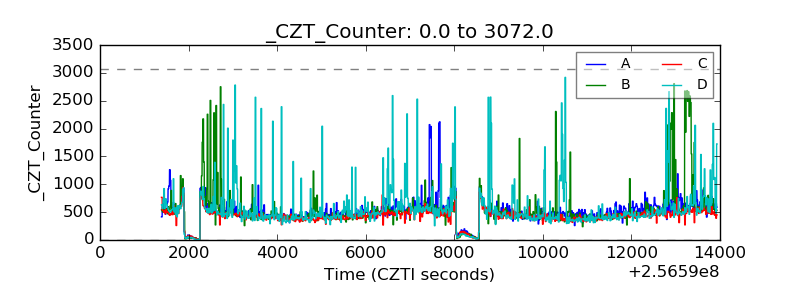

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

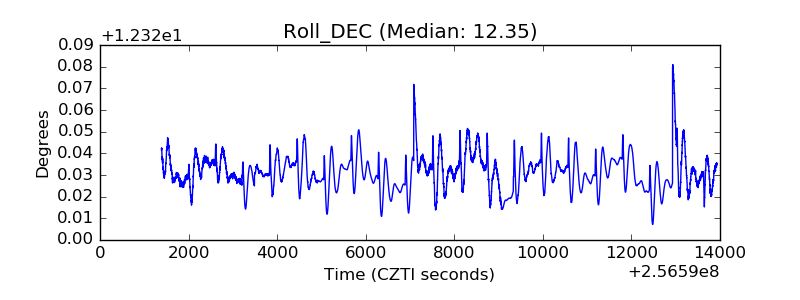

| _Roll_DEC |  |

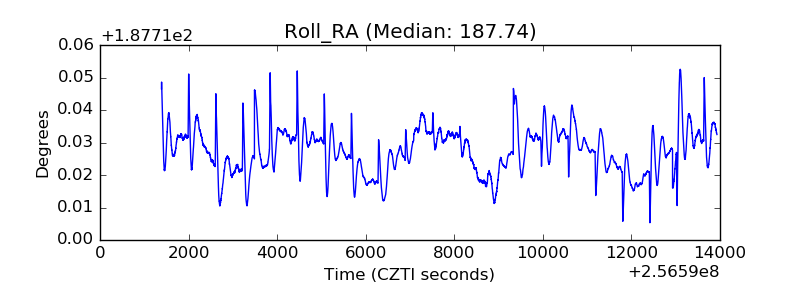

| _Roll_RA |  |
| Veto Counter |  |
