| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_115T02_9000001900_12939cztM0_level2.evt | modeM0/AS1A04_115T02_9000001900_12939cztM0_level2_quad_clean.evt |
| Size (bytes) | 455,532,480 | 74,424,960 |
| Size | 434.4 MB | 71.0 MB |
| Events in quadrant A | 3,270,203 | 469,629 |
| Events in quadrant B | 4,009,102 | 454,400 |
| Events in quadrant C | 2,953,731 | 469,188 |
| Events in quadrant D | 3,166,818 | 452,789 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13239 | 2 |
| B | 0 | 15283 | 1 |
| C | 0 | 12114 | 1 |
| D | 0 | 12849 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5831 | 74 | 1.269079% |
| B | 5831 | 449 | 7.700223% |
| C | 5831 | 34 | 0.583090% |
| D | 5831 | 76 | 1.303378% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7147 | 5834 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7147 | 5834 | 297 | 297 | 4.16% | 5.09% |  |
| C | 7147 | 5834 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7147 | 5834 | 29 | 29 | 0.41% | 0.50% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 91448 | 580.26 | 785 | 772 | 156.3 |
| A | 1 | 178 | 42650 | 267.99 | 785 | 772 | 156.3 |
| A | 1 | 161 | 37142 | 232.74 | 785 | 772 | 156.3 |
| B | 4 | 239 | 864907 | 6177.4 | 743 | 729 | 139.9 |
| B | 3 | 64 | 173369 | 1234.08 | 743 | 729 | 139.9 |
| B | 11 | 51 | 25073 | 174.02 | 743 | 729 | 139.9 |
| C | 13 | 61 | 5456 | 26.99 | 757 | 762 | 173.9 |
| C | 12 | 4 | 2910 | 12.35 | 757 | 762 | 173.9 |
| C | 3 | 202 | 1912 | 6.61 | 757 | 762 | 173.9 |
| D | 1 | 52 | 236229 | 1285.94 | 762 | 740 | 183.1 |
| D | 2 | 234 | 19286 | 101.27 | 762 | 740 | 183.1 |
| D | 2 | 14 | 16285 | 84.89 | 762 | 740 | 183.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

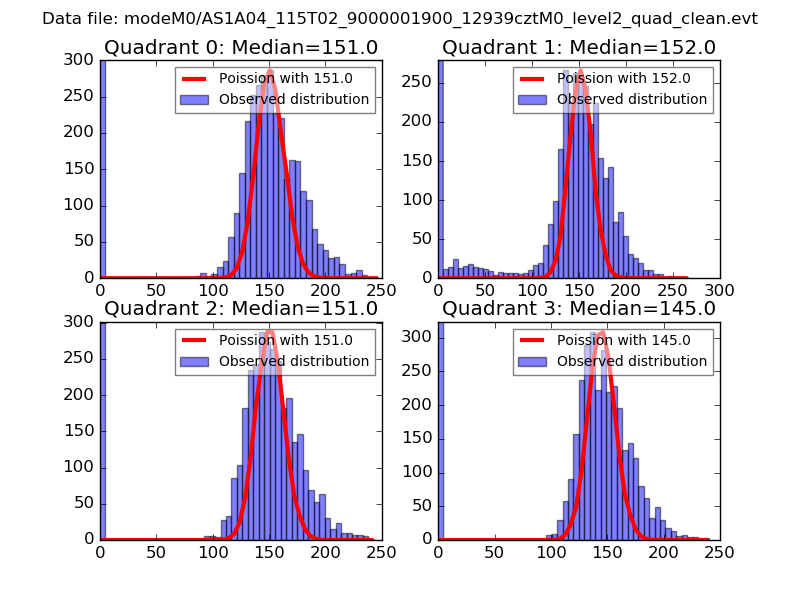

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

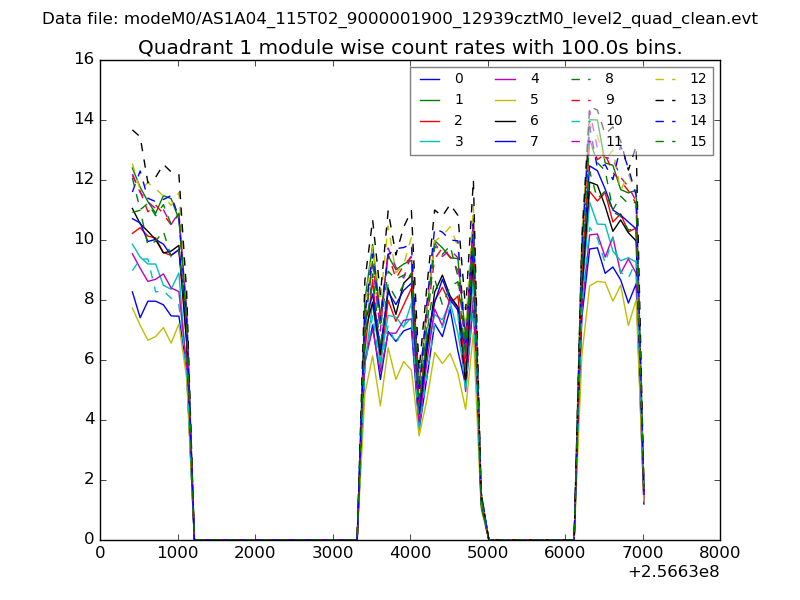

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

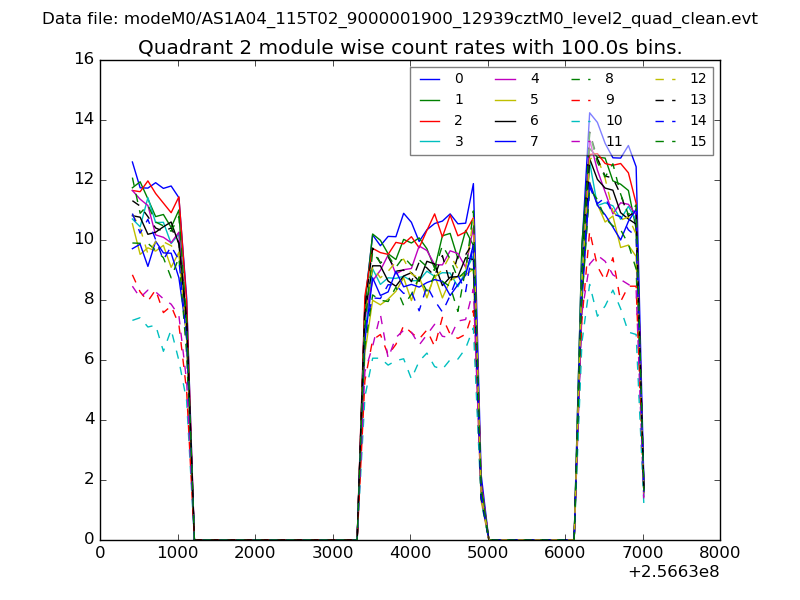

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

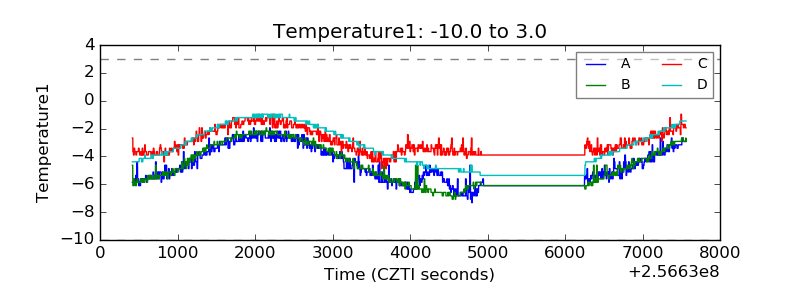

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

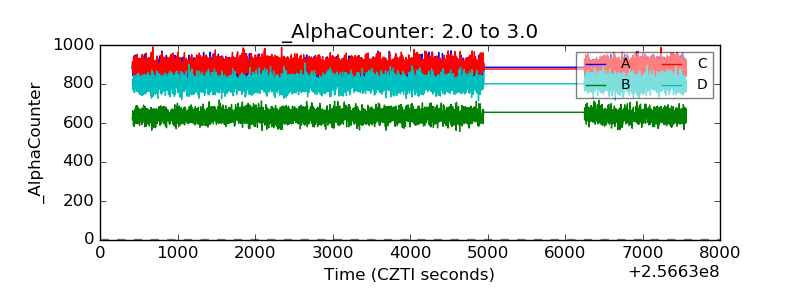

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

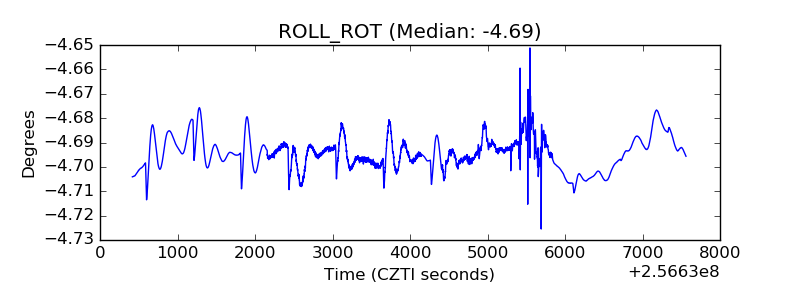

| _ROLL_ROT |  |

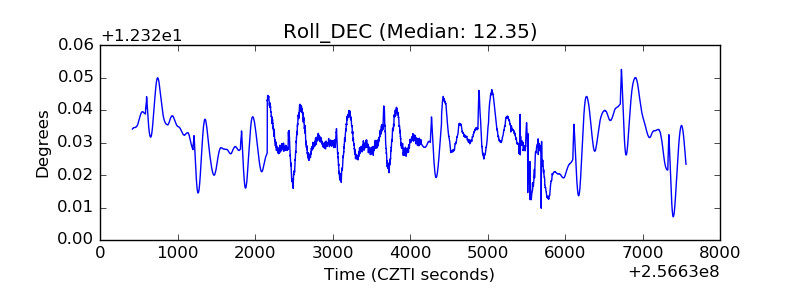

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
