| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_115T02_9000001900_12940cztM0_level2.evt | modeM0/AS1A04_115T02_9000001900_12940cztM0_level2_quad_clean.evt |
| Size (bytes) | 531,777,600 | 75,101,760 |
| Size | 507.1 MB | 71.6 MB |
| Events in quadrant A | 3,785,133 | 467,304 |
| Events in quadrant B | 4,960,312 | 434,701 |
| Events in quadrant C | 3,346,156 | 468,814 |
| Events in quadrant D | 3,573,947 | 451,330 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 20 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15388 | 3 |
| B | 0 | 18684 | 2 |
| C | 0 | 13666 | 2 |
| D | 0 | 14526 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6482 | 123 | 1.897562% |
| B | 6482 | 705 | 10.876273% |
| C | 6482 | 72 | 1.110768% |
| D | 6482 | 103 | 1.589016% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

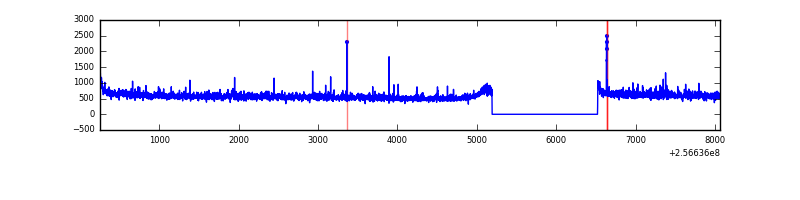

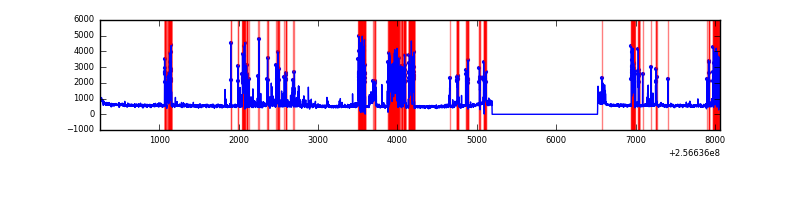

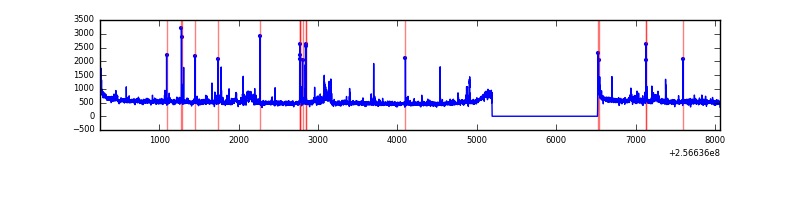

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7813 | 6484 | 4 | 4 | 0.05% | 0.06% |  |
| B | 7812 | 6483 | 410 | 410 | 5.25% | 6.32% |  |
| C | 7813 | 6484 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7813 | 6484 | 18 | 18 | 0.23% | 0.28% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 155980 | 878.88 | 886 | 870 | 176.5 |
| A | 1 | 162 | 82366 | 461.77 | 886 | 870 | 176.5 |
| A | 1 | 178 | 39697 | 220.0 | 886 | 870 | 176.5 |
| B | 4 | 239 | 1279468 | 8285.24 | 824 | 805 | 154.3 |
| B | 3 | 64 | 312601 | 2020.32 | 824 | 805 | 154.3 |
| B | 11 | 51 | 66998 | 428.9 | 824 | 805 | 154.3 |
| C | 13 | 61 | 6276 | 27.68 | 856 | 863 | 195.6 |
| C | 8 | 128 | 4694 | 19.59 | 856 | 863 | 195.6 |
| C | 8 | 112 | 2803 | 9.92 | 856 | 863 | 195.6 |
| D | 1 | 52 | 235716 | 1155.72 | 863 | 842 | 203.2 |
| D | 2 | 14 | 34324 | 164.75 | 863 | 842 | 203.2 |
| D | 2 | 234 | 19479 | 91.7 | 863 | 842 | 203.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

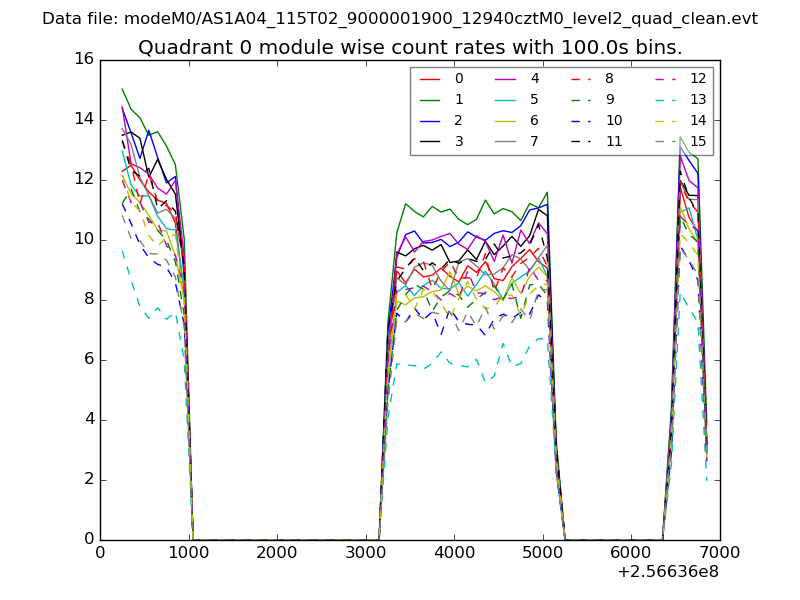

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

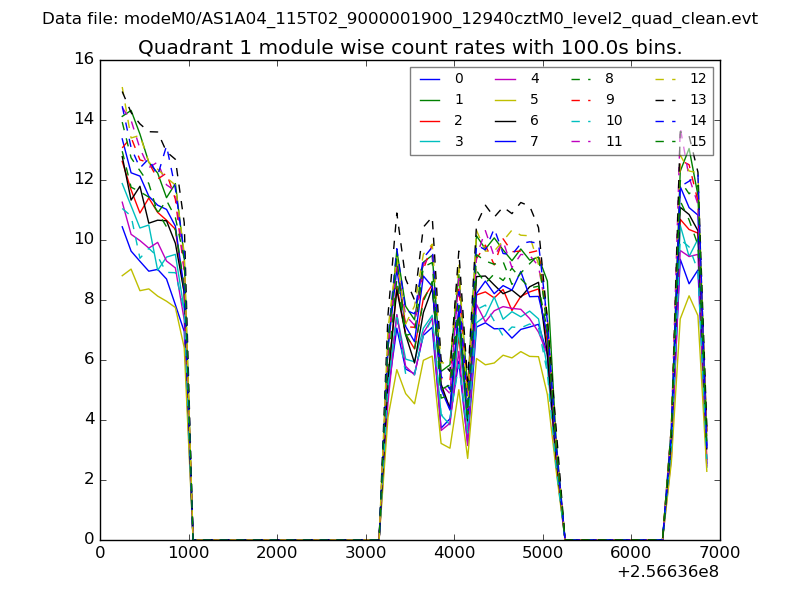

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

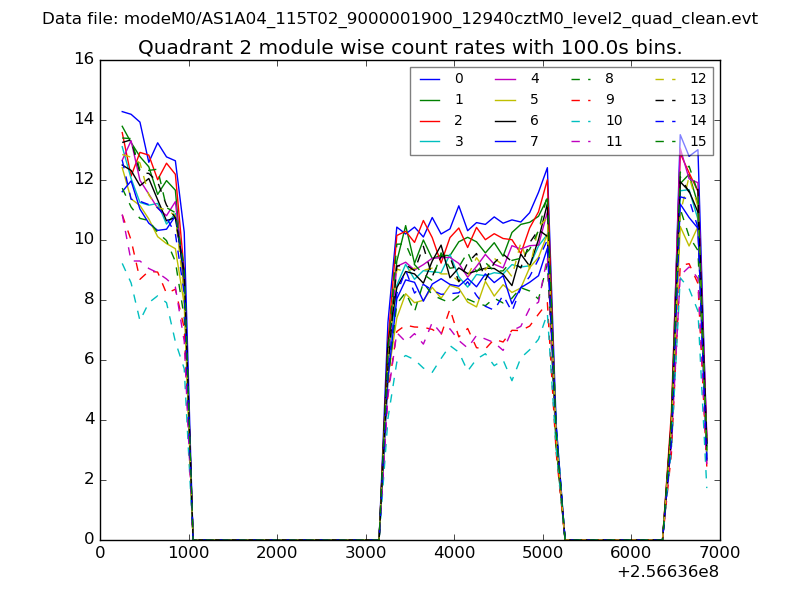

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

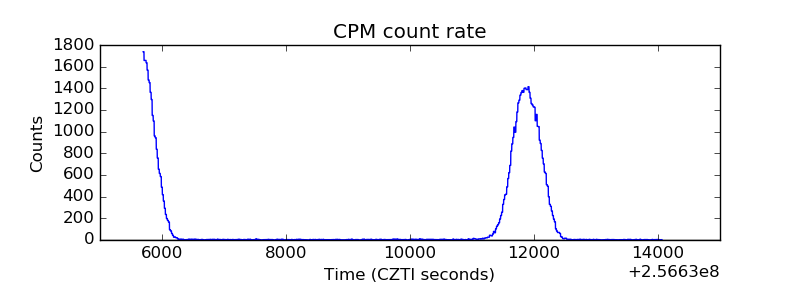

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

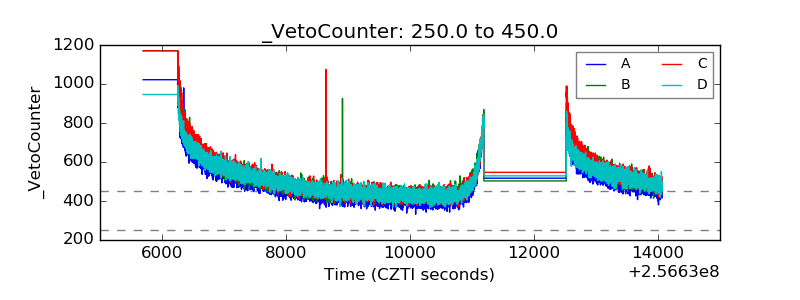

| Veto Counter |  |
