| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_035T01_9000001904_12960cztM0_level2.evt | modeM0/AS1G08_035T01_9000001904_12960cztM0_level2_quad_clean.evt |
| Size (bytes) | 575,040,960 | 75,902,400 |
| Size | 548.4 MB | 72.4 MB |
| Events in quadrant A | 4,052,954 | 454,804 |
| Events in quadrant B | 5,137,675 | 429,903 |
| Events in quadrant C | 3,473,992 | 454,599 |
| Events in quadrant D | 4,243,001 | 438,373 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16822 | 2 |
| B | 0 | 20103 | 1 |
| C | 0 | 15431 | 1 |
| D | 0 | 17570 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7477 | 192 | 2.567875% |
| B | 7477 | 780 | 10.431991% |
| C | 7477 | 79 | 1.056573% |
| D | 7477 | 131 | 1.752040% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7823 | 7479 | 53 | 53 | 0.68% | 0.71% |  |
| B | 7823 | 7478 | 303 | 303 | 3.87% | 4.05% |  |
| C | 7823 | 7479 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7823 | 7479 | 38 | 38 | 0.49% | 0.51% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 118856 | 637.86 | 902 | 880 | 185.0 |
| A | 1 | 162 | 111087 | 595.85 | 902 | 880 | 185.0 |
| A | 15 | 223 | 95079 | 509.3 | 902 | 880 | 185.0 |
| B | 4 | 239 | 855486 | 5236.86 | 858 | 836 | 163.2 |
| B | 3 | 64 | 757120 | 4634.12 | 858 | 836 | 163.2 |
| B | 0 | 85 | 85502 | 518.79 | 858 | 836 | 163.2 |
| C | 7 | 238 | 17801 | 82.05 | 880 | 885 | 206.2 |
| C | 8 | 128 | 9511 | 41.84 | 880 | 885 | 206.2 |
| C | 13 | 61 | 6293 | 26.23 | 880 | 885 | 206.2 |
| D | 8 | 195 | 521459 | 2428.3 | 881 | 854 | 214.4 |
| D | 1 | 52 | 225456 | 1047.63 | 881 | 854 | 214.4 |
| D | 12 | 233 | 91050 | 420.71 | 881 | 854 | 214.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

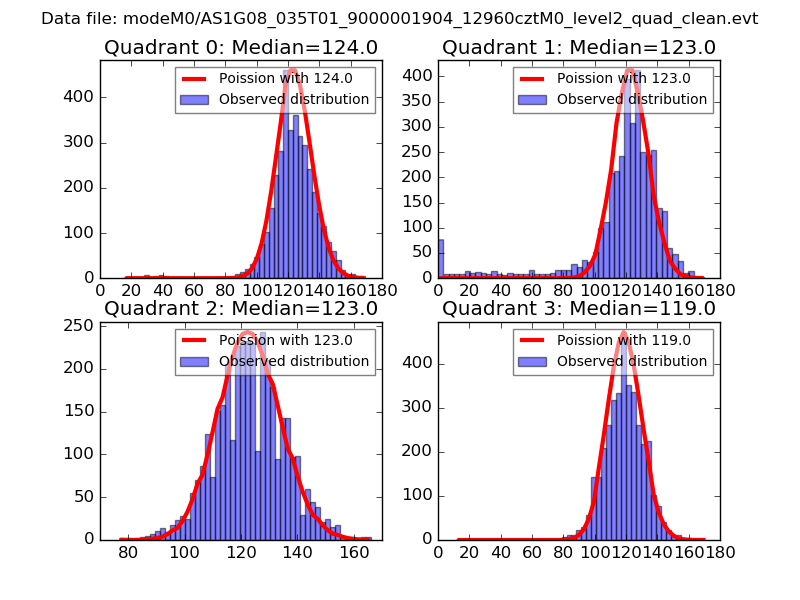

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

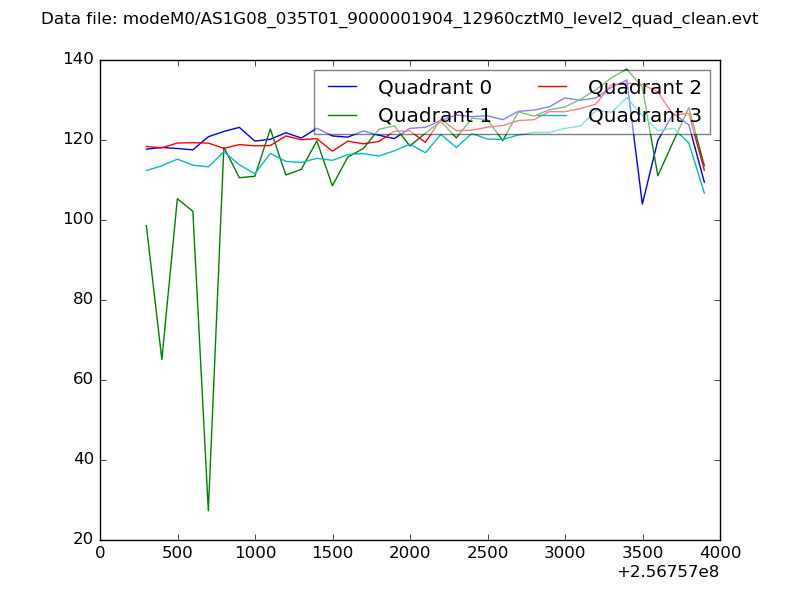

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

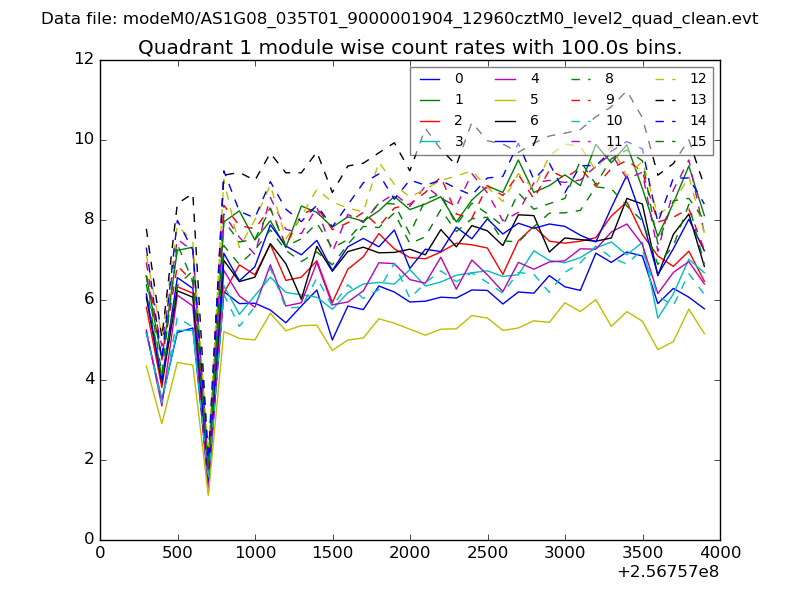

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

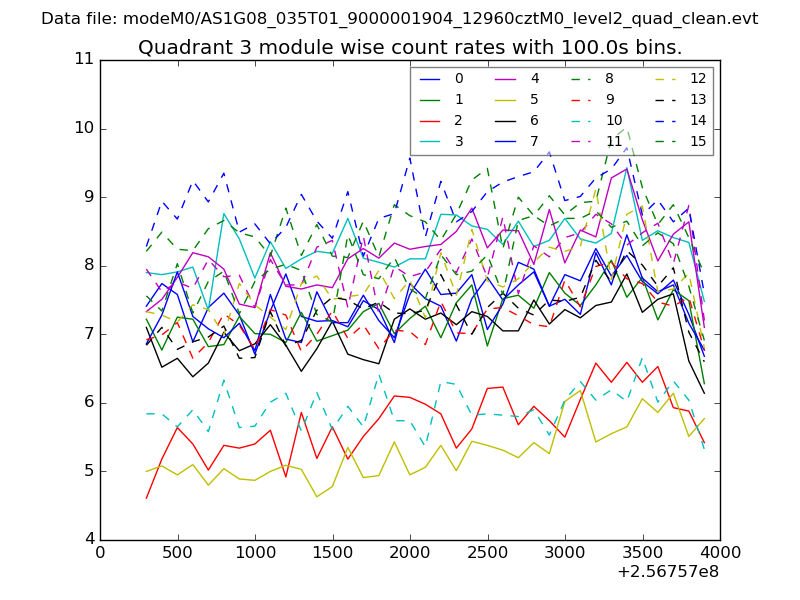

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

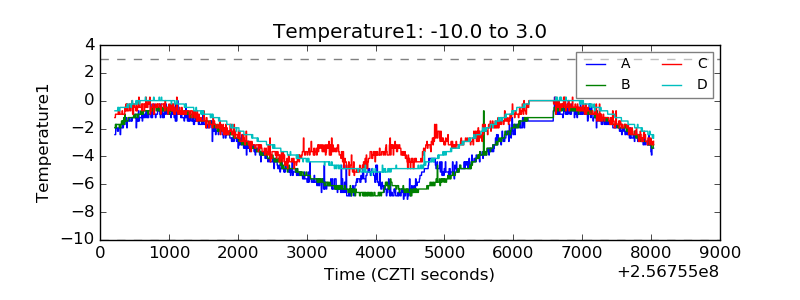

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

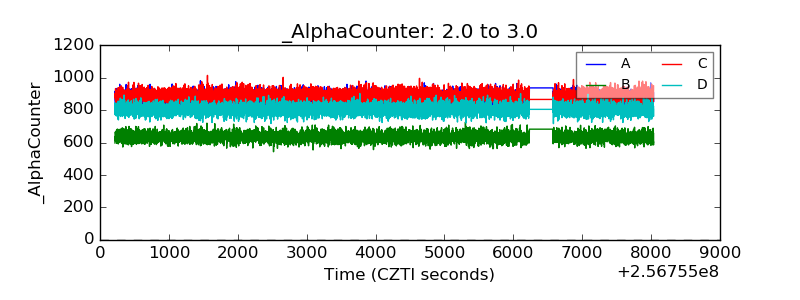

| Alpha Counter |  |

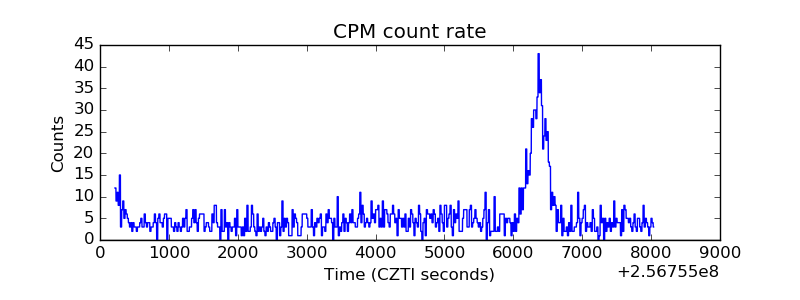

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
