| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_035T01_9000001904_12962cztM0_level2.evt | modeM0/AS1G08_035T01_9000001904_12962cztM0_level2_quad_clean.evt |
| Size (bytes) | 543,908,160 | 78,704,640 |
| Size | 518.7 MB | 75.1 MB |
| Events in quadrant A | 4,031,481 | 478,238 |
| Events in quadrant B | 4,780,138 | 478,488 |
| Events in quadrant C | 3,362,802 | 477,221 |
| Events in quadrant D | 3,822,398 | 461,187 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16490 | 1 |
| B | 0 | 18846 | 1 |
| C | 0 | 14733 | 1 |
| D | 0 | 15942 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7007 | 116 | 1.655487% |
| B | 7007 | 627 | 8.948195% |
| C | 7007 | 62 | 0.884829% |
| D | 7007 | 54 | 0.770658% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7533 | 7009 | 38 | 38 | 0.50% | 0.54% |  |
| B | 7533 | 7009 | 318 | 318 | 4.22% | 4.54% |  |
| C | 7533 | 7009 | 35 | 35 | 0.46% | 0.50% |  |
| D | 7533 | 7009 | 24 | 24 | 0.32% | 0.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 332389 | 1968.66 | 831 | 814 | 168.4 |
| A | 15 | 223 | 157703 | 931.5 | 831 | 814 | 168.4 |
| A | 1 | 162 | 116030 | 684.07 | 831 | 814 | 168.4 |
| B | 3 | 64 | 825787 | 5415.06 | 798 | 780 | 152.4 |
| B | 4 | 239 | 705818 | 4627.63 | 798 | 780 | 152.4 |
| B | 0 | 85 | 38613 | 248.32 | 798 | 780 | 152.4 |
| C | 7 | 238 | 178021 | 942.24 | 808 | 810 | 188.1 |
| C | 14 | 234 | 28876 | 149.23 | 808 | 810 | 188.1 |
| C | 13 | 61 | 6048 | 27.85 | 808 | 810 | 188.1 |
| D | 8 | 195 | 499835 | 2520.94 | 808 | 781 | 198.0 |
| D | 1 | 52 | 99949 | 500.94 | 808 | 781 | 198.0 |
| D | 12 | 233 | 91098 | 456.23 | 808 | 781 | 198.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

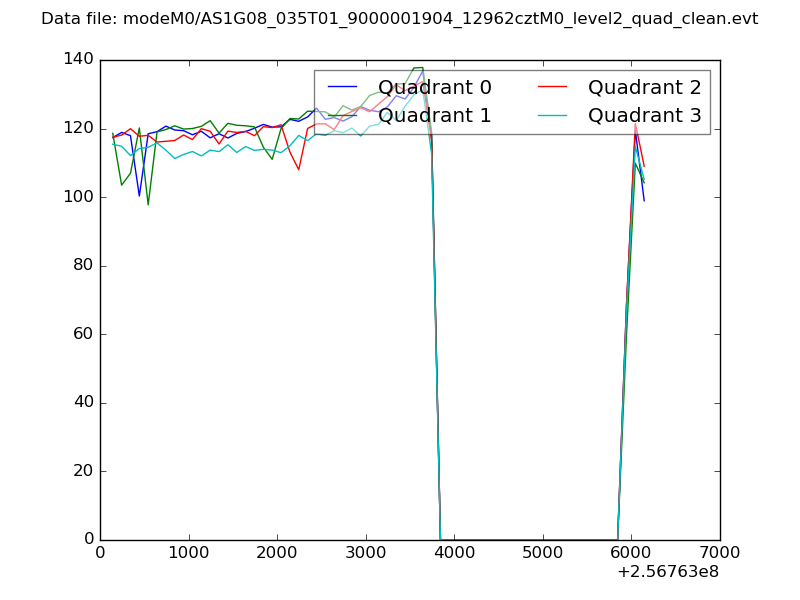

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

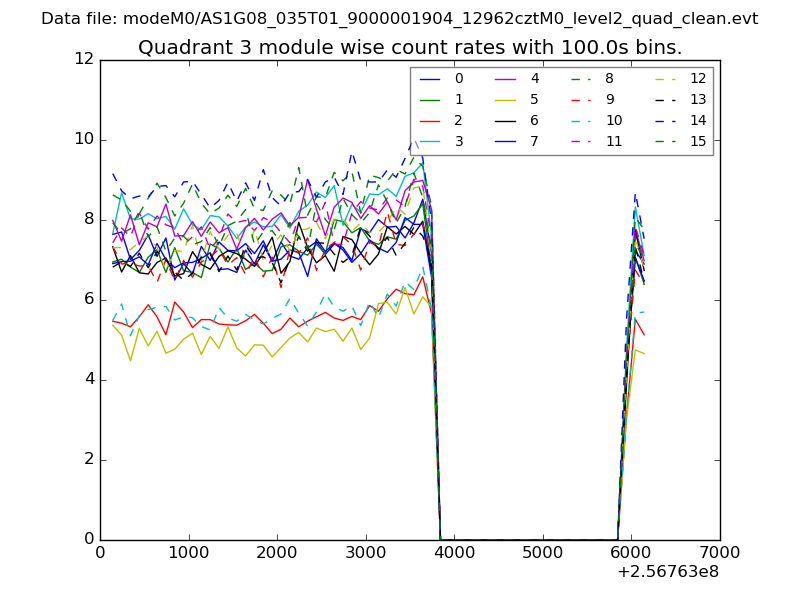

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

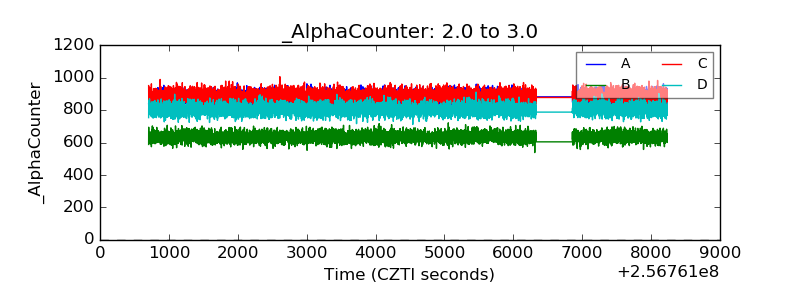

| Alpha Counter |  |

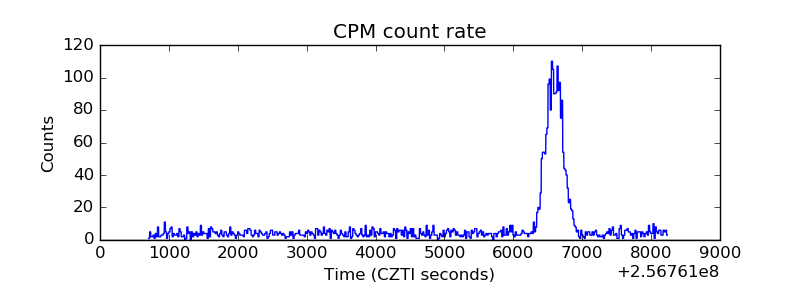

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

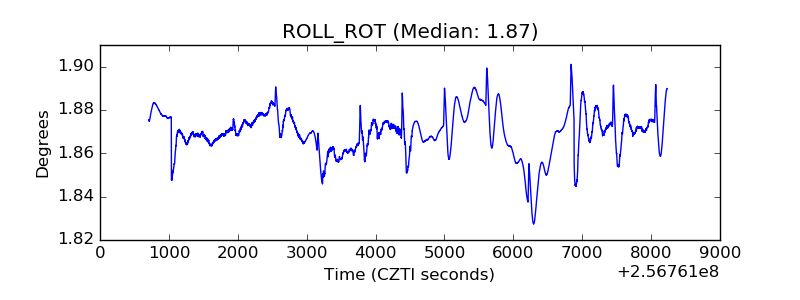

| _ROLL_ROT |  |

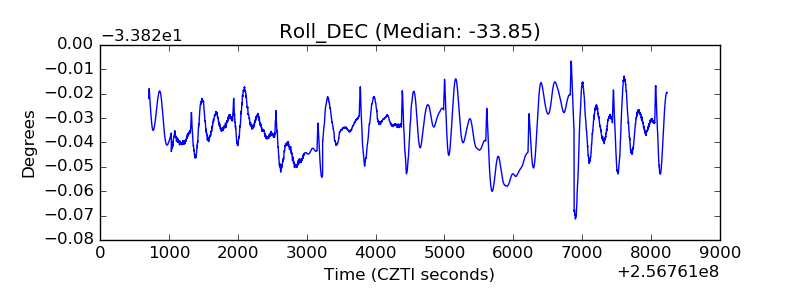

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
