| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_004T01_9000001910_12977cztM0_level2.evt | modeM0/AS1T02_004T01_9000001910_12977cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,149,301,440 | 198,570,240 |
| Size | 1.1 GB | 189.4 MB |
| Events in quadrant A | 7,962,579 | 1,276,678 |
| Events in quadrant B | 10,046,173 | 1,258,204 |
| Events in quadrant C | 6,789,252 | 1,271,633 |
| Events in quadrant D | 9,022,877 | 1,200,816 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 33109 | 4 |
| B | 0 | 39197 | 3 |
| C | 0 | 29964 | 3 |
| D | 0 | 36452 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 300 | 0 |
| B | 0 | 300 | 0 |
| C | 0 | 300 | 0 |
| D | 0 | 300 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 14578 | 229 | 1.570860% |
| B | 14578 | 1307 | 8.965565% |
| C | 14578 | 116 | 0.795720% |
| D | 14578 | 520 | 3.567019% |

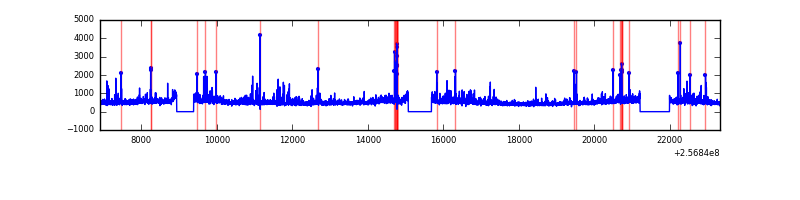

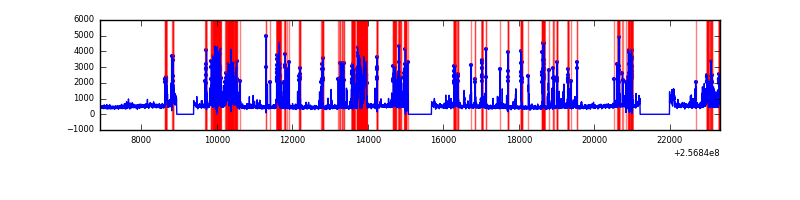

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 16424 | 14582 | 33 | 33 | 0.20% | 0.23% |  |
| B | 16424 | 14582 | 654 | 654 | 3.98% | 4.48% |  |
| C | 16424 | 14582 | 19 | 19 | 0.12% | 0.13% |  |
| D | 16424 | 14582 | 387 | 387 | 2.36% | 2.65% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 487254 | 1374.19 | 1745 | 1707 | 353.3 |
| A | 1 | 162 | 199637 | 560.18 | 1745 | 1707 | 353.3 |
| A | 15 | 223 | 163663 | 458.36 | 1745 | 1707 | 353.3 |
| B | 4 | 239 | 1849813 | 5784.74 | 1691 | 1648 | 319.5 |
| B | 0 | 85 | 993181 | 3103.49 | 1691 | 1648 | 319.5 |
| B | 3 | 64 | 382507 | 1192.09 | 1691 | 1648 | 319.5 |
| C | 14 | 234 | 101436 | 252.6 | 1708 | 1718 | 394.8 |
| C | 0 | 207 | 31485 | 75.4 | 1708 | 1718 | 394.8 |
| C | 13 | 61 | 12400 | 27.06 | 1708 | 1718 | 394.8 |
| D | 1 | 52 | 2036759 | 5036.72 | 1680 | 1635 | 404.1 |
| D | 8 | 195 | 299777 | 737.87 | 1680 | 1635 | 404.1 |
| D | 2 | 14 | 231747 | 569.5 | 1680 | 1635 | 404.1 |

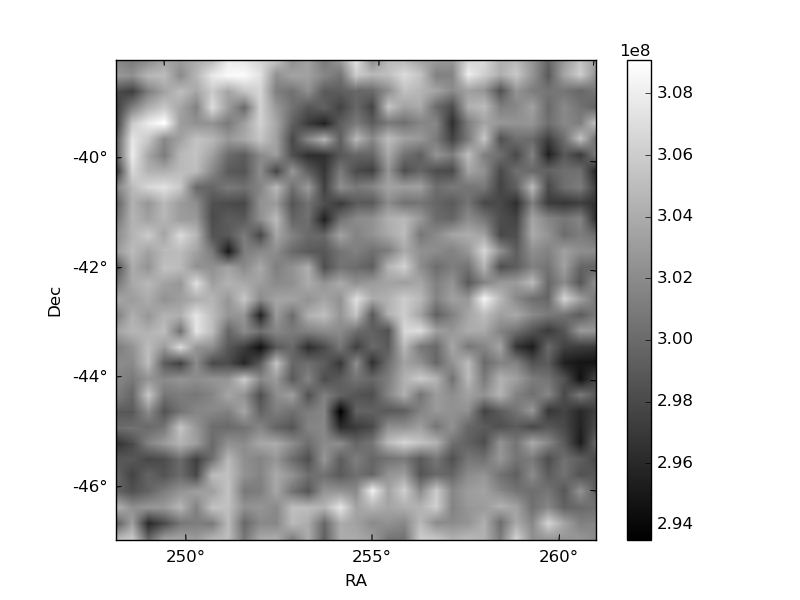

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

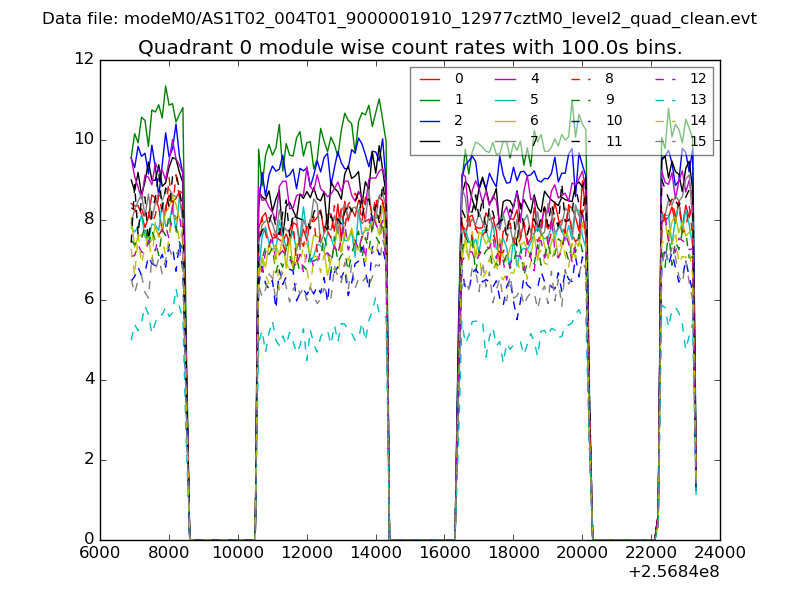

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

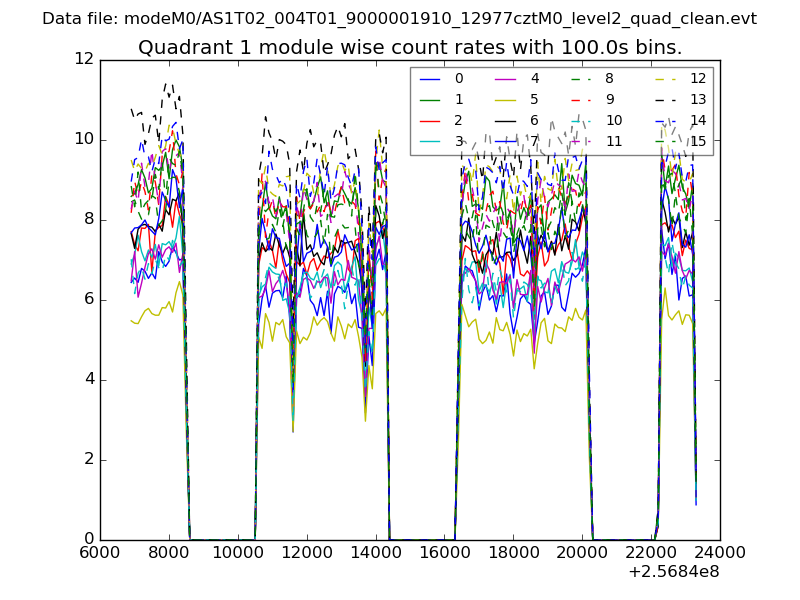

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

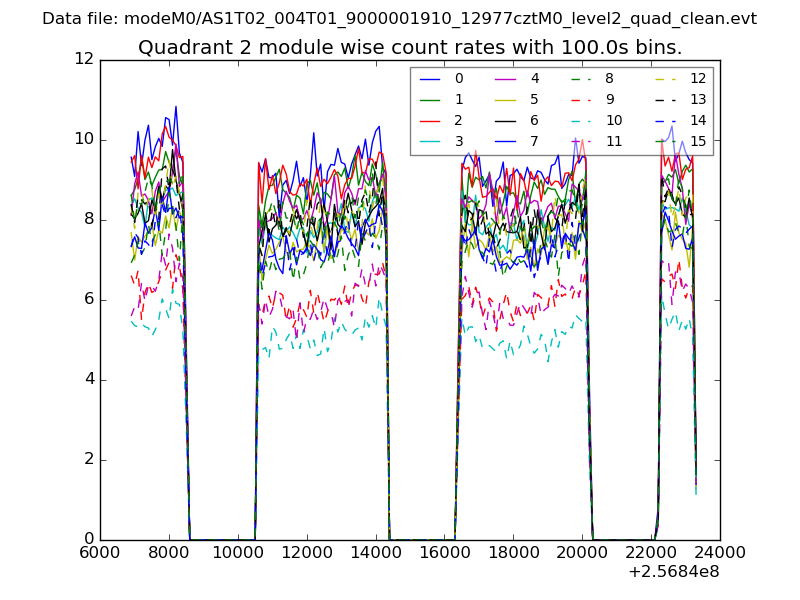

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

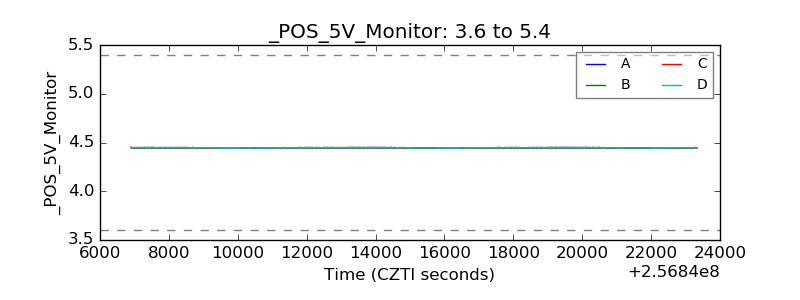

| +5 Volts monitor |  |

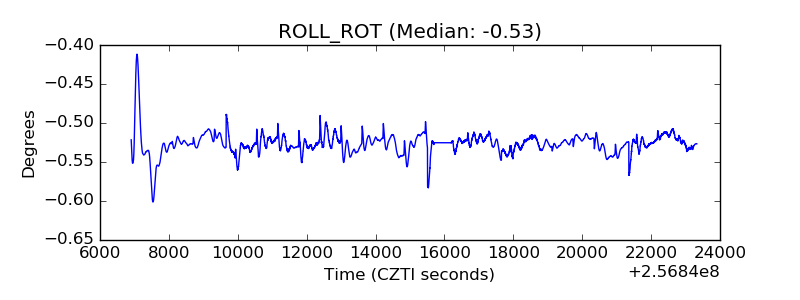

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
