| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_004T01_9000001910_12981cztM0_level2.evt | modeM0/AS1T02_004T01_9000001910_12981cztM0_level2_quad_clean.evt |
| Size (bytes) | 573,652,800 | 105,359,040 |
| Size | 547.1 MB | 100.5 MB |
| Events in quadrant A | 3,530,354 | 683,484 |
| Events in quadrant B | 5,065,302 | 683,835 |
| Events in quadrant C | 3,307,934 | 703,505 |
| Events in quadrant D | 5,014,324 | 651,692 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14725 | 3 |
| B | 0 | 19424 | 2 |
| C | 0 | 14066 | 2 |
| D | 0 | 19197 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6713 | 49 | 0.729927% |
| B | 6713 | 614 | 9.146432% |
| C | 6713 | 34 | 0.506480% |
| D | 6713 | 448 | 6.673618% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

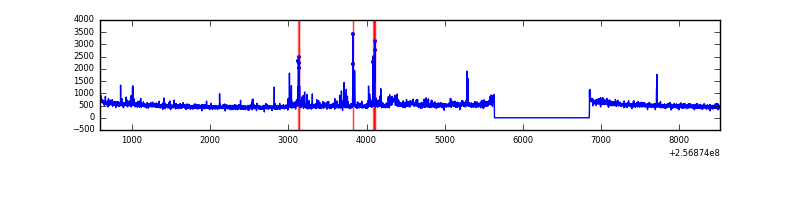

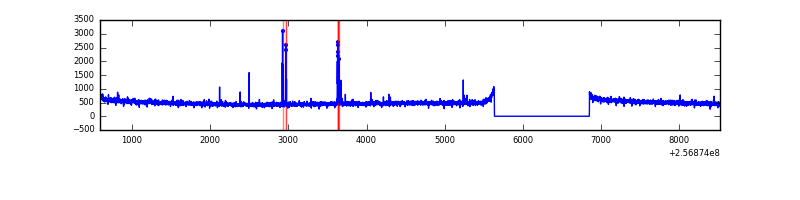

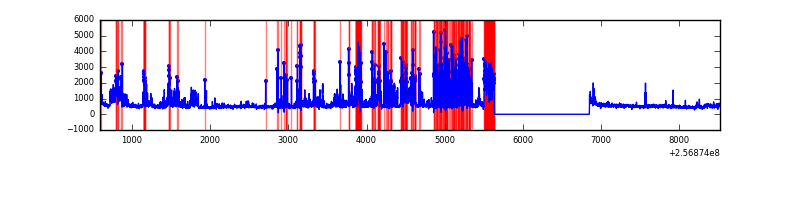

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7929 | 6715 | 13 | 13 | 0.16% | 0.19% |  |
| B | 7929 | 6715 | 338 | 338 | 4.26% | 5.03% |  |
| C | 7929 | 6715 | 8 | 8 | 0.10% | 0.12% |  |
| D | 7929 | 6715 | 326 | 326 | 4.11% | 4.85% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 80464 | 476.45 | 829 | 812 | 167.2 |
| A | 15 | 223 | 79771 | 472.3 | 829 | 812 | 167.2 |
| A | 1 | 162 | 47668 | 280.27 | 829 | 812 | 167.2 |
| B | 0 | 85 | 1275049 | 8459.06 | 807 | 788 | 150.6 |
| B | 3 | 64 | 236990 | 1568.0 | 807 | 788 | 150.6 |
| B | 4 | 239 | 233903 | 1547.51 | 807 | 788 | 150.6 |
| C | 14 | 234 | 50611 | 259.19 | 834 | 842 | 192.0 |
| C | 13 | 61 | 6081 | 27.28 | 834 | 842 | 192.0 |
| C | 0 | 207 | 5279 | 23.1 | 834 | 842 | 192.0 |
| D | 1 | 52 | 1787653 | 9416.79 | 792 | 772 | 189.8 |
| D | 8 | 195 | 156600 | 821.21 | 792 | 772 | 189.8 |
| D | 2 | 33 | 59155 | 307.68 | 792 | 772 | 189.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

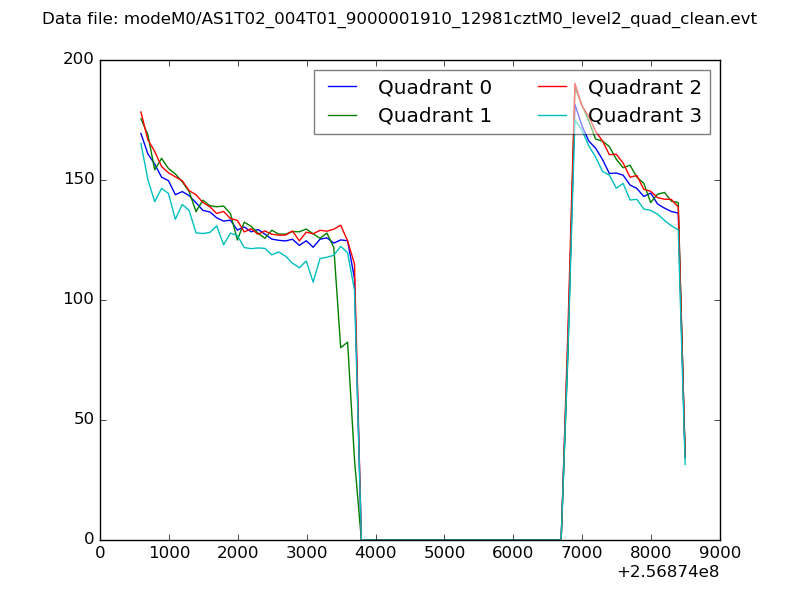

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

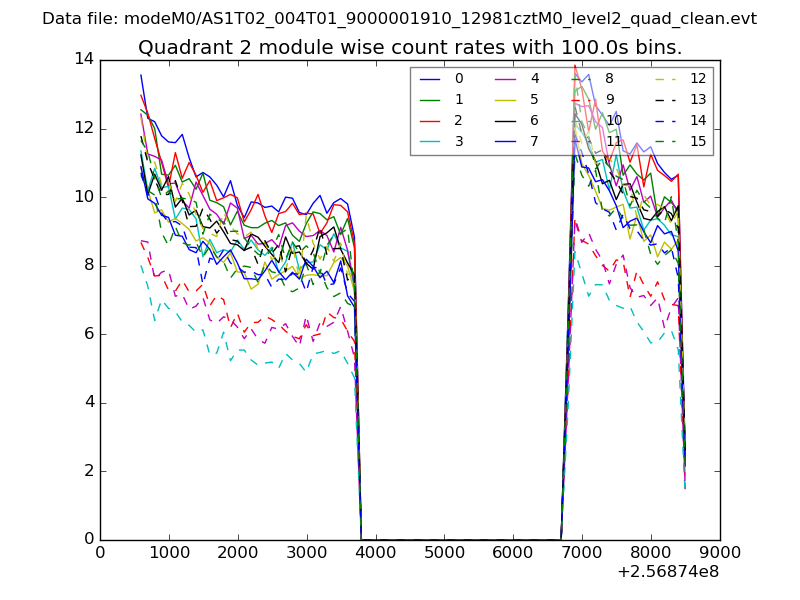

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

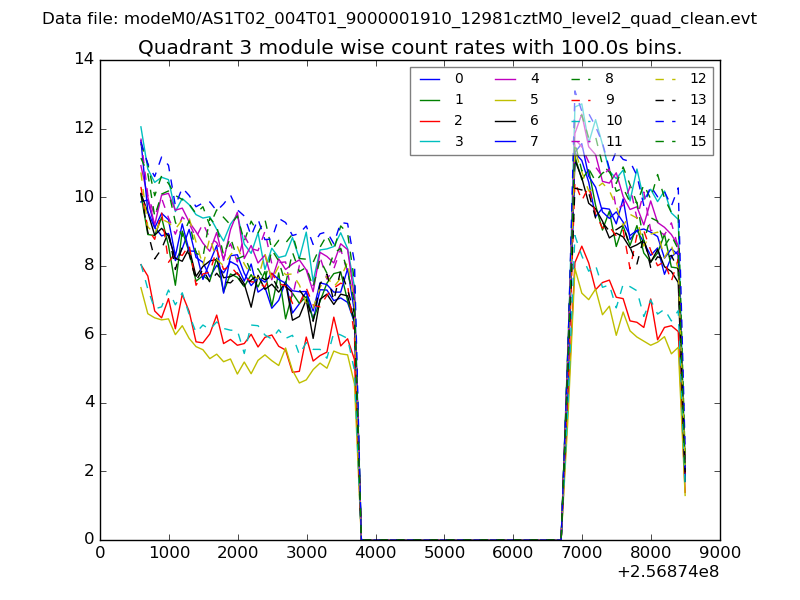

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

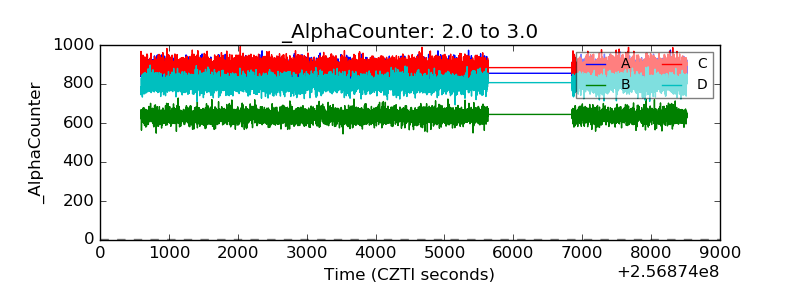

| Alpha Counter |  |

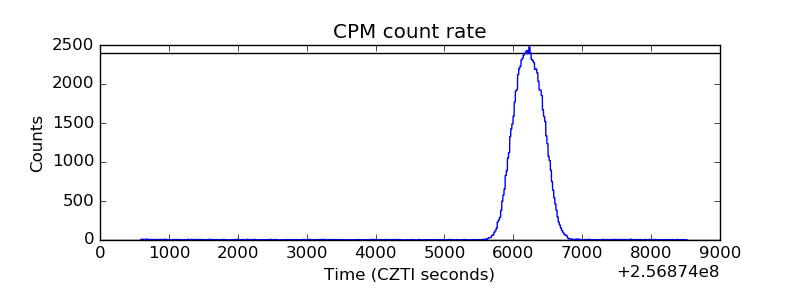

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
