| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_055T01_9000001912_12988cztM0_level2.evt | modeM0/AS1G08_055T01_9000001912_12988cztM0_level2_quad_clean.evt |
| Size (bytes) | 601,937,280 | 95,420,160 |
| Size | 574.1 MB | 91.0 MB |
| Events in quadrant A | 4,048,808 | 594,751 |
| Events in quadrant B | 5,718,197 | 572,294 |
| Events in quadrant C | 3,765,594 | 596,431 |
| Events in quadrant D | 4,155,107 | 570,812 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 164 | 0 |
| B | 0 | 164 | 0 |
| C | 0 | 164 | 0 |
| D | 0 | 164 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17215 | 2 |
| B | 0 | 22157 | 1 |
| C | 0 | 16801 | 1 |
| D | 0 | 17890 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7985 | 288 | 3.606763% |
| B | 7985 | 869 | 10.882905% |
| C | 7985 | 181 | 2.266750% |
| D | 7985 | 218 | 2.730119% |

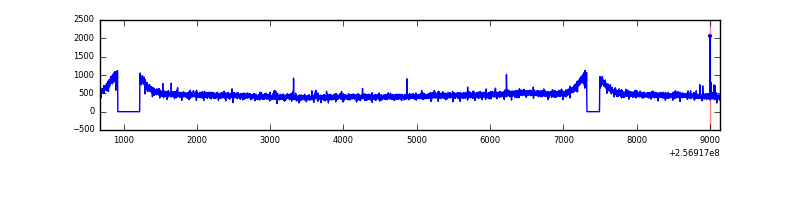

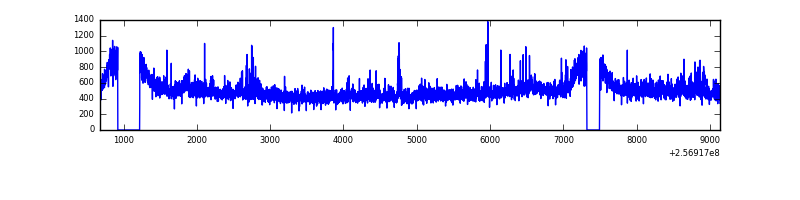

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8461 | 7988 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8461 | 7988 | 352 | 352 | 4.16% | 4.41% |  |
| C | 8461 | 7988 | 1 | 1 | 0.01% | 0.01% |  |
| D | 8461 | 7988 | 32 | 32 | 0.38% | 0.40% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 152730 | 758.36 | 983 | 958 | 200.1 |
| A | 1 | 162 | 47711 | 233.61 | 983 | 958 | 200.1 |
| A | 1 | 178 | 19488 | 92.59 | 983 | 958 | 200.1 |
| B | 0 | 85 | 875672 | 4810.99 | 952 | 927 | 181.8 |
| B | 4 | 239 | 489072 | 2684.74 | 952 | 927 | 181.8 |
| B | 3 | 64 | 482642 | 2649.38 | 952 | 927 | 181.8 |
| C | 14 | 234 | 8460 | 33.41 | 961 | 966 | 224.3 |
| C | 13 | 61 | 6964 | 26.74 | 961 | 966 | 224.3 |
| C | 12 | 4 | 4169 | 14.28 | 961 | 966 | 224.3 |
| D | 1 | 52 | 484471 | 2087.16 | 959 | 930 | 231.7 |
| D | 2 | 234 | 35487 | 149.16 | 959 | 930 | 231.7 |
| D | 13 | 122 | 31321 | 131.18 | 959 | 930 | 231.7 |

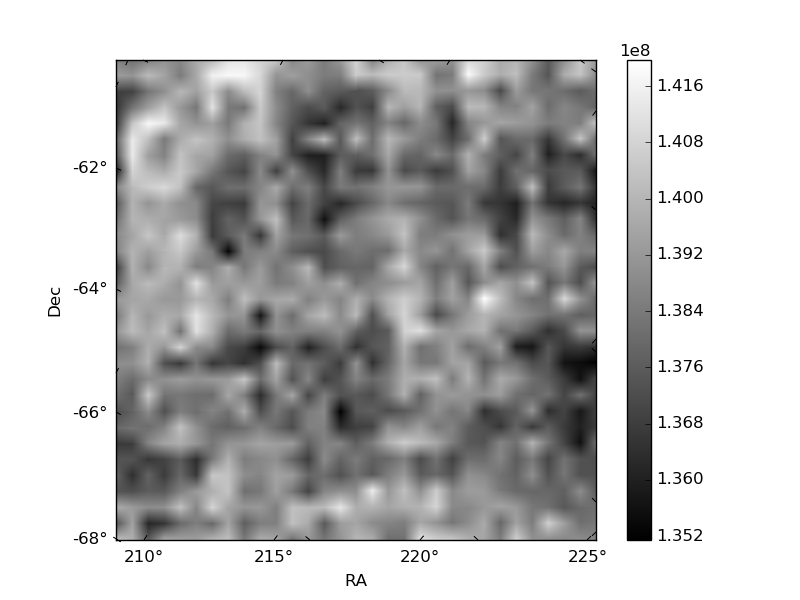

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

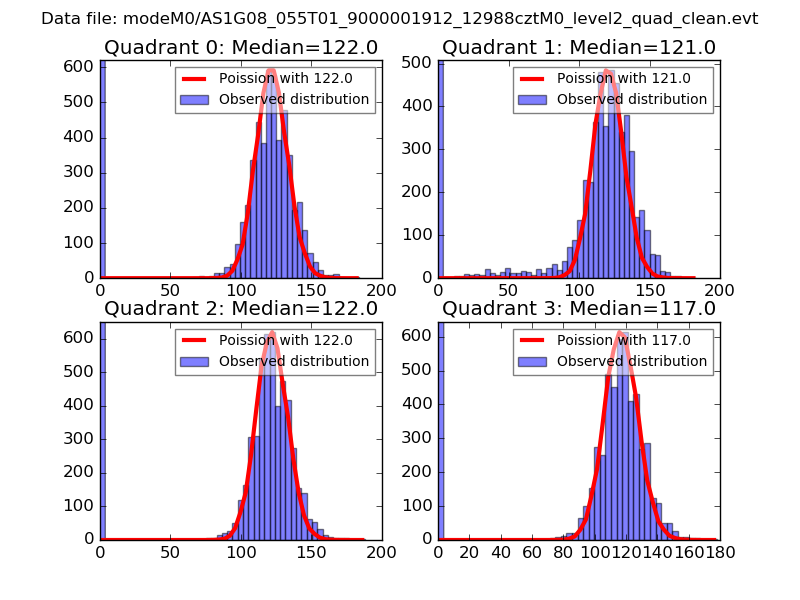

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

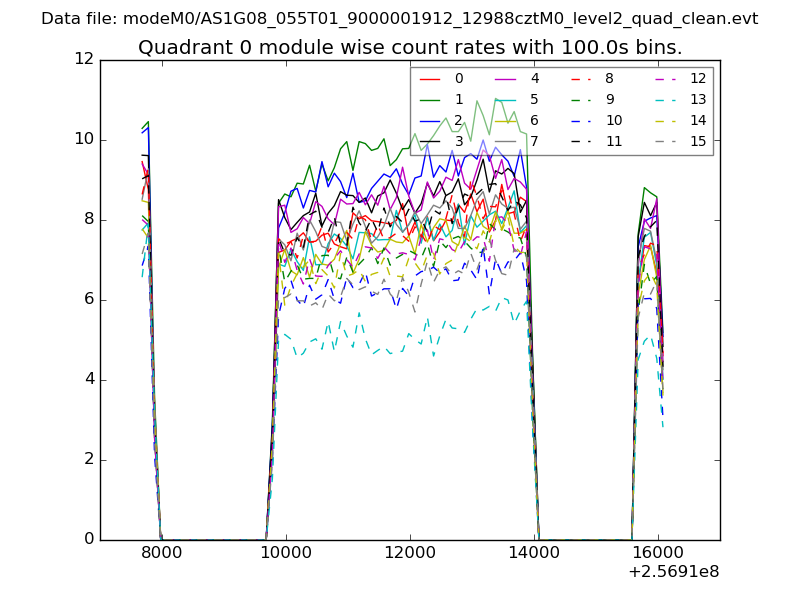

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

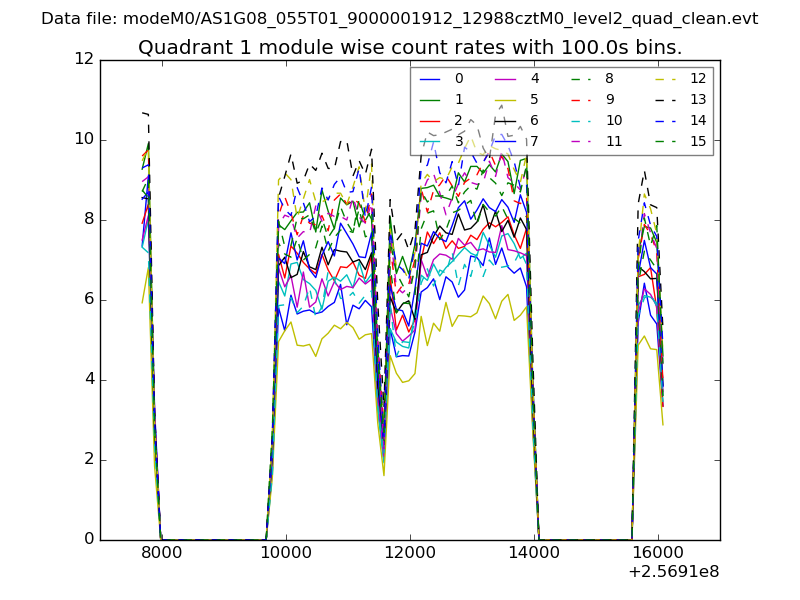

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

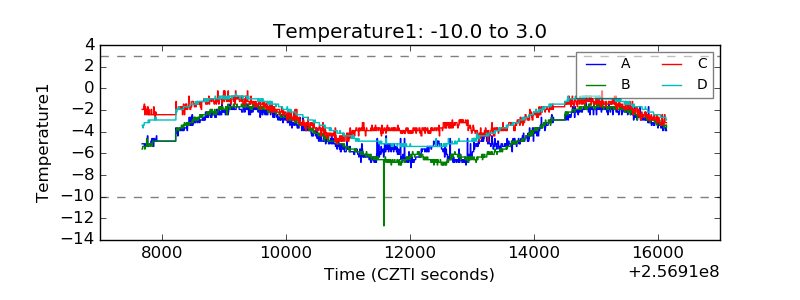

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

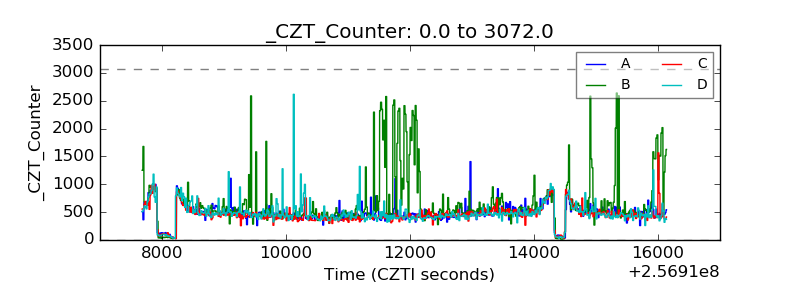

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
