| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_055T01_9000001912_12999cztM0_level2.evt | modeM0/AS1G08_055T01_9000001912_12999cztM0_level2_quad_clean.evt |
| Size (bytes) | 489,530,880 | 95,734,080 |
| Size | 466.9 MB | 91.3 MB |
| Events in quadrant A | 3,278,356 | 623,036 |
| Events in quadrant B | 3,839,766 | 617,110 |
| Events in quadrant C | 3,095,439 | 630,378 |
| Events in quadrant D | 4,183,315 | 587,978 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13488 | 3 |
| B | 0 | 15161 | 2 |
| C | 0 | 13120 | 2 |
| D | 0 | 16442 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6313 | 100 | 1.584033% |
| B | 6313 | 309 | 4.894662% |
| C | 6313 | 62 | 0.982100% |
| D | 6313 | 234 | 3.706637% |

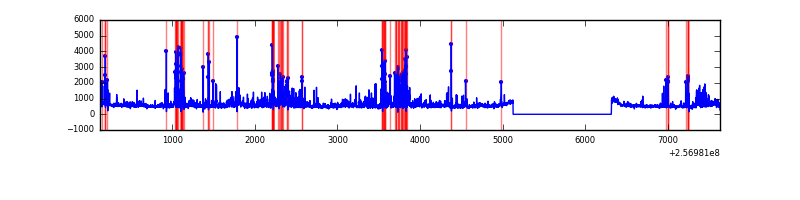

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7505 | 6316 | 5 | 5 | 0.07% | 0.08% |  |
| B | 7505 | 6316 | 122 | 122 | 1.63% | 1.93% |  |
| C | 7505 | 6316 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7505 | 6316 | 109 | 109 | 1.45% | 1.73% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 73626 | 455.34 | 799 | 783 | 160.0 |
| A | 9 | 143 | 51535 | 317.25 | 799 | 783 | 160.0 |
| A | 1 | 162 | 40500 | 248.27 | 799 | 783 | 160.0 |
| B | 4 | 239 | 508834 | 3526.77 | 781 | 761 | 144.1 |
| B | 0 | 219 | 130944 | 903.66 | 781 | 761 | 144.1 |
| B | 3 | 64 | 38493 | 261.91 | 781 | 761 | 144.1 |
| C | 14 | 234 | 7349 | 36.22 | 790 | 793 | 181.0 |
| C | 12 | 4 | 6813 | 33.26 | 790 | 793 | 181.0 |
| C | 13 | 61 | 5599 | 26.56 | 790 | 793 | 181.0 |
| D | 1 | 52 | 966396 | 5297.15 | 775 | 755 | 182.3 |
| D | 8 | 195 | 244696 | 1338.17 | 775 | 755 | 182.3 |
| D | 2 | 234 | 25987 | 138.41 | 775 | 755 | 182.3 |

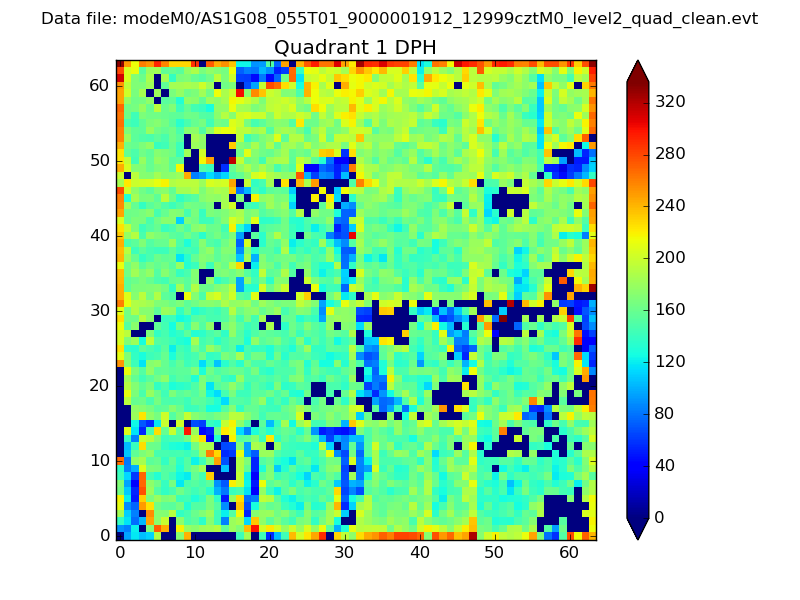

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

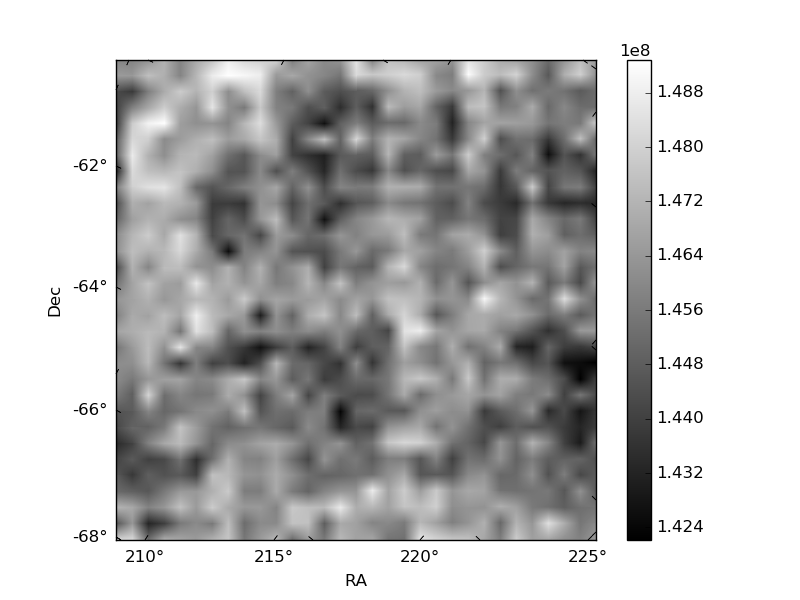

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

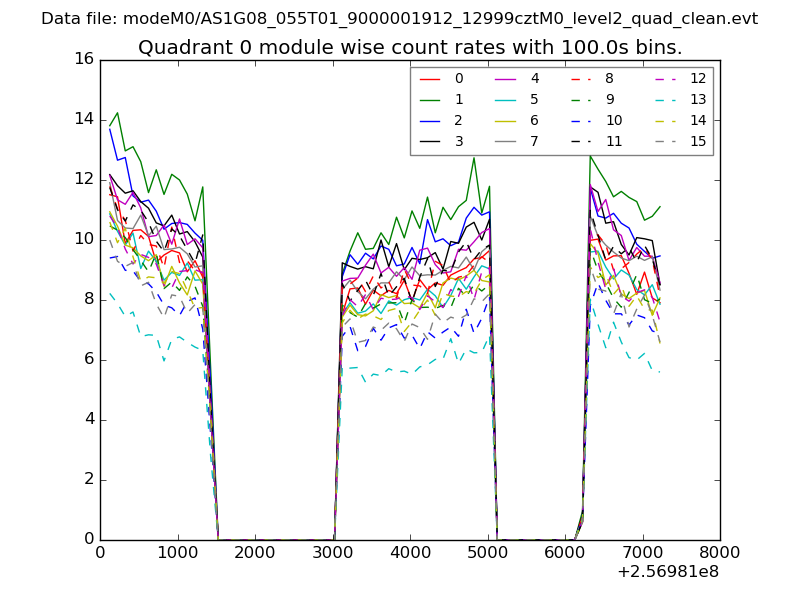

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

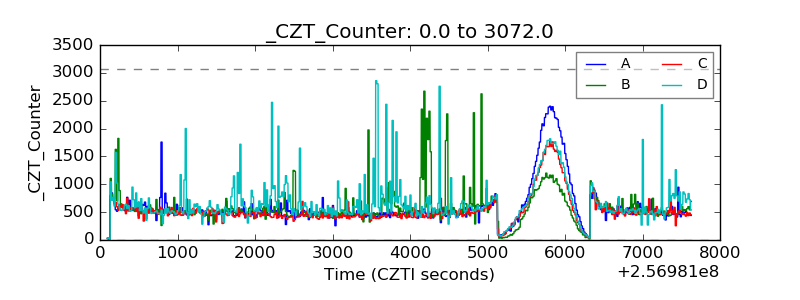

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

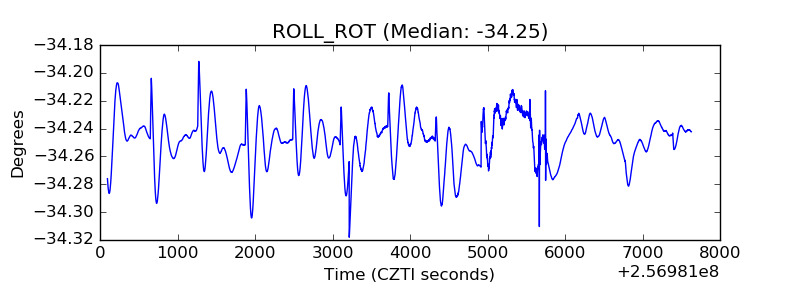

| _ROLL_ROT |  |
| _Roll_DEC |  |

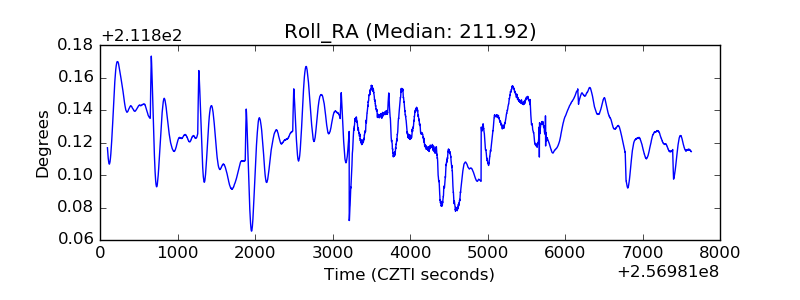

| _Roll_RA |  |

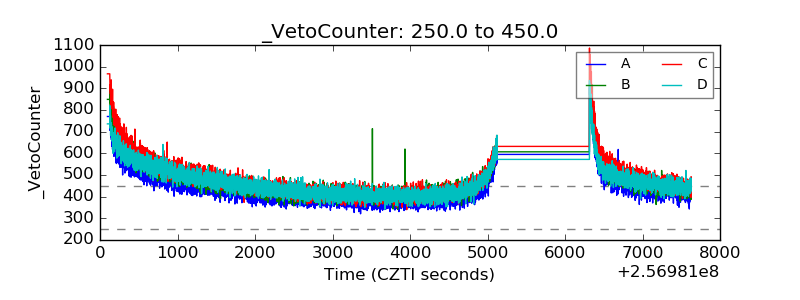

| Veto Counter |  |
