| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_149T01_9000001918_13029cztM0_level2.evt | modeM0/AS1A04_149T01_9000001918_13029cztM0_level2_quad_clean.evt |
| Size (bytes) | 541,281,600 | 86,639,040 |
| Size | 516.2 MB | 82.6 MB |
| Events in quadrant A | 3,400,183 | 569,275 |
| Events in quadrant B | 6,169,504 | 481,066 |
| Events in quadrant C | 3,046,246 | 572,027 |
| Events in quadrant D | 3,332,834 | 544,813 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14216 | 3 |
| B | 0 | 22592 | 2 |
| C | 0 | 13474 | 2 |
| D | 0 | 14188 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6540 | 129 | 1.972477% |
| B | 6540 | 1370 | 20.948012% |
| C | 6540 | 89 | 1.360856% |
| D | 6540 | 90 | 1.376147% |

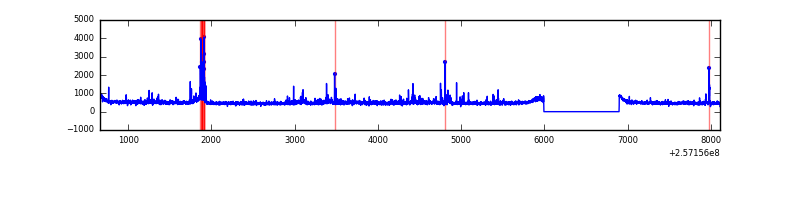

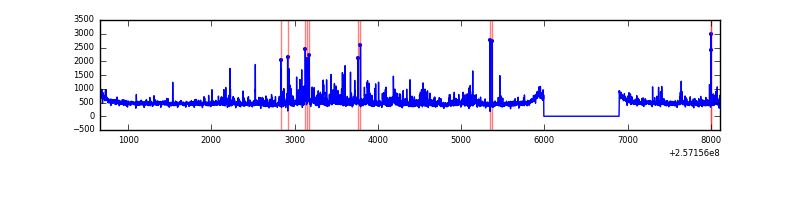

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7447 | 6543 | 18 | 18 | 0.24% | 0.28% |  |
| B | 7447 | 6542 | 808 | 808 | 10.85% | 12.35% |  |
| C | 7447 | 6543 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7447 | 6543 | 11 | 11 | 0.15% | 0.17% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 135298 | 847.14 | 786 | 768 | 158.8 |
| A | 12 | 189 | 78400 | 488.85 | 786 | 768 | 158.8 |
| A | 15 | 239 | 52289 | 324.43 | 786 | 768 | 158.8 |
| B | 4 | 239 | 2788432 | 21286.25 | 694 | 677 | 131.0 |
| B | 3 | 64 | 559604 | 4267.76 | 694 | 677 | 131.0 |
| B | 0 | 214 | 25422 | 188.94 | 694 | 677 | 131.0 |
| C | 14 | 234 | 12316 | 65.47 | 773 | 775 | 176.3 |
| C | 7 | 238 | 6619 | 33.15 | 773 | 775 | 176.3 |
| C | 13 | 61 | 5571 | 27.21 | 773 | 775 | 176.3 |
| D | 8 | 195 | 217465 | 1182.87 | 769 | 746 | 183.2 |
| D | 1 | 52 | 169939 | 923.47 | 769 | 746 | 183.2 |
| D | 2 | 234 | 22925 | 121.05 | 769 | 746 | 183.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

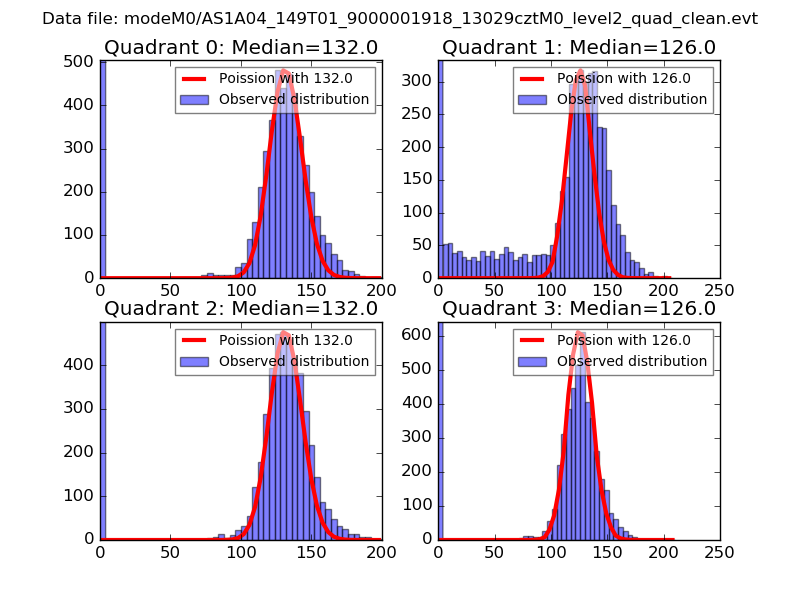

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

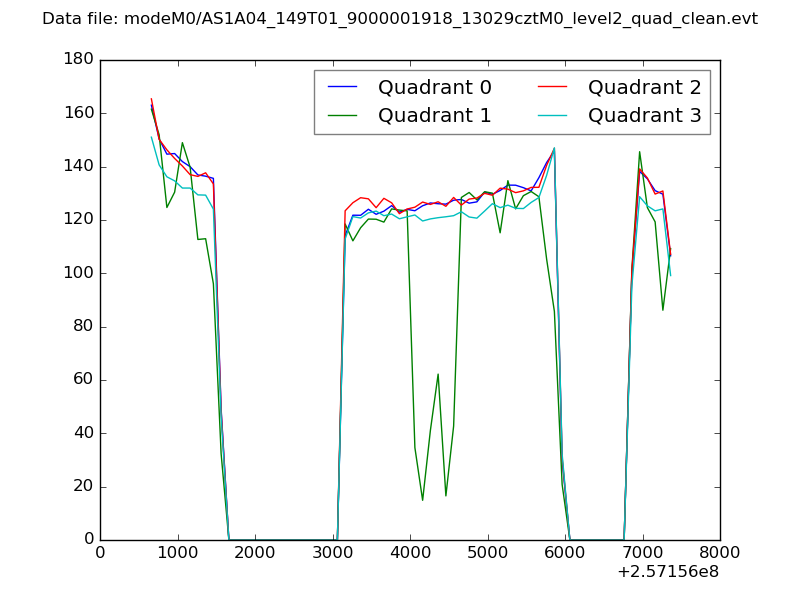

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

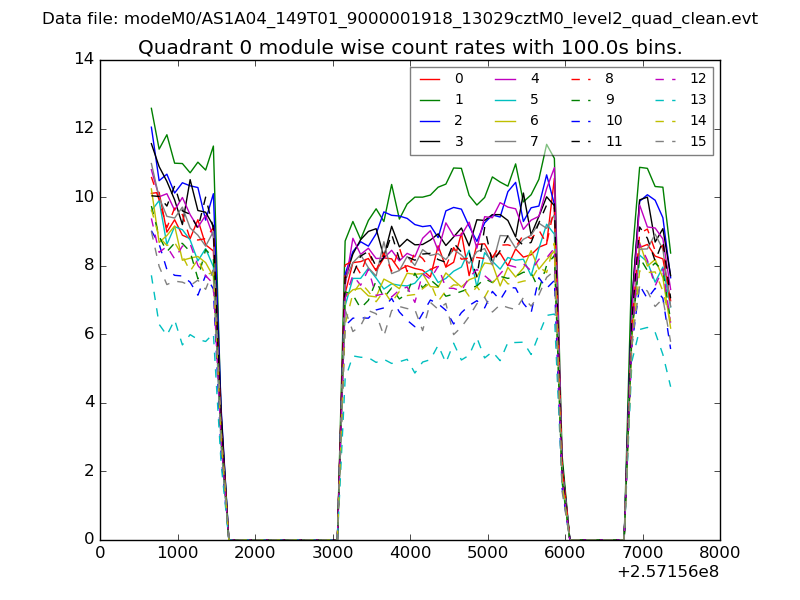

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

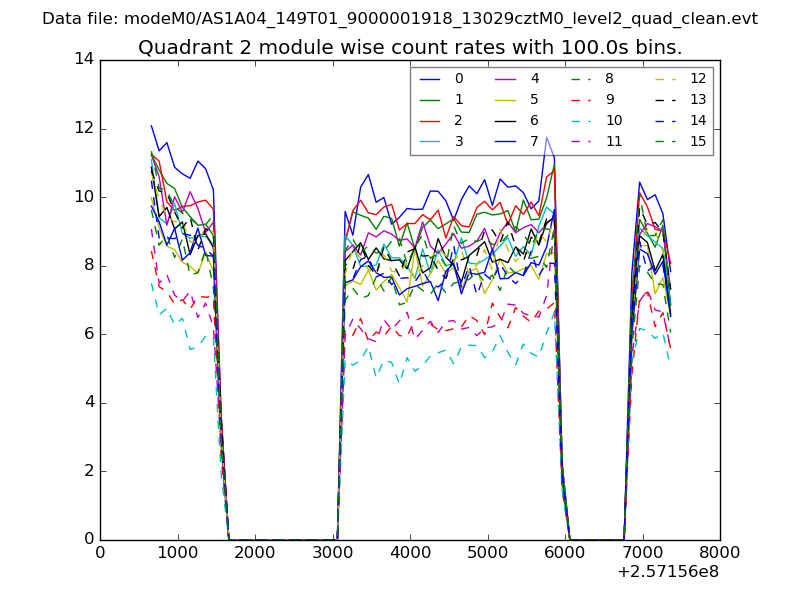

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

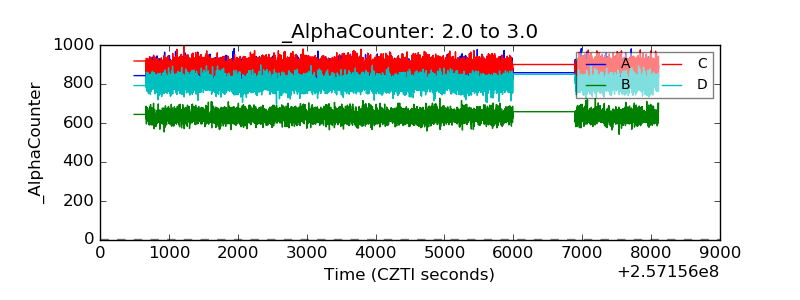

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

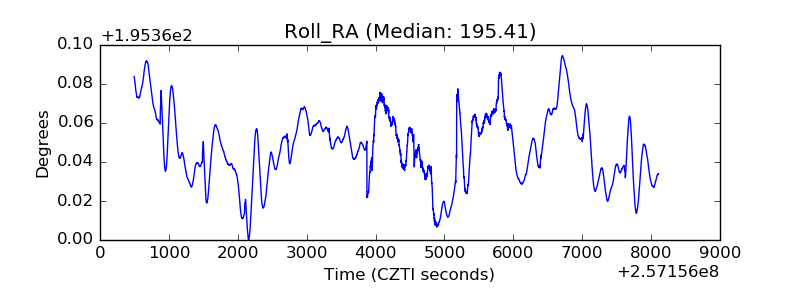

| _Roll_RA |  |
| Veto Counter |  |
