| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_045T01_9000001920_13050cztM0_level2.evt | modeM0/AS1G08_045T01_9000001920_13050cztM0_level2_quad_clean.evt |
| Size (bytes) | 529,738,560 | 80,547,840 |
| Size | 505.2 MB | 76.8 MB |
| Events in quadrant A | 3,668,054 | 504,262 |
| Events in quadrant B | 4,586,424 | 483,225 |
| Events in quadrant C | 3,057,049 | 504,410 |
| Events in quadrant D | 4,277,843 | 480,486 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15361 | 3 |
| B | 0 | 18079 | 2 |
| C | 0 | 13566 | 2 |
| D | 0 | 17212 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6691 | 98 | 1.464654% |
| B | 6691 | 446 | 6.665670% |
| C | 6691 | 25 | 0.373636% |
| D | 6691 | 129 | 1.927963% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

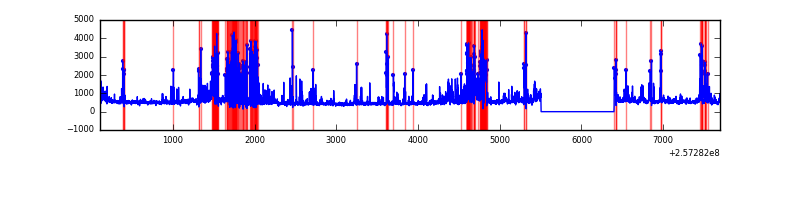

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7587 | 6694 | 23 | 23 | 0.30% | 0.34% |  |
| B | 7587 | 6694 | 245 | 245 | 3.23% | 3.66% |  |
| C | 7587 | 6694 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7587 | 6693 | 77 | 77 | 1.01% | 1.15% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 310863 | 1888.25 | 798 | 781 | 164.2 |
| A | 12 | 189 | 95922 | 579.36 | 798 | 781 | 164.2 |
| A | 1 | 162 | 57084 | 342.86 | 798 | 781 | 164.2 |
| B | 4 | 239 | 755200 | 5089.37 | 779 | 760 | 148.2 |
| B | 0 | 85 | 422290 | 2843.59 | 779 | 760 | 148.2 |
| B | 0 | 219 | 137134 | 919.96 | 779 | 760 | 148.2 |
| C | 8 | 128 | 9809 | 50.16 | 778 | 785 | 179.9 |
| C | 8 | 112 | 5724 | 27.46 | 778 | 785 | 179.9 |
| C | 13 | 61 | 5626 | 26.91 | 778 | 785 | 179.9 |
| D | 1 | 52 | 937171 | 5017.18 | 767 | 745 | 186.6 |
| D | 8 | 195 | 217810 | 1162.99 | 767 | 745 | 186.6 |
| D | 10 | 157 | 158800 | 846.83 | 767 | 745 | 186.6 |

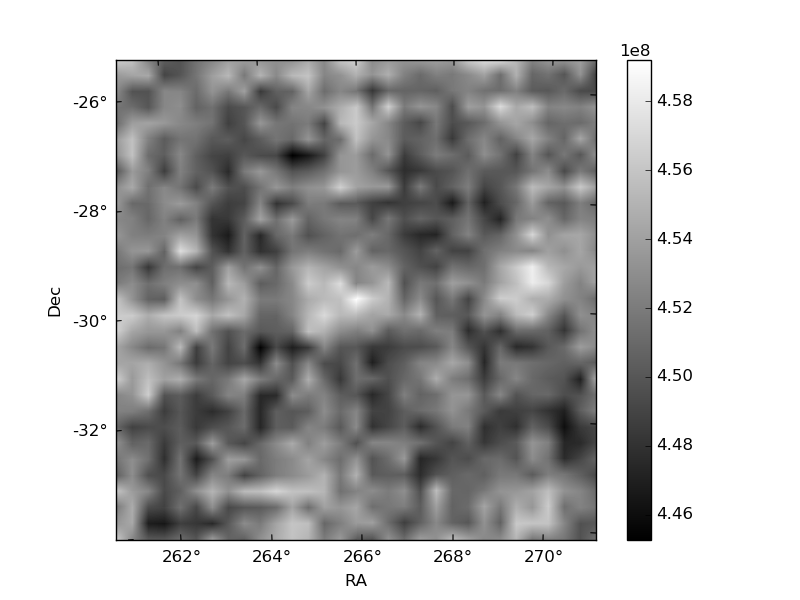

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

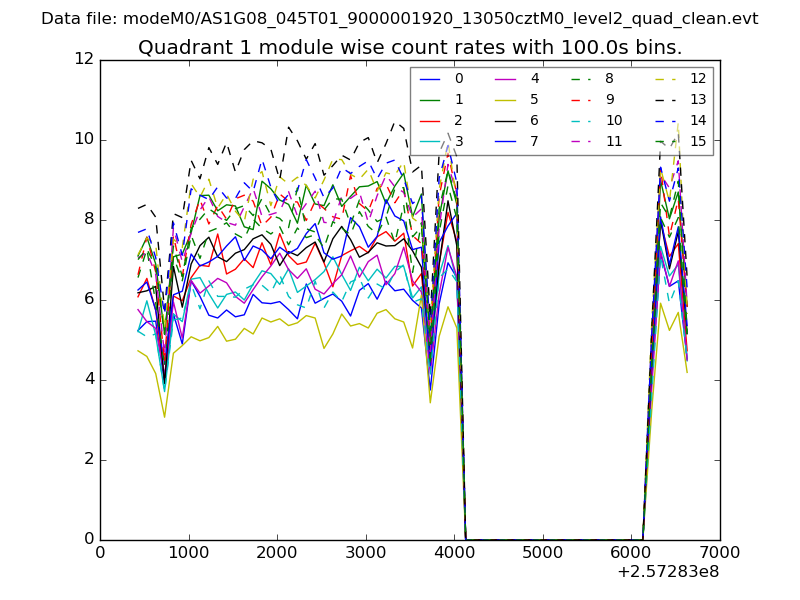

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

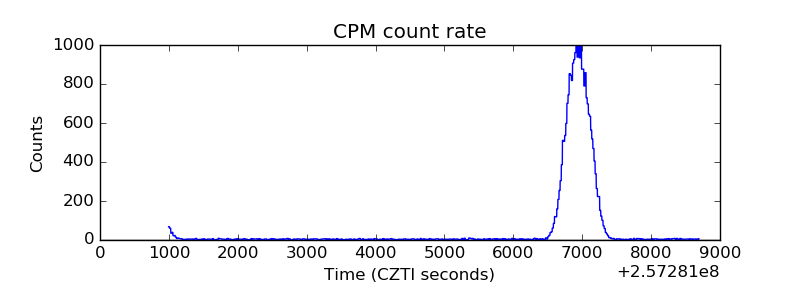

| _CPM_Rate |  |

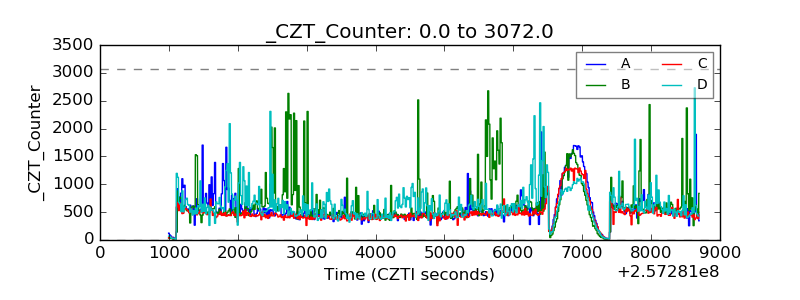

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

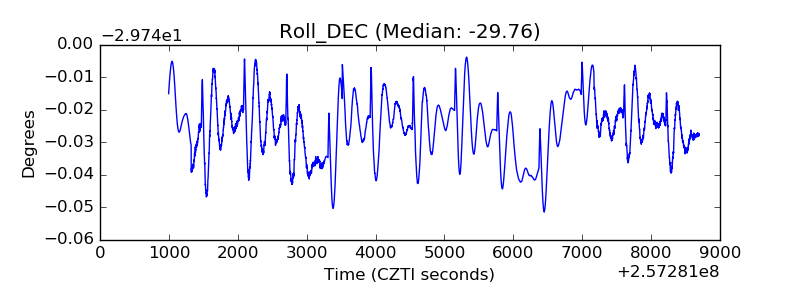

| _Roll_DEC |  |

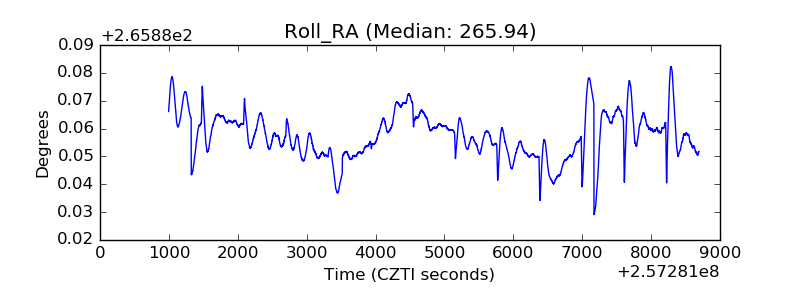

| _Roll_RA |  |

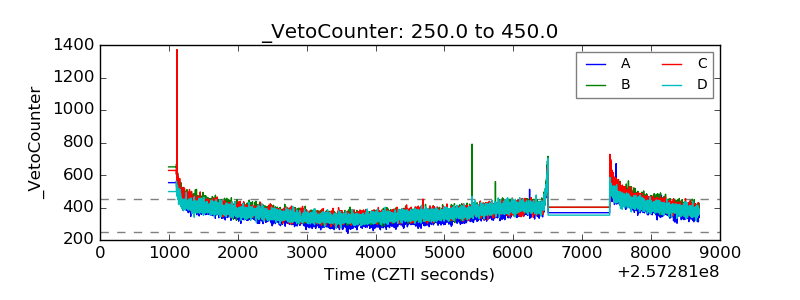

| Veto Counter |  |
