| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_045T01_9000001920_13055cztM0_level2.evt | modeM0/AS1G08_045T01_9000001920_13055cztM0_level2_quad_clean.evt |
| Size (bytes) | 600,462,720 | 93,153,600 |
| Size | 572.6 MB | 88.8 MB |
| Events in quadrant A | 3,518,226 | 625,877 |
| Events in quadrant B | 7,171,246 | 518,433 |
| Events in quadrant C | 2,959,003 | 650,994 |
| Events in quadrant D | 4,122,757 | 599,154 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14393 | 2 |
| B | 0 | 25321 | 1 |
| C | 0 | 12541 | 1 |
| D | 0 | 16233 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6101 | 87 | 1.425996% |
| B | 6101 | 2247 | 36.830028% |
| C | 6101 | 11 | 0.180298% |
| D | 6101 | 252 | 4.130470% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7427 | 6103 | 56 | 56 | 0.75% | 0.92% |  |
| B | 7427 | 6102 | 1425 | 1425 | 19.19% | 23.35% |  |
| C | 7427 | 6103 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7427 | 6103 | 228 | 228 | 3.07% | 3.74% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 226186 | 1491.67 | 752 | 738 | 151.1 |
| A | 15 | 223 | 220929 | 1456.89 | 752 | 738 | 151.1 |
| A | 12 | 189 | 62403 | 408.01 | 752 | 738 | 151.1 |
| B | 4 | 239 | 4585118 | 44507.93 | 551 | 539 | 103.0 |
| B | 0 | 85 | 204702 | 1982.05 | 551 | 539 | 103.0 |
| B | 3 | 64 | 195919 | 1896.78 | 551 | 539 | 103.0 |
| C | 13 | 61 | 5367 | 26.52 | 756 | 764 | 173.6 |
| C | 14 | 234 | 5101 | 24.99 | 756 | 764 | 173.6 |
| C | 12 | 4 | 3627 | 16.49 | 756 | 764 | 173.6 |
| D | 1 | 52 | 1313437 | 7465.41 | 730 | 713 | 175.8 |
| D | 2 | 234 | 21921 | 120.61 | 730 | 713 | 175.8 |
| D | 10 | 157 | 18470 | 100.98 | 730 | 713 | 175.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

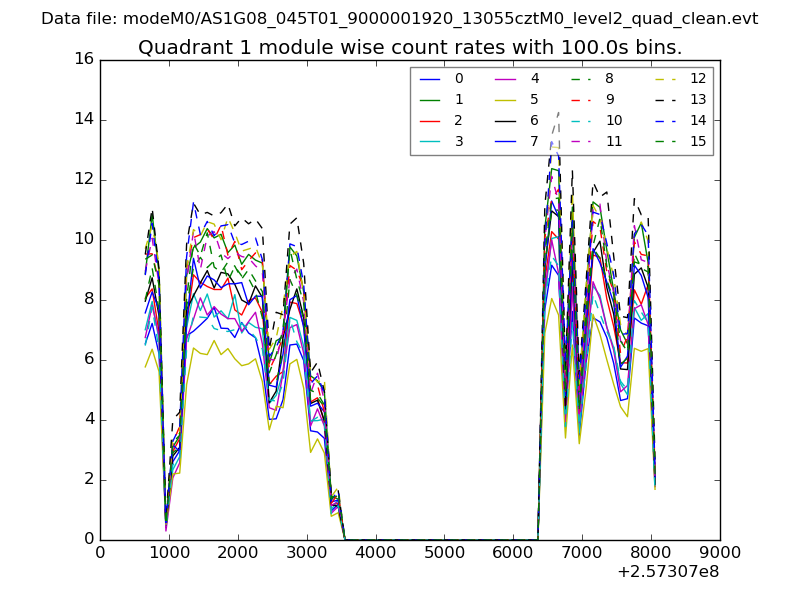

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

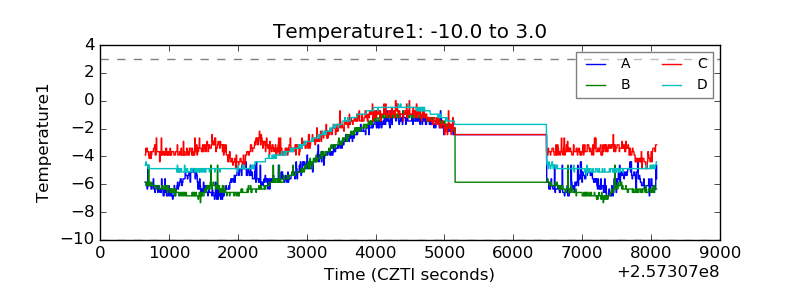

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

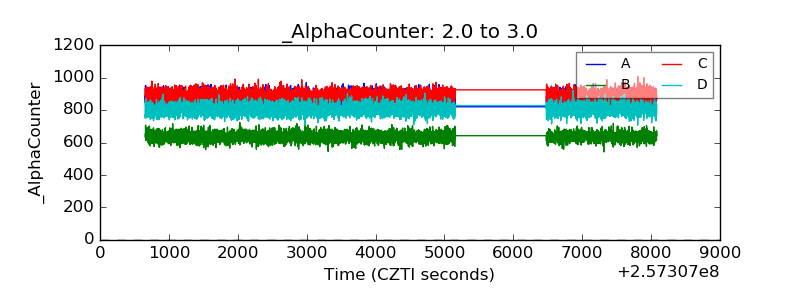

| Alpha Counter |  |

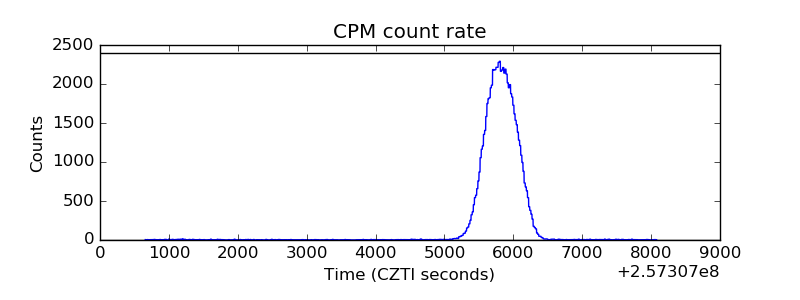

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

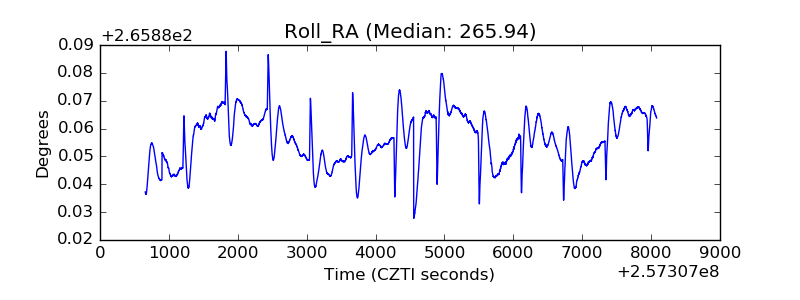

| _Roll_RA |  |

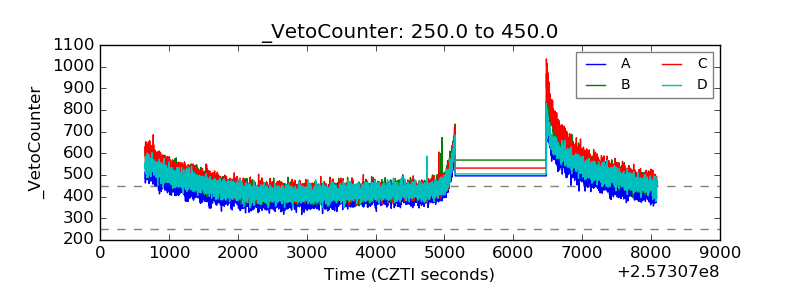

| Veto Counter |  |
