| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_045T01_9000001920_13057cztM0_level2.evt | modeM0/AS1G08_045T01_9000001920_13057cztM0_level2_quad_clean.evt |
| Size (bytes) | 476,490,240 | 73,756,800 |
| Size | 454.4 MB | 70.3 MB |
| Events in quadrant A | 2,906,576 | 474,958 |
| Events in quadrant B | 5,374,214 | 423,036 |
| Events in quadrant C | 2,687,513 | 484,680 |
| Events in quadrant D | 3,079,198 | 456,085 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 114 | 0 |
| B | 0 | 114 | 0 |
| C | 0 | 114 | 0 |
| D | 0 | 114 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12196 | 2 |
| B | 0 | 19689 | 1 |
| C | 0 | 11647 | 1 |
| D | 0 | 12763 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5640 | 65 | 1.152482% |
| B | 5640 | 1095 | 19.414894% |
| C | 5640 | 29 | 0.514184% |
| D | 5640 | 72 | 1.276596% |

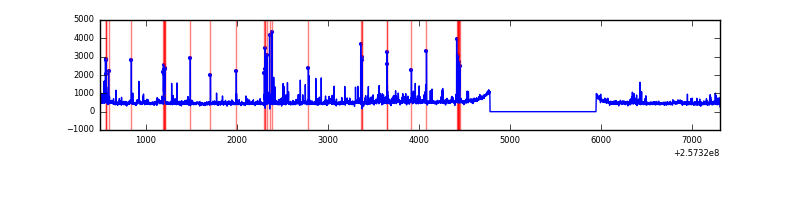

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6806 | 5642 | 9 | 9 | 0.13% | 0.16% |  |
| B | 6806 | 5642 | 718 | 718 | 10.55% | 12.73% |  |
| C | 6806 | 5642 | 0 | 0 | 0.00% | 0.00% |  |
| D | 6806 | 5642 | 36 | 36 | 0.53% | 0.64% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 62270 | 437.71 | 693 | 677 | 140.7 |
| A | 8 | 15 | 51352 | 360.12 | 693 | 677 | 140.7 |
| A | 8 | 192 | 28929 | 200.77 | 693 | 677 | 140.7 |
| B | 4 | 239 | 2528202 | 21712.48 | 620 | 604 | 116.4 |
| B | 3 | 64 | 169118 | 1447.56 | 620 | 604 | 116.4 |
| B | 0 | 85 | 120821 | 1032.68 | 620 | 604 | 116.4 |
| C | 13 | 61 | 4942 | 26.65 | 687 | 692 | 159.5 |
| C | 12 | 4 | 2993 | 14.43 | 687 | 692 | 159.5 |
| C | 8 | 222 | 2953 | 14.18 | 687 | 692 | 159.5 |
| D | 1 | 52 | 334461 | 2024.94 | 682 | 663 | 164.8 |
| D | 8 | 195 | 52664 | 315.46 | 682 | 663 | 164.8 |
| D | 13 | 112 | 33794 | 200.98 | 682 | 663 | 164.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

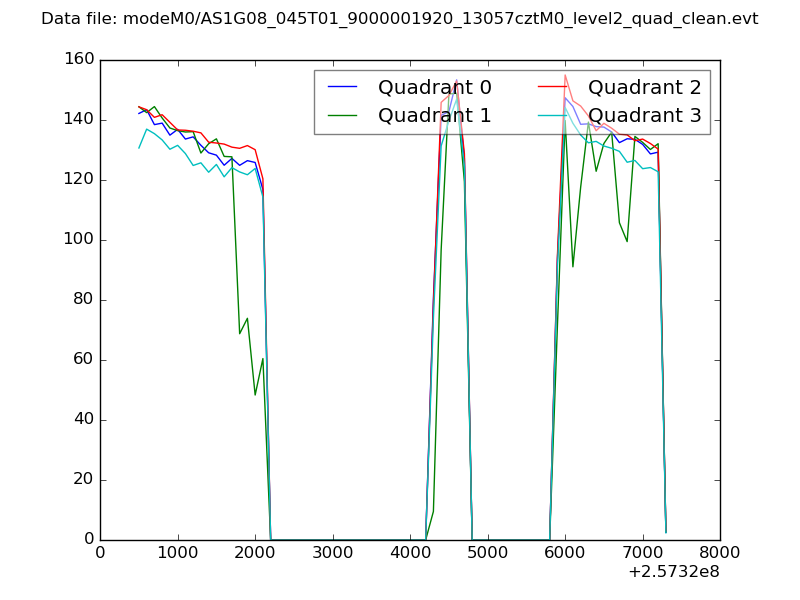

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

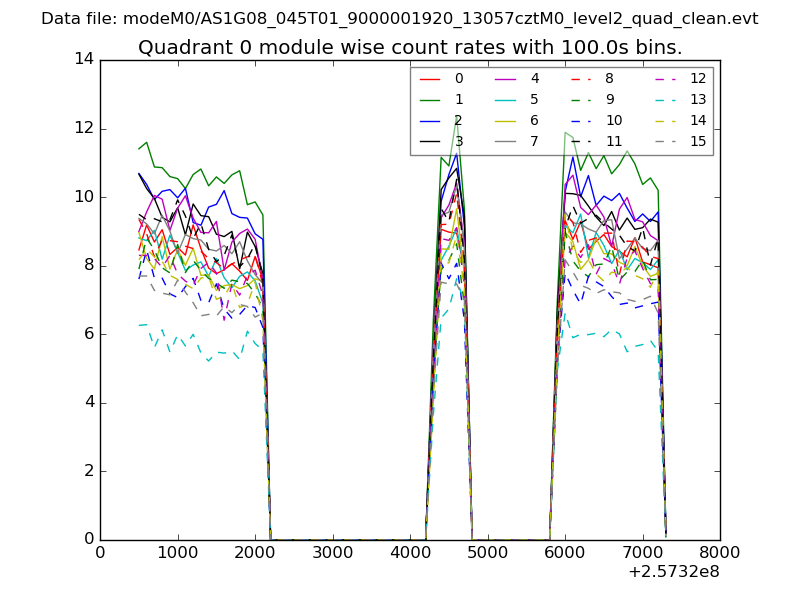

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

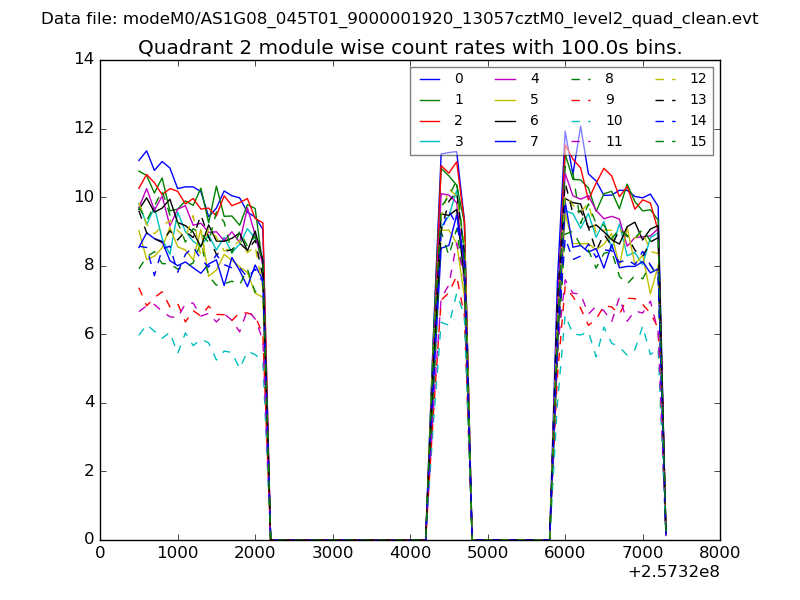

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

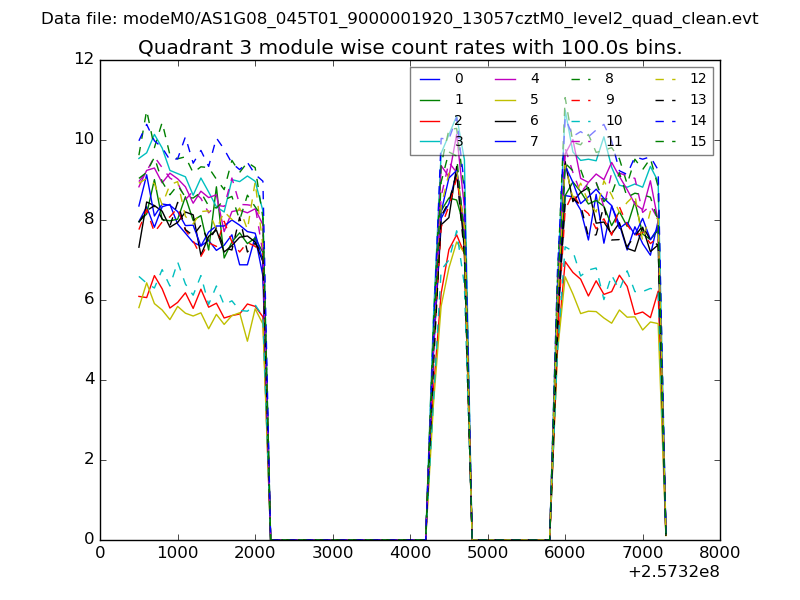

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

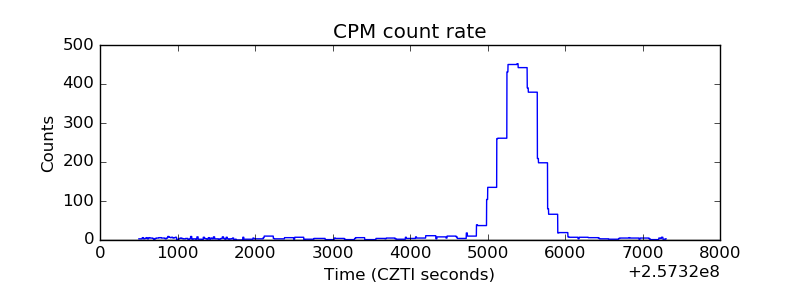

| _CPM_Rate |  |

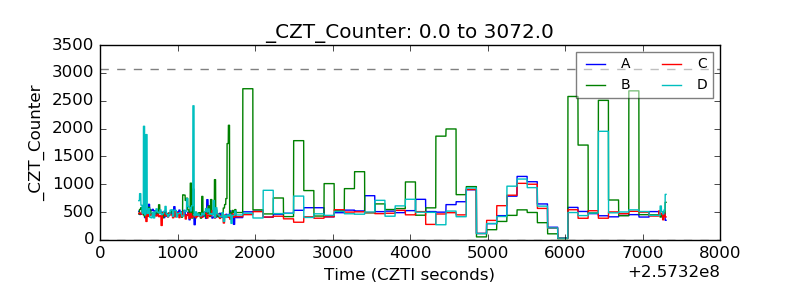

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
