| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_068T01_9000001922_13064cztM0_level2.evt | modeM0/AS1G08_068T01_9000001922_13064cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,490,990,400 | 207,581,760 |
| Size | 1.4 GB | 198.0 MB |
| Events in quadrant A | 9,116,553 | 1,288,167 |
| Events in quadrant B | 15,451,093 | 1,245,848 |
| Events in quadrant C | 8,085,946 | 1,299,353 |
| Events in quadrant D | 11,292,880 | 1,219,603 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 38376 | 4 |
| B | 0 | 57458 | 3 |
| C | 0 | 36398 | 3 |
| D | 0 | 45789 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 362 | 0 |
| B | 0 | 362 | 0 |
| C | 0 | 362 | 0 |
| D | 0 | 362 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 17902 | 233 | 1.301531% |
| B | 17902 | 2921 | 16.316613% |
| C | 17902 | 77 | 0.430120% |
| D | 17902 | 714 | 3.988381% |

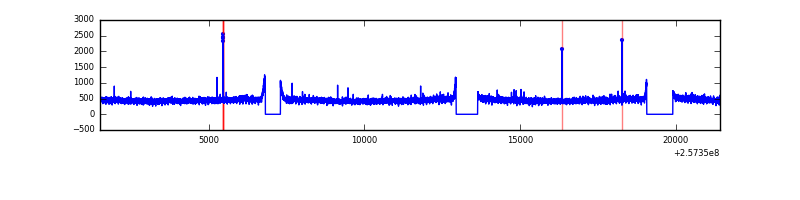

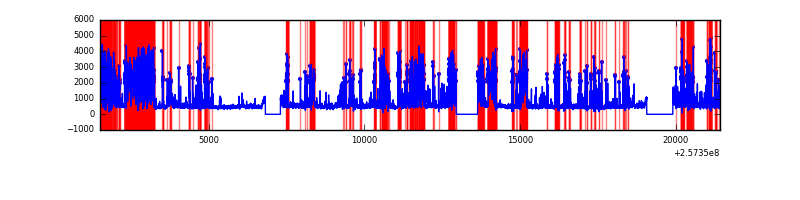

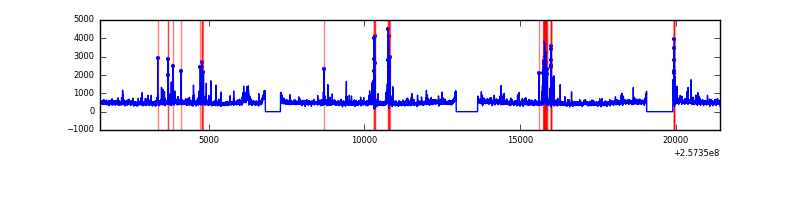

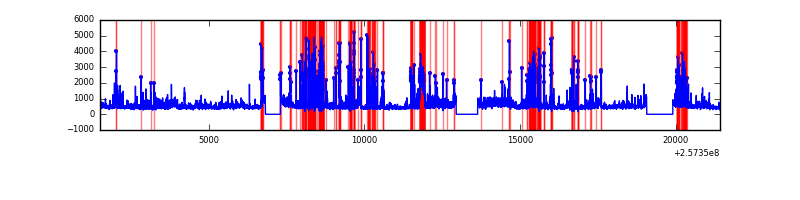

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19918 | 17906 | 61 | 61 | 0.31% | 0.34% |  |
| B | 19918 | 17906 | 1907 | 1907 | 9.57% | 10.65% |  |
| C | 19918 | 17906 | 6 | 6 | 0.03% | 0.03% |  |
| D | 19918 | 17906 | 518 | 518 | 2.60% | 2.89% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 334026 | 786.98 | 2100 | 2057 | 421.8 |
| A | 15 | 223 | 142771 | 333.58 | 2100 | 2057 | 421.8 |
| A | 5 | 16 | 139595 | 326.05 | 2100 | 2057 | 421.8 |
| B | 4 | 239 | 5392667 | 14723.54 | 1928 | 1875 | 366.1 |
| B | 0 | 85 | 1644788 | 4487.19 | 1928 | 1875 | 366.1 |
| B | 3 | 64 | 354500 | 963.1 | 1928 | 1875 | 366.1 |
| C | 7 | 221 | 18974 | 35.46 | 2056 | 2071 | 476.7 |
| C | 8 | 128 | 18329 | 34.1 | 2056 | 2071 | 476.7 |
| C | 13 | 61 | 14879 | 26.87 | 2056 | 2071 | 476.7 |
| D | 1 | 52 | 2614656 | 5351.68 | 2023 | 1964 | 488.2 |
| D | 8 | 195 | 414782 | 845.59 | 2023 | 1964 | 488.2 |
| D | 7 | 223 | 343168 | 698.9 | 2023 | 1964 | 488.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

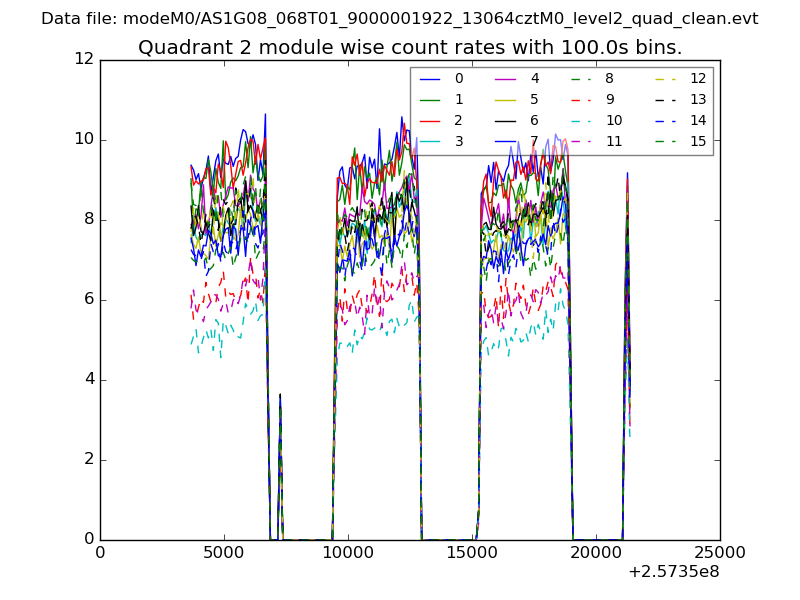

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

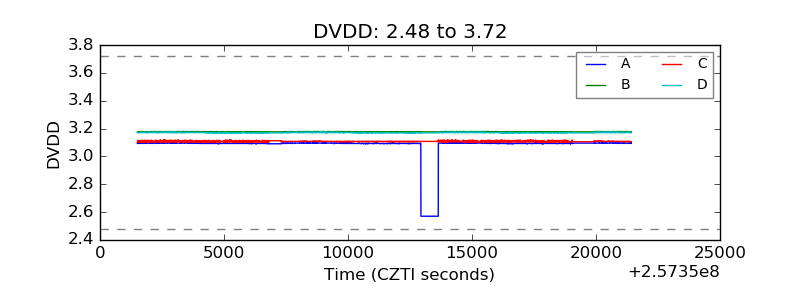

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

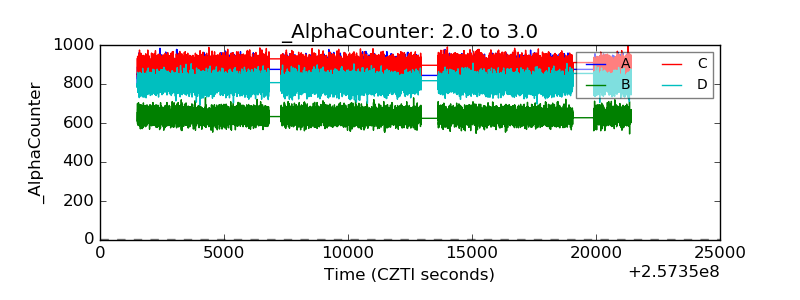

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

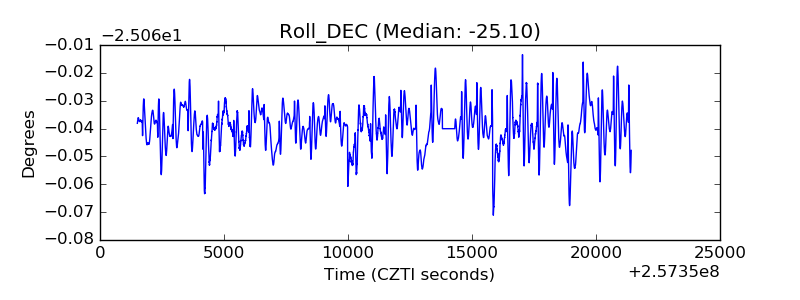

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
