| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_068T01_9000001922_13065cztM0_level2.evt | modeM0/AS1G08_068T01_9000001922_13065cztM0_level2_quad_clean.evt |
| Size (bytes) | 516,064,320 | 81,587,520 |
| Size | 492.2 MB | 77.8 MB |
| Events in quadrant A | 3,210,696 | 519,827 |
| Events in quadrant B | 5,605,731 | 477,097 |
| Events in quadrant C | 2,950,113 | 523,340 |
| Events in quadrant D | 3,421,579 | 497,342 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13595 | 2 |
| B | 0 | 21003 | 1 |
| C | 0 | 13131 | 1 |
| D | 0 | 14812 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6490 | 40 | 0.616333% |
| B | 6490 | 1068 | 16.456086% |
| C | 6490 | 15 | 0.231125% |
| D | 6490 | 84 | 1.294299% |

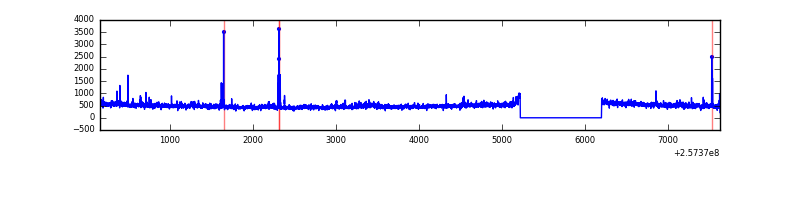

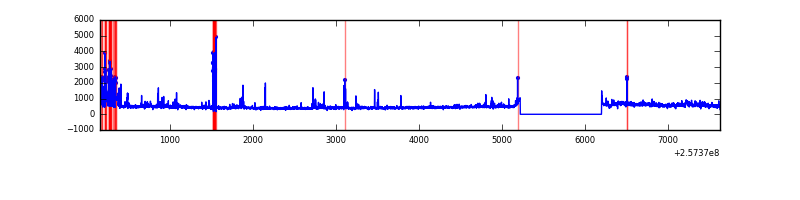

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7471 | 6493 | 4 | 4 | 0.05% | 0.06% |  |
| B | 7470 | 6492 | 569 | 569 | 7.62% | 8.76% |  |
| C | 7471 | 6493 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7471 | 6493 | 53 | 53 | 0.71% | 0.82% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 90268 | 568.57 | 775 | 760 | 157.4 |
| A | 15 | 223 | 36049 | 224.16 | 775 | 760 | 157.4 |
| A | 8 | 192 | 33443 | 207.61 | 775 | 760 | 157.4 |
| B | 4 | 239 | 2360575 | 17304.04 | 715 | 697 | 136.4 |
| B | 0 | 85 | 108924 | 793.59 | 715 | 697 | 136.4 |
| B | 0 | 182 | 96772 | 704.48 | 715 | 697 | 136.4 |
| C | 13 | 61 | 5553 | 27.23 | 755 | 758 | 176.1 |
| C | 0 | 207 | 2654 | 10.77 | 755 | 758 | 176.1 |
| C | 8 | 222 | 2587 | 10.39 | 755 | 758 | 176.1 |
| D | 1 | 52 | 517300 | 2833.42 | 748 | 728 | 182.3 |
| D | 10 | 157 | 36706 | 197.34 | 748 | 728 | 182.3 |
| D | 2 | 234 | 24899 | 132.58 | 748 | 728 | 182.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

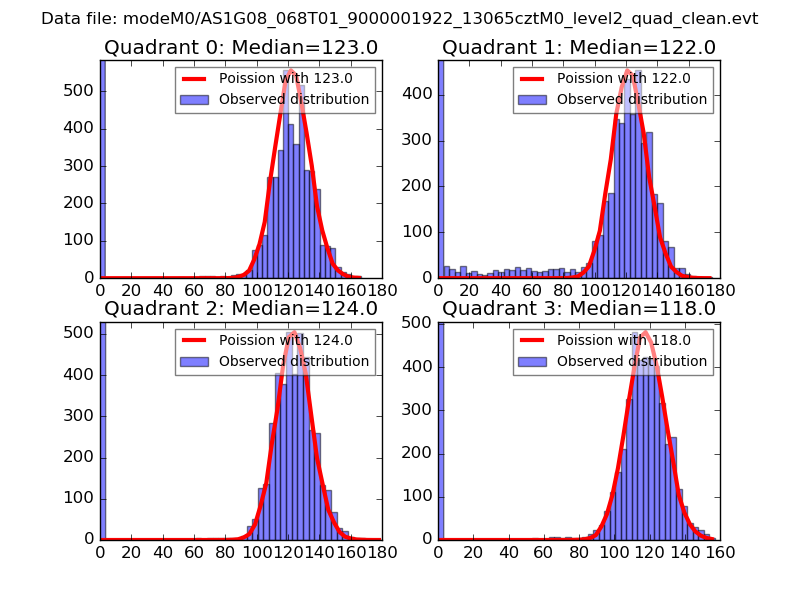

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

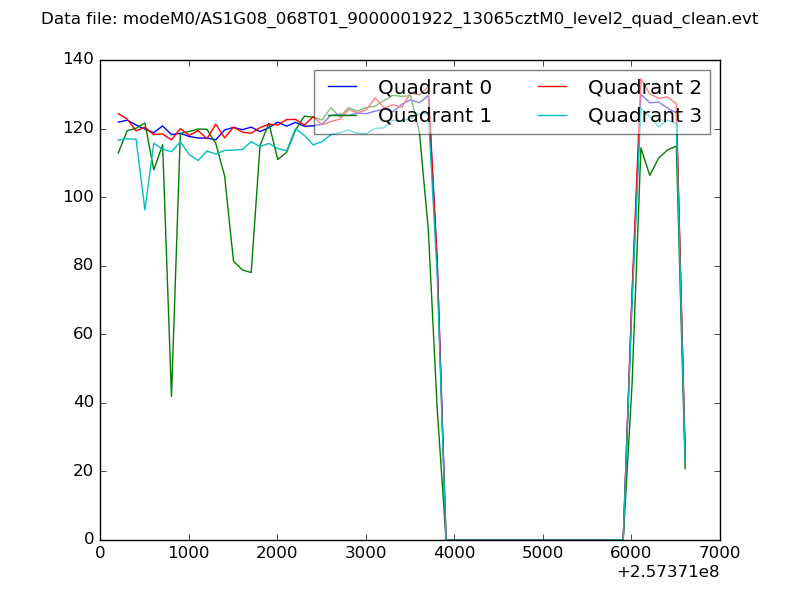

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

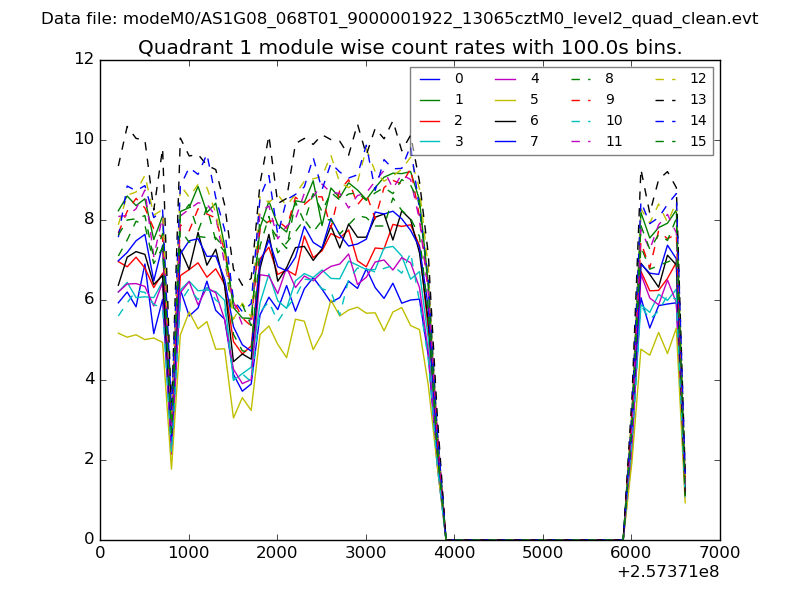

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

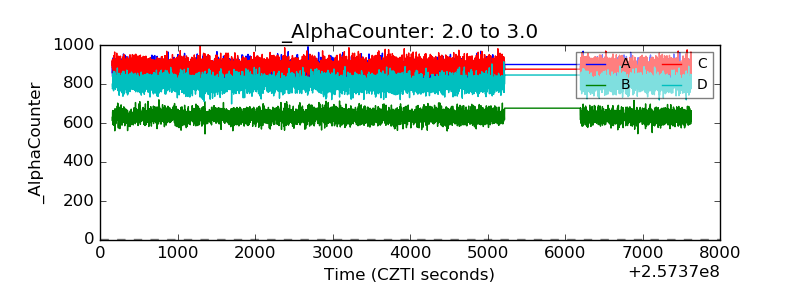

| Alpha Counter |  |
| _CPM_Rate |  |

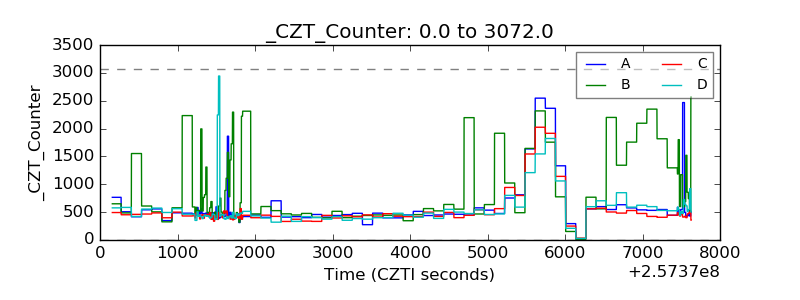

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
