| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_068T01_9000001922_13067cztM0_level2.evt | modeM0/AS1G08_068T01_9000001922_13067cztM0_level2_quad_clean.evt |
| Size (bytes) | 561,841,920 | 86,454,720 |
| Size | 535.8 MB | 82.4 MB |
| Events in quadrant A | 3,052,109 | 581,046 |
| Events in quadrant B | 6,254,756 | 521,678 |
| Events in quadrant C | 2,765,217 | 586,936 |
| Events in quadrant D | 4,538,079 | 510,599 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12885 | 2 |
| B | 0 | 22604 | 1 |
| C | 0 | 12167 | 1 |
| D | 0 | 17469 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5979 | 44 | 0.735909% |
| B | 5979 | 1389 | 23.231310% |
| C | 5979 | 17 | 0.284328% |
| D | 5979 | 492 | 8.228801% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7110 | 5981 | 6 | 6 | 0.08% | 0.10% |  |
| B | 7110 | 5981 | 923 | 923 | 12.98% | 15.43% |  |
| C | 7110 | 5981 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7110 | 5981 | 449 | 449 | 6.32% | 7.51% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 167866 | 1145.92 | 720 | 705 | 145.9 |
| A | 5 | 16 | 24901 | 165.87 | 720 | 705 | 145.9 |
| A | 15 | 223 | 20766 | 137.52 | 720 | 705 | 145.9 |
| B | 4 | 239 | 3517321 | 28918.43 | 638 | 623 | 121.6 |
| B | 0 | 219 | 69103 | 563.12 | 638 | 623 | 121.6 |
| B | 3 | 64 | 62903 | 512.14 | 638 | 623 | 121.6 |
| C | 13 | 61 | 5142 | 26.87 | 709 | 713 | 164.8 |
| C | 8 | 222 | 2800 | 12.66 | 709 | 713 | 164.8 |
| C | 3 | 202 | 1653 | 5.7 | 709 | 713 | 164.8 |
| D | 1 | 52 | 1900090 | 11721.49 | 667 | 649 | 162.0 |
| D | 10 | 157 | 54074 | 329.69 | 667 | 649 | 162.0 |
| D | 9 | 85 | 35862 | 217.3 | 667 | 649 | 162.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

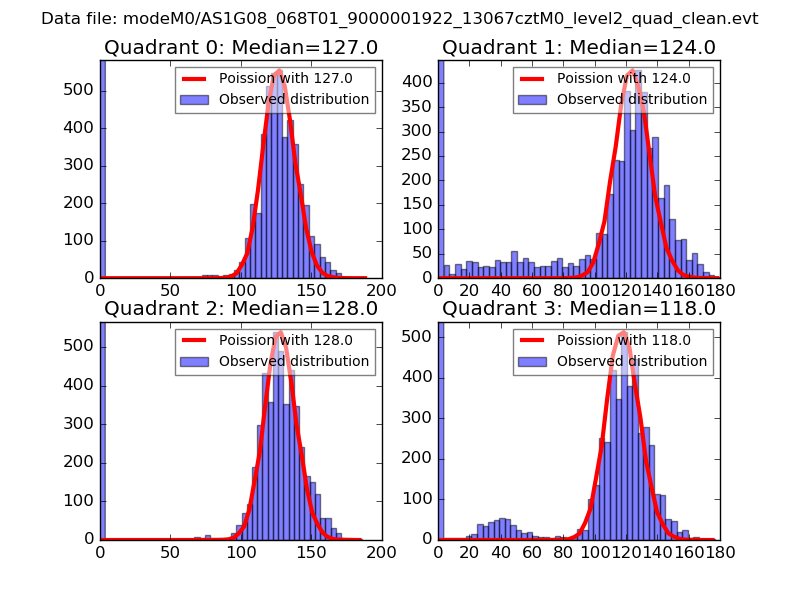

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

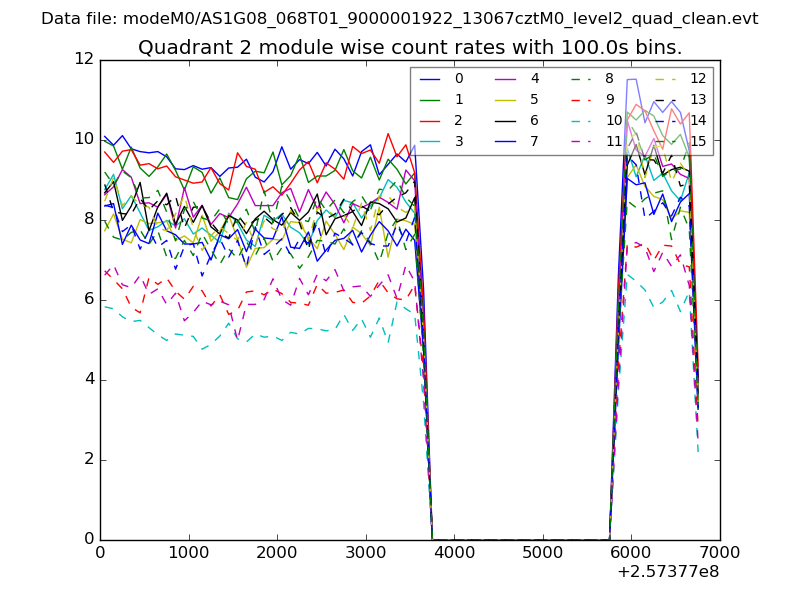

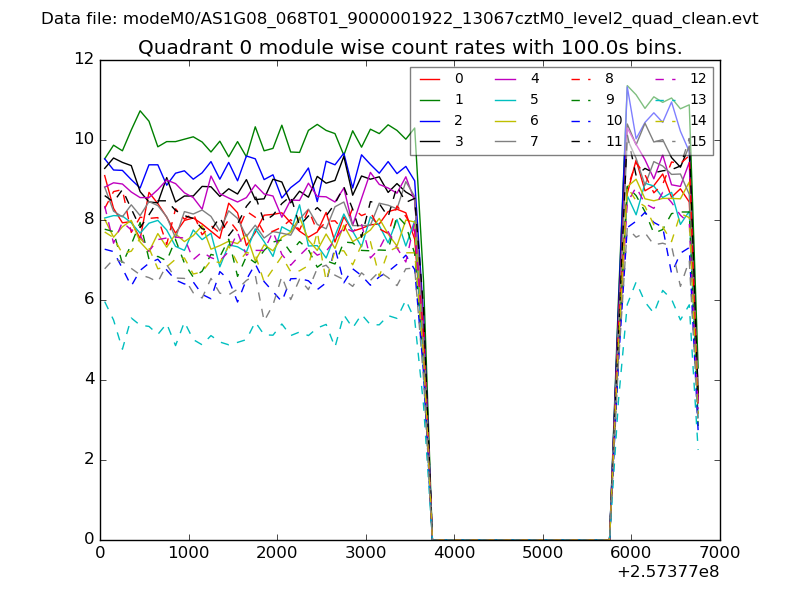

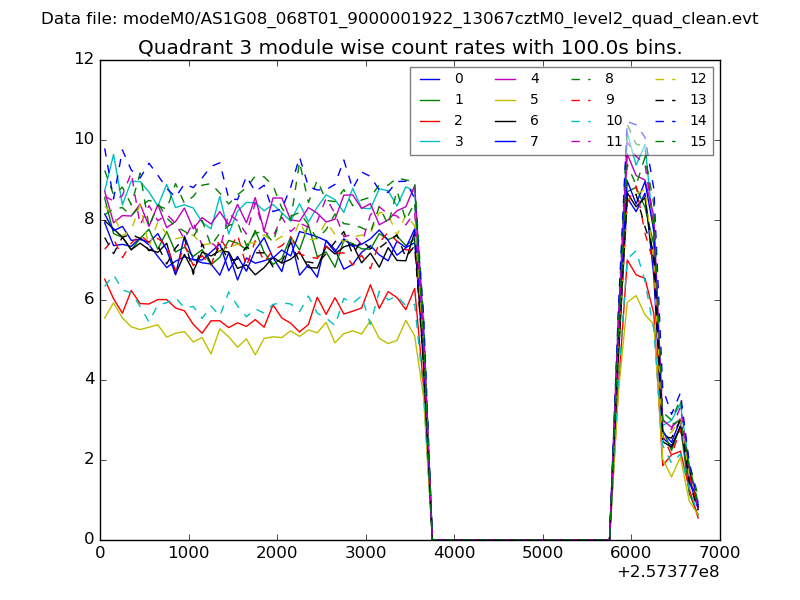

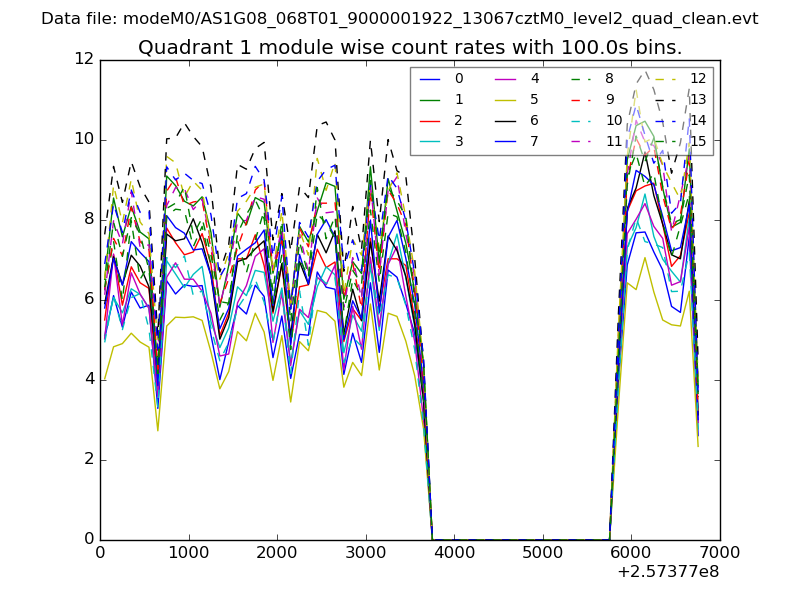

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

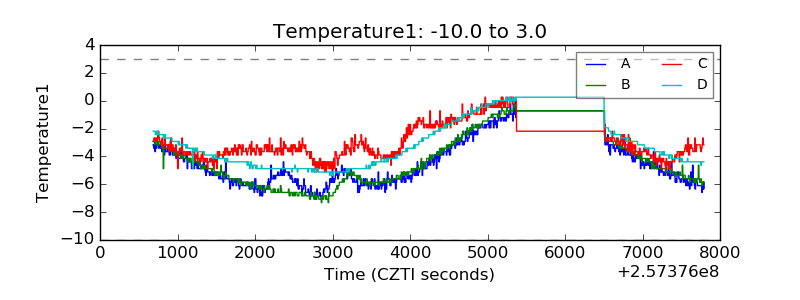

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

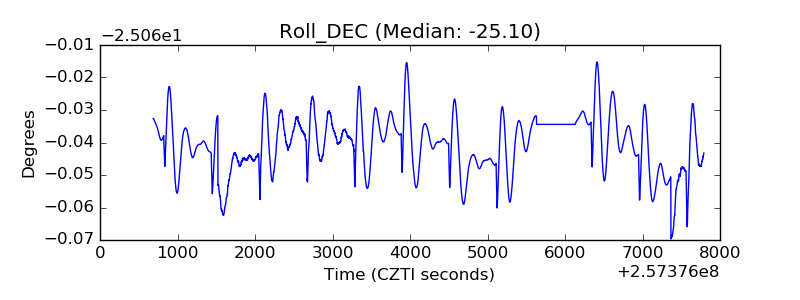

| _Roll_DEC |  |
| _Roll_RA |  |

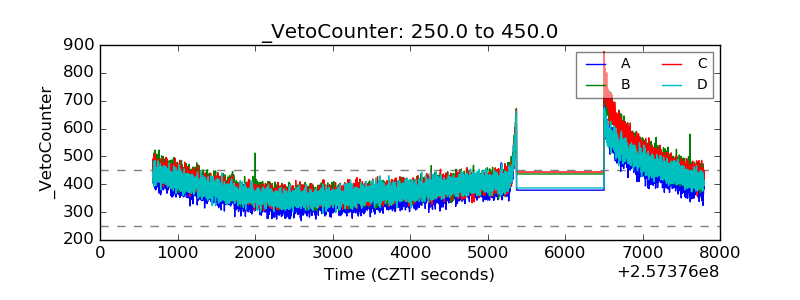

| Veto Counter |  |
