| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_067T01_9000001926_13082cztM0_level2.evt | modeM0/AS1A04_067T01_9000001926_13082cztM0_level2_quad_clean.evt |
| Size (bytes) | 467,245,440 | 91,172,160 |
| Size | 445.6 MB | 86.9 MB |
| Events in quadrant A | 2,938,211 | 580,302 |
| Events in quadrant B | 3,626,827 | 596,091 |
| Events in quadrant C | 2,871,117 | 597,444 |
| Events in quadrant D | 4,285,205 | 546,411 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13094 | 3 |
| B | 0 | 15152 | 2 |
| C | 0 | 13000 | 2 |
| D | 0 | 17270 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6308 | 29 | 0.459734% |
| B | 6308 | 283 | 4.486367% |
| C | 6308 | 22 | 0.348763% |
| D | 6308 | 372 | 5.897273% |

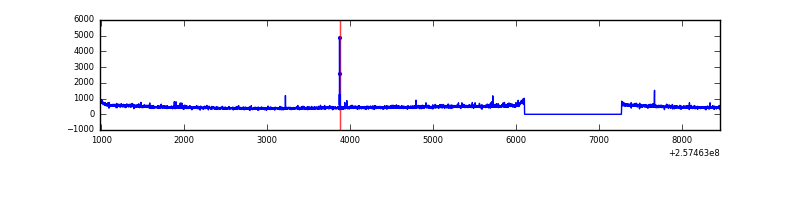

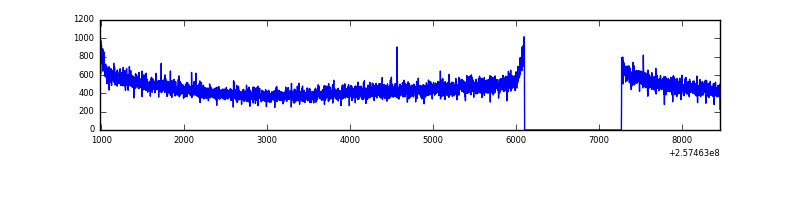

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7479 | 6310 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7479 | 6310 | 115 | 115 | 1.54% | 1.82% |  |
| C | 7479 | 6310 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7479 | 6310 | 310 | 310 | 4.14% | 4.91% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 23364 | 149.93 | 745 | 730 | 151.0 |
| A | 5 | 16 | 14851 | 93.54 | 745 | 730 | 151.0 |
| A | 1 | 162 | 11812 | 73.41 | 745 | 730 | 151.0 |
| B | 4 | 239 | 376320 | 2688.53 | 735 | 715 | 139.7 |
| B | 0 | 85 | 166940 | 1189.82 | 735 | 715 | 139.7 |
| B | 3 | 64 | 56338 | 398.14 | 735 | 715 | 139.7 |
| C | 13 | 61 | 5361 | 27.38 | 735 | 738 | 168.9 |
| C | 8 | 222 | 2380 | 9.72 | 735 | 738 | 168.9 |
| C | 15 | 208 | 2352 | 9.56 | 735 | 738 | 168.9 |
| D | 1 | 52 | 1386602 | 8116.67 | 712 | 692 | 170.7 |
| D | 10 | 157 | 91452 | 531.54 | 712 | 692 | 170.7 |
| D | 9 | 85 | 31198 | 178.66 | 712 | 692 | 170.7 |

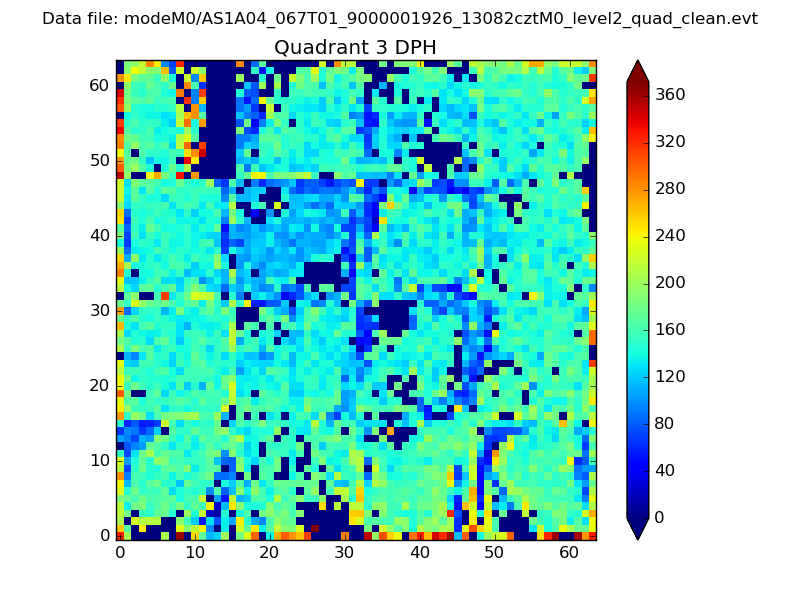

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

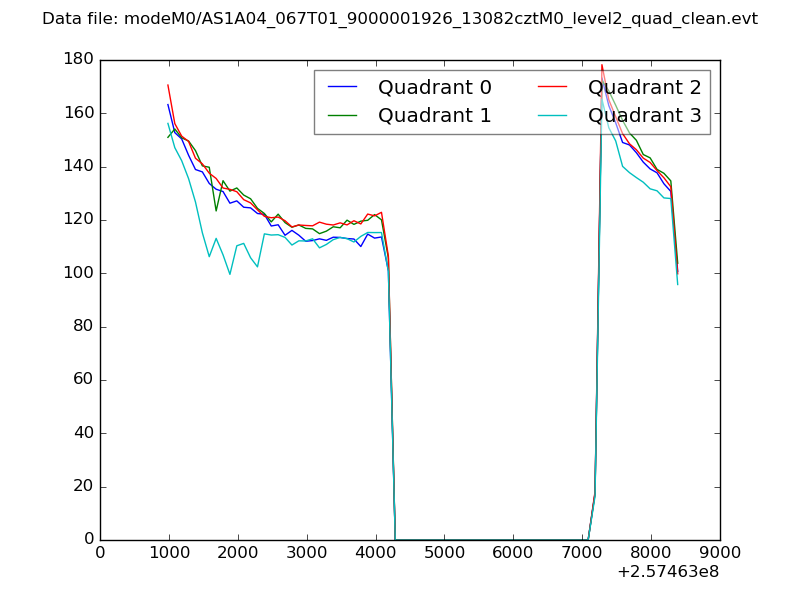

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

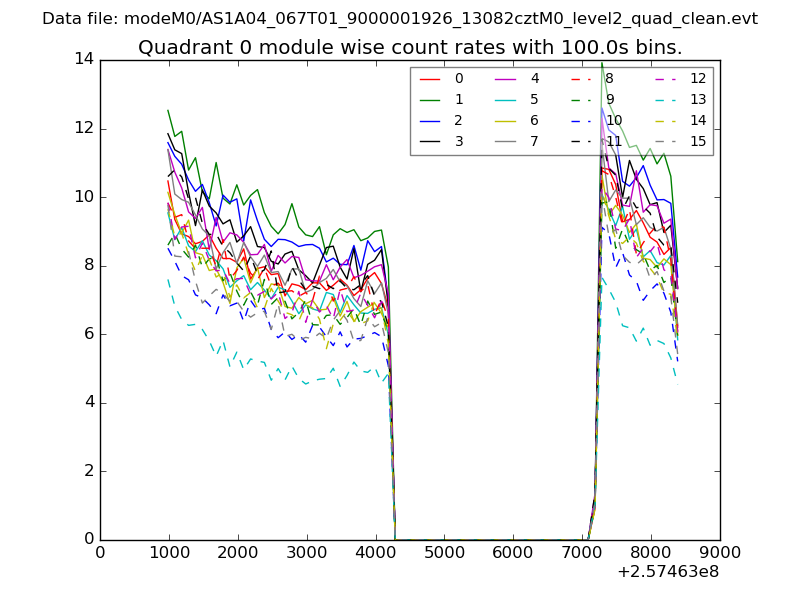

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

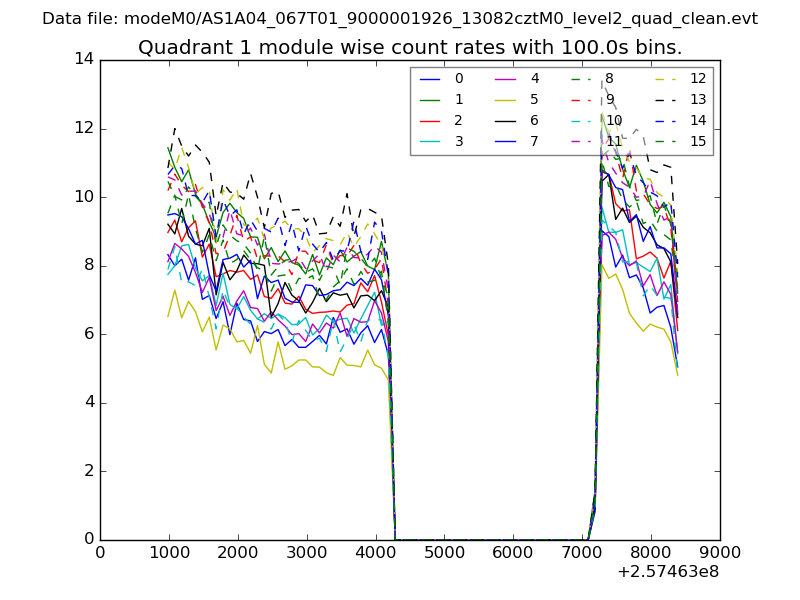

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

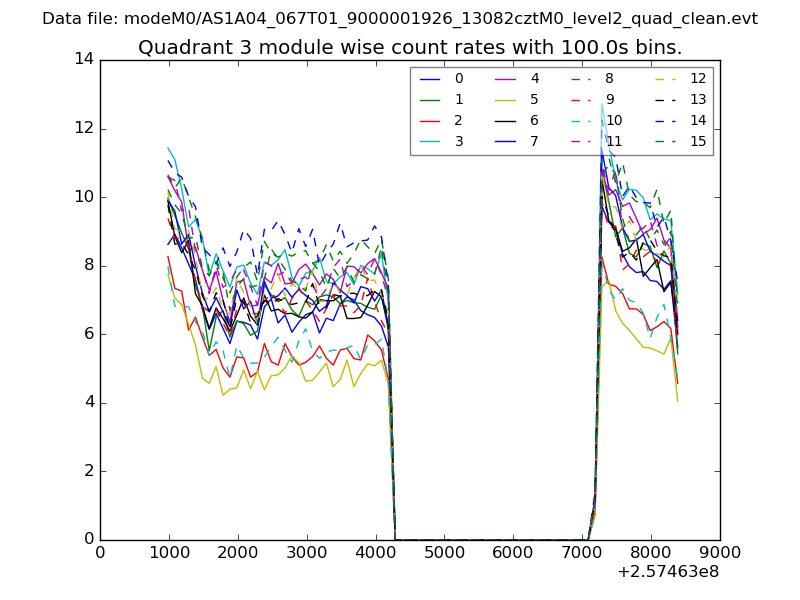

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

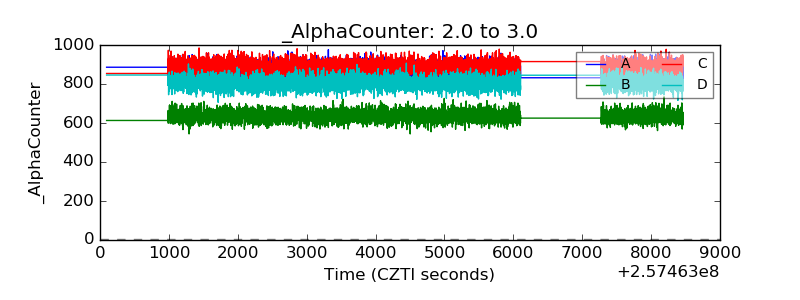

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
