| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C03_023T01_9000001930_13108cztM0_level2.evt | modeM0/AS1C03_023T01_9000001930_13108cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,478,283,200 | 341,389,440 |
| Size | 2.3 GB | 325.6 MB |
| Events in quadrant A | 13,410,460 | 2,144,241 |
| Events in quadrant B | 21,710,599 | 2,128,483 |
| Events in quadrant C | 12,333,530 | 2,177,454 |
| Events in quadrant D | 25,758,639 | 2,009,003 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 57825 | 5 |
| B | 0 | 82796 | 4 |
| C | 0 | 55716 | 4 |
| D | 0 | 95787 | 4 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 556 | 0 |
| B | 0 | 556 | 0 |
| C | 0 | 556 | 0 |
| D | 0 | 556 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 27337 | 347 | 1.269342% |
| B | 27338 | 3939 | 14.408516% |
| C | 27338 | 197 | 0.720609% |
| D | 27338 | 3251 | 11.891872% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 31706 | 27343 | 48 | 48 | 0.15% | 0.18% |  |
| B | 31706 | 27344 | 2435 | 2435 | 7.68% | 8.91% |  |
| C | 31706 | 27344 | 2 | 2 | 0.01% | 0.01% |  |
| D | 31706 | 27344 | 2507 | 2507 | 7.91% | 9.17% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 417313 | 632.27 | 3205 | 3132 | 655.1 |
| A | 15 | 223 | 282886 | 427.06 | 3205 | 3132 | 655.1 |
| A | 15 | 239 | 121516 | 180.72 | 3205 | 3132 | 655.1 |
| B | 4 | 239 | 5781514 | 10292.41 | 2956 | 2877 | 561.4 |
| B | 0 | 85 | 3687018 | 6561.87 | 2956 | 2877 | 561.4 |
| B | 3 | 64 | 424869 | 751.62 | 2956 | 2877 | 561.4 |
| C | 13 | 61 | 23015 | 27.23 | 3147 | 3165 | 729.1 |
| C | 8 | 128 | 19109 | 21.87 | 3147 | 3165 | 729.1 |
| C | 8 | 112 | 17819 | 20.1 | 3147 | 3165 | 729.1 |
| D | 13 | 122 | 6489530 | 8913.77 | 3003 | 2917 | 727.7 |
| D | 1 | 52 | 5446406 | 7480.33 | 3003 | 2917 | 727.7 |
| D | 10 | 157 | 1467073 | 2012.01 | 3003 | 2917 | 727.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

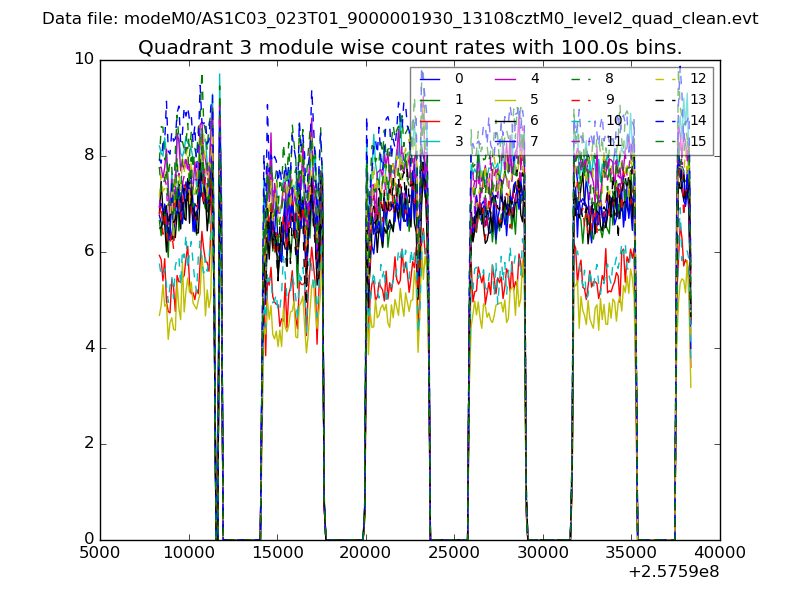

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

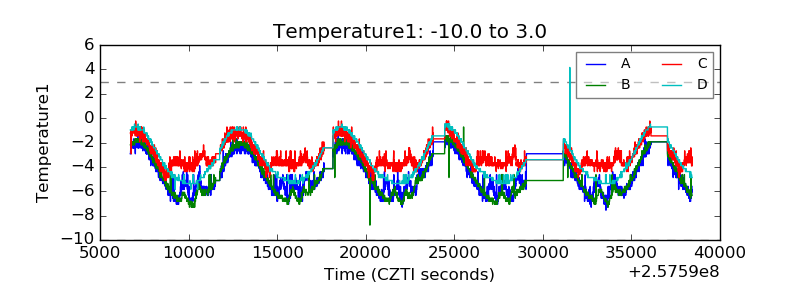

| Temperature 1 |  |

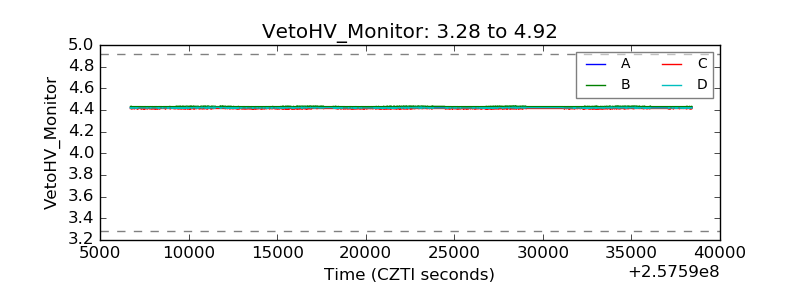

| Veto HV Monitor |  |
| Veto LLD |  |

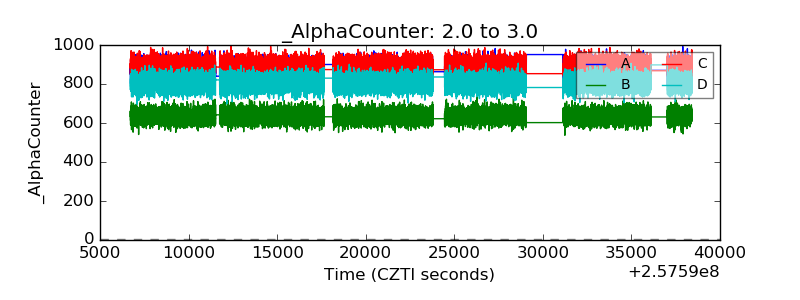

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

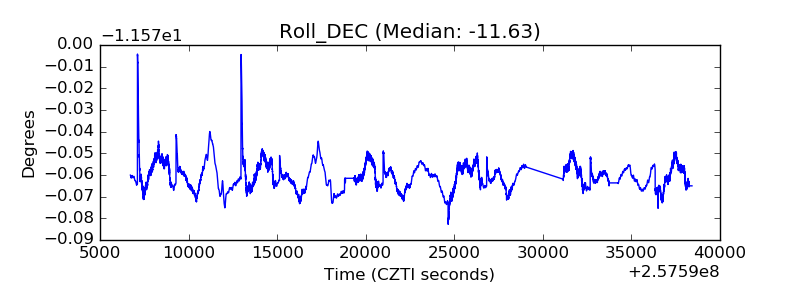

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
