| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C03_023T01_9000001930_13109cztM0_level2.evt | modeM0/AS1C03_023T01_9000001930_13109cztM0_level2_quad_clean.evt |
| Size (bytes) | 539,740,800 | 90,100,800 |
| Size | 514.7 MB | 85.9 MB |
| Events in quadrant A | 3,260,494 | 572,044 |
| Events in quadrant B | 5,783,068 | 563,528 |
| Events in quadrant C | 3,101,173 | 579,624 |
| Events in quadrant D | 3,750,666 | 550,173 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14103 | 3 |
| B | 0 | 21730 | 2 |
| C | 0 | 13592 | 2 |
| D | 0 | 15785 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6642 | 56 | 0.843120% |
| B | 6642 | 1009 | 15.191207% |
| C | 6642 | 31 | 0.466727% |
| D | 6642 | 116 | 1.746462% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

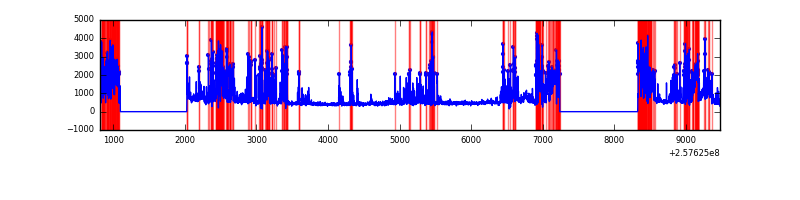

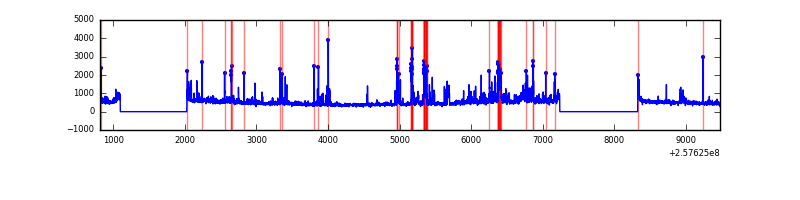

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8663 | 6645 | 2 | 2 | 0.02% | 0.03% |  |
| B | 8663 | 6644 | 539 | 539 | 6.22% | 8.11% |  |
| C | 8663 | 6645 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8663 | 6645 | 60 | 60 | 0.69% | 0.90% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 72229 | 434.29 | 808 | 790 | 164.5 |
| A | 8 | 15 | 29307 | 173.36 | 808 | 790 | 164.5 |
| A | 1 | 162 | 27587 | 162.9 | 808 | 790 | 164.5 |
| B | 0 | 85 | 2619944 | 17901.34 | 760 | 741 | 146.3 |
| B | 3 | 64 | 139747 | 950.06 | 760 | 741 | 146.3 |
| B | 0 | 230 | 18762 | 123.17 | 760 | 741 | 146.3 |
| C | 0 | 207 | 13998 | 71.4 | 792 | 798 | 184.9 |
| C | 13 | 61 | 5593 | 25.94 | 792 | 798 | 184.9 |
| C | 3 | 202 | 1900 | 5.96 | 792 | 798 | 184.9 |
| D | 13 | 122 | 591526 | 3115.15 | 780 | 756 | 189.6 |
| D | 1 | 52 | 101587 | 531.68 | 780 | 756 | 189.6 |
| D | 10 | 157 | 54559 | 283.7 | 780 | 756 | 189.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

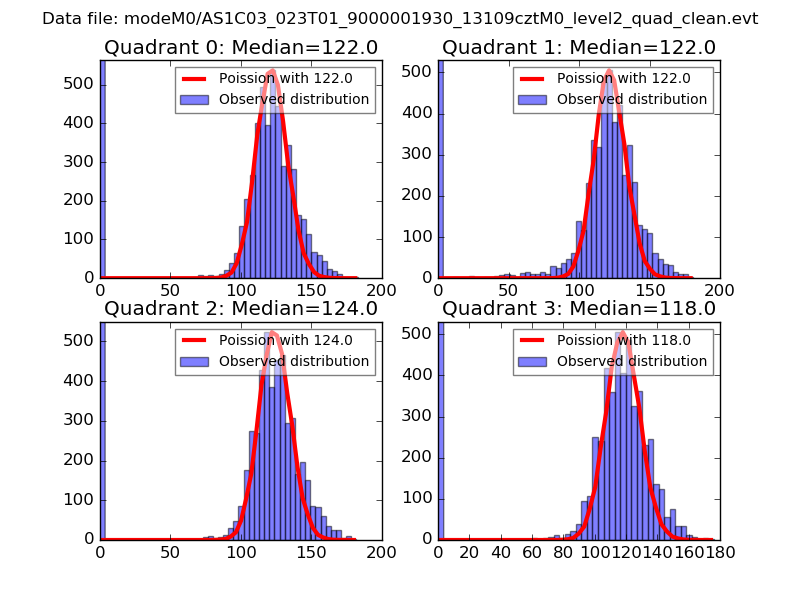

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

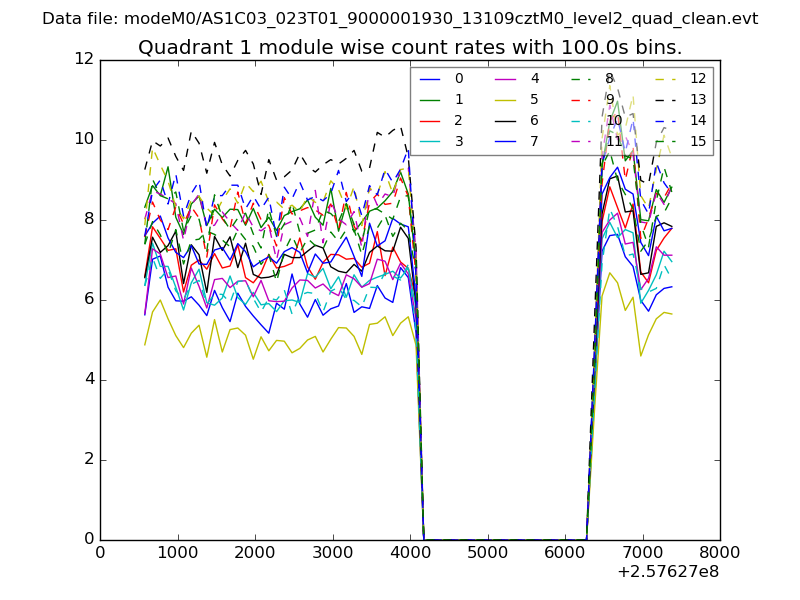

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

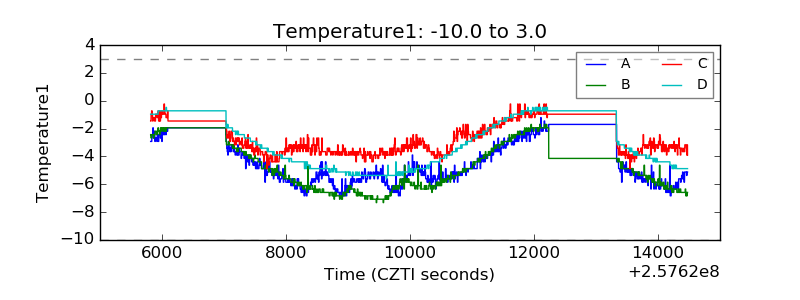

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

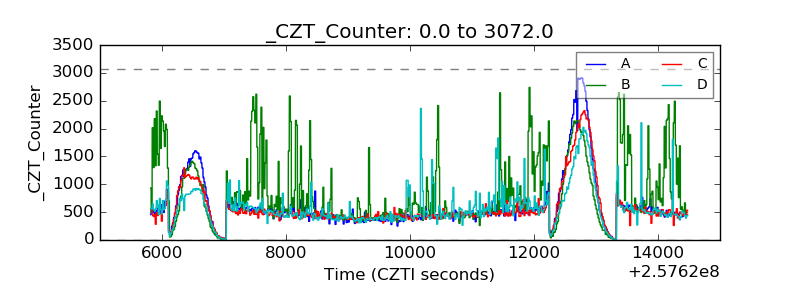

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

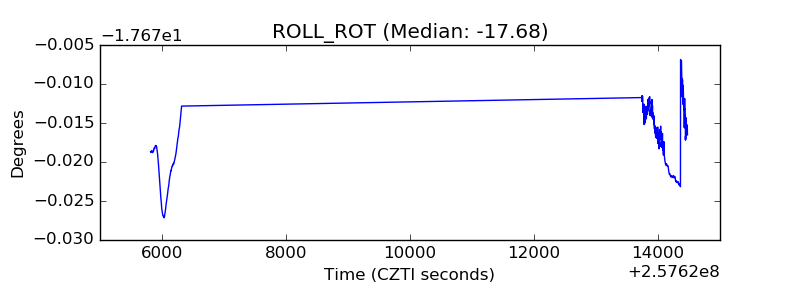

| _ROLL_ROT |  |

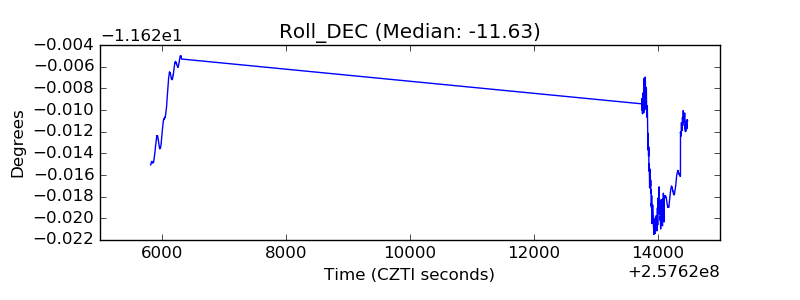

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
