| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_037T01_9000001928_13090cztM0_level2.evt | modeM0/AS1G08_037T01_9000001928_13090cztM0_level2_quad_clean.evt |
| Size (bytes) | 531,063,360 | 66,297,600 |
| Size | 506.5 MB | 63.2 MB |
| Events in quadrant A | 3,059,073 | 414,874 |
| Events in quadrant B | 4,461,528 | 384,411 |
| Events in quadrant C | 3,064,704 | 413,925 |
| Events in quadrant D | 5,085,302 | 369,901 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 141 | 13 |
| B | 0 | 141 | 13 |
| C | 0 | 140 | 14 |
| D | 0 | 142 | 18 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 5 | 2 |
| C | 0 | 4 | 1 |
| D | 0 | 4 | 1 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14447 | 1620 |
| B | 0 | 20276 | 3249 |
| C | 0 | 15017 | 1885 |
| D | 0 | 20739 | 1533 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6070 | 96 | 1.581549% |
| B | 5975 | 989 | 16.552301% |
| C | 6061 | 69 | 1.138426% |
| D | 6124 | 630 | 10.287394% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7201 | 6367 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7200 | 6173 | 439 | 439 | 6.10% | 7.11% |  |
| C | 7200 | 6341 | 11 | 11 | 0.15% | 0.17% |  |
| D | 7199 | 6406 | 449 | 449 | 6.24% | 7.01% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 156673 | 1037.24 | 729 | 714 | 150.4 |
| A | 8 | 15 | 38834 | 253.53 | 729 | 714 | 150.4 |
| A | 5 | 16 | 19561 | 125.35 | 729 | 714 | 150.4 |
| B | 4 | 239 | 1624116 | 13058.94 | 641 | 622 | 124.3 |
| B | 3 | 64 | 166260 | 1332.35 | 641 | 622 | 124.3 |
| B | 0 | 85 | 61406 | 488.93 | 641 | 622 | 124.3 |
| C | 15 | 208 | 298811 | 1799.42 | 708 | 712 | 165.7 |
| C | 13 | 61 | 5013 | 25.96 | 708 | 712 | 165.7 |
| C | 8 | 222 | 3038 | 14.04 | 708 | 712 | 165.7 |
| D | 1 | 52 | 2363497 | 13961.63 | 695 | 676 | 169.2 |
| D | 8 | 195 | 43920 | 255.52 | 695 | 676 | 169.2 |
| D | 2 | 234 | 33915 | 196.41 | 695 | 676 | 169.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

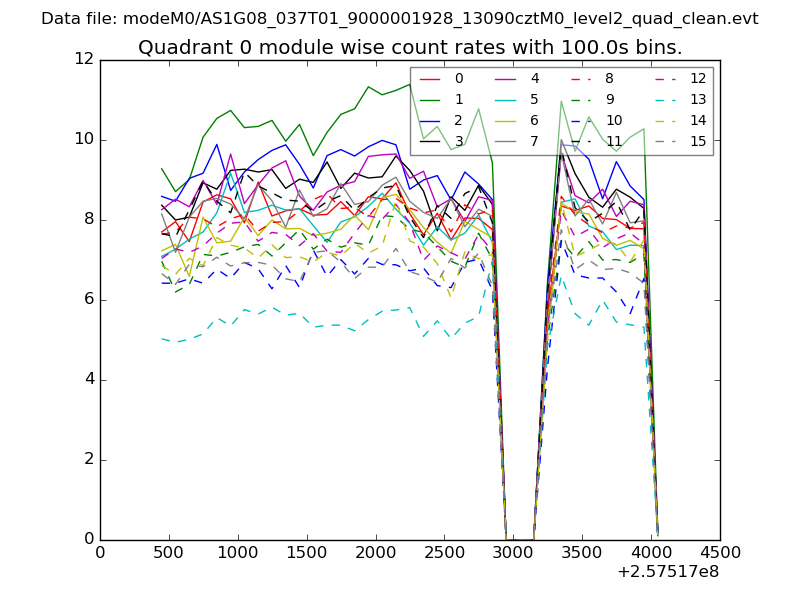

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

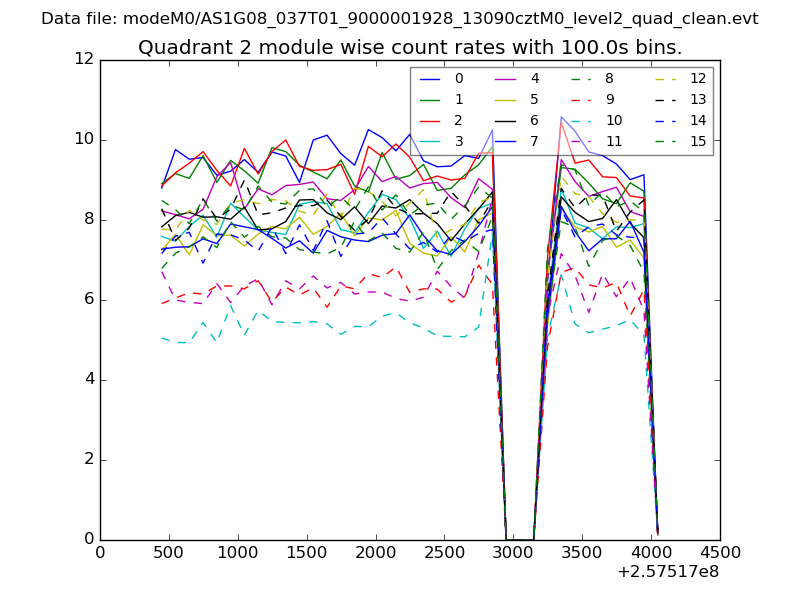

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

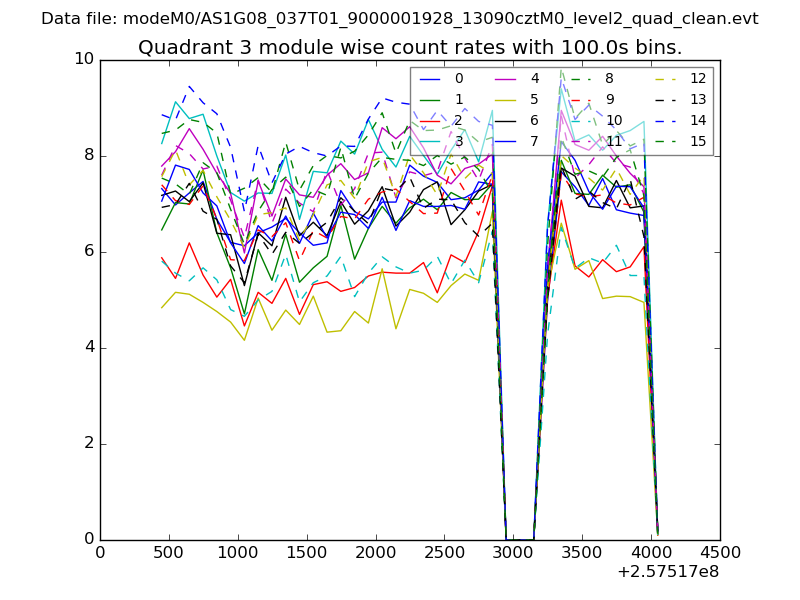

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
