| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_017T01_9000001932_13114cztM0_level2.evt | modeM0/AS1A04_017T01_9000001932_13114cztM0_level2_quad_clean.evt |
| Size (bytes) | 698,434,560 | 54,780,480 |
| Size | 666.1 MB | 52.2 MB |
| Events in quadrant A | 3,241,754 | 331,798 |
| Events in quadrant B | 4,469,851 | 309,849 |
| Events in quadrant C | 2,916,301 | 336,680 |
| Events in quadrant D | 10,112,865 | 254,832 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13225 | 2 |
| B | 0 | 17008 | 1 |
| C | 0 | 12433 | 1 |
| D | 0 | 34260 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6080 | 48 | 0.789474% |
| B | 6080 | 616 | 10.131579% |
| C | 6080 | 17 | 0.279605% |
| D | 6080 | 2547 | 41.891447% |

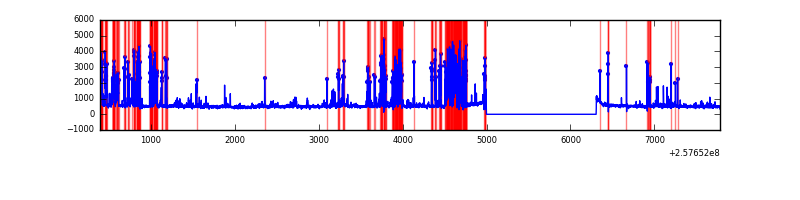

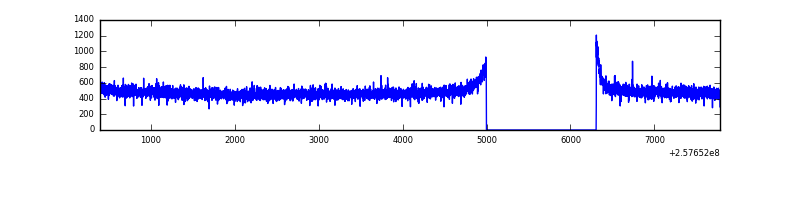

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7391 | 6082 | 12 | 12 | 0.16% | 0.20% |  |
| B | 7391 | 6082 | 359 | 359 | 4.86% | 5.90% |  |
| C | 7391 | 6082 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7391 | 6082 | 2145 | 2145 | 29.02% | 35.27% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 131213 | 849.63 | 766 | 753 | 153.5 |
| A | 15 | 223 | 78171 | 504.19 | 766 | 753 | 153.5 |
| A | 15 | 239 | 37655 | 240.33 | 766 | 753 | 153.5 |
| B | 4 | 239 | 1413168 | 10060.13 | 739 | 720 | 140.4 |
| B | 3 | 64 | 112052 | 792.96 | 739 | 720 | 140.4 |
| B | 0 | 85 | 25676 | 177.75 | 739 | 720 | 140.4 |
| C | 13 | 61 | 5563 | 27.78 | 746 | 750 | 173.2 |
| C | 14 | 234 | 3265 | 14.52 | 746 | 750 | 173.2 |
| C | 8 | 222 | 2800 | 11.83 | 746 | 750 | 173.2 |
| D | 13 | 122 | 5551008 | 39430.79 | 583 | 567 | 140.8 |
| D | 10 | 157 | 1415467 | 10051.57 | 583 | 567 | 140.8 |
| D | 1 | 52 | 874123 | 6205.81 | 583 | 567 | 140.8 |

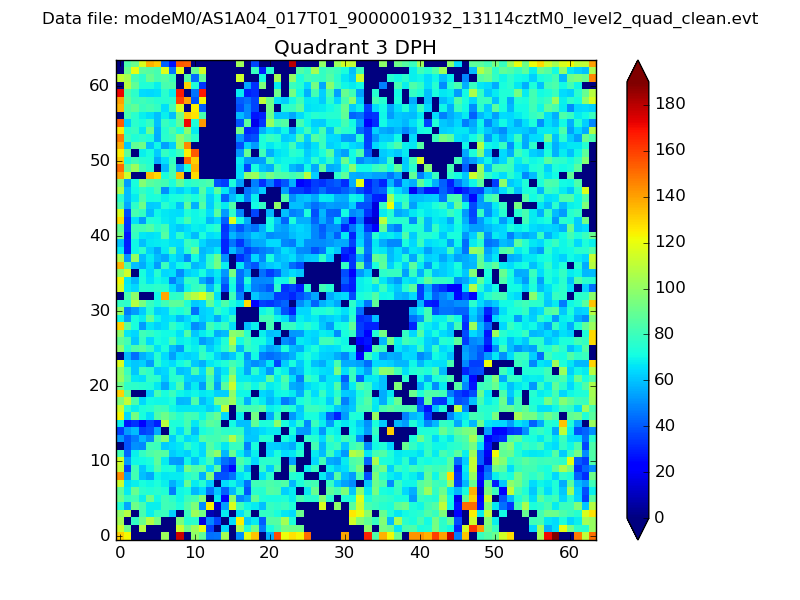

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

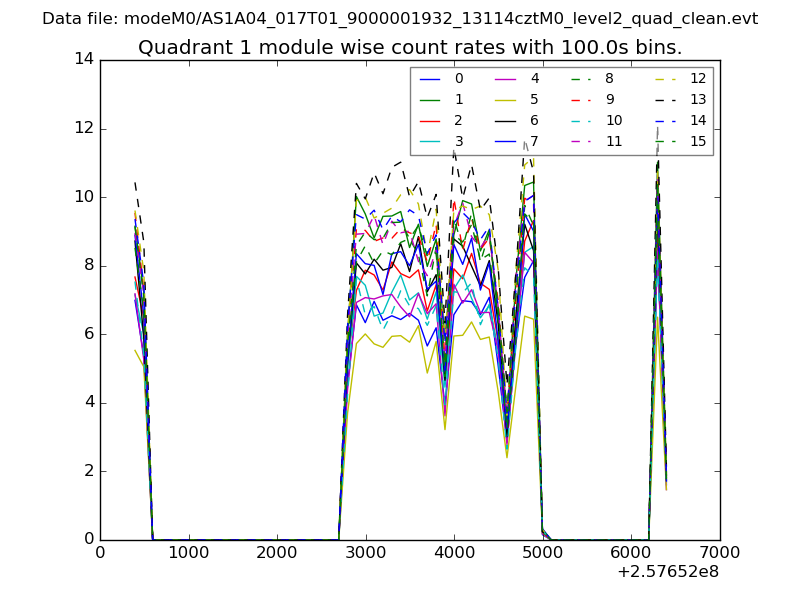

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

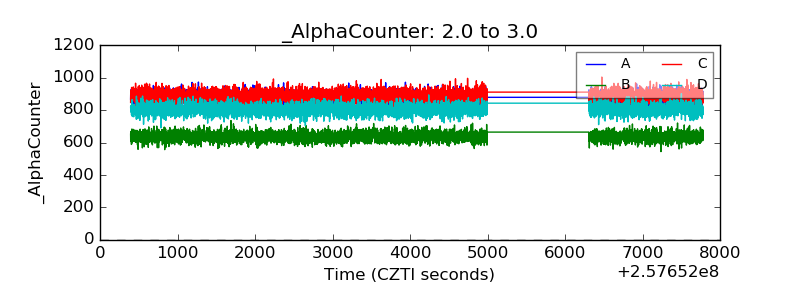

| Alpha Counter |  |
| _CPM_Rate |  |

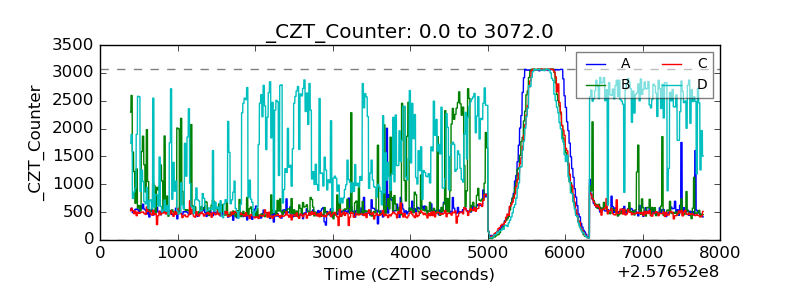

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

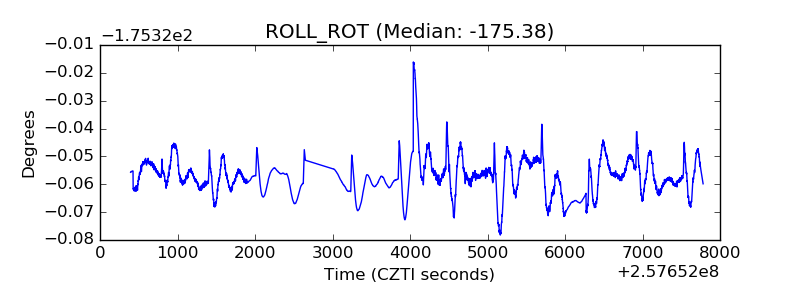

| _ROLL_ROT |  |
| _Roll_DEC |  |

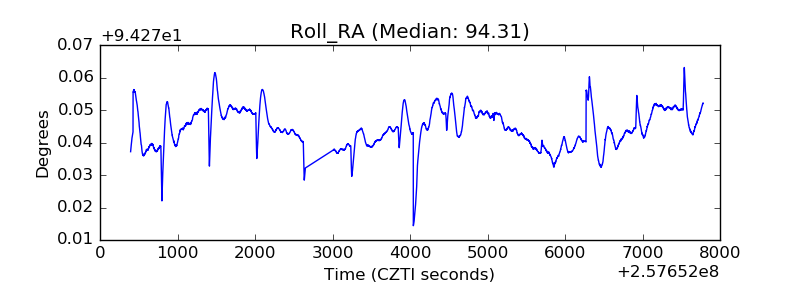

| _Roll_RA |  |
| Veto Counter |  |
