| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_017T01_9000001932_13123cztM0_level2.evt | modeM0/AS1A04_017T01_9000001932_13123cztM0_level2_quad_clean.evt |
| Size (bytes) | 155,695,680 | 27,653,760 |
| Size | 148.5 MB | 26.4 MB |
| Events in quadrant A | 832,317 | 197,931 |
| Events in quadrant B | 2,233,029 | 130,447 |
| Events in quadrant C | 726,496 | 200,663 |
| Events in quadrant D | 812,382 | 190,003 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3478 | 1 |
| B | 0 | 7739 | 1 |
| C | 0 | 3241 | 1 |
| D | 0 | 3500 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 32 | 0 |
| B | 0 | 32 | 0 |
| C | 0 | 32 | 0 |
| D | 0 | 32 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1593 | 10 | 0.627746% |
| B | 1593 | 748 | 46.955430% |
| C | 1593 | 1 | 0.062775% |
| D | 1593 | 4 | 0.251099% |

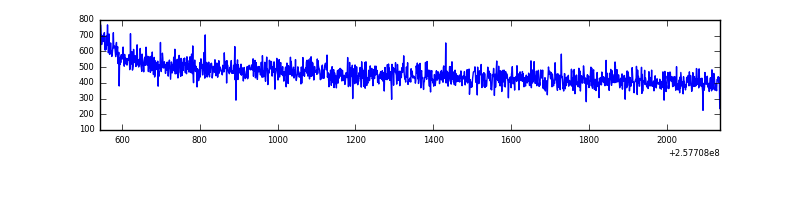

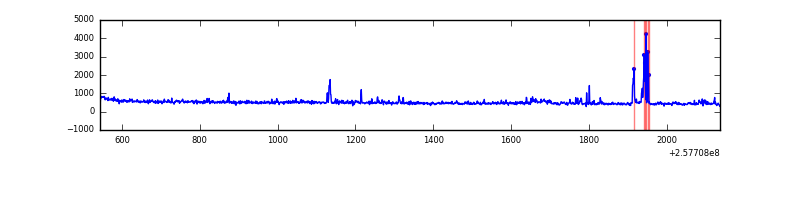

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 1594 | 1594 | 6 | 6 | 0.38% | 0.38% |  |
| B | 1594 | 1594 | 381 | 381 | 23.90% | 23.90% |  |
| C | 1594 | 1594 | 0 | 0 | 0.00% | 0.00% |  |
| D | 1594 | 1594 | 1 | 1 | 0.06% | 0.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 34835 | 848.93 | 192 | 188 | 40.8 |
| A | 4 | 2 | 16461 | 398.72 | 192 | 188 | 40.8 |
| A | 15 | 239 | 14903 | 360.55 | 192 | 188 | 40.8 |
| B | 4 | 239 | 1079095 | 39815.99 | 129 | 126 | 27.1 |
| B | 0 | 85 | 628790 | 23198.88 | 129 | 126 | 27.1 |
| B | 0 | 190 | 7858 | 285.33 | 129 | 126 | 27.1 |
| C | 0 | 207 | 1716 | 34.4 | 185 | 186 | 44.5 |
| C | 13 | 61 | 1354 | 26.26 | 185 | 186 | 44.5 |
| C | 8 | 222 | 604 | 9.4 | 185 | 186 | 44.5 |
| D | 13 | 122 | 62568 | 1320.37 | 187 | 181 | 47.2 |
| D | 1 | 52 | 30731 | 646.57 | 187 | 181 | 47.2 |
| D | 2 | 234 | 5775 | 118.39 | 187 | 181 | 47.2 |

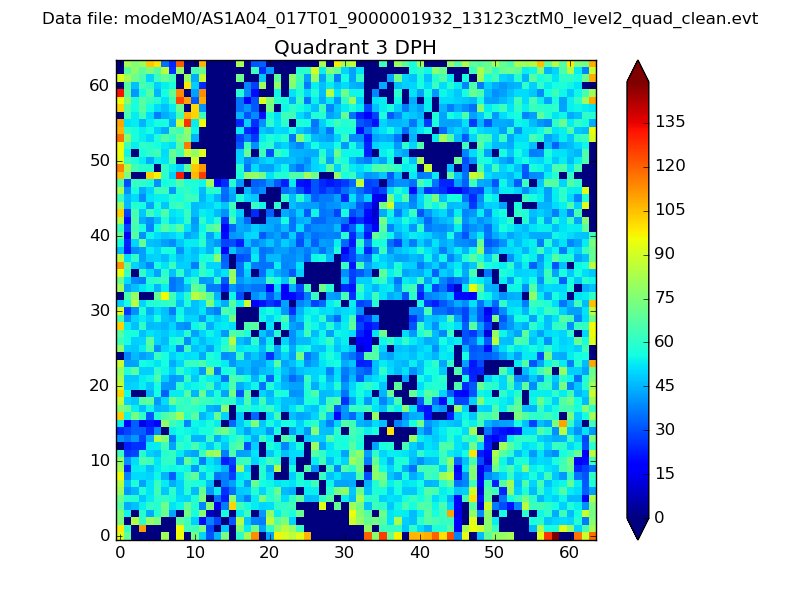

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

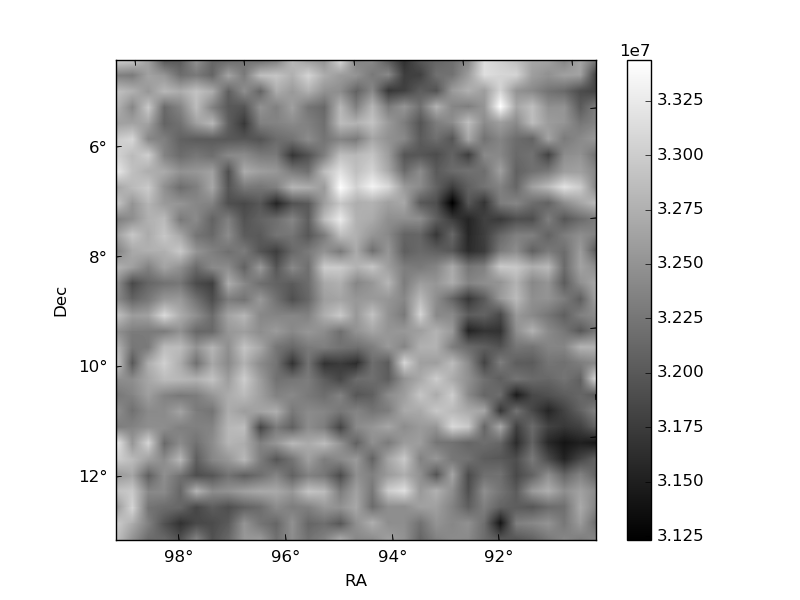

| Plot type | Count rate plots | Images |
|---|---|---|

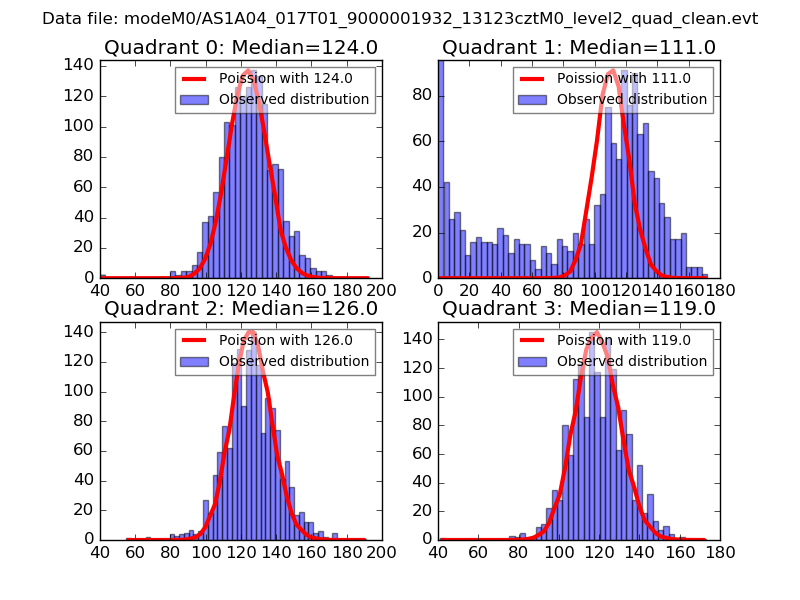

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

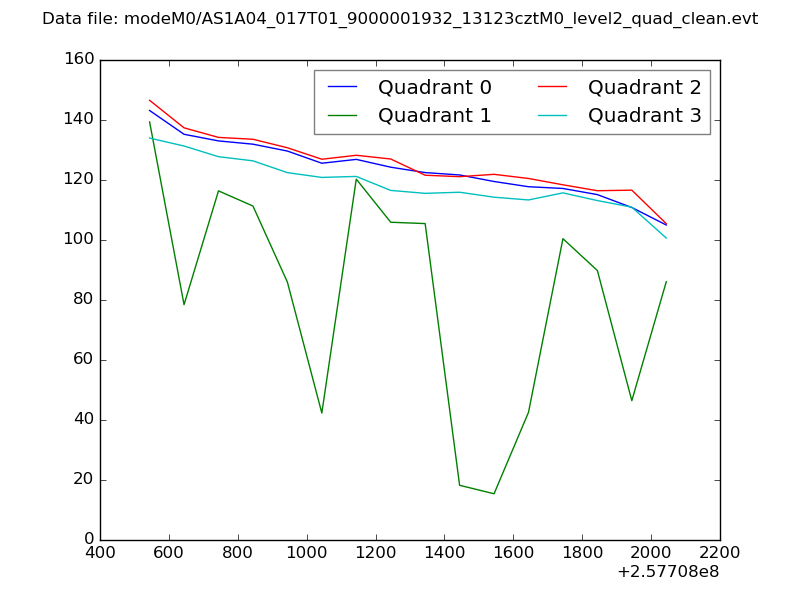

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

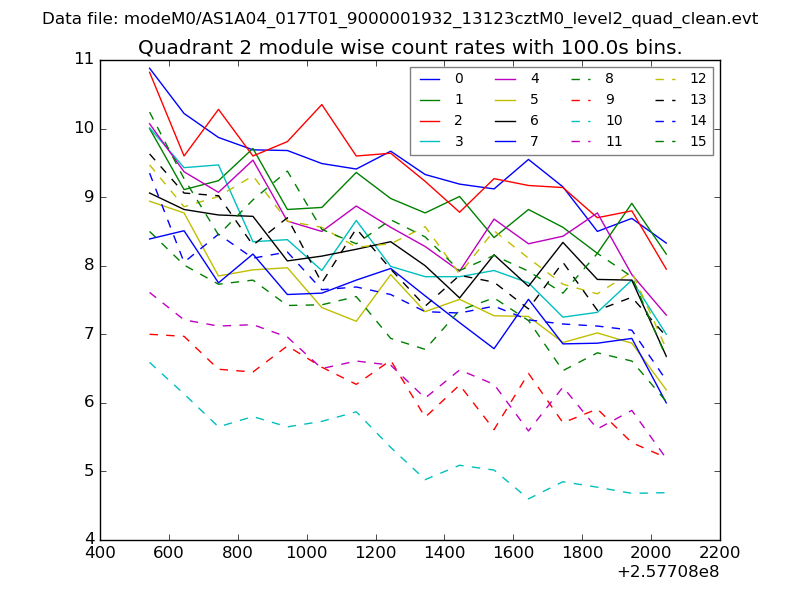

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

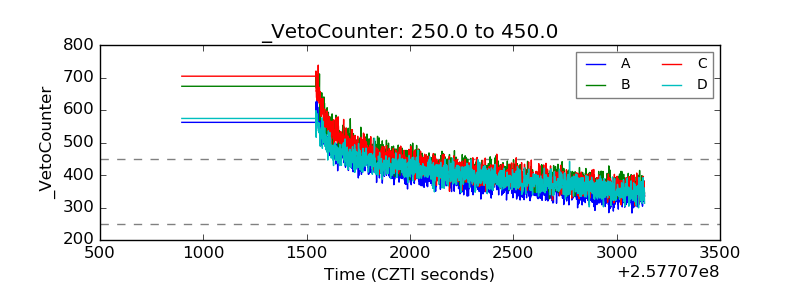

| Veto Counter |  |
