| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_031T02_9000001934_13130cztM0_level2.evt | modeM0/AS1G08_031T02_9000001934_13130cztM0_level2_quad_clean.evt |
| Size (bytes) | 620,729,280 | 110,442,240 |
| Size | 592.0 MB | 105.3 MB |
| Events in quadrant A | 3,767,238 | 735,954 |
| Events in quadrant B | 6,773,165 | 681,025 |
| Events in quadrant C | 2,916,336 | 764,594 |
| Events in quadrant D | 4,887,601 | 695,542 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15720 | 3 |
| B | 0 | 24732 | 2 |
| C | 0 | 13572 | 2 |
| D | 0 | 19393 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6699 | 304 | 4.537991% |
| B | 6699 | 1536 | 22.928795% |
| C | 6699 | 12 | 0.179131% |
| D | 6699 | 678 | 10.120914% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

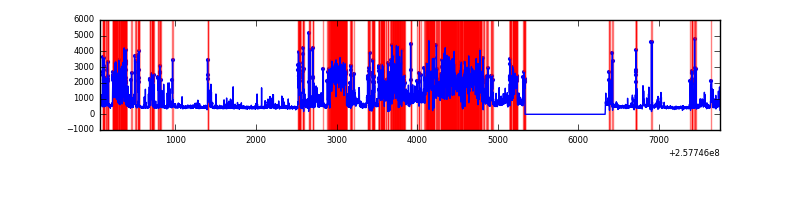

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7695 | 6700 | 227 | 227 | 2.95% | 3.39% |  |
| B | 7695 | 6701 | 951 | 951 | 12.36% | 14.19% |  |
| C | 7695 | 6701 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7695 | 6701 | 533 | 533 | 6.93% | 7.95% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 23 | 616337 | 4096.31 | 750 | 734 | 150.3 |
| A | 14 | 254 | 80842 | 533.05 | 750 | 734 | 150.3 |
| A | 12 | 189 | 73792 | 486.14 | 750 | 734 | 150.3 |
| B | 0 | 85 | 2431802 | 18991.14 | 686 | 669 | 128.0 |
| B | 4 | 239 | 1211470 | 9458.34 | 686 | 669 | 128.0 |
| B | 3 | 64 | 346532 | 2701.76 | 686 | 669 | 128.0 |
| C | 14 | 234 | 6564 | 34.02 | 746 | 749 | 170.9 |
| C | 13 | 61 | 5318 | 26.73 | 746 | 749 | 170.9 |
| C | 3 | 202 | 1890 | 6.67 | 746 | 749 | 170.9 |
| D | 1 | 52 | 2120268 | 12590.19 | 708 | 688 | 168.4 |
| D | 5 | 222 | 63646 | 373.97 | 708 | 688 | 168.4 |
| D | 2 | 234 | 20974 | 120.5 | 708 | 688 | 168.4 |

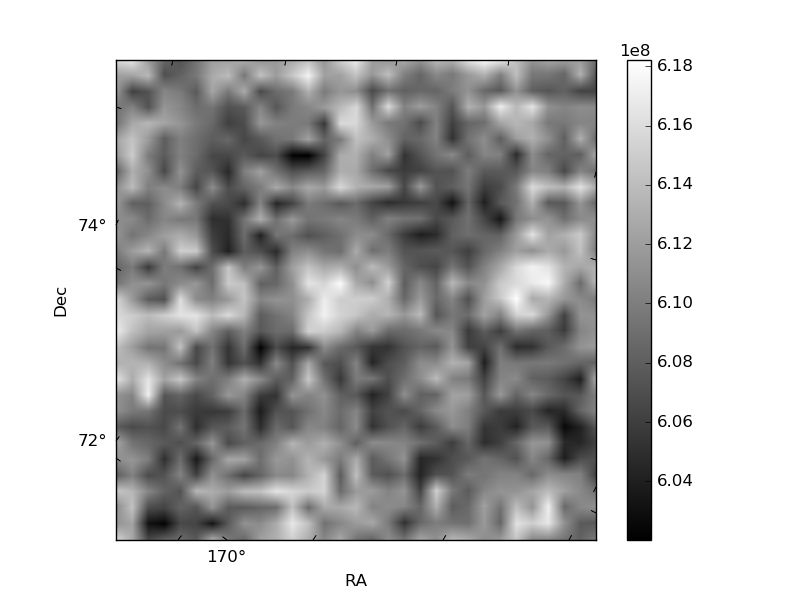

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

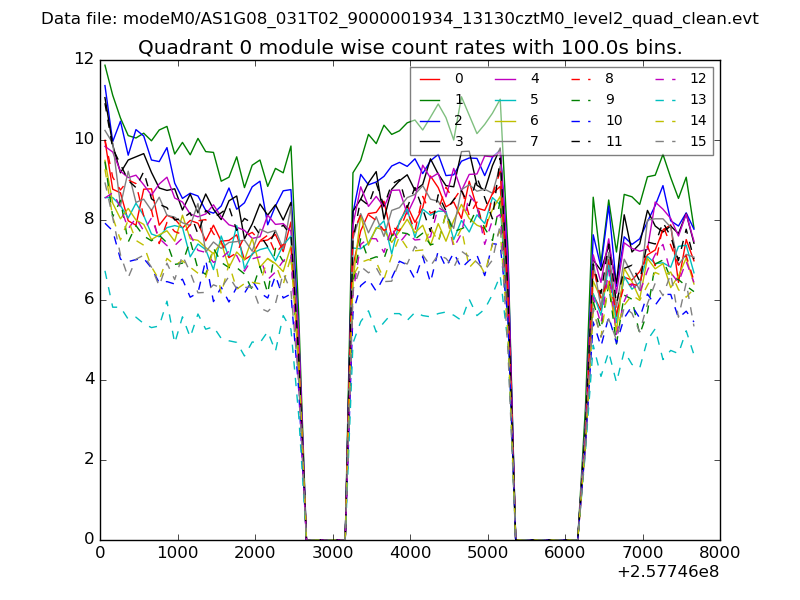

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

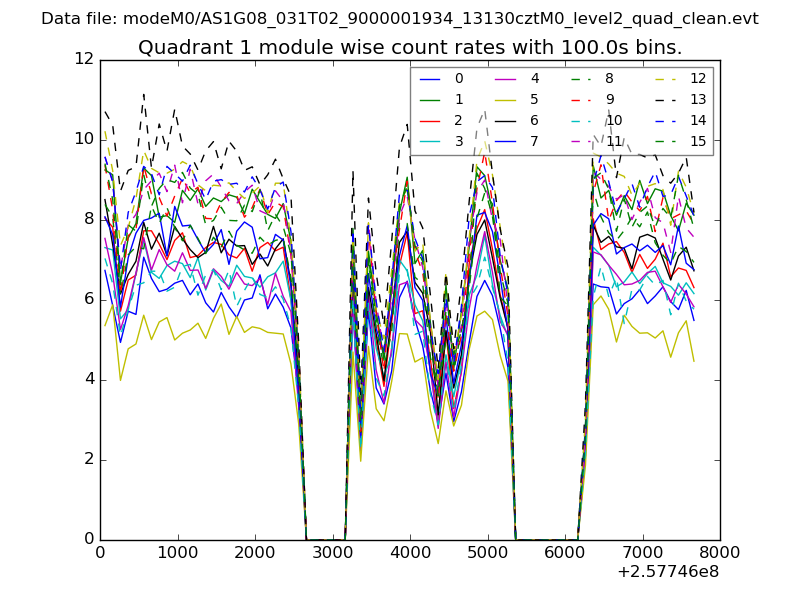

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

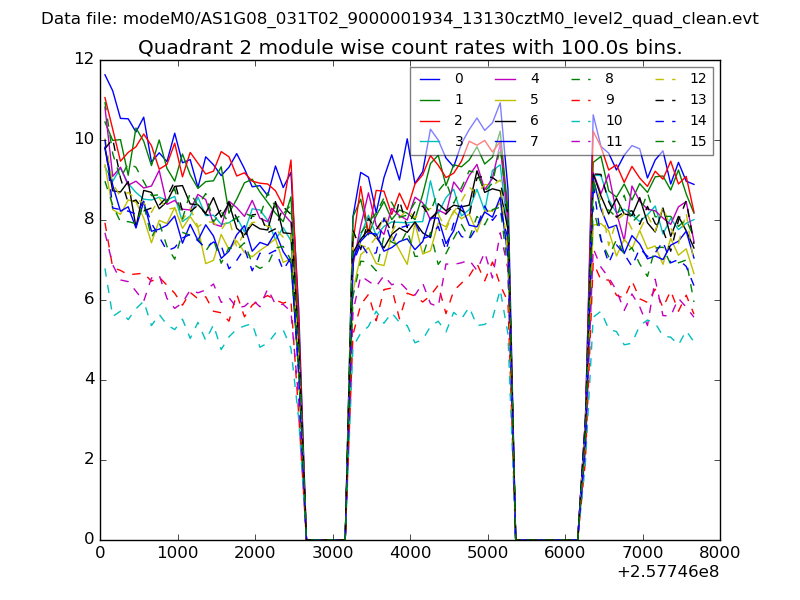

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

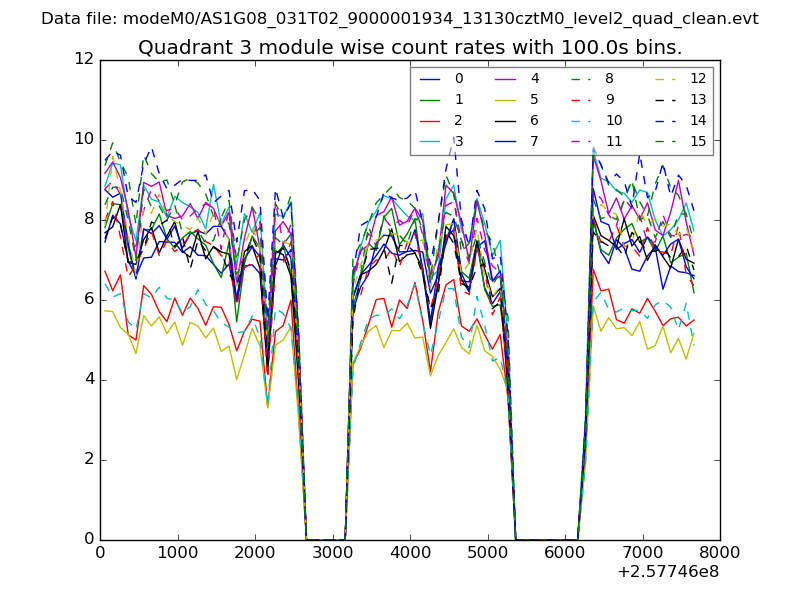

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

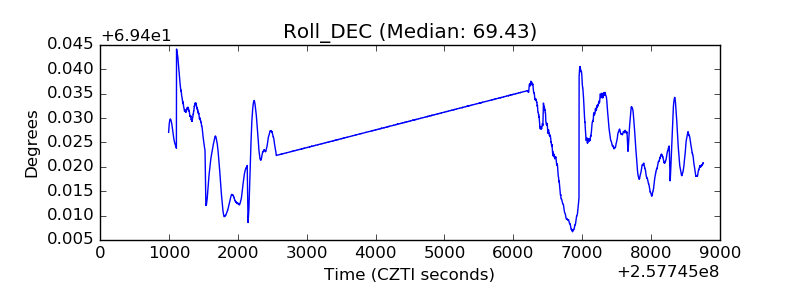

| _Roll_DEC |  |
| _Roll_RA |  |

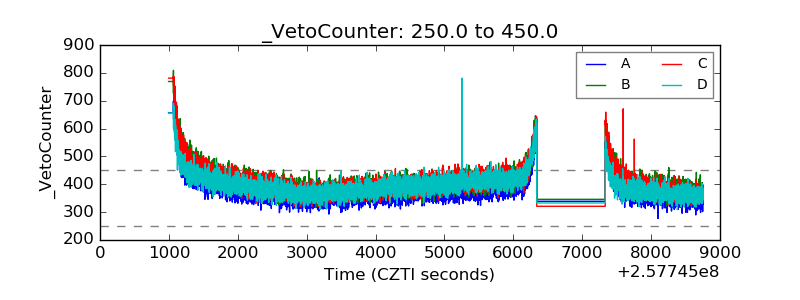

| Veto Counter |  |
