| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_061T01_9000001938_13136cztM0_level2.evt | modeM0/AS1G08_061T01_9000001938_13136cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,218,767,040 | 174,833,280 |
| Size | 1.1 GB | 166.7 MB |
| Events in quadrant A | 7,317,678 | 1,087,867 |
| Events in quadrant B | 12,812,722 | 1,045,628 |
| Events in quadrant C | 6,741,425 | 1,101,956 |
| Events in quadrant D | 9,039,295 | 1,038,382 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 31115 | 4 |
| B | 0 | 47730 | 3 |
| C | 0 | 30202 | 3 |
| D | 0 | 36984 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 300 | 0 |
| B | 0 | 300 | 0 |
| C | 0 | 300 | 0 |
| D | 0 | 300 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 14783 | 204 | 1.379963% |
| B | 14783 | 2743 | 18.555097% |
| C | 14783 | 171 | 1.156734% |
| D | 14783 | 596 | 4.031658% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 16609 | 14787 | 4 | 4 | 0.02% | 0.03% |  |
| B | 16609 | 14787 | 1683 | 1683 | 10.13% | 11.38% |  |
| C | 16609 | 14787 | 3 | 3 | 0.02% | 0.02% |  |
| D | 16609 | 14787 | 282 | 282 | 1.70% | 1.91% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 242509 | 666.03 | 1770 | 1730 | 361.5 |
| A | 0 | 23 | 165012 | 451.66 | 1770 | 1730 | 361.5 |
| A | 1 | 162 | 28559 | 74.21 | 1770 | 1730 | 361.5 |
| B | 4 | 239 | 5237764 | 17267.54 | 1586 | 1547 | 303.2 |
| B | 0 | 85 | 867322 | 2855.08 | 1586 | 1547 | 303.2 |
| B | 3 | 64 | 137529 | 448.43 | 1586 | 1547 | 303.2 |
| C | 14 | 234 | 19660 | 44.84 | 1722 | 1728 | 399.9 |
| C | 13 | 61 | 12829 | 27.76 | 1722 | 1728 | 399.9 |
| C | 15 | 208 | 7484 | 14.39 | 1722 | 1728 | 399.9 |
| D | 1 | 52 | 2199339 | 5368.36 | 1692 | 1643 | 409.4 |
| D | 5 | 222 | 225486 | 546.79 | 1692 | 1643 | 409.4 |
| D | 13 | 172 | 84186 | 201.63 | 1692 | 1643 | 409.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

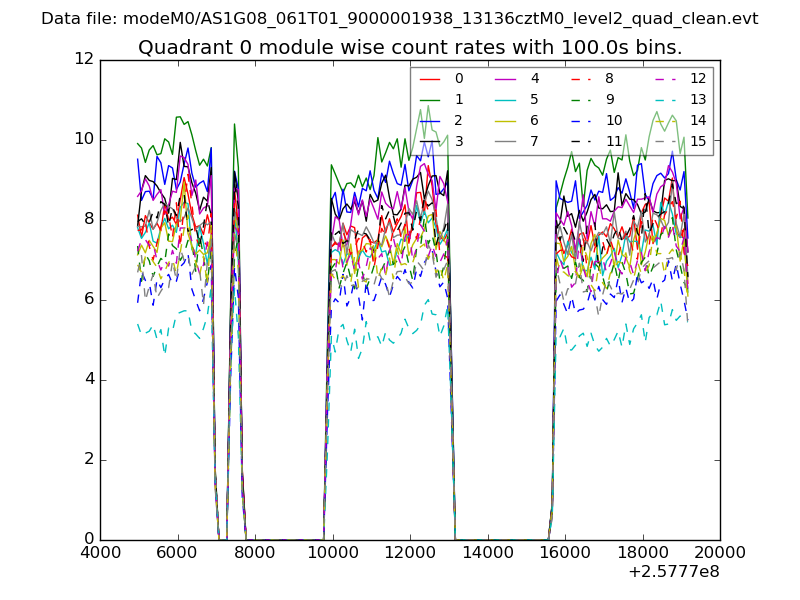

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

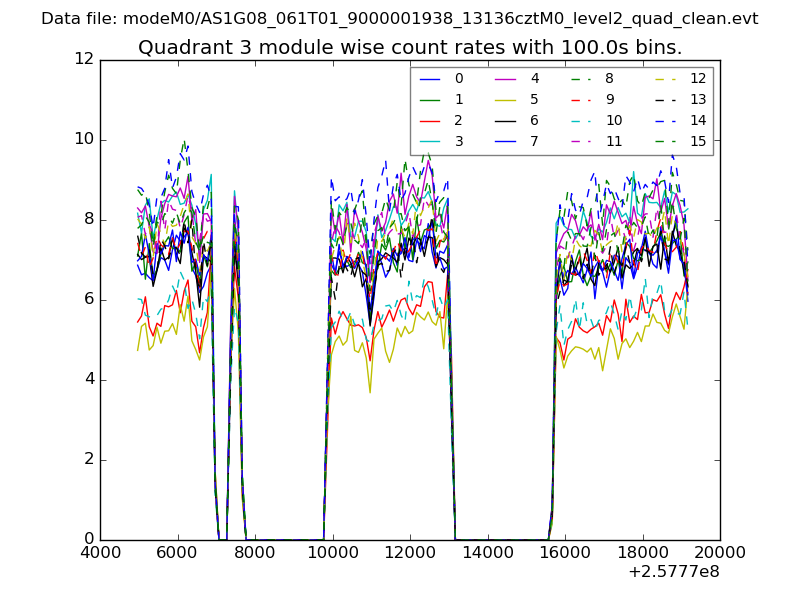

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

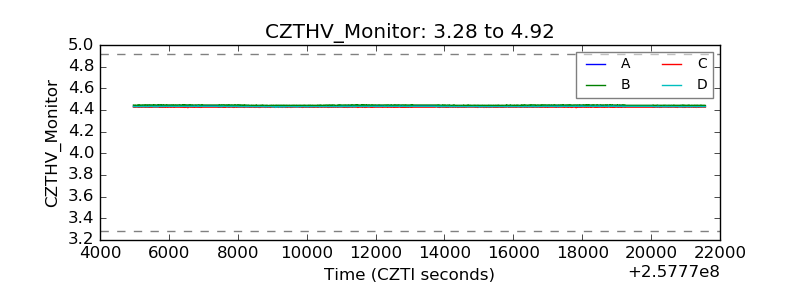

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

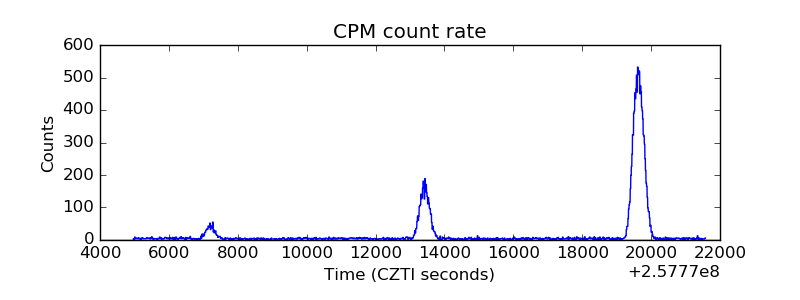

| _CPM_Rate |  |

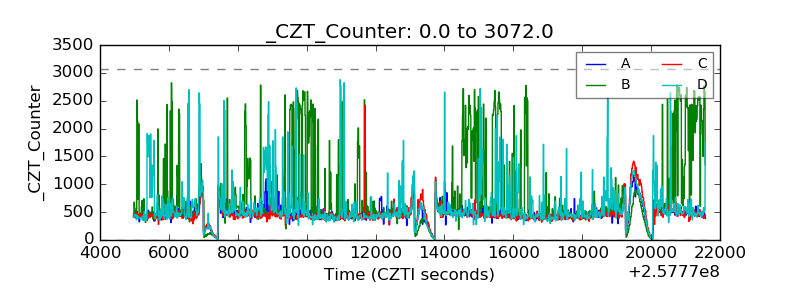

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

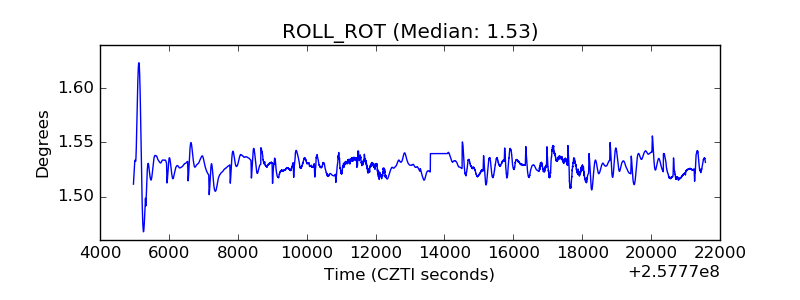

| _ROLL_ROT |  |

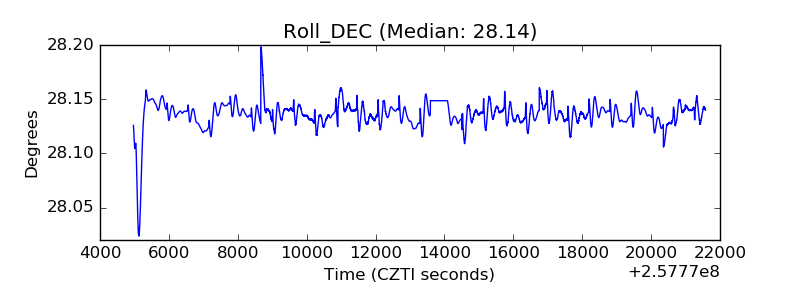

| _Roll_DEC |  |
| _Roll_RA |  |

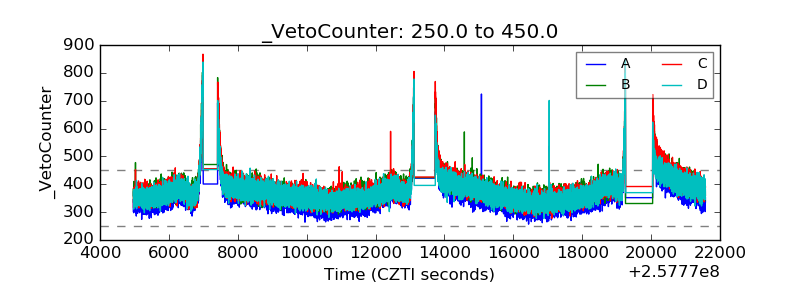

| Veto Counter |  |
