| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_094T01_9000001942_13152cztM0_level2.evt | modeM0/AS1A04_094T01_9000001942_13152cztM0_level2_quad_clean.evt |
| Size (bytes) | 488,191,680 | 85,942,080 |
| Size | 465.6 MB | 82.0 MB |
| Events in quadrant A | 3,469,649 | 535,960 |
| Events in quadrant B | 4,395,369 | 525,101 |
| Events in quadrant C | 3,155,843 | 546,982 |
| Events in quadrant D | 3,304,630 | 523,089 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14868 | 3 |
| B | 0 | 17675 | 2 |
| C | 0 | 14010 | 2 |
| D | 0 | 14552 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6766 | 73 | 1.078924% |
| B | 6766 | 574 | 8.483594% |
| C | 6766 | 63 | 0.931126% |
| D | 6766 | 75 | 1.108484% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8667 | 6769 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8667 | 6769 | 259 | 259 | 2.99% | 3.83% |  |
| C | 8667 | 6769 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8667 | 6769 | 6 | 6 | 0.07% | 0.09% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 160647 | 953.66 | 820 | 799 | 167.6 |
| A | 0 | 23 | 96574 | 571.4 | 820 | 799 | 167.6 |
| A | 9 | 143 | 15980 | 90.57 | 820 | 799 | 167.6 |
| B | 4 | 239 | 1089367 | 7271.76 | 787 | 769 | 149.7 |
| B | 0 | 189 | 76600 | 506.55 | 787 | 769 | 149.7 |
| B | 3 | 64 | 45682 | 300.02 | 787 | 769 | 149.7 |
| C | 13 | 61 | 5954 | 27.38 | 809 | 811 | 187.8 |
| C | 14 | 234 | 3120 | 12.29 | 809 | 811 | 187.8 |
| C | 3 | 202 | 1883 | 5.71 | 809 | 811 | 187.8 |
| D | 5 | 222 | 135076 | 691.17 | 802 | 778 | 194.3 |
| D | 1 | 52 | 79657 | 405.96 | 802 | 778 | 194.3 |
| D | 2 | 234 | 27052 | 135.22 | 802 | 778 | 194.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

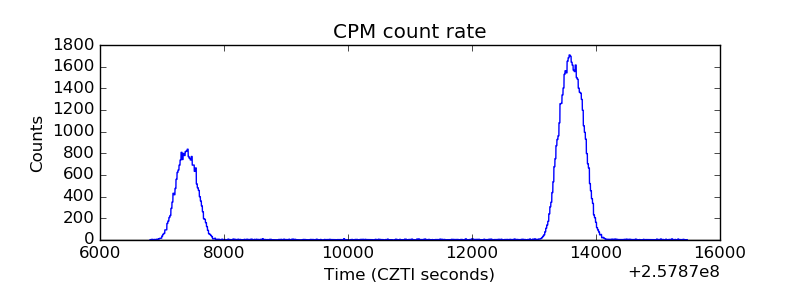

| _CPM_Rate |  |

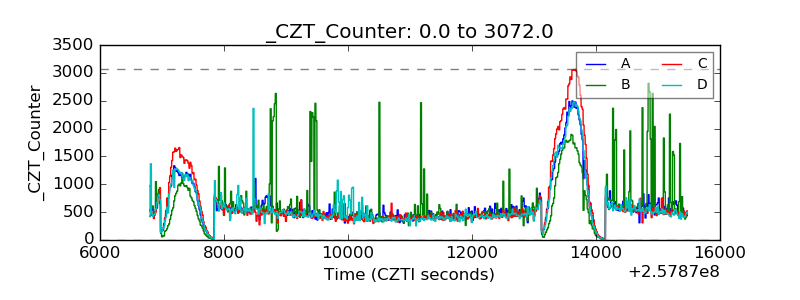

| CZT Counter |  |

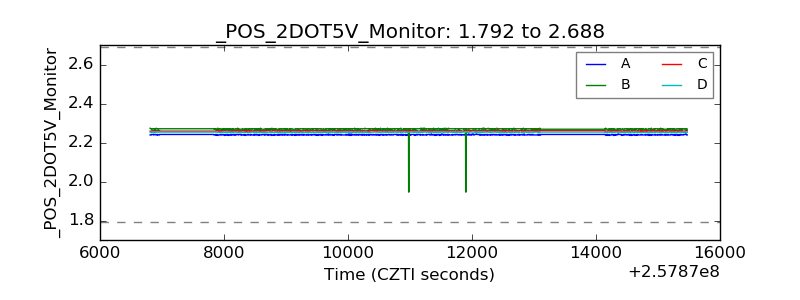

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

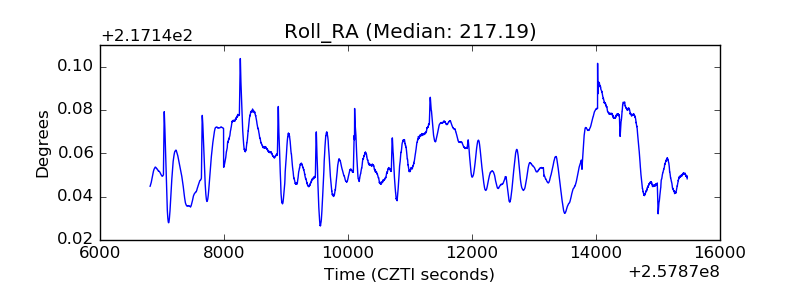

| _Roll_RA |  |
| Veto Counter |  |
