| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_094T01_9000001942_13156cztM0_level2.evt | modeM0/AS1A04_094T01_9000001942_13156cztM0_level2_quad_clean.evt |
| Size (bytes) | 433,552,320 | 85,901,760 |
| Size | 413.5 MB | 81.9 MB |
| Events in quadrant A | 2,725,343 | 560,248 |
| Events in quadrant B | 3,667,111 | 569,979 |
| Events in quadrant C | 2,542,222 | 576,256 |
| Events in quadrant D | 3,820,210 | 508,593 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 110 | 0 |
| B | 0 | 110 | 0 |
| C | 0 | 110 | 0 |
| D | 0 | 110 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11583 | 2 |
| B | 0 | 14524 | 1 |
| C | 0 | 11293 | 1 |
| D | 0 | 15210 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5526 | 14 | 0.253348% |
| B | 5526 | 367 | 6.641332% |
| C | 5526 | 15 | 0.271444% |
| D | 5526 | 468 | 8.469055% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6857 | 5528 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6857 | 5528 | 186 | 186 | 2.71% | 3.36% |  |
| C | 6857 | 5528 | 0 | 0 | 0.00% | 0.00% |  |
| D | 6857 | 5528 | 334 | 334 | 4.87% | 6.04% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 73491 | 543.51 | 661 | 648 | 134.0 |
| A | 0 | 23 | 73187 | 541.24 | 661 | 648 | 134.0 |
| A | 8 | 192 | 11954 | 84.36 | 661 | 648 | 134.0 |
| B | 4 | 239 | 984839 | 8180.29 | 643 | 629 | 120.3 |
| B | 3 | 64 | 75525 | 622.5 | 643 | 629 | 120.3 |
| B | 4 | 80 | 47590 | 390.32 | 643 | 629 | 120.3 |
| C | 13 | 61 | 4872 | 28.1 | 651 | 657 | 150.0 |
| C | 8 | 222 | 1630 | 6.49 | 651 | 657 | 150.0 |
| C | 14 | 234 | 1580 | 6.15 | 651 | 657 | 150.0 |
| D | 1 | 52 | 1302992 | 8924.46 | 615 | 597 | 145.9 |
| D | 14 | 34 | 76560 | 520.52 | 615 | 597 | 145.9 |
| D | 12 | 110 | 54245 | 367.61 | 615 | 597 | 145.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

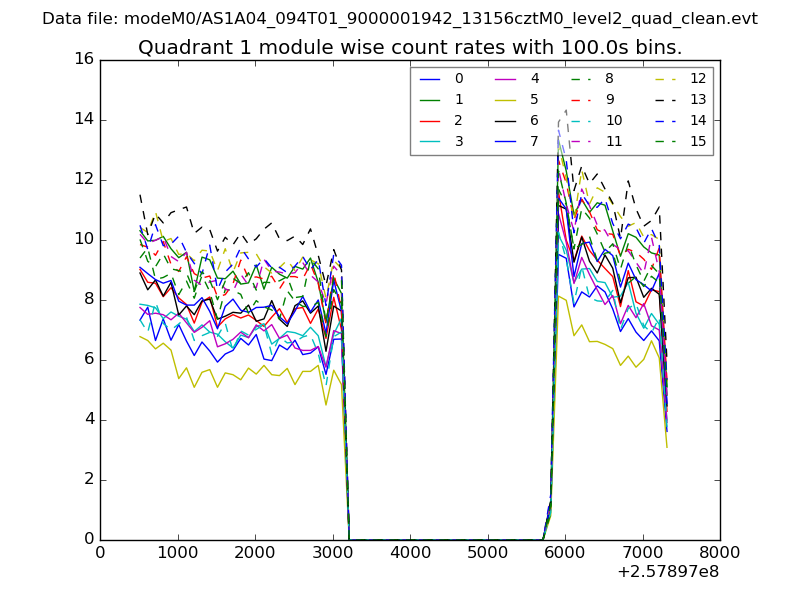

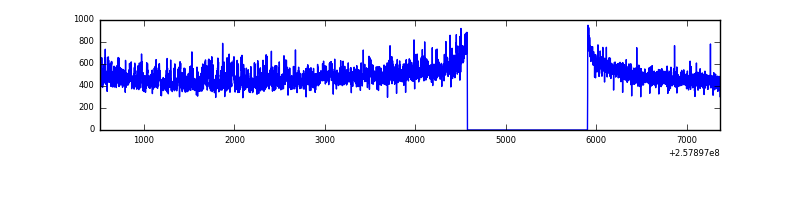

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

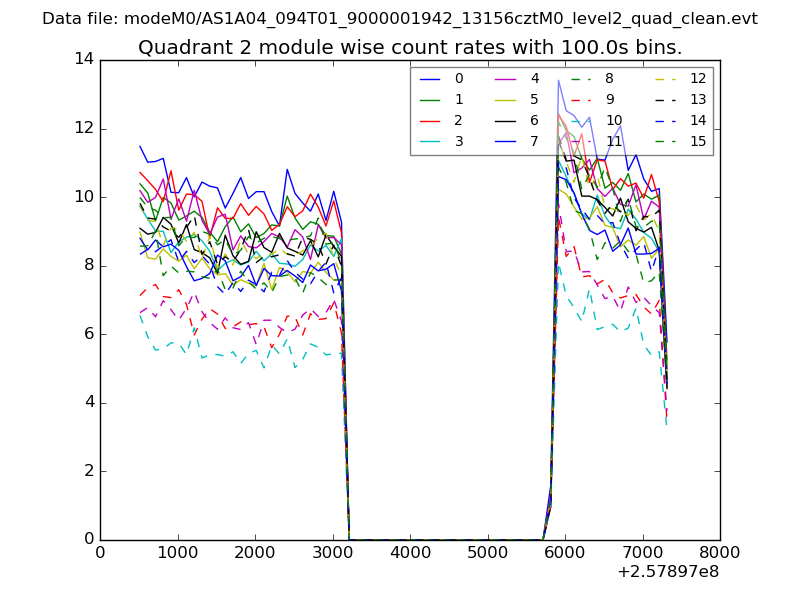

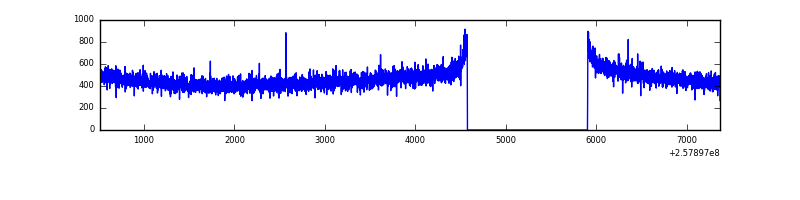

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

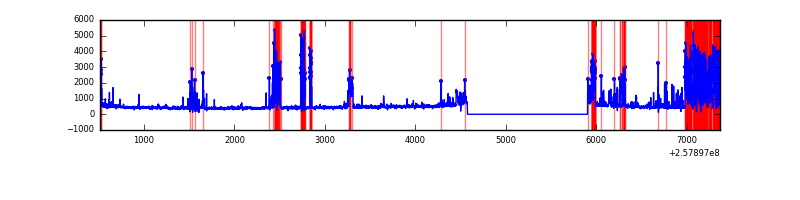

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

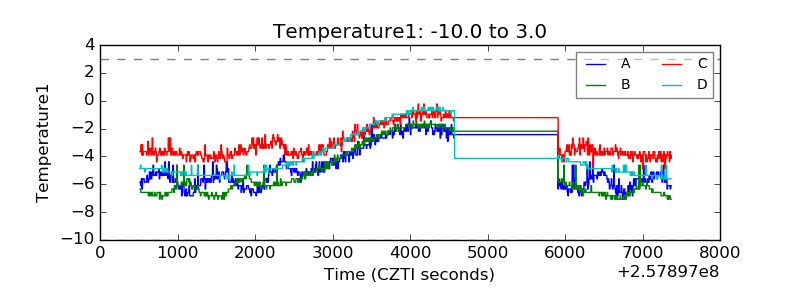

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

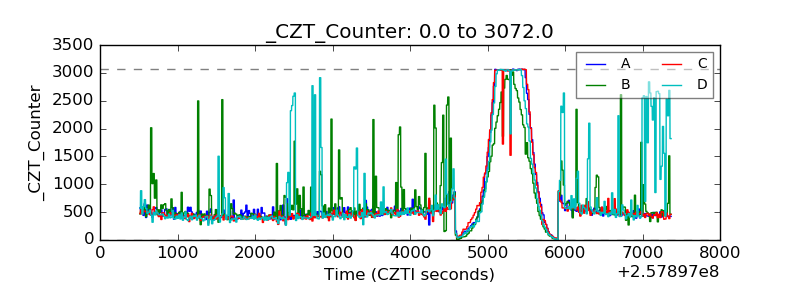

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

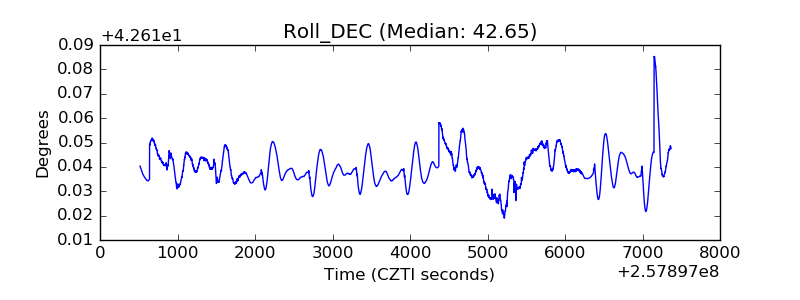

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
