| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_094T01_9000001942_13158cztM0_level2.evt | modeM0/AS1A04_094T01_9000001942_13158cztM0_level2_quad_clean.evt |
| Size (bytes) | 462,893,760 | 87,503,040 |
| Size | 441.4 MB | 83.4 MB |
| Events in quadrant A | 3,303,224 | 553,363 |
| Events in quadrant B | 4,236,104 | 551,435 |
| Events in quadrant C | 2,884,118 | 568,476 |
| Events in quadrant D | 3,165,779 | 535,587 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 18 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13808 | 3 |
| B | 0 | 16759 | 2 |
| C | 0 | 12990 | 2 |
| D | 0 | 14088 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6313 | 25 | 0.396008% |
| B | 6313 | 513 | 8.126089% |
| C | 6313 | 9 | 0.142563% |
| D | 6313 | 48 | 0.760336% |

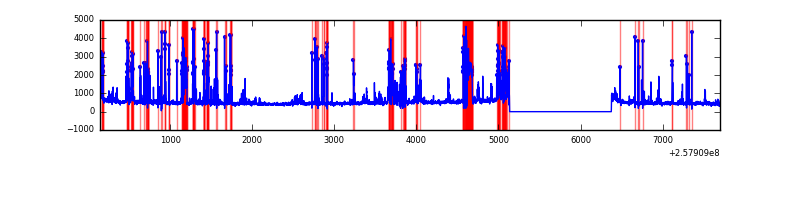

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7555 | 6315 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7555 | 6315 | 300 | 300 | 3.97% | 4.75% |  |
| C | 7555 | 6315 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7555 | 6315 | 28 | 28 | 0.37% | 0.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 158018 | 1034.24 | 757 | 741 | 152.1 |
| A | 0 | 23 | 108726 | 710.1 | 757 | 741 | 152.1 |
| A | 8 | 192 | 59459 | 386.12 | 757 | 741 | 152.1 |
| B | 4 | 239 | 1222008 | 8886.45 | 730 | 713 | 137.4 |
| B | 4 | 80 | 108720 | 785.89 | 730 | 713 | 137.4 |
| B | 12 | 111 | 15606 | 108.37 | 730 | 713 | 137.4 |
| C | 13 | 61 | 5374 | 27.18 | 739 | 743 | 170.4 |
| C | 8 | 222 | 2671 | 11.32 | 739 | 743 | 170.4 |
| C | 3 | 202 | 1943 | 7.04 | 739 | 743 | 170.4 |
| D | 1 | 52 | 389449 | 2226.92 | 726 | 708 | 174.6 |
| D | 2 | 234 | 23802 | 132.3 | 726 | 708 | 174.6 |
| D | 8 | 195 | 10005 | 53.26 | 726 | 708 | 174.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

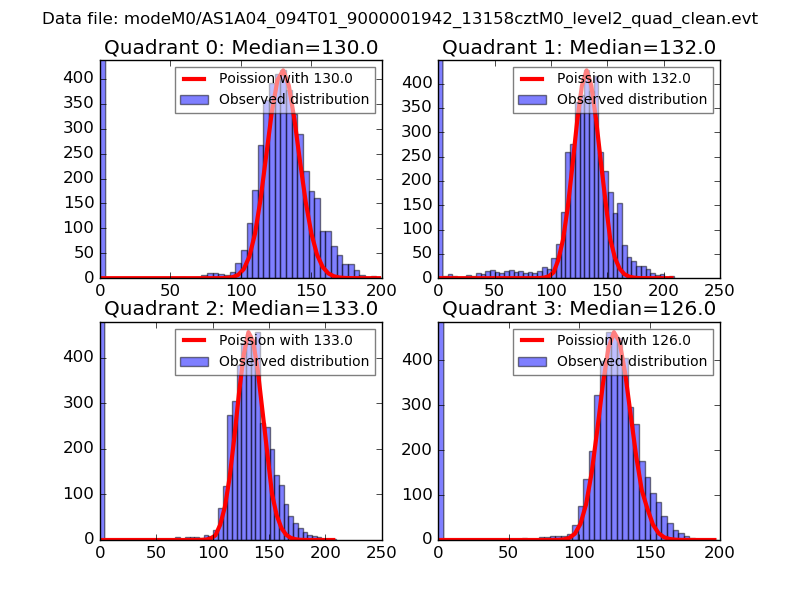

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

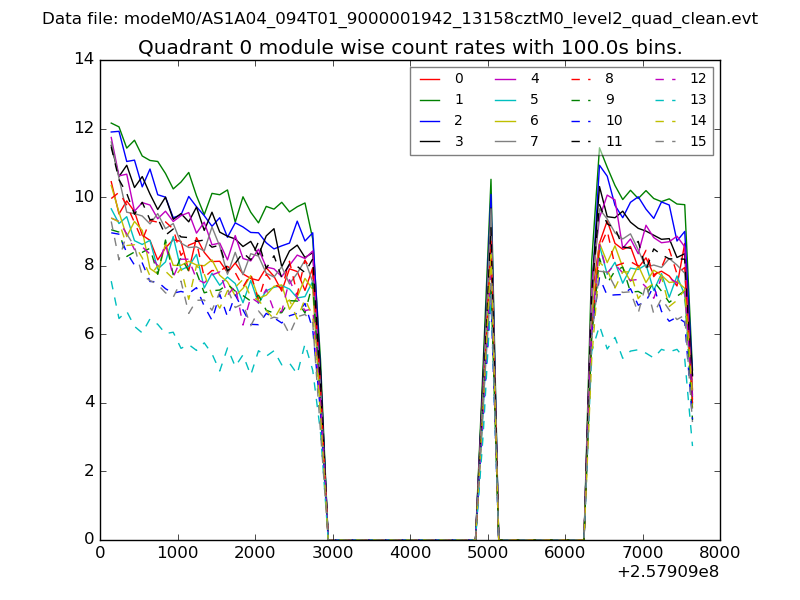

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

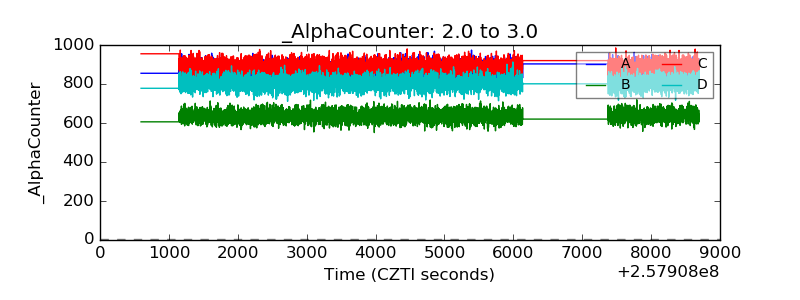

| Alpha Counter |  |

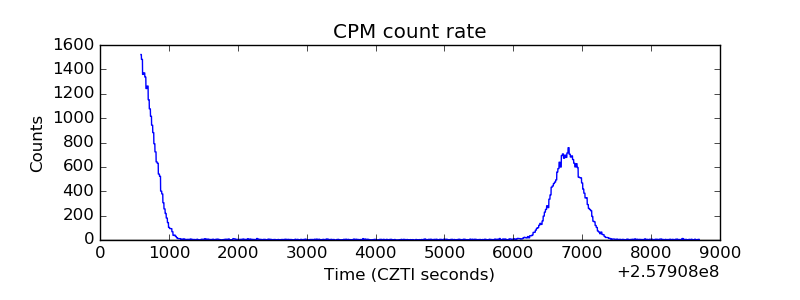

| _CPM_Rate |  |

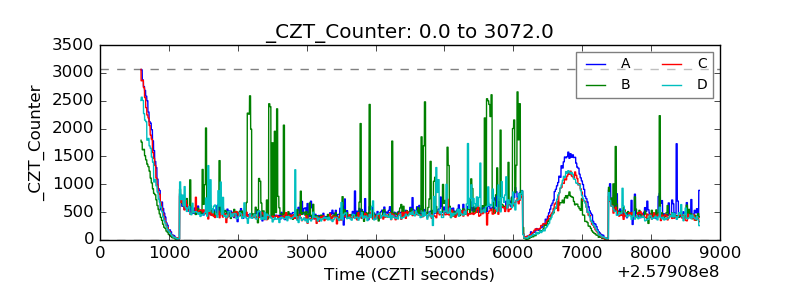

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

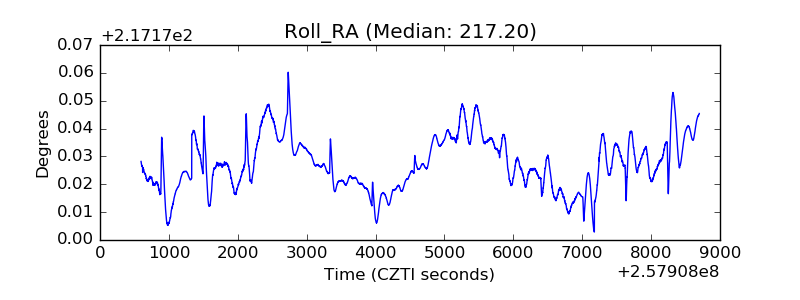

| _Roll_RA |  |
| Veto Counter |  |
