| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_094T01_9000001942_13159cztM0_level2.evt | modeM0/AS1A04_094T01_9000001942_13159cztM0_level2_quad_clean.evt |
| Size (bytes) | 486,552,960 | 92,661,120 |
| Size | 464.0 MB | 88.4 MB |
| Events in quadrant A | 3,569,657 | 584,596 |
| Events in quadrant B | 4,633,190 | 578,178 |
| Events in quadrant C | 3,028,519 | 600,093 |
| Events in quadrant D | 3,043,119 | 570,535 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 14 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15192 | 25 |
| B | 0 | 18307 | 16 |
| C | 0 | 13861 | 2 |
| D | 0 | 14082 | 22 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6776 | 63 | 0.929752% |
| B | 6778 | 618 | 9.117734% |
| C | 6784 | 24 | 0.353774% |
| D | 6775 | 21 | 0.309963% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

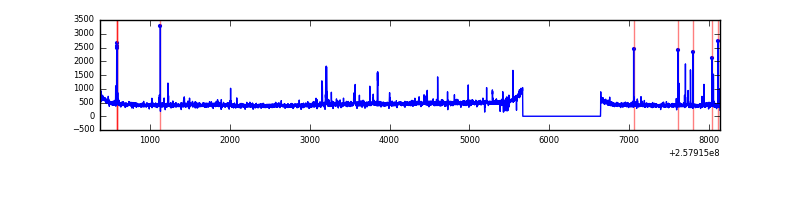

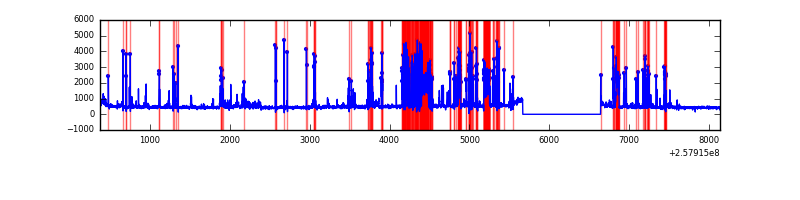

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7760 | 6786 | 1 | 1 | 0.01% | 0.01% |  |
| B | 7760 | 6786 | 406 | 406 | 5.23% | 5.98% |  |
| C | 7760 | 6786 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7760 | 6786 | 9 | 9 | 0.12% | 0.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 23 | 265088 | 1643.59 | 795 | 780 | 160.8 |
| A | 12 | 189 | 88283 | 544.13 | 795 | 780 | 160.8 |
| A | 8 | 192 | 67852 | 417.08 | 795 | 780 | 160.8 |
| B | 4 | 239 | 1519765 | 10547.58 | 756 | 737 | 144.0 |
| B | 4 | 80 | 93930 | 647.1 | 756 | 737 | 144.0 |
| B | 0 | 197 | 22342 | 150.02 | 756 | 737 | 144.0 |
| C | 13 | 61 | 5738 | 27.72 | 775 | 779 | 178.9 |
| C | 8 | 222 | 4216 | 19.21 | 775 | 779 | 178.9 |
| C | 15 | 208 | 2493 | 9.58 | 775 | 779 | 178.9 |
| D | 1 | 52 | 109952 | 590.54 | 766 | 743 | 184.9 |
| D | 2 | 234 | 24556 | 128.77 | 766 | 743 | 184.9 |
| D | 14 | 34 | 14226 | 72.91 | 766 | 743 | 184.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

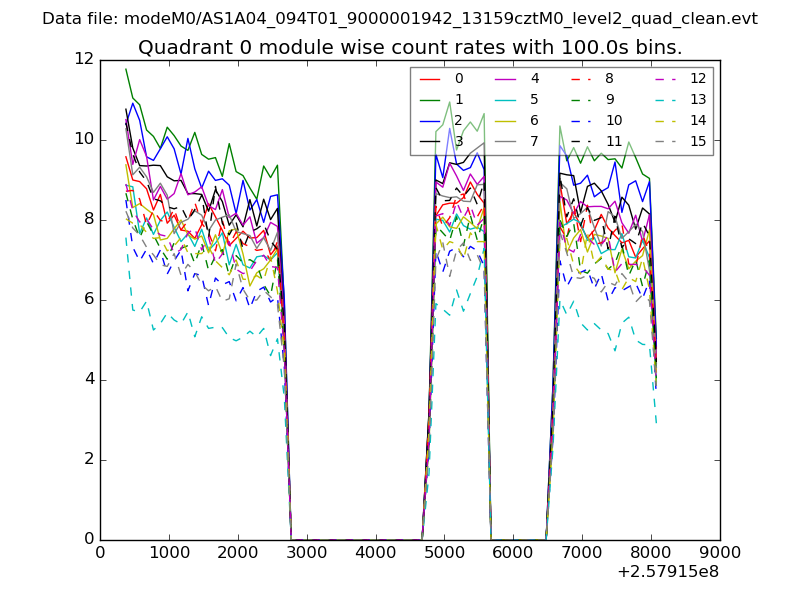

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

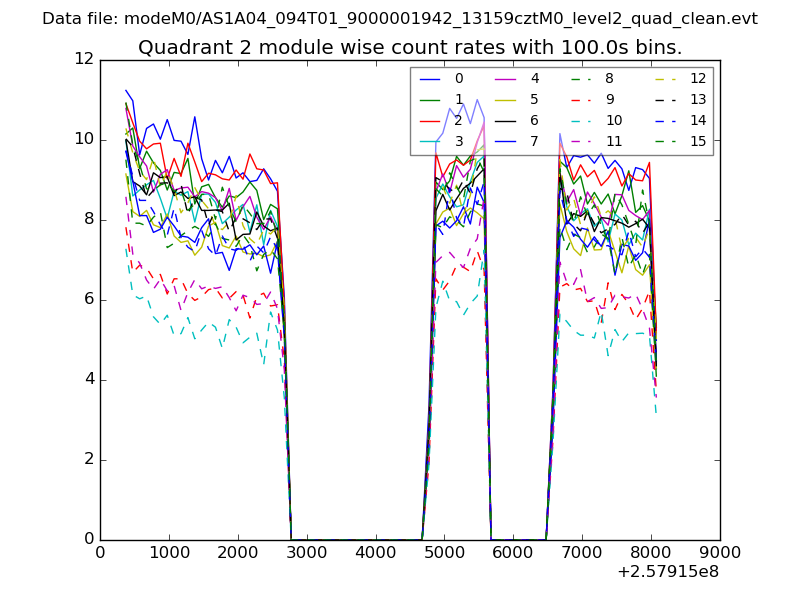

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

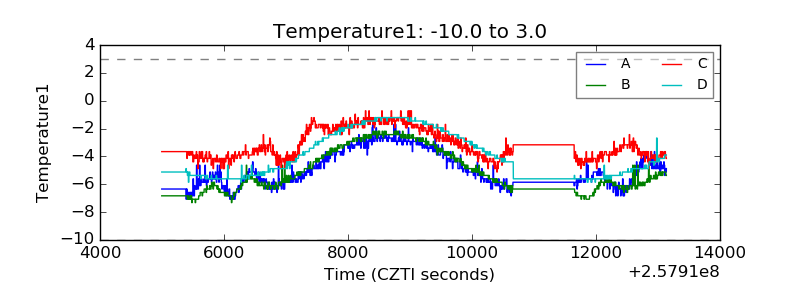

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

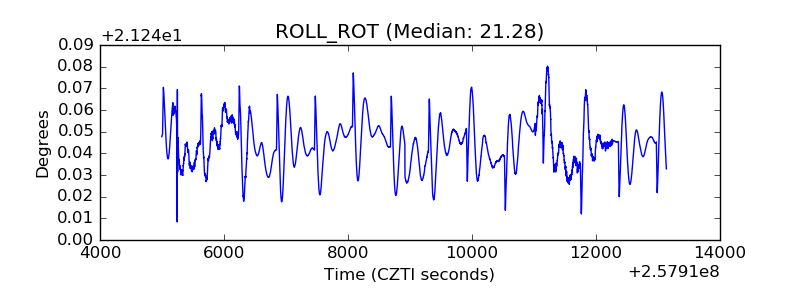

| _ROLL_ROT |  |

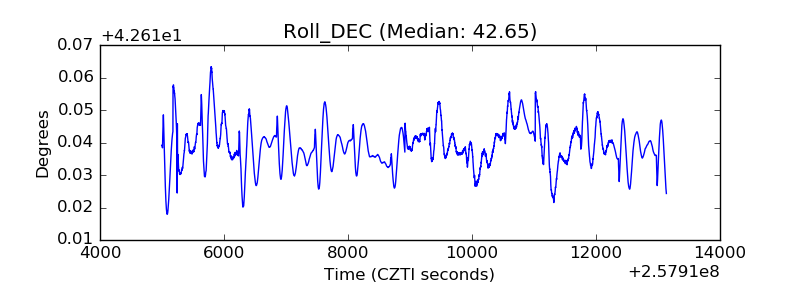

| _Roll_DEC |  |

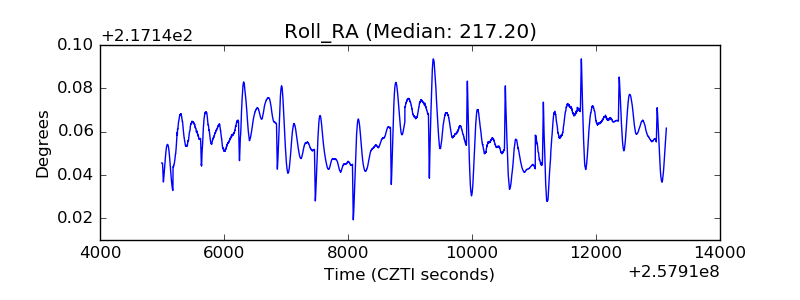

| _Roll_RA |  |
