| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_094T01_9000001942_13169cztM0_level2.evt | modeM0/AS1A04_094T01_9000001942_13169cztM0_level2_quad_clean.evt |
| Size (bytes) | 483,373,440 | 98,781,120 |
| Size | 461.0 MB | 94.2 MB |
| Events in quadrant A | 3,334,459 | 629,483 |
| Events in quadrant B | 4,114,689 | 636,740 |
| Events in quadrant C | 3,198,144 | 649,310 |
| Events in quadrant D | 3,539,644 | 611,903 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14402 | 2 |
| B | 0 | 16754 | 2 |
| C | 0 | 14084 | 2 |
| D | 0 | 15370 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6661 | 73 | 1.095932% |
| B | 6661 | 287 | 4.308662% |
| C | 6661 | 57 | 0.855727% |
| D | 6661 | 109 | 1.636391% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8982 | 6664 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8982 | 6664 | 156 | 156 | 1.74% | 2.34% |  |
| C | 8982 | 6664 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8982 | 6664 | 33 | 33 | 0.37% | 0.50% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 86711 | 515.5 | 826 | 808 | 166.6 |
| A | 8 | 15 | 28079 | 163.65 | 826 | 808 | 166.6 |
| A | 4 | 2 | 23624 | 136.92 | 826 | 808 | 166.6 |
| B | 4 | 239 | 719164 | 4645.29 | 822 | 803 | 154.6 |
| B | 3 | 64 | 57396 | 365.96 | 822 | 803 | 154.6 |
| B | 5 | 32 | 34026 | 214.84 | 822 | 803 | 154.6 |
| C | 15 | 208 | 6551 | 30.59 | 819 | 825 | 187.2 |
| C | 13 | 61 | 6014 | 27.72 | 819 | 825 | 187.2 |
| C | 3 | 202 | 1999 | 6.27 | 819 | 825 | 187.2 |
| D | 1 | 52 | 268664 | 1387.14 | 805 | 783 | 193.1 |
| D | 14 | 34 | 106668 | 548.29 | 805 | 783 | 193.1 |
| D | 10 | 157 | 74990 | 384.26 | 805 | 783 | 193.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

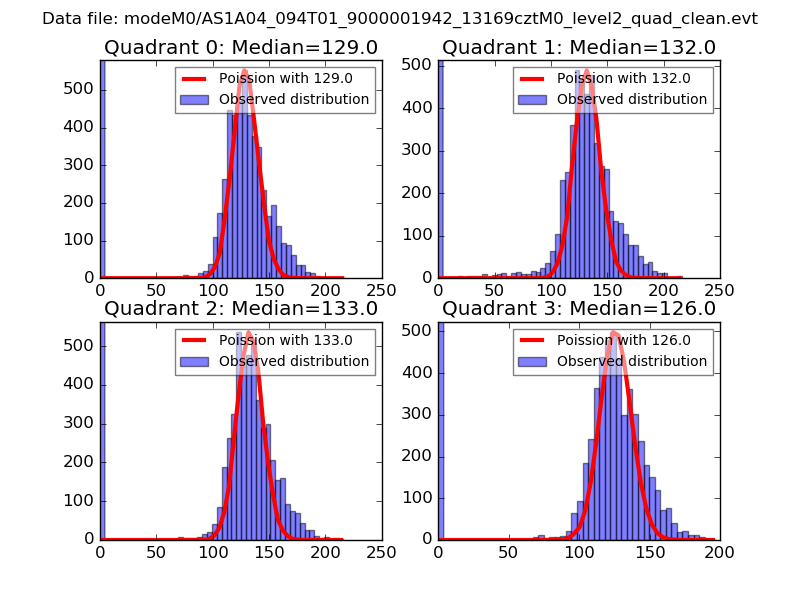

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

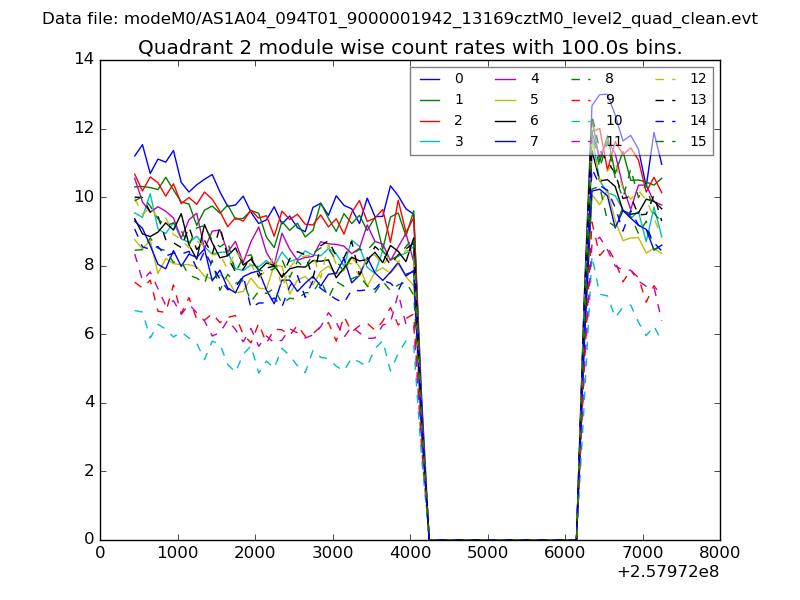

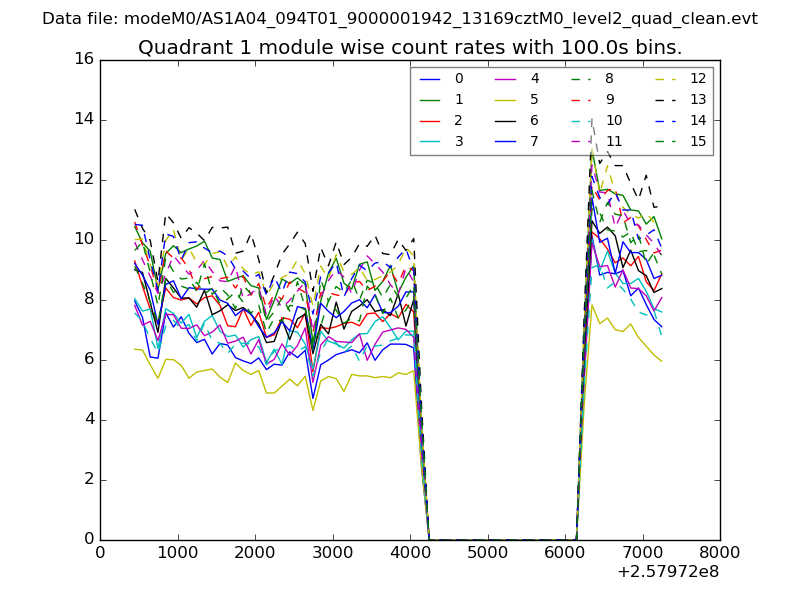

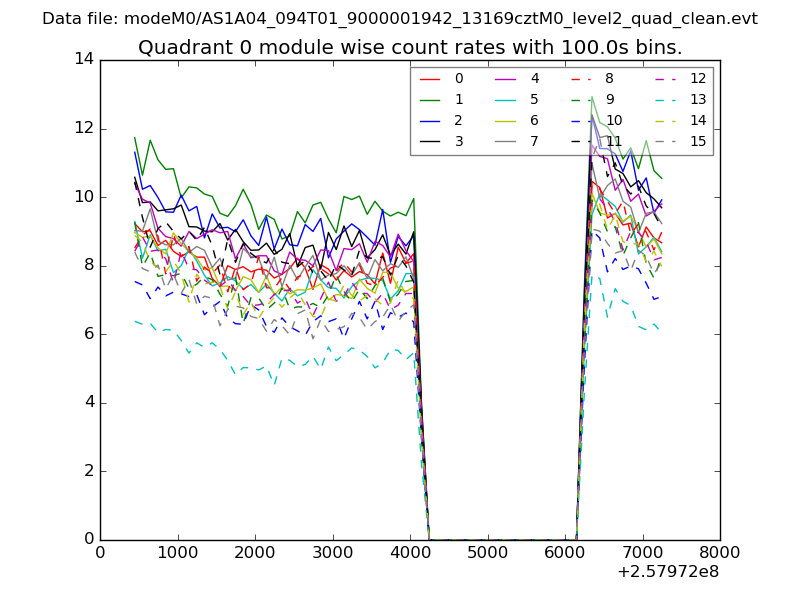

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

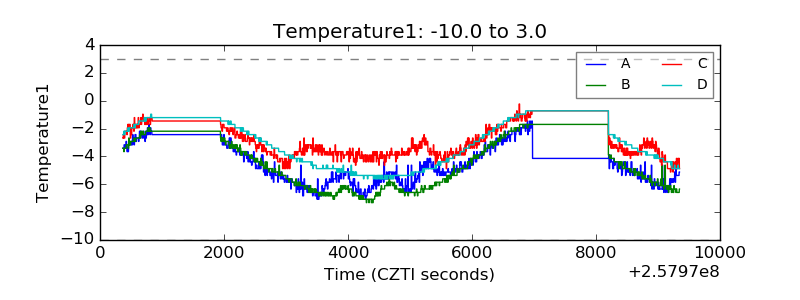

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

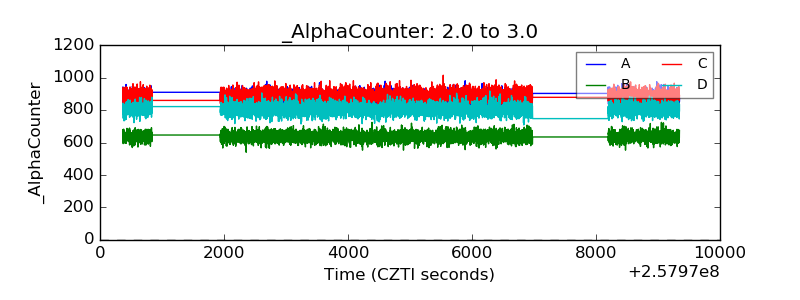

| Alpha Counter |  |

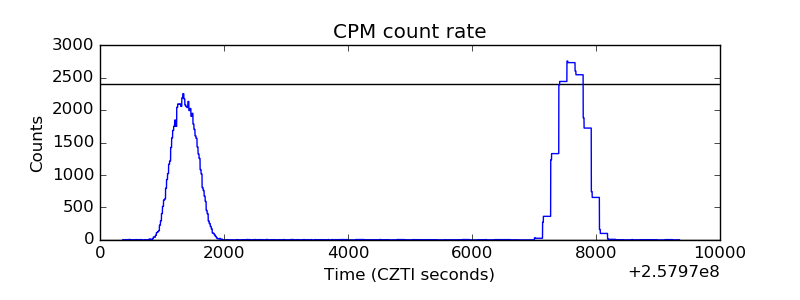

| _CPM_Rate |  |

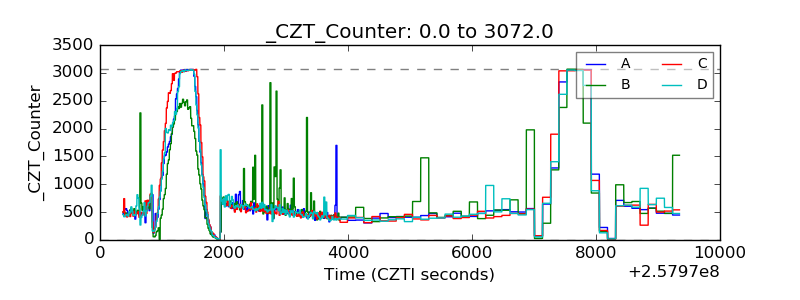

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
