| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_034T01_9000001944_13172cztM0_level2.evt | modeM0/AS1G08_034T01_9000001944_13172cztM0_level2_quad_clean.evt |
| Size (bytes) | 124,444,800 | 31,907,520 |
| Size | 118.7 MB | 30.4 MB |
| Events in quadrant A | 879,561 | 209,910 |
| Events in quadrant B | 1,049,104 | 215,012 |
| Events in quadrant C | 830,979 | 213,490 |
| Events in quadrant D | 889,082 | 200,716 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4163 | 445 |
| B | 0 | 4836 | 594 |
| C | 0 | 4103 | 418 |
| D | 0 | 4252 | 443 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 38 | 2 |
| B | 0 | 41 | 5 |
| C | 0 | 39 | 3 |
| D | 0 | 40 | 4 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1730 | 15 | 0.867052% |
| B | 1720 | 94 | 5.465116% |
| C | 1733 | 11 | 0.634737% |
| D | 1733 | 17 | 0.980958% |

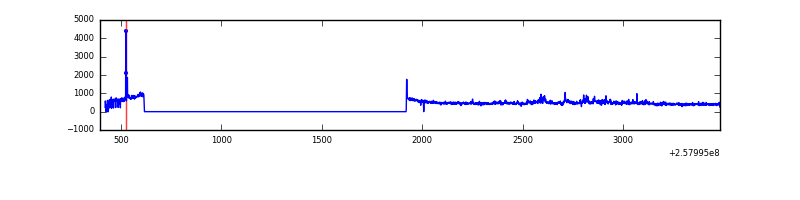

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3087 | 1748 | 0 | 0 | 0.00% | 0.00% |  |
| B | 3085 | 1733 | 35 | 35 | 1.13% | 2.02% |  |
| C | 3075 | 1745 | 0 | 0 | 0.00% | 0.00% |  |
| D | 3061 | 1748 | 2 | 2 | 0.07% | 0.11% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 27353 | 606.22 | 214 | 210 | 44.8 |
| A | 1 | 162 | 10625 | 232.61 | 214 | 210 | 44.8 |
| A | 0 | 23 | 5081 | 108.79 | 214 | 210 | 44.8 |
| B | 4 | 239 | 201246 | 4753.54 | 212 | 207 | 42.3 |
| B | 0 | 214 | 11184 | 259.55 | 212 | 207 | 42.3 |
| B | 12 | 111 | 4623 | 104.42 | 212 | 207 | 42.3 |
| C | 13 | 61 | 1599 | 27.4 | 212 | 213 | 50.6 |
| C | 15 | 208 | 1378 | 23.03 | 212 | 213 | 50.6 |
| C | 3 | 202 | 469 | 5.06 | 212 | 213 | 50.6 |
| D | 8 | 195 | 82771 | 1638.63 | 205 | 199 | 50.4 |
| D | 1 | 52 | 17188 | 337.14 | 205 | 199 | 50.4 |
| D | 2 | 234 | 12181 | 237.78 | 205 | 199 | 50.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

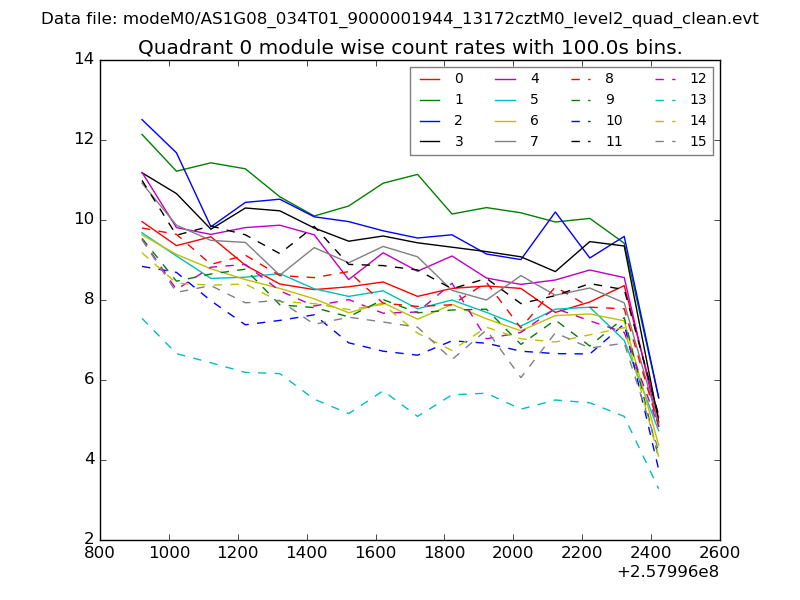

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

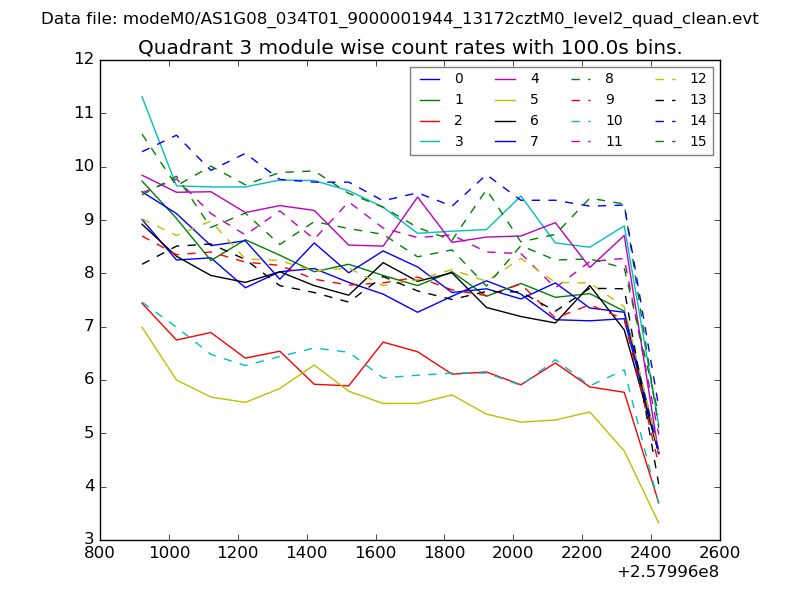

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

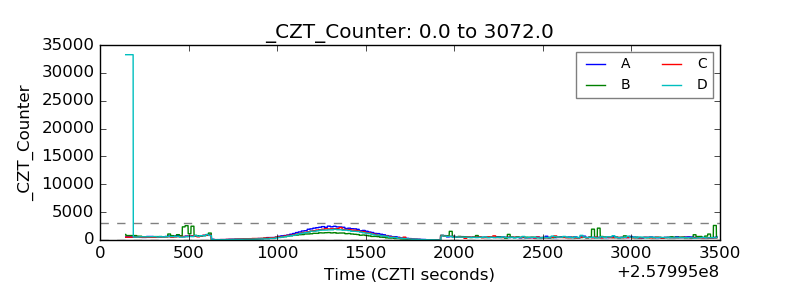

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

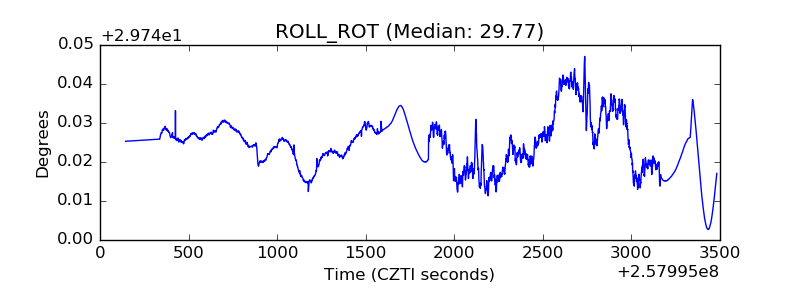

| _ROLL_ROT |  |

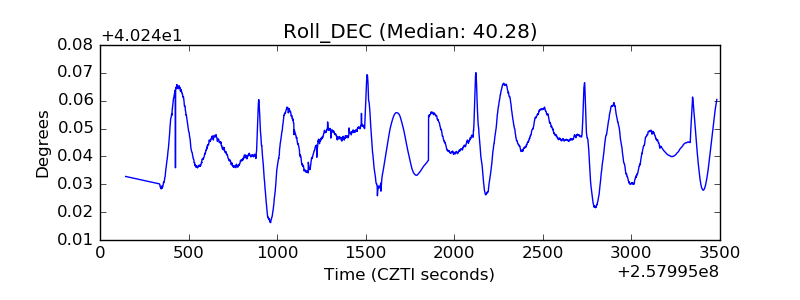

| _Roll_DEC |  |

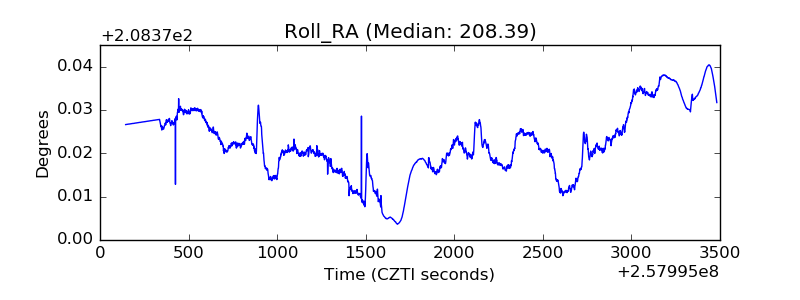

| _Roll_RA |  |
| Veto Counter |  |
