| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_034T01_9000001944_13175cztM0_level2.evt | modeM0/AS1G08_034T01_9000001944_13175cztM0_level2_quad_clean.evt |
| Size (bytes) | 501,537,600 | 102,620,160 |
| Size | 478.3 MB | 97.9 MB |
| Events in quadrant A | 3,558,448 | 638,651 |
| Events in quadrant B | 3,892,571 | 658,566 |
| Events in quadrant C | 3,436,592 | 657,538 |
| Events in quadrant D | 3,786,868 | 626,081 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15701 | 3 |
| B | 0 | 16662 | 2 |
| C | 0 | 15613 | 2 |
| D | 0 | 16475 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7569 | 212 | 2.800898% |
| B | 7569 | 263 | 3.474699% |
| C | 7569 | 98 | 1.294755% |
| D | 7569 | 143 | 1.889285% |

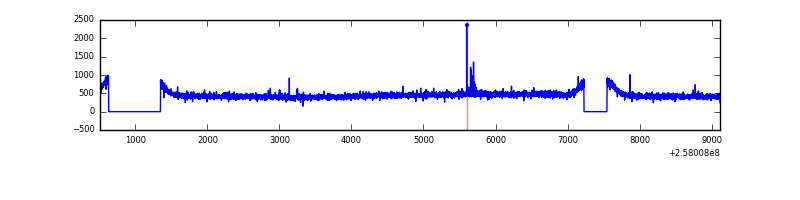

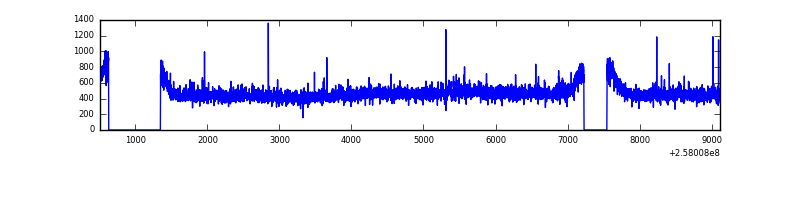

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8611 | 7573 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8611 | 7573 | 38 | 38 | 0.44% | 0.50% |  |
| C | 8611 | 7573 | 1 | 1 | 0.01% | 0.01% |  |
| D | 8611 | 7573 | 12 | 12 | 0.14% | 0.16% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 77173 | 416.18 | 893 | 868 | 183.3 |
| A | 0 | 23 | 13400 | 68.35 | 893 | 868 | 183.3 |
| A | 15 | 222 | 12765 | 64.89 | 893 | 868 | 183.3 |
| B | 4 | 239 | 210960 | 1216.88 | 893 | 870 | 172.6 |
| B | 5 | 32 | 108274 | 622.1 | 893 | 870 | 172.6 |
| B | 3 | 64 | 29931 | 168.33 | 893 | 870 | 172.6 |
| C | 15 | 208 | 18886 | 88.52 | 871 | 872 | 203.5 |
| C | 8 | 128 | 12955 | 59.37 | 871 | 872 | 203.5 |
| C | 8 | 112 | 6737 | 28.82 | 871 | 872 | 203.5 |
| D | 1 | 52 | 275811 | 1310.21 | 864 | 838 | 209.9 |
| D | 10 | 157 | 132276 | 626.28 | 864 | 838 | 209.9 |
| D | 8 | 195 | 40070 | 186.94 | 864 | 838 | 209.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

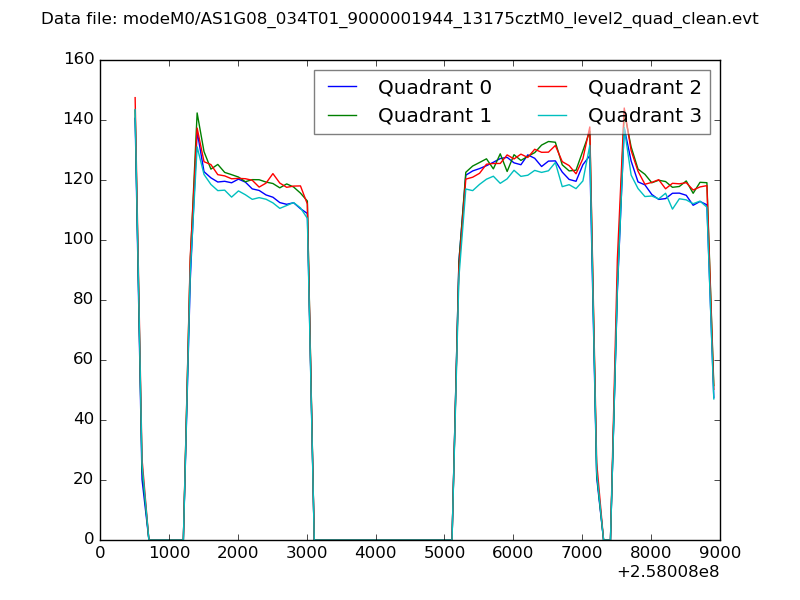

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

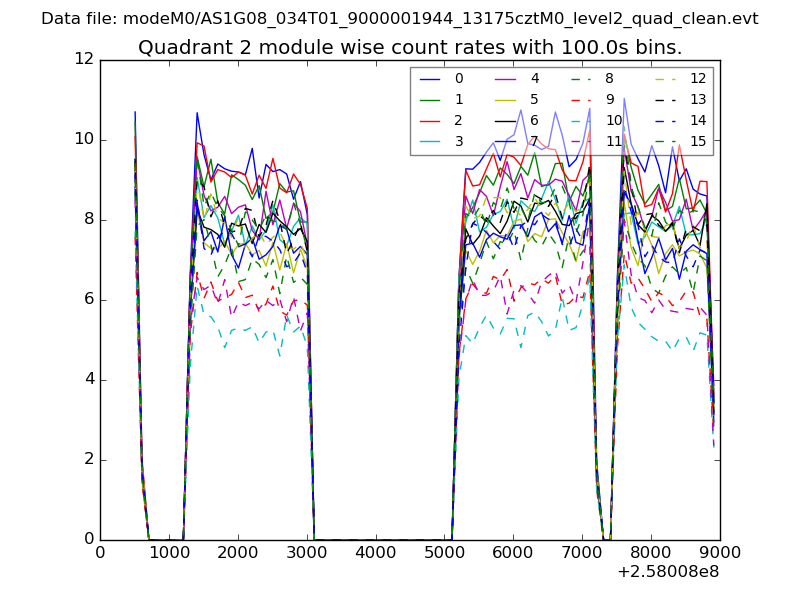

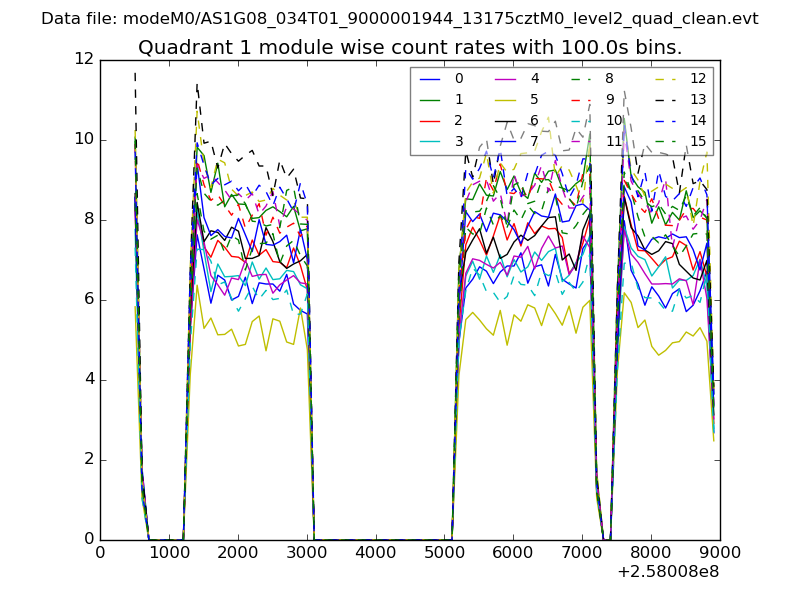

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

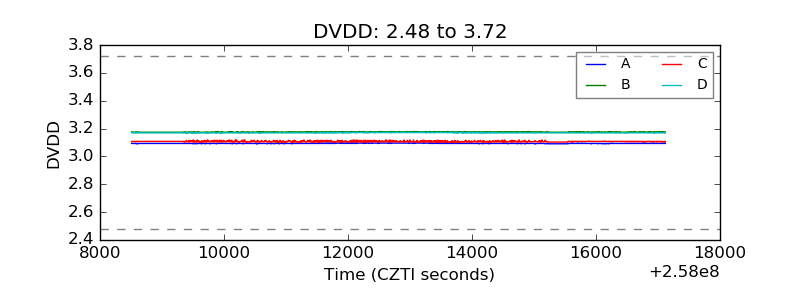

| D_VDD |  |

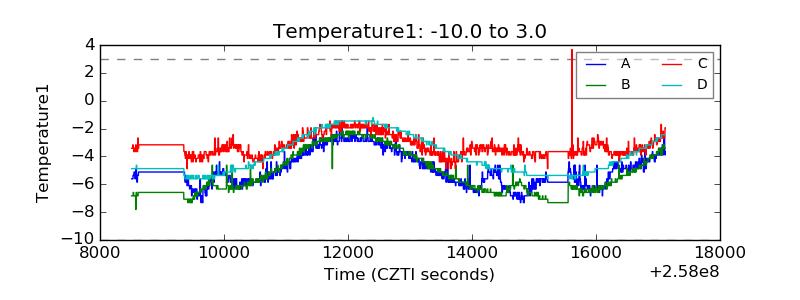

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

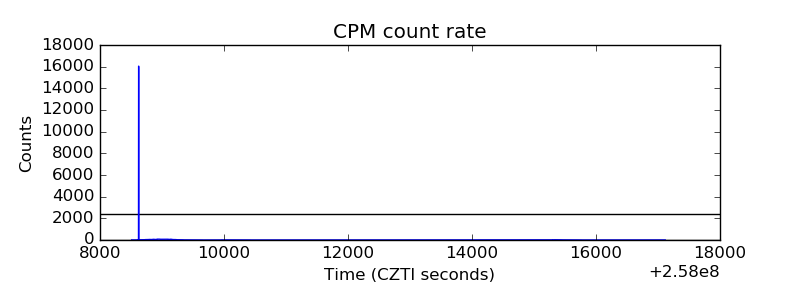

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
