| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_012T01_9000001946_13181cztM0_level2.evt | modeM0/AS1T02_012T01_9000001946_13181cztM0_level2_quad_clean.evt |
| Size (bytes) | 371,145,600 | 56,341,440 |
| Size | 354.0 MB | 53.7 MB |
| Events in quadrant A | 3,218,343 | 355,708 |
| Events in quadrant B | 2,907,866 | 347,849 |
| Events in quadrant C | 1,872,244 | 363,624 |
| Events in quadrant D | 2,955,380 | 342,053 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 88 | 0 |
| B | 0 | 88 | 0 |
| C | 0 | 88 | 0 |
| D | 0 | 88 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12403 | 1 |
| B | 0 | 11334 | 1 |
| C | 0 | 8586 | 1 |
| D | 0 | 11694 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4199 | 222 | 5.286973% |
| B | 4199 | 368 | 8.763991% |
| C | 4199 | 35 | 0.833532% |
| D | 4199 | 247 | 5.882353% |

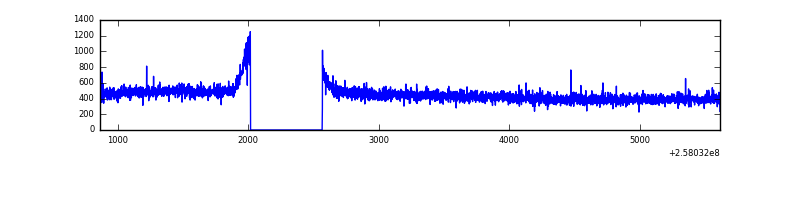

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4750 | 4201 | 117 | 117 | 2.46% | 2.79% |  |
| B | 4750 | 4201 | 229 | 229 | 4.82% | 5.45% |  |
| C | 4750 | 4201 | 0 | 0 | 0.00% | 0.00% |  |
| D | 4750 | 4201 | 147 | 147 | 3.09% | 3.50% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 1019131 | 10045.89 | 488 | 476 | 101.4 |
| A | 12 | 173 | 134077 | 1317.56 | 488 | 476 | 101.4 |
| A | 12 | 172 | 67778 | 663.73 | 488 | 476 | 101.4 |
| B | 4 | 239 | 869204 | 9329.08 | 477 | 465 | 93.1 |
| B | 3 | 64 | 55986 | 596.22 | 477 | 465 | 93.1 |
| B | 0 | 189 | 52375 | 557.44 | 477 | 465 | 93.1 |
| C | 13 | 61 | 3557 | 27.24 | 479 | 481 | 112.9 |
| C | 8 | 222 | 1555 | 9.51 | 479 | 481 | 112.9 |
| C | 14 | 234 | 1226 | 6.6 | 479 | 481 | 112.9 |
| D | 1 | 52 | 779818 | 6807.56 | 470 | 456 | 114.5 |
| D | 13 | 122 | 170763 | 1487.6 | 470 | 456 | 114.5 |
| D | 5 | 222 | 71756 | 622.79 | 470 | 456 | 114.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

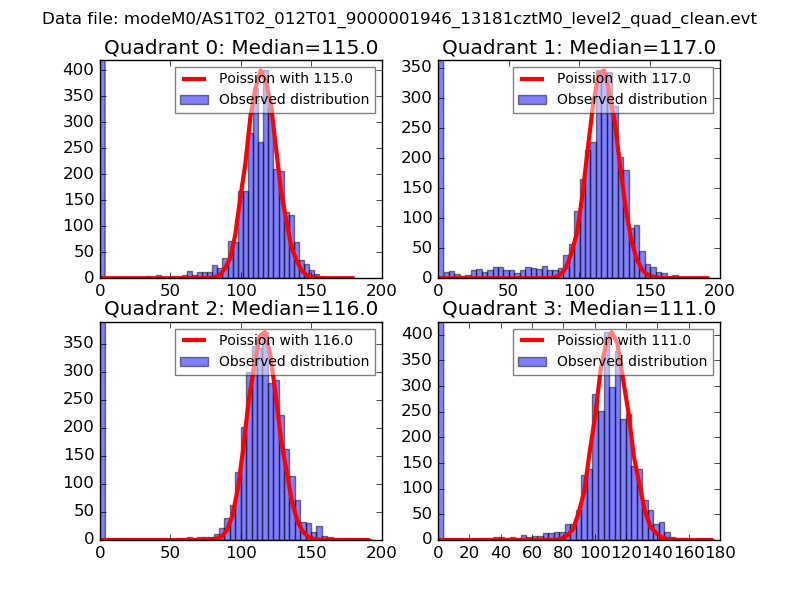

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

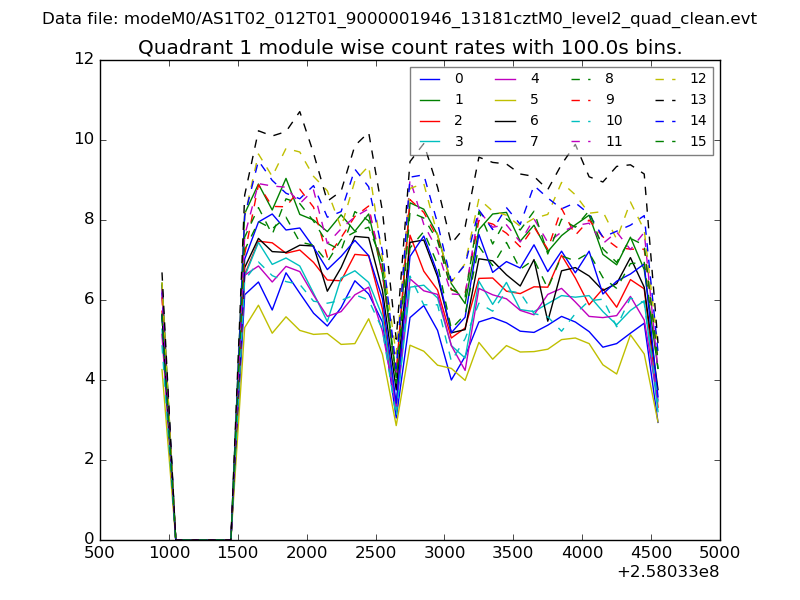

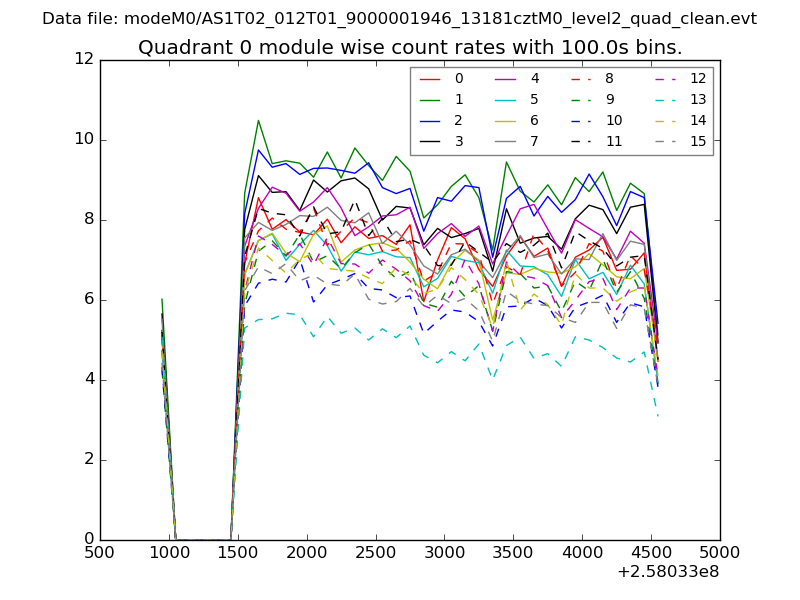

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

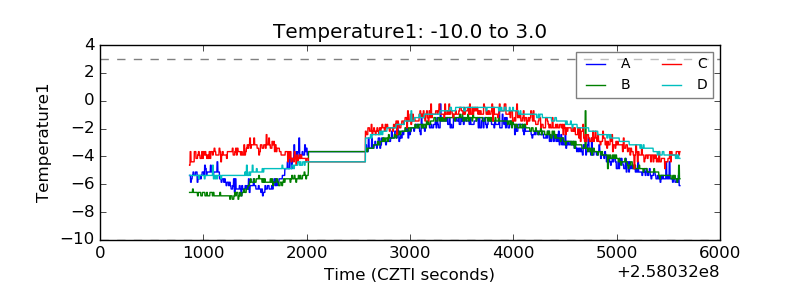

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

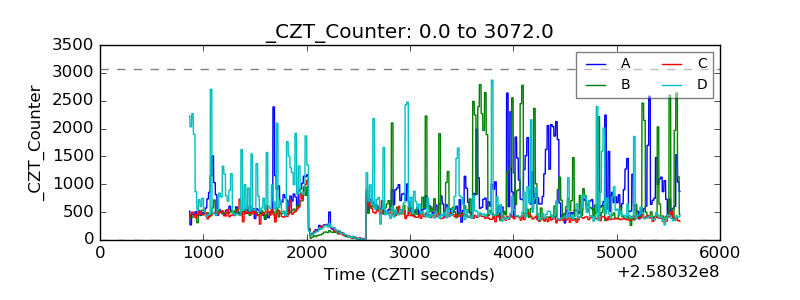

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
