| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_104T04_9000001966_13199cztM0_level2.evt | modeM0/AS1A04_104T04_9000001966_13199cztM0_level2_quad_clean.evt |
| Size (bytes) | 633,985,920 | 102,775,680 |
| Size | 604.6 MB | 98.0 MB |
| Events in quadrant A | 3,132,379 | 692,441 |
| Events in quadrant B | 4,213,826 | 695,283 |
| Events in quadrant C | 3,142,246 | 715,417 |
| Events in quadrant D | 8,284,189 | 567,884 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 15 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13380 | 3 |
| B | 0 | 16693 | 2 |
| C | 0 | 13415 | 2 |
| D | 0 | 28988 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6319 | 42 | 0.664662% |
| B | 6319 | 452 | 7.153031% |
| C | 6319 | 40 | 0.633012% |
| D | 6319 | 1706 | 26.997943% |

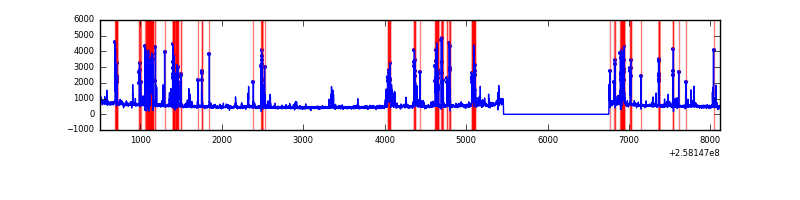

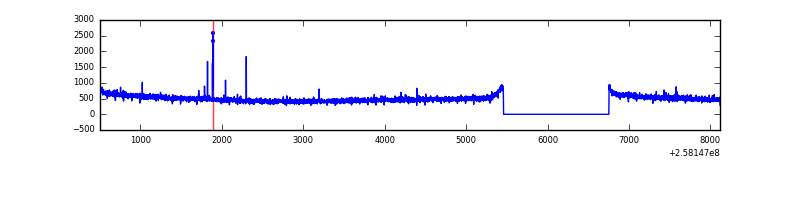

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7615 | 6321 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7615 | 6321 | 210 | 210 | 2.76% | 3.32% |  |
| C | 7615 | 6321 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7615 | 6321 | 1262 | 1262 | 16.57% | 19.97% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 14197 | 81.8 | 804 | 788 | 163.9 |
| A | 12 | 189 | 9271 | 51.75 | 804 | 788 | 163.9 |
| A | 12 | 96 | 8076 | 44.46 | 804 | 788 | 163.9 |
| B | 4 | 239 | 732008 | 4964.78 | 789 | 770 | 147.3 |
| B | 3 | 64 | 180706 | 1221.68 | 789 | 770 | 147.3 |
| B | 15 | 201 | 148984 | 1006.31 | 789 | 770 | 147.3 |
| C | 15 | 208 | 21032 | 110.78 | 800 | 807 | 182.6 |
| C | 13 | 61 | 5726 | 26.94 | 800 | 807 | 182.6 |
| C | 8 | 222 | 2371 | 8.57 | 800 | 807 | 182.6 |
| D | 13 | 122 | 5290953 | 31969.69 | 685 | 666 | 165.5 |
| D | 1 | 52 | 266056 | 1603.78 | 685 | 666 | 165.5 |
| D | 10 | 157 | 69335 | 414.97 | 685 | 666 | 165.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

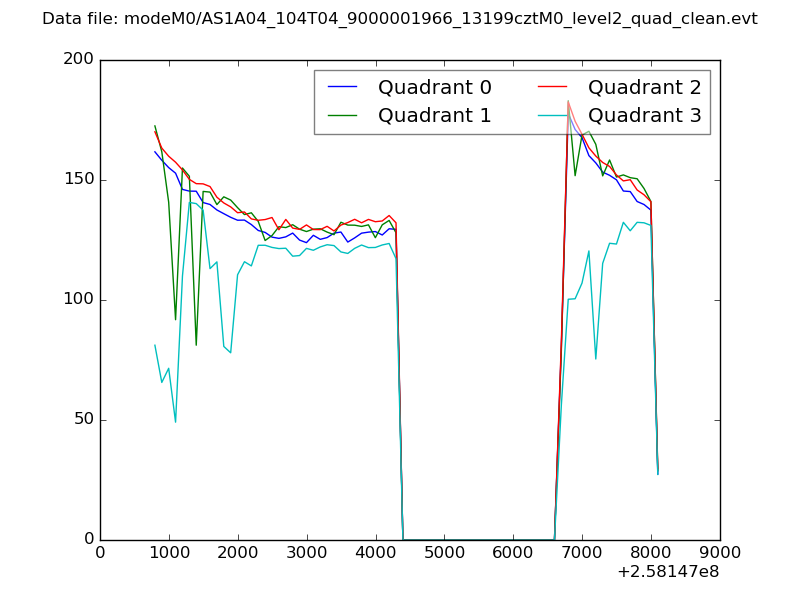

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

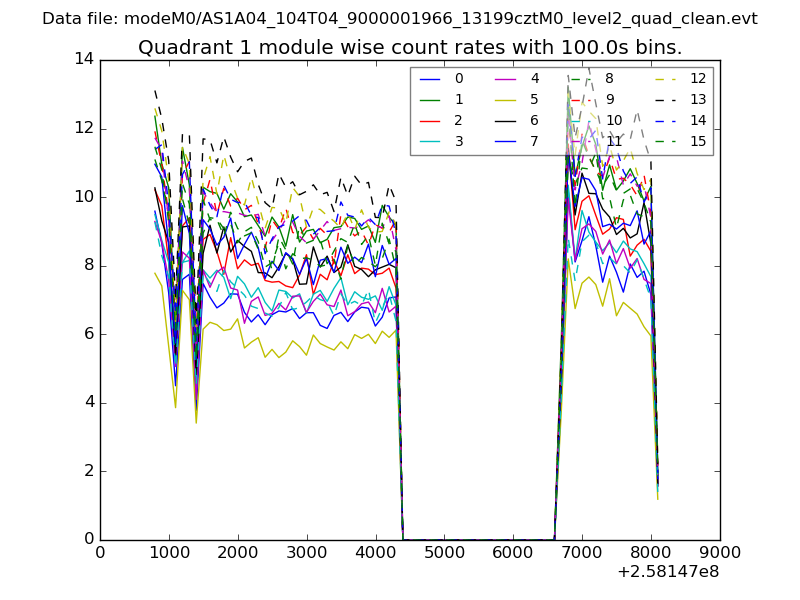

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

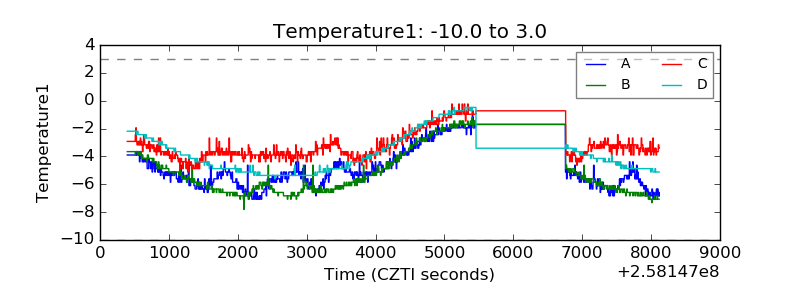

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

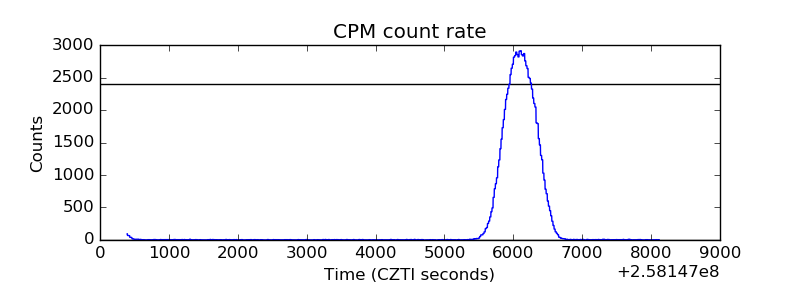

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

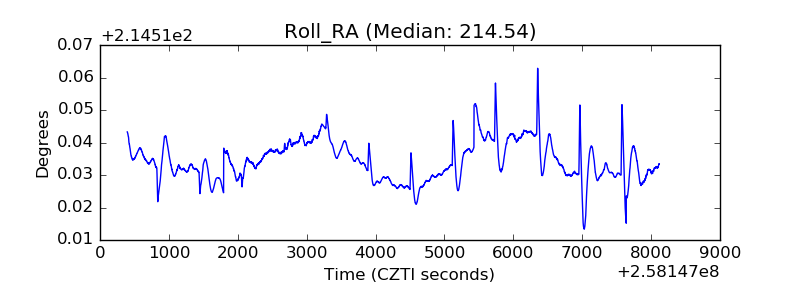

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

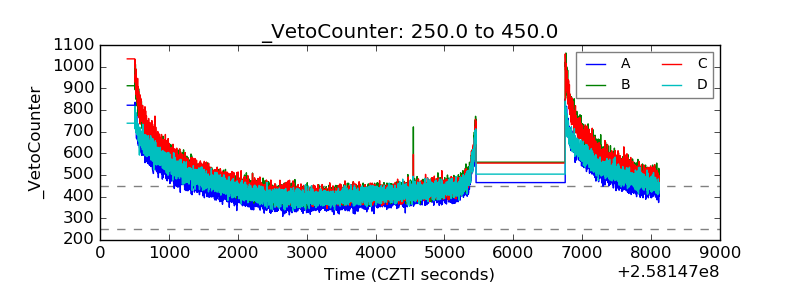

| Veto Counter |  |
