| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_104T04_9000001966_13209cztM0_level2.evt | modeM0/AS1A04_104T04_9000001966_13209cztM0_level2_quad_clean.evt |
| Size (bytes) | 522,146,880 | 71,147,520 |
| Size | 498.0 MB | 67.9 MB |
| Events in quadrant A | 3,372,135 | 421,098 |
| Events in quadrant B | 4,921,328 | 422,934 |
| Events in quadrant C | 3,189,999 | 427,352 |
| Events in quadrant D | 3,867,517 | 408,420 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14365 | 3 |
| B | 0 | 19100 | 2 |
| C | 0 | 14034 | 2 |
| D | 0 | 16033 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6799 | 91 | 1.338432% |
| B | 6799 | 747 | 10.986910% |
| C | 6799 | 77 | 1.132519% |
| D | 6799 | 132 | 1.941462% |

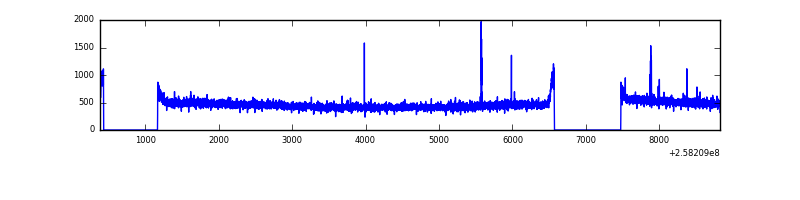

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8440 | 6802 | 1 | 1 | 0.01% | 0.01% |  |
| B | 8440 | 6802 | 400 | 400 | 4.74% | 5.88% |  |
| C | 8440 | 6802 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8440 | 6802 | 39 | 39 | 0.46% | 0.57% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 113612 | 659.63 | 831 | 813 | 171.0 |
| A | 1 | 162 | 18617 | 104.11 | 831 | 813 | 171.0 |
| A | 12 | 189 | 10100 | 54.31 | 831 | 813 | 171.0 |
| B | 4 | 239 | 1594283 | 10311.57 | 797 | 779 | 154.5 |
| B | 0 | 36 | 43086 | 273.77 | 797 | 779 | 154.5 |
| B | 3 | 64 | 34735 | 219.73 | 797 | 779 | 154.5 |
| C | 15 | 208 | 30770 | 160.23 | 809 | 816 | 186.9 |
| C | 13 | 61 | 5873 | 27.05 | 809 | 816 | 186.9 |
| C | 14 | 234 | 3639 | 15.1 | 809 | 816 | 186.9 |
| D | 1 | 52 | 304622 | 1555.23 | 806 | 782 | 195.4 |
| D | 8 | 195 | 161556 | 822.93 | 806 | 782 | 195.4 |
| D | 14 | 34 | 107158 | 544.49 | 806 | 782 | 195.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

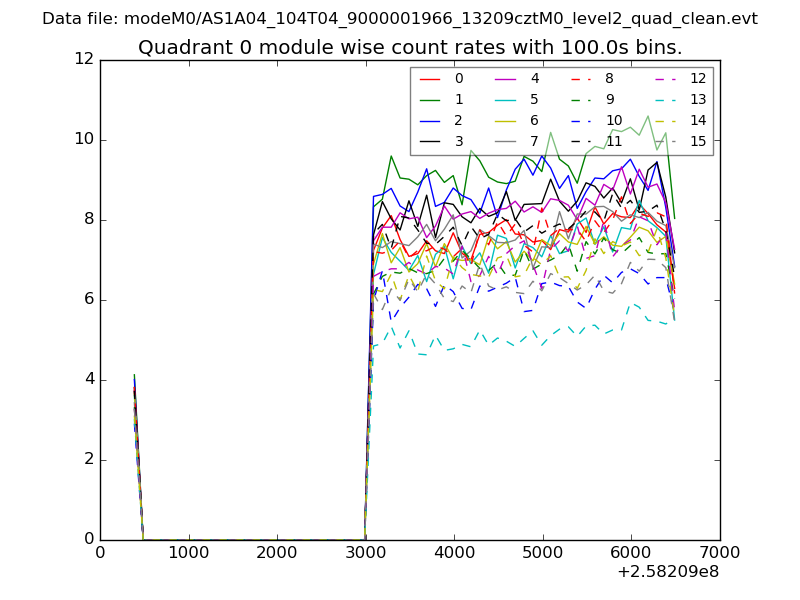

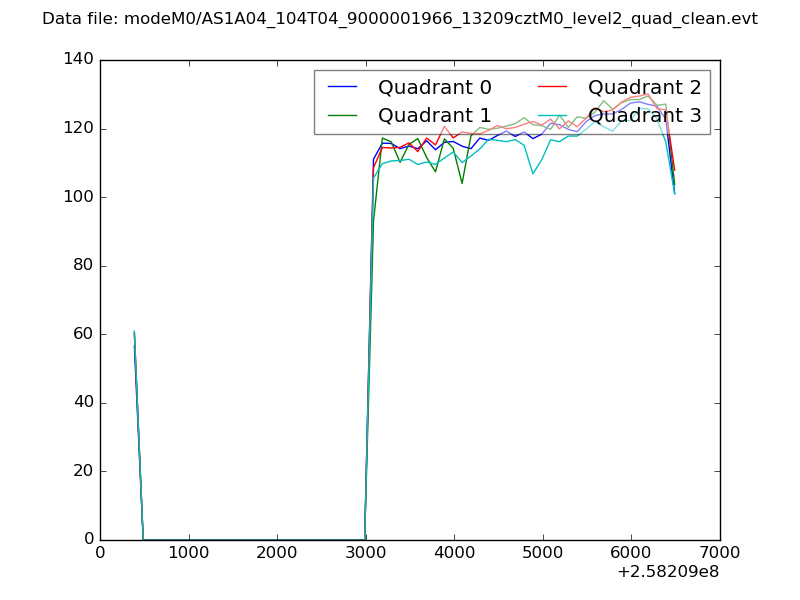

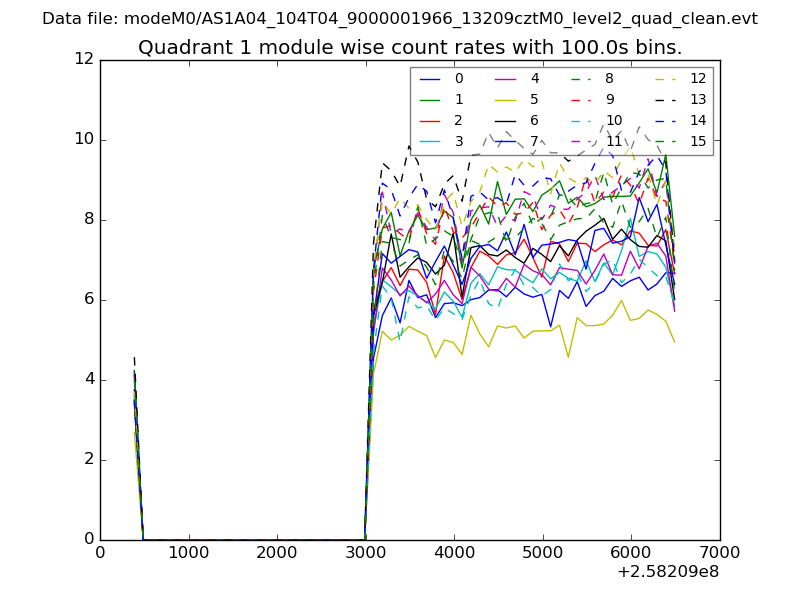

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

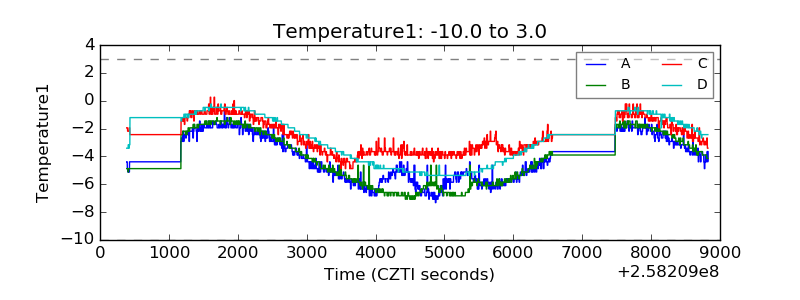

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

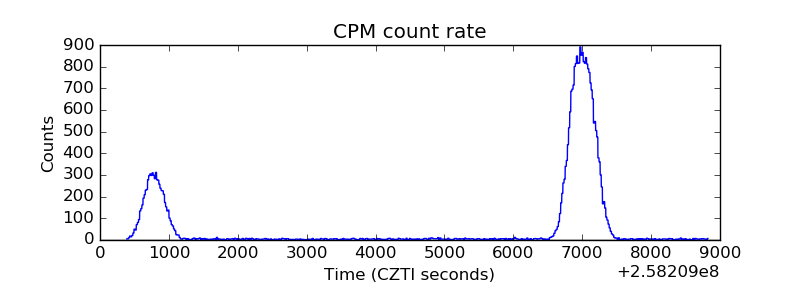

| _CPM_Rate |  |

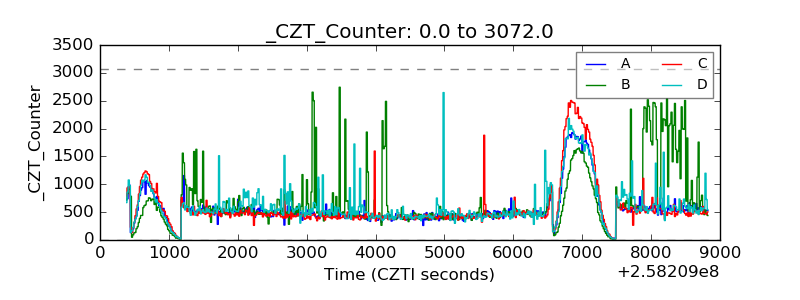

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

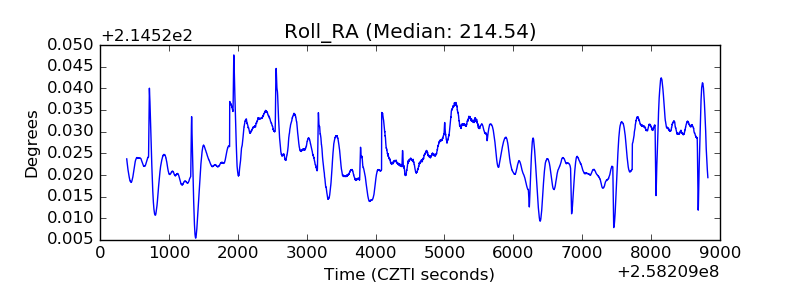

| _Roll_RA |  |
| Veto Counter |  |
