| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_216T01_9000001968_13219cztM0_level2.evt | modeM0/AS1A04_216T01_9000001968_13219cztM0_level2_quad_clean.evt |
| Size (bytes) | 576,187,200 | 110,885,760 |
| Size | 549.5 MB | 105.7 MB |
| Events in quadrant A | 3,748,688 | 712,849 |
| Events in quadrant B | 4,350,073 | 726,755 |
| Events in quadrant C | 3,614,350 | 717,657 |
| Events in quadrant D | 5,209,330 | 660,128 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16471 | 2 |
| B | 0 | 18155 | 1 |
| C | 0 | 16303 | 1 |
| D | 0 | 21057 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 2 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7769 | 339 | 4.363496% |
| B | 7769 | 496 | 6.384348% |
| C | 7769 | 309 | 3.977346% |
| D | 7769 | 613 | 7.890333% |

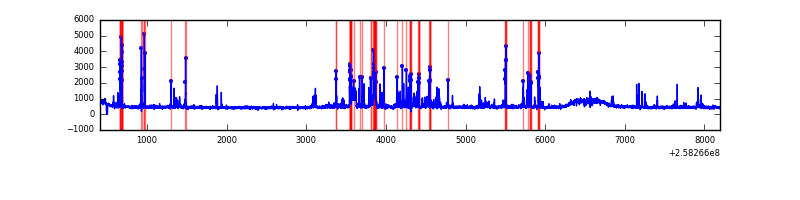

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7785 | 7771 | 4 | 4 | 0.05% | 0.05% |  |
| B | 7785 | 7771 | 90 | 90 | 1.16% | 1.16% |  |
| C | 7785 | 7771 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7785 | 7771 | 253 | 253 | 3.25% | 3.26% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 117223 | 610.31 | 929 | 905 | 190.6 |
| A | 8 | 15 | 28568 | 145.15 | 929 | 905 | 190.6 |
| A | 1 | 162 | 16086 | 79.65 | 929 | 905 | 190.6 |
| B | 4 | 239 | 449556 | 2510.13 | 929 | 904 | 178.7 |
| B | 0 | 197 | 169244 | 941.83 | 929 | 904 | 178.7 |
| B | 0 | 230 | 52293 | 287.51 | 929 | 904 | 178.7 |
| C | 15 | 208 | 13621 | 59.6 | 919 | 922 | 213.1 |
| C | 14 | 234 | 12946 | 56.43 | 919 | 922 | 213.1 |
| C | 13 | 61 | 6714 | 27.18 | 919 | 922 | 213.1 |
| D | 13 | 122 | 1433546 | 6693.82 | 890 | 860 | 214.0 |
| D | 8 | 195 | 351812 | 1639.72 | 890 | 860 | 214.0 |
| D | 2 | 234 | 28150 | 127.5 | 890 | 860 | 214.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

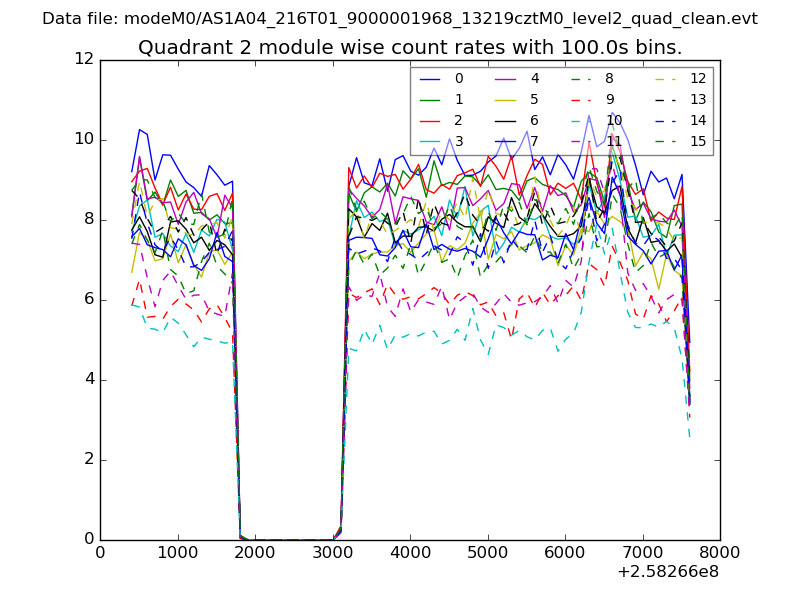

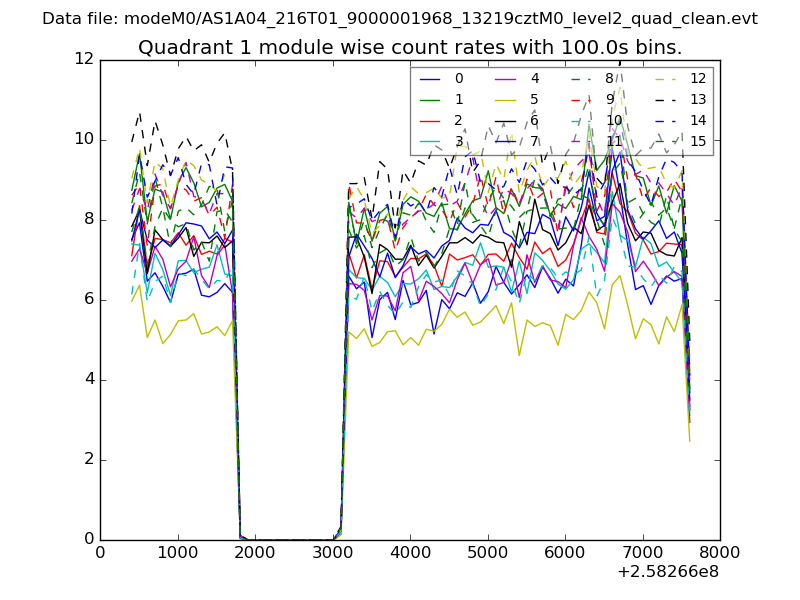

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

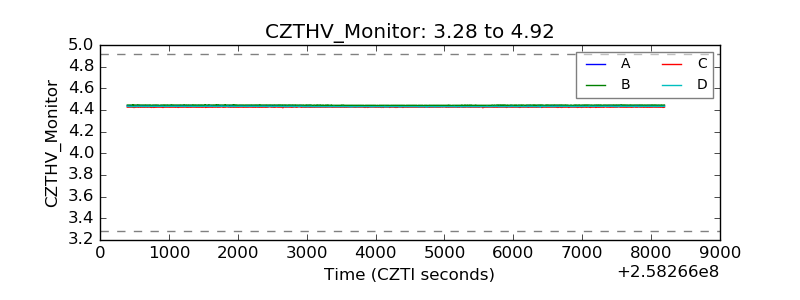

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

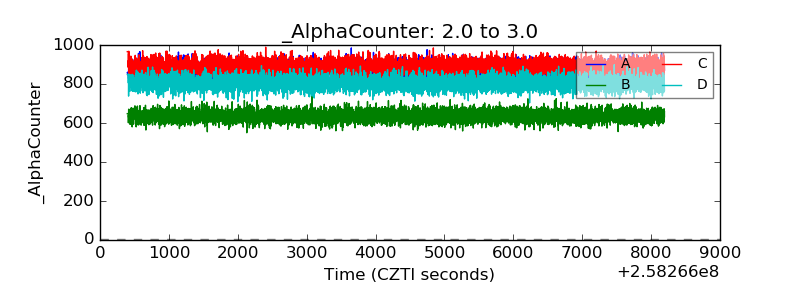

| Alpha Counter |  |
| _CPM_Rate |  |

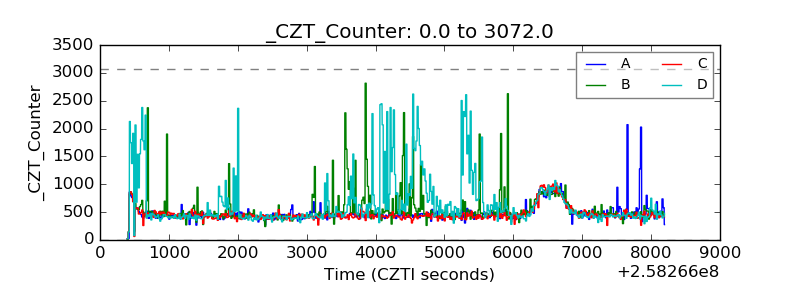

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

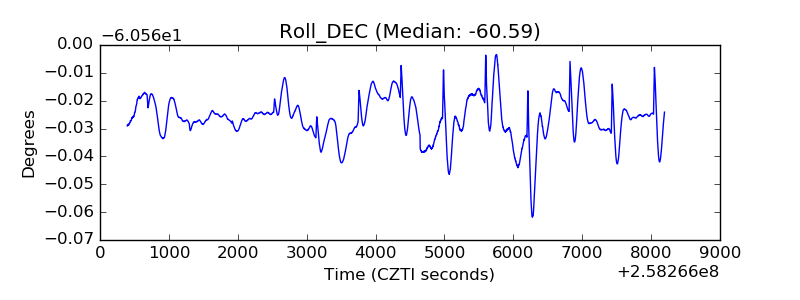

| _Roll_DEC |  |

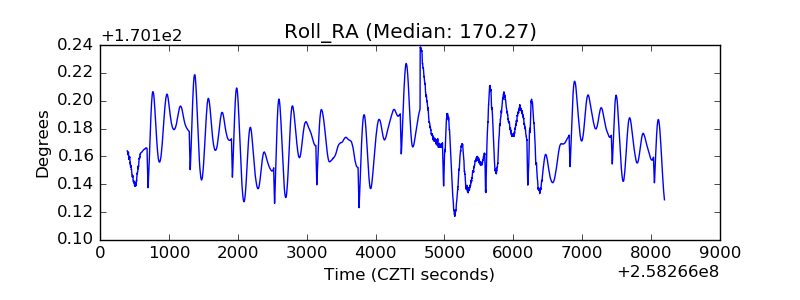

| _Roll_RA |  |
| Veto Counter |  |
