| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_216T01_9000001968_13232cztM0_level2.evt | modeM0/AS1A04_216T01_9000001968_13232cztM0_level2_quad_clean.evt |
| Size (bytes) | 531,060,480 | 112,092,480 |
| Size | 506.5 MB | 106.9 MB |
| Events in quadrant A | 3,825,625 | 730,386 |
| Events in quadrant B | 5,317,127 | 717,171 |
| Events in quadrant C | 3,262,578 | 739,375 |
| Events in quadrant D | 3,185,765 | 703,191 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16192 | 3 |
| B | 0 | 20647 | 2 |
| C | 0 | 14802 | 2 |
| D | 0 | 14847 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7240 | 120 | 1.657459% |
| B | 7240 | 760 | 10.497238% |
| C | 7240 | 23 | 0.317680% |
| D | 7240 | 9 | 0.124309% |

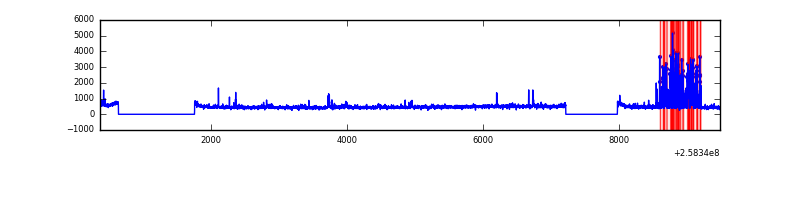

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9121 | 7243 | 81 | 81 | 0.89% | 1.12% |  |
| B | 9121 | 7243 | 512 | 512 | 5.61% | 7.07% |  |
| C | 9121 | 7243 | 2 | 2 | 0.02% | 0.03% |  |
| D | 9121 | 7243 | 2 | 2 | 0.02% | 0.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 454761 | 2674.07 | 836 | 817 | 169.8 |
| A | 12 | 189 | 99447 | 581.0 | 836 | 817 | 169.8 |
| A | 9 | 143 | 21458 | 121.59 | 836 | 817 | 169.8 |
| B | 4 | 239 | 2005304 | 13055.0 | 814 | 792 | 153.5 |
| B | 3 | 64 | 32655 | 207.52 | 814 | 792 | 153.5 |
| B | 0 | 197 | 26652 | 168.42 | 814 | 792 | 153.5 |
| C | 15 | 208 | 22685 | 114.37 | 829 | 830 | 191.1 |
| C | 14 | 234 | 6470 | 29.51 | 829 | 830 | 191.1 |
| C | 13 | 61 | 5950 | 26.79 | 829 | 830 | 191.1 |
| D | 1 | 52 | 52890 | 266.05 | 814 | 790 | 195.8 |
| D | 8 | 195 | 29087 | 144.5 | 814 | 790 | 195.8 |
| D | 2 | 234 | 24290 | 120.0 | 814 | 790 | 195.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

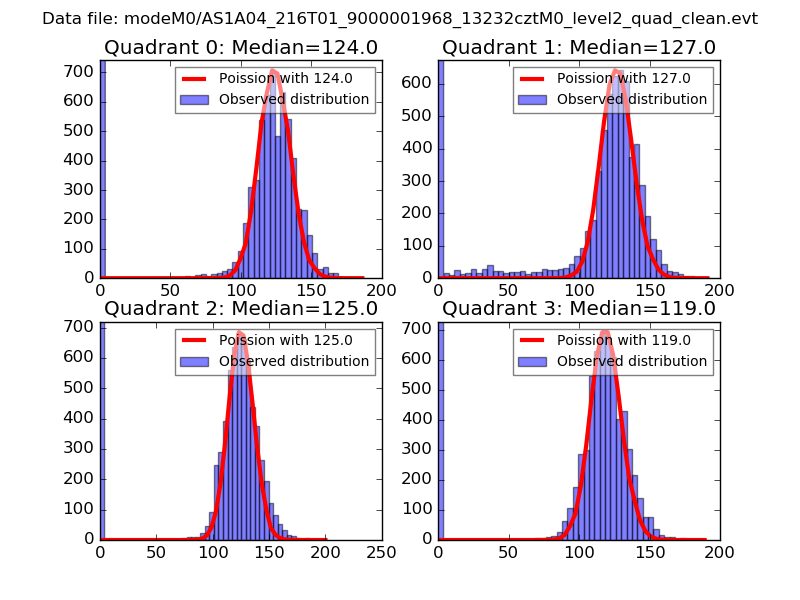

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

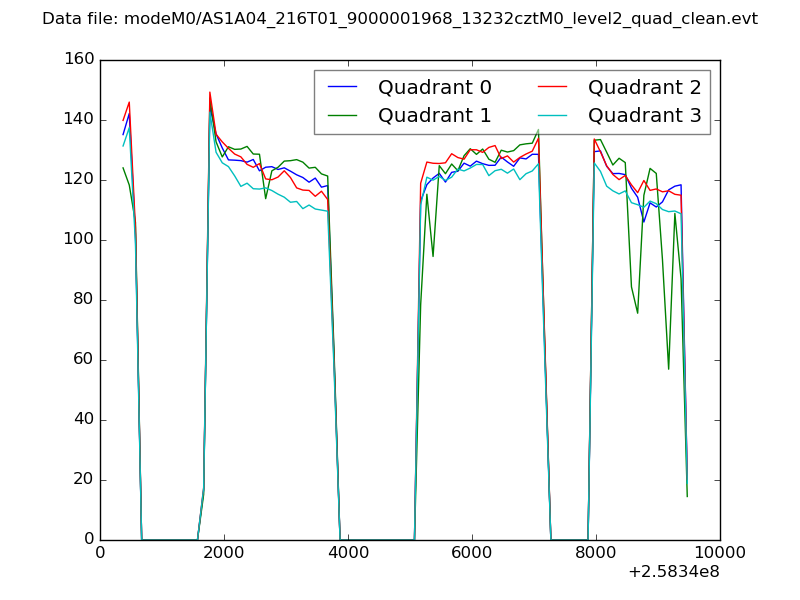

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

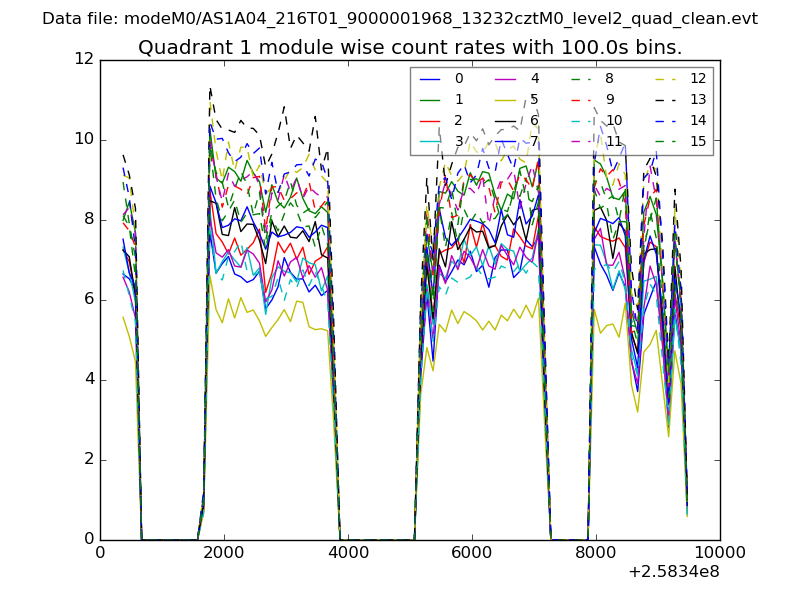

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

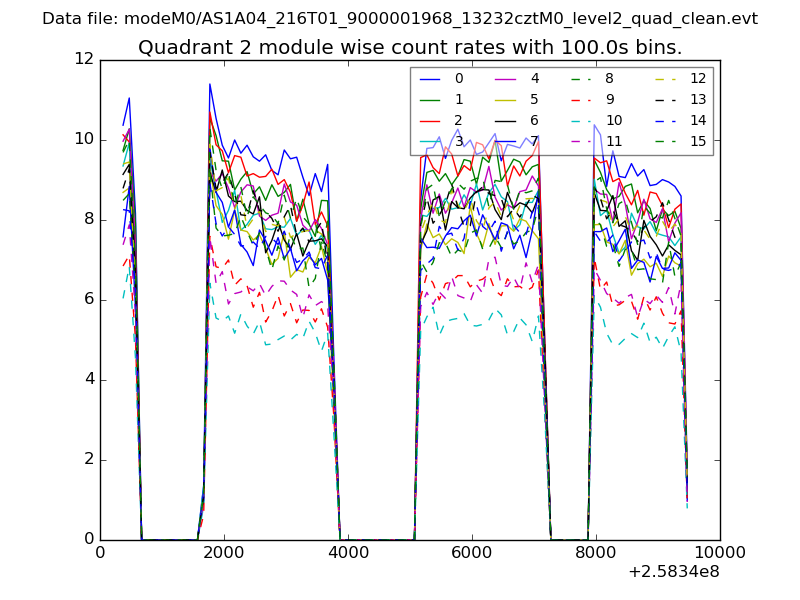

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

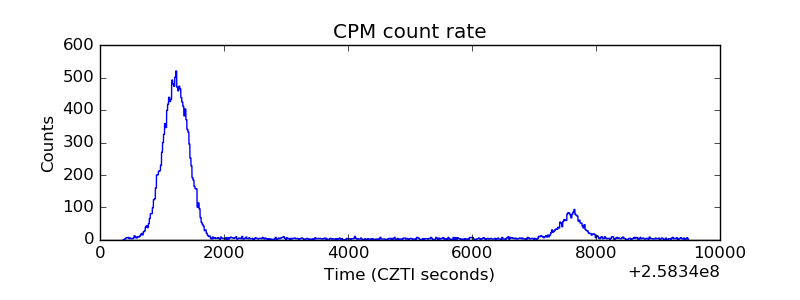

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

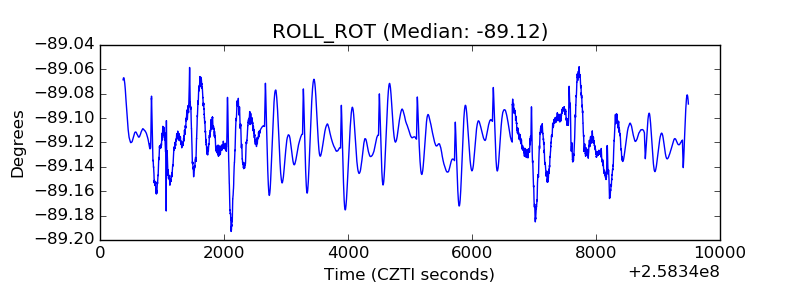

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

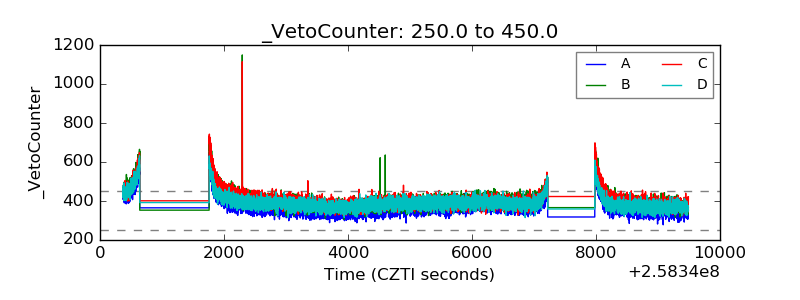

| Veto Counter |  |
