| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_077T01_9000001970_13252cztM0_level2.evt | modeM0/AS1G08_077T01_9000001970_13252cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,308,049,920 | 227,188,800 |
| Size | 1.2 GB | 216.7 MB |
| Events in quadrant A | 8,780,757 | 1,417,444 |
| Events in quadrant B | 11,280,429 | 1,371,587 |
| Events in quadrant C | 8,249,304 | 1,437,910 |
| Events in quadrant D | 10,056,344 | 1,382,154 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 376 | 0 |
| B | 0 | 376 | 0 |
| C | 0 | 376 | 0 |
| D | 0 | 376 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 38542 | 4 |
| B | 0 | 45761 | 3 |
| C | 0 | 37542 | 3 |
| D | 0 | 42361 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18443 | 223 | 1.209131% |
| B | 18443 | 1277 | 6.924036% |
| C | 18443 | 172 | 0.932603% |
| D | 18443 | 422 | 2.288131% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20264 | 18447 | 21 | 21 | 0.10% | 0.11% |  |
| B | 20264 | 18447 | 632 | 632 | 3.12% | 3.43% |  |
| C | 20264 | 18447 | 14 | 14 | 0.07% | 0.08% |  |
| D | 20264 | 18447 | 244 | 244 | 1.20% | 1.32% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 289100 | 664.27 | 2125 | 2076 | 432.1 |
| A | 15 | 239 | 186136 | 425.98 | 2125 | 2076 | 432.1 |
| A | 14 | 111 | 50986 | 113.19 | 2125 | 2076 | 432.1 |
| B | 4 | 239 | 3008526 | 7679.61 | 2062 | 2004 | 391.5 |
| B | 3 | 64 | 61522 | 152.03 | 2062 | 2004 | 391.5 |
| B | 0 | 214 | 60883 | 150.4 | 2062 | 2004 | 391.5 |
| C | 15 | 208 | 108155 | 222.2 | 2077 | 2080 | 477.4 |
| C | 14 | 234 | 21974 | 41.67 | 2077 | 2080 | 477.4 |
| C | 13 | 61 | 15206 | 27.5 | 2077 | 2080 | 477.4 |
| D | 1 | 52 | 1812975 | 3660.53 | 2051 | 1985 | 494.7 |
| D | 8 | 195 | 340096 | 683.42 | 2051 | 1985 | 494.7 |
| D | 2 | 234 | 69215 | 135.89 | 2051 | 1985 | 494.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

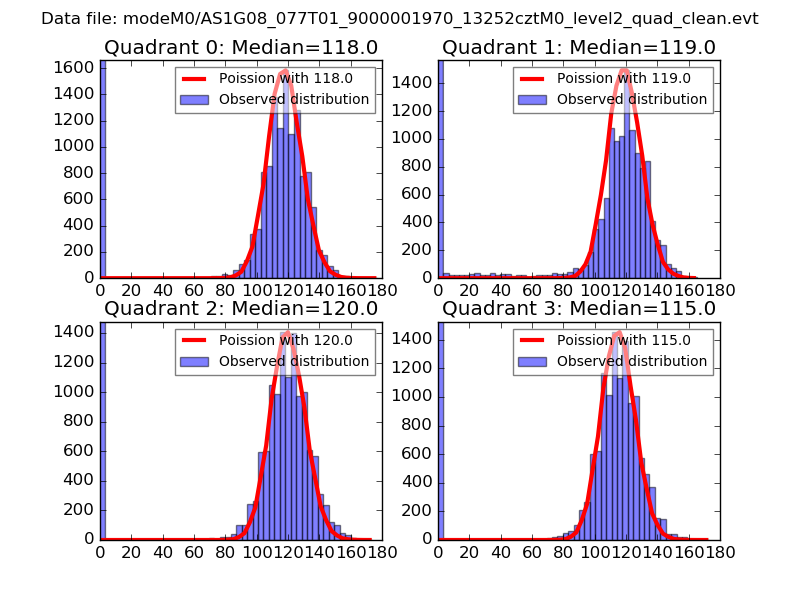

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

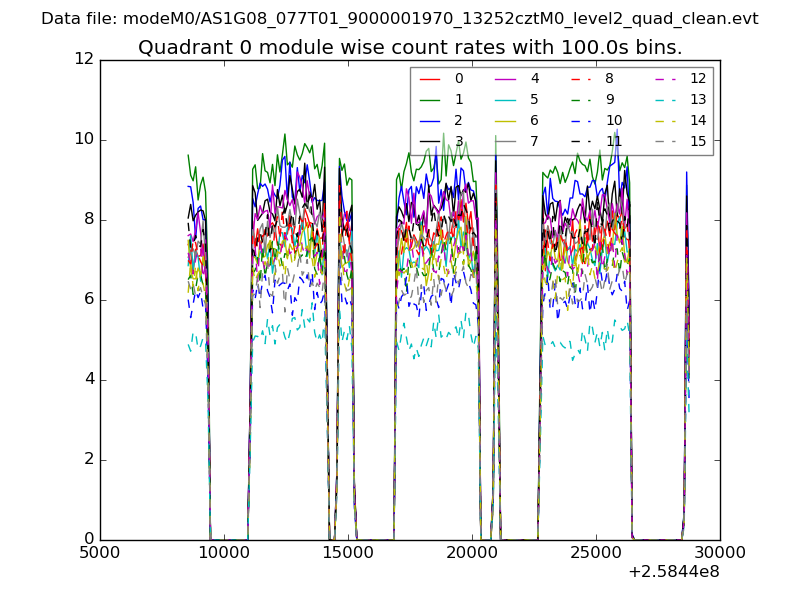

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

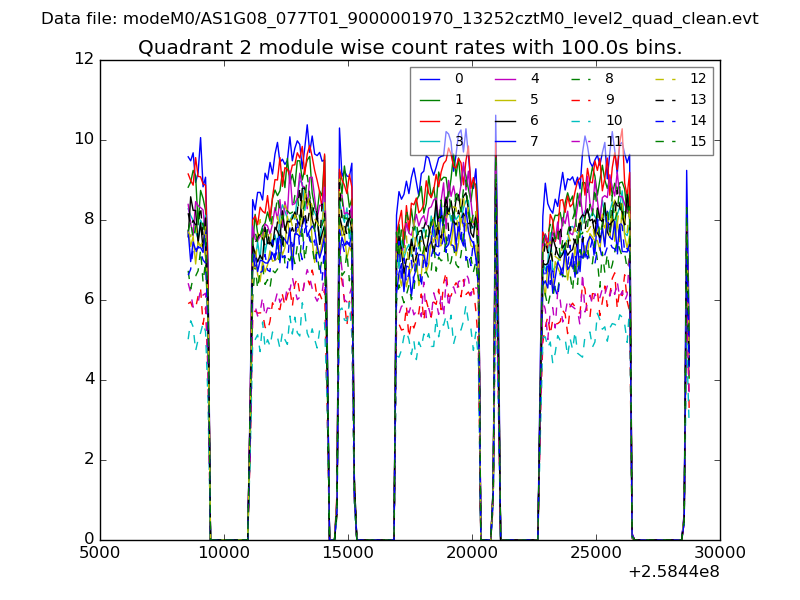

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

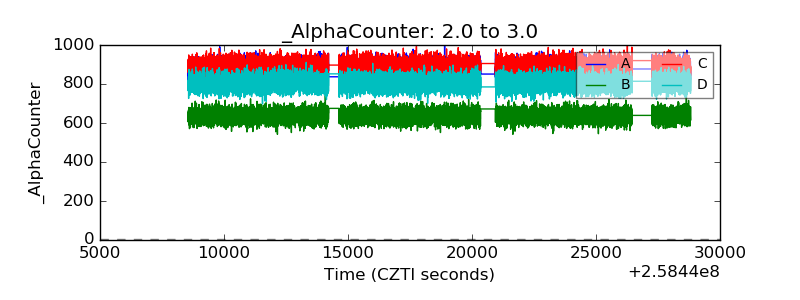

| Alpha Counter |  |

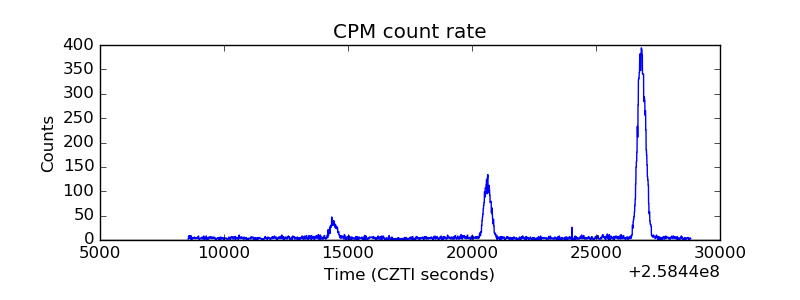

| _CPM_Rate |  |

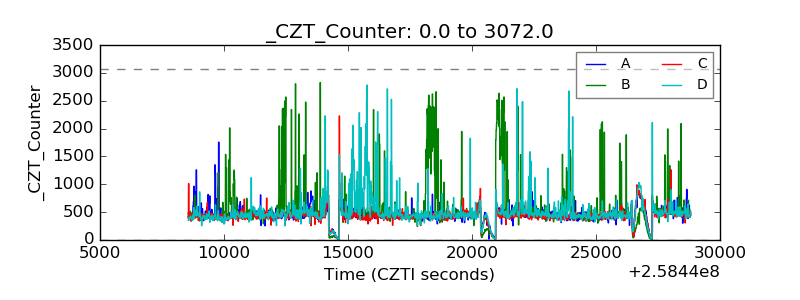

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

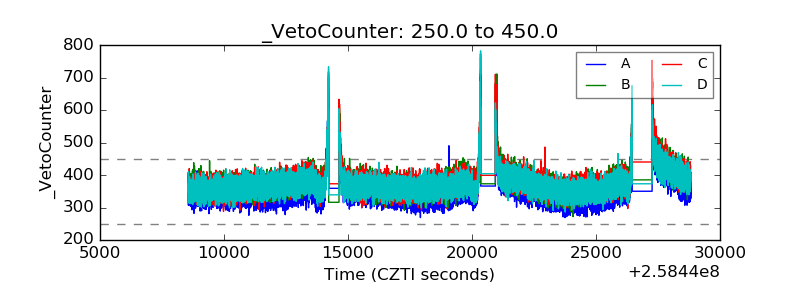

| Veto Counter |  |
