| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_077T01_9000001970_13253cztM0_level2.evt | modeM0/AS1G08_077T01_9000001970_13253cztM0_level2_quad_clean.evt |
| Size (bytes) | 474,955,200 | 83,975,040 |
| Size | 453.0 MB | 80.1 MB |
| Events in quadrant A | 3,273,915 | 520,405 |
| Events in quadrant B | 4,035,006 | 522,162 |
| Events in quadrant C | 3,118,839 | 527,289 |
| Events in quadrant D | 3,501,792 | 506,696 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14126 | 3 |
| B | 0 | 16360 | 2 |
| C | 0 | 13803 | 2 |
| D | 0 | 14992 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6683 | 78 | 1.167141% |
| B | 6683 | 252 | 3.770762% |
| C | 6683 | 71 | 1.062397% |
| D | 6683 | 103 | 1.541224% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8464 | 6686 | 1 | 1 | 0.01% | 0.01% |  |
| B | 8464 | 6686 | 131 | 131 | 1.55% | 1.96% |  |
| C | 8464 | 6686 | 5 | 5 | 0.06% | 0.07% |  |
| D | 8463 | 6685 | 25 | 25 | 0.30% | 0.37% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 116528 | 711.91 | 802 | 781 | 162.6 |
| A | 1 | 162 | 31124 | 186.63 | 802 | 781 | 162.6 |
| A | 15 | 69 | 14011 | 81.37 | 802 | 781 | 162.6 |
| B | 4 | 239 | 825260 | 5442.58 | 793 | 773 | 151.5 |
| B | 3 | 64 | 33120 | 213.52 | 793 | 773 | 151.5 |
| B | 0 | 230 | 26224 | 168.0 | 793 | 773 | 151.5 |
| C | 15 | 208 | 55837 | 305.63 | 783 | 788 | 180.1 |
| C | 14 | 234 | 9702 | 49.49 | 783 | 788 | 180.1 |
| C | 13 | 61 | 5573 | 26.57 | 783 | 788 | 180.1 |
| D | 1 | 52 | 410070 | 2200.15 | 777 | 755 | 186.0 |
| D | 8 | 195 | 61275 | 325.31 | 777 | 755 | 186.0 |
| D | 5 | 222 | 49037 | 259.52 | 777 | 755 | 186.0 |

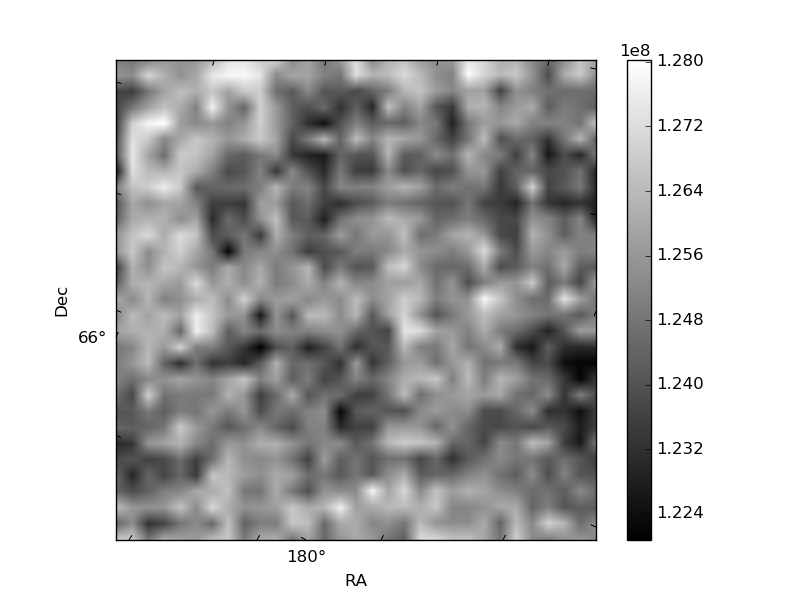

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

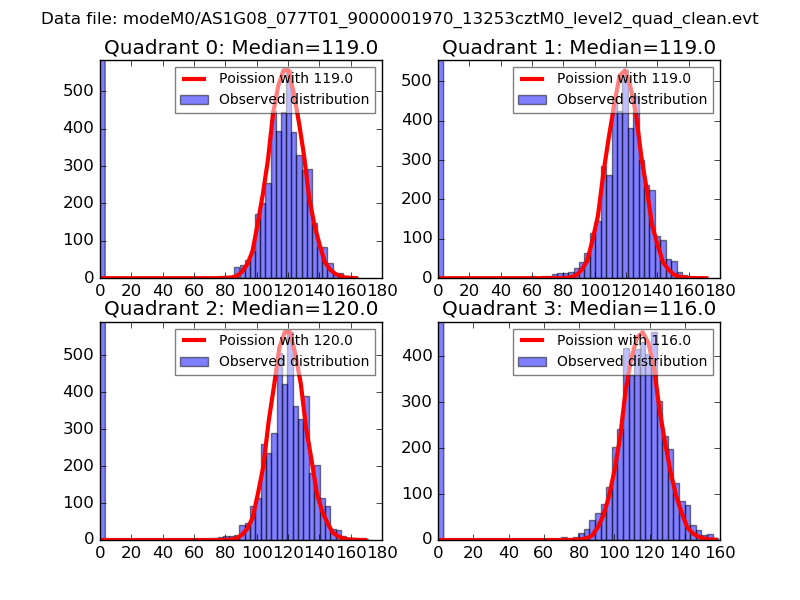

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

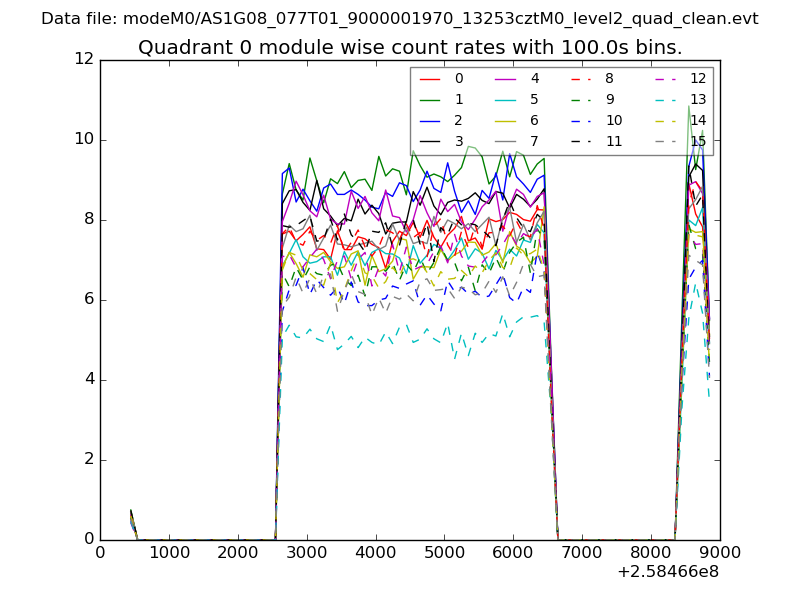

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

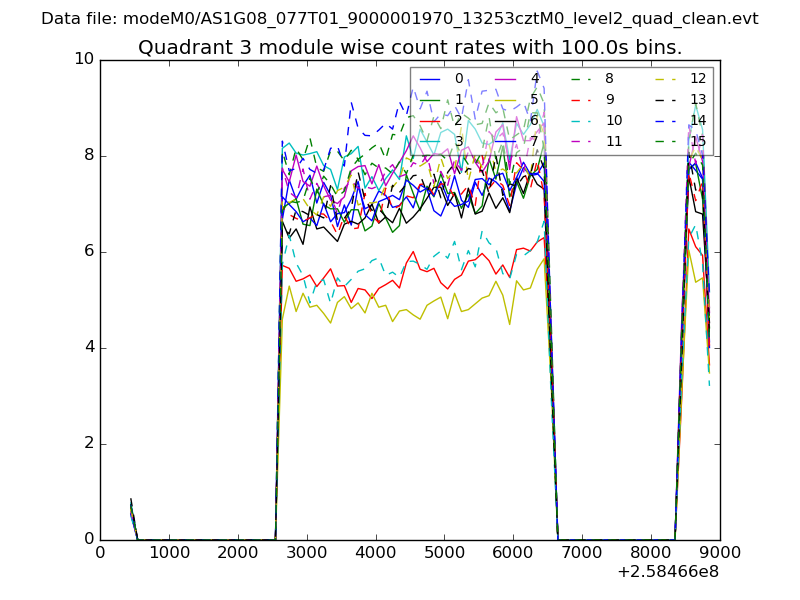

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
