| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_077T01_9000001970_13257cztM0_level2.evt | modeM0/AS1G08_077T01_9000001970_13257cztM0_level2_quad_clean.evt |
| Size (bytes) | 491,330,880 | 114,989,760 |
| Size | 468.6 MB | 109.7 MB |
| Events in quadrant A | 3,249,617 | 768,426 |
| Events in quadrant B | 4,961,435 | 722,083 |
| Events in quadrant C | 3,153,633 | 804,542 |
| Events in quadrant D | 3,100,780 | 761,173 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 26 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13790 | 3 |
| B | 0 | 18946 | 2 |
| C | 0 | 13408 | 2 |
| D | 0 | 13424 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6107 | 38 | 0.622237% |
| B | 6107 | 772 | 12.641231% |
| C | 6107 | 24 | 0.392992% |
| D | 6107 | 43 | 0.704110% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8703 | 6110 | 2 | 2 | 0.02% | 0.03% |  |
| B | 8703 | 6110 | 471 | 471 | 5.41% | 7.71% |  |
| C | 8703 | 6110 | 1 | 1 | 0.01% | 0.02% |  |
| D | 8703 | 6110 | 8 | 8 | 0.09% | 0.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 238737 | 1535.49 | 772 | 757 | 155.0 |
| A | 1 | 162 | 18904 | 117.09 | 772 | 757 | 155.0 |
| A | 0 | 226 | 6891 | 39.58 | 772 | 757 | 155.0 |
| B | 4 | 239 | 2037444 | 15363.98 | 721 | 704 | 132.6 |
| B | 3 | 64 | 45260 | 336.1 | 721 | 704 | 132.6 |
| B | 4 | 142 | 16838 | 121.71 | 721 | 704 | 132.6 |
| C | 3 | 233 | 82227 | 462.75 | 778 | 782 | 176.0 |
| C | 15 | 208 | 35600 | 197.83 | 778 | 782 | 176.0 |
| C | 13 | 61 | 5748 | 28.22 | 778 | 782 | 176.0 |
| D | 1 | 52 | 123113 | 680.2 | 764 | 747 | 179.9 |
| D | 2 | 33 | 43596 | 238.19 | 764 | 747 | 179.9 |
| D | 8 | 195 | 23437 | 126.13 | 764 | 747 | 179.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

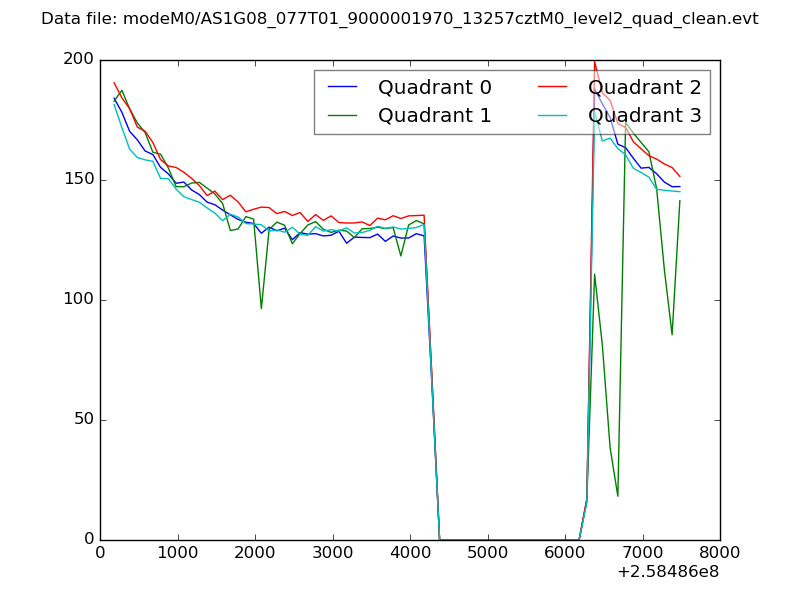

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

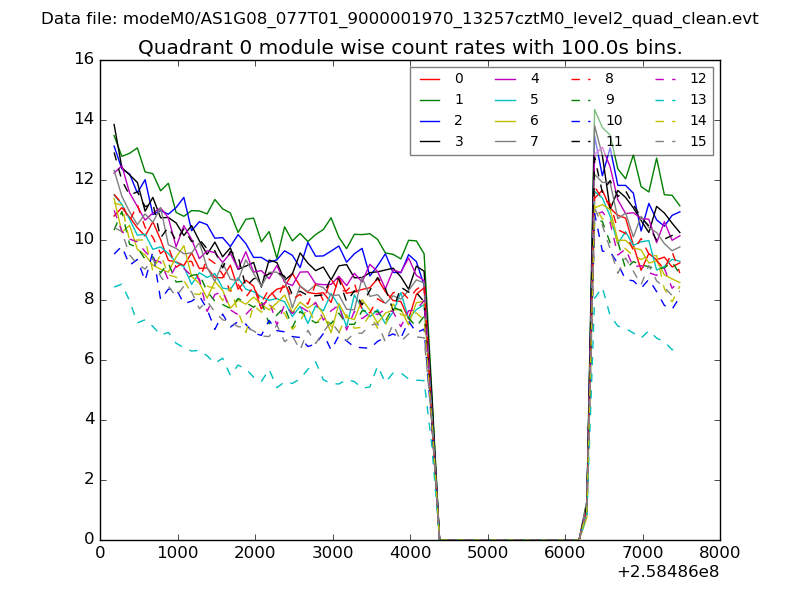

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

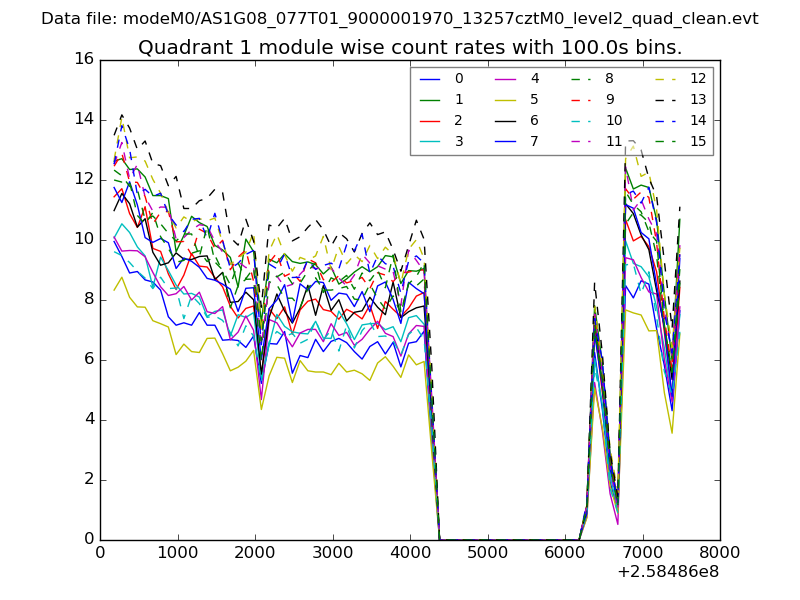

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
