| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_077T01_9000001970_13262cztM0_level2.evt | modeM0/AS1G08_077T01_9000001970_13262cztM0_level2_quad_clean.evt |
| Size (bytes) | 560,557,440 | 106,649,280 |
| Size | 534.6 MB | 101.7 MB |
| Events in quadrant A | 3,538,615 | 689,285 |
| Events in quadrant B | 6,023,126 | 623,032 |
| Events in quadrant C | 3,414,600 | 716,077 |
| Events in quadrant D | 3,495,629 | 683,958 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15794 | 2 |
| B | 0 | 23207 | 1 |
| C | 0 | 15399 | 1 |
| D | 0 | 15671 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7437 | 107 | 1.438752% |
| B | 7437 | 1252 | 16.834745% |
| C | 7437 | 36 | 0.484066% |
| D | 7437 | 41 | 0.551298% |

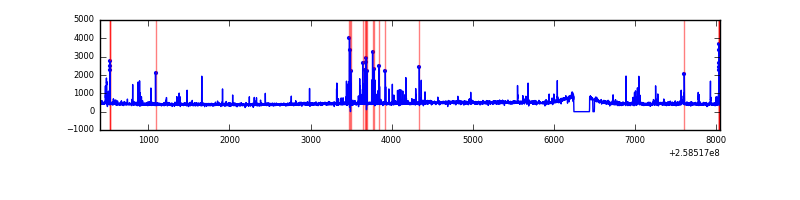

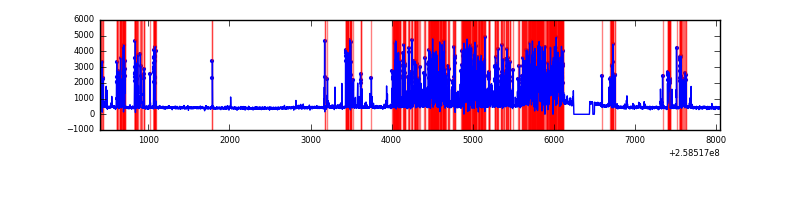

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

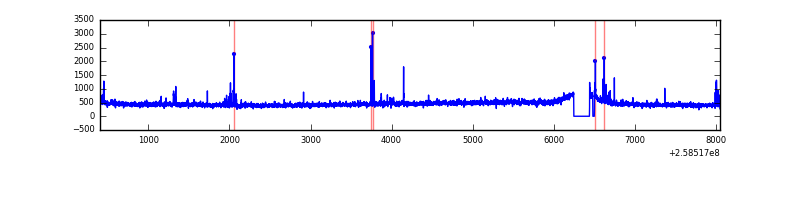

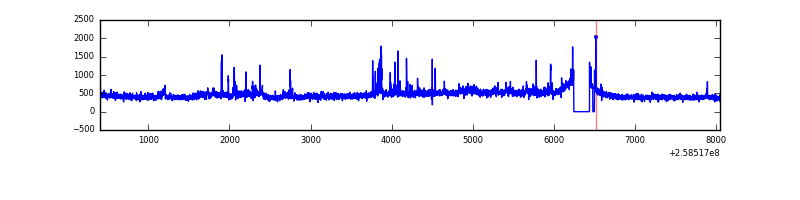

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7653 | 7440 | 23 | 23 | 0.30% | 0.31% |  |
| B | 7653 | 7440 | 700 | 700 | 9.15% | 9.41% |  |
| C | 7653 | 7440 | 5 | 5 | 0.07% | 0.07% |  |
| D | 7653 | 7440 | 1 | 1 | 0.01% | 0.01% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 240648 | 1395.42 | 844 | 826 | 171.9 |
| A | 12 | 96 | 27222 | 153.59 | 844 | 826 | 171.9 |
| A | 1 | 162 | 11222 | 60.49 | 844 | 826 | 171.9 |
| B | 4 | 239 | 2936819 | 19891.16 | 773 | 753 | 147.6 |
| B | 12 | 111 | 17211 | 111.5 | 773 | 753 | 147.6 |
| B | 0 | 214 | 17161 | 111.16 | 773 | 753 | 147.6 |
| C | 3 | 233 | 75780 | 389.85 | 836 | 839 | 192.2 |
| C | 6 | 96 | 27802 | 140.26 | 836 | 839 | 192.2 |
| C | 15 | 208 | 26880 | 135.47 | 836 | 839 | 192.2 |
| D | 8 | 195 | 141757 | 714.12 | 824 | 800 | 197.4 |
| D | 13 | 122 | 130960 | 659.42 | 824 | 800 | 197.4 |
| D | 10 | 157 | 73084 | 366.21 | 824 | 800 | 197.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |

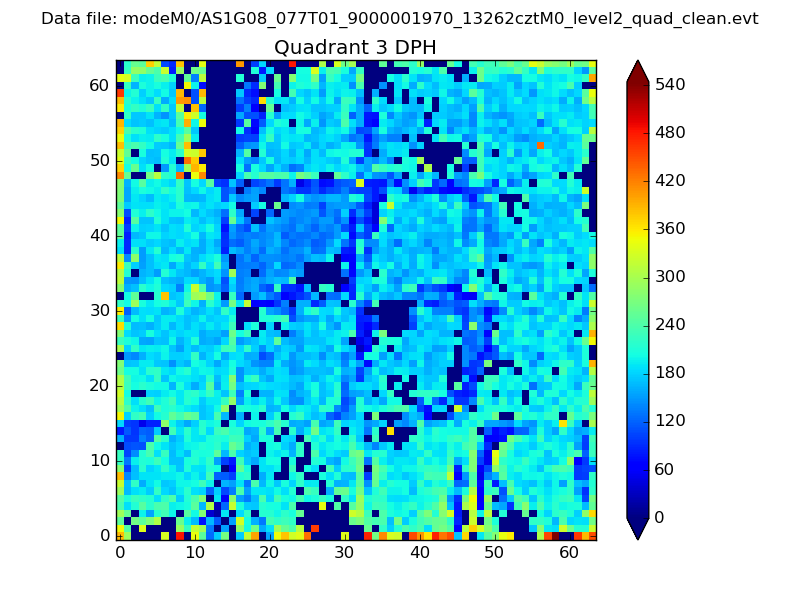

|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

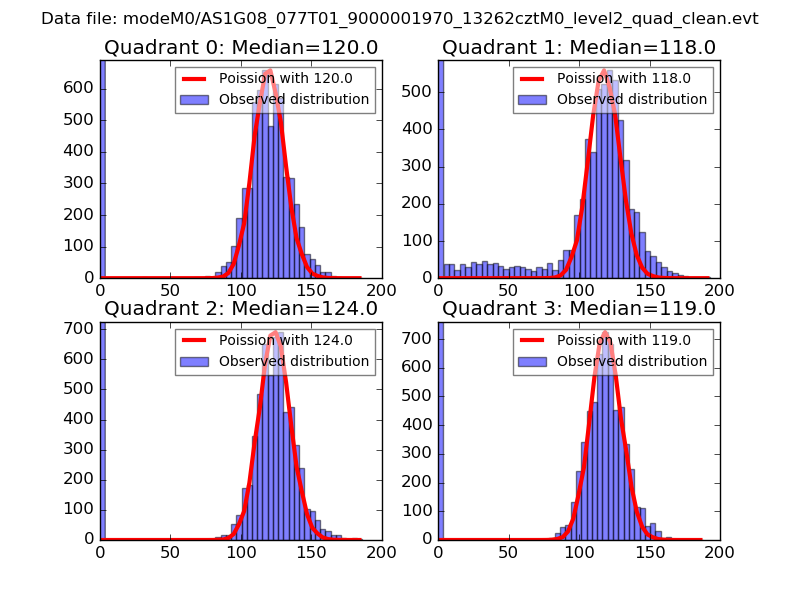

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

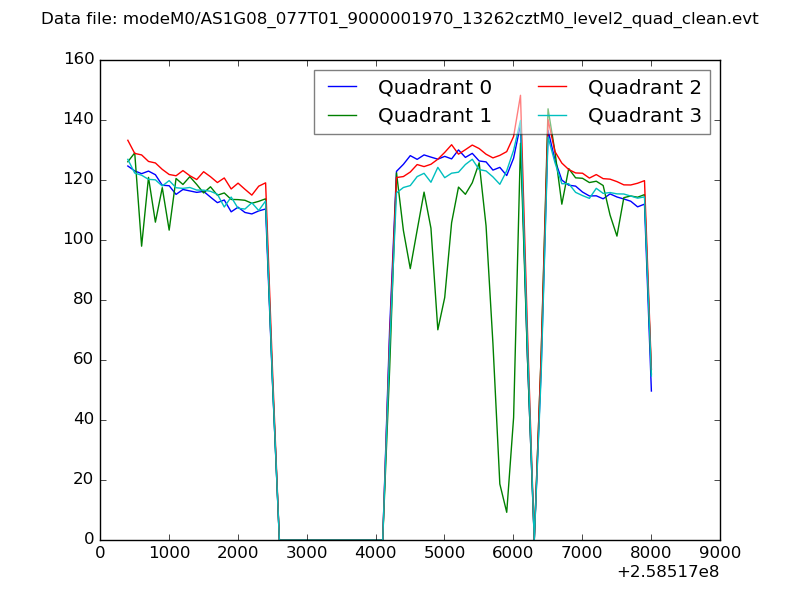

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

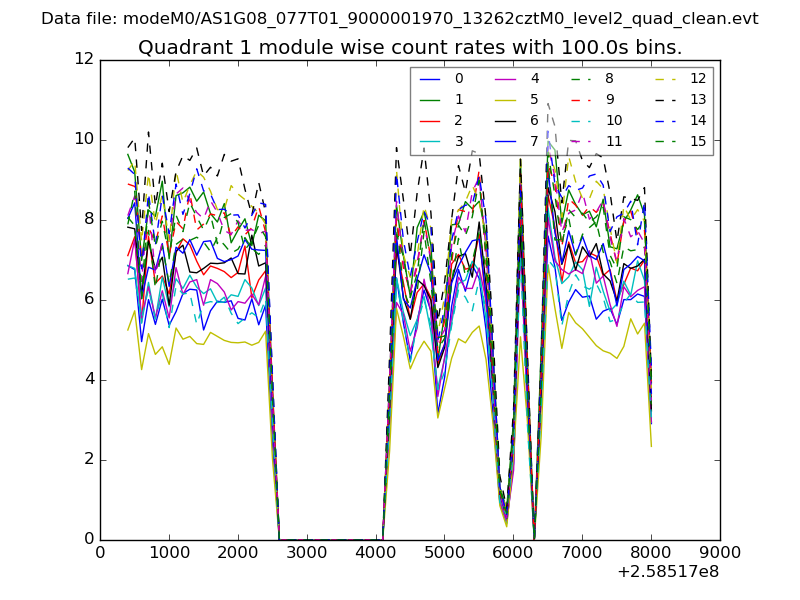

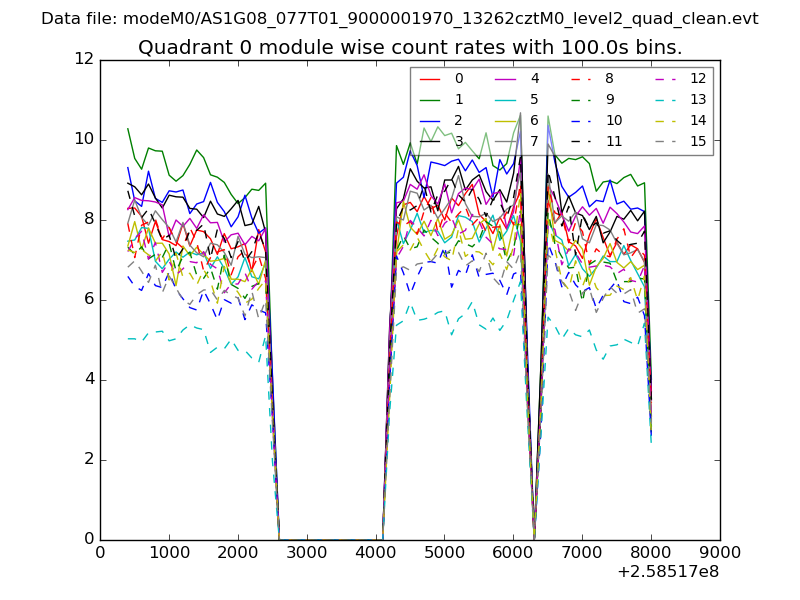

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

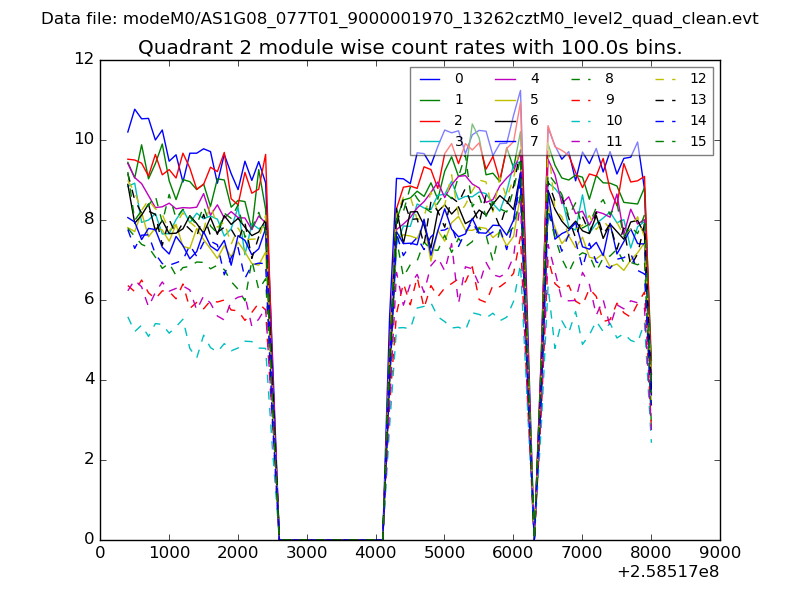

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

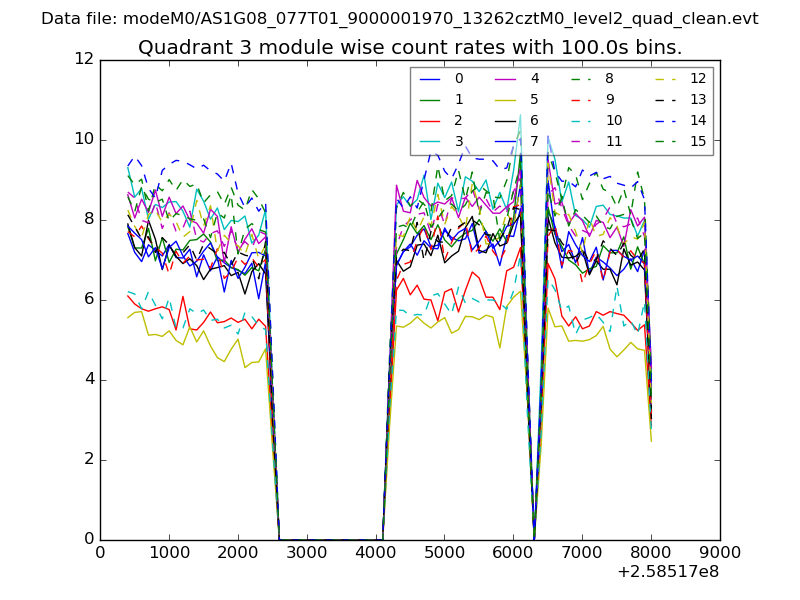

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |

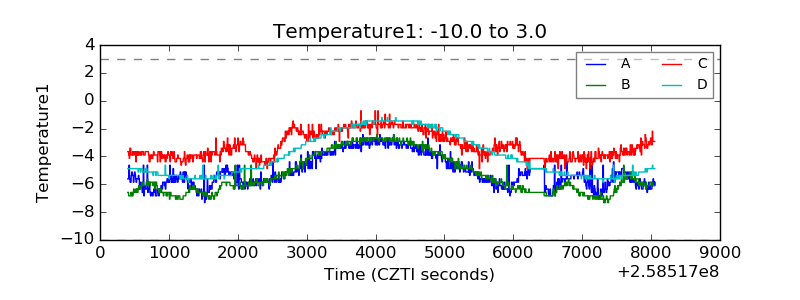

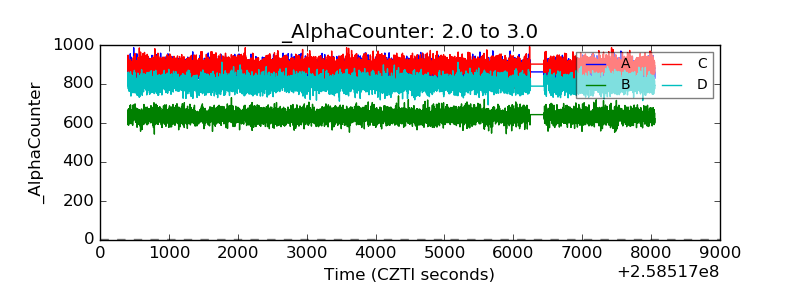

| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

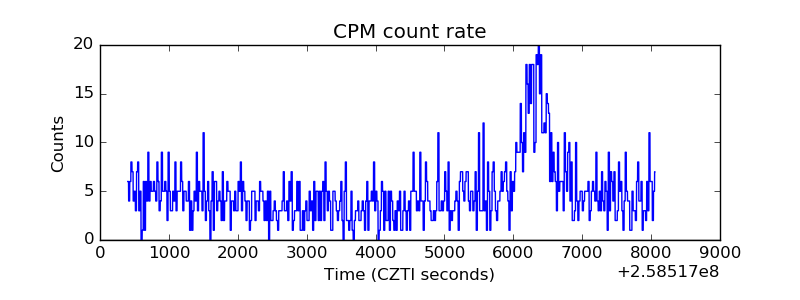

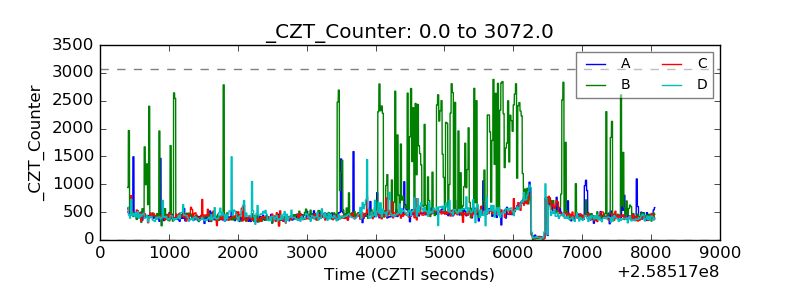

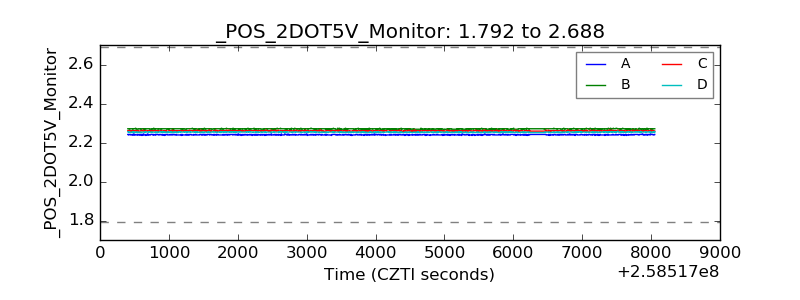

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

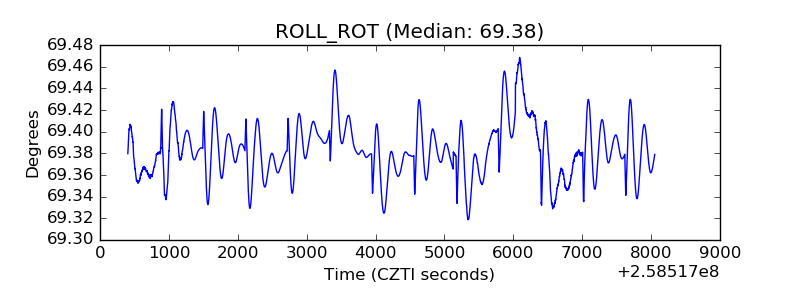

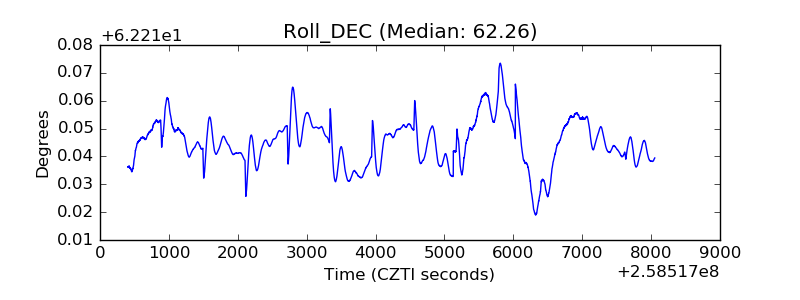

| _ROLL_ROT |  |
| _Roll_DEC |  |

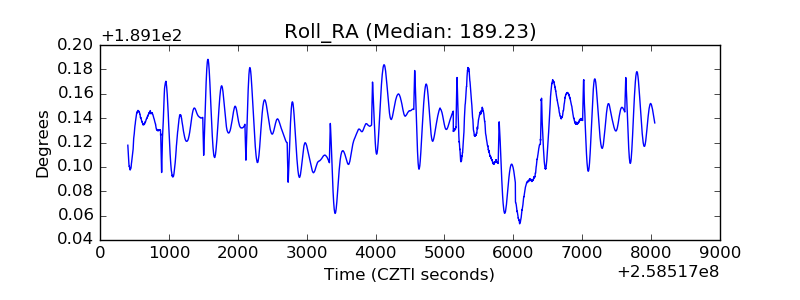

| _Roll_RA |  |

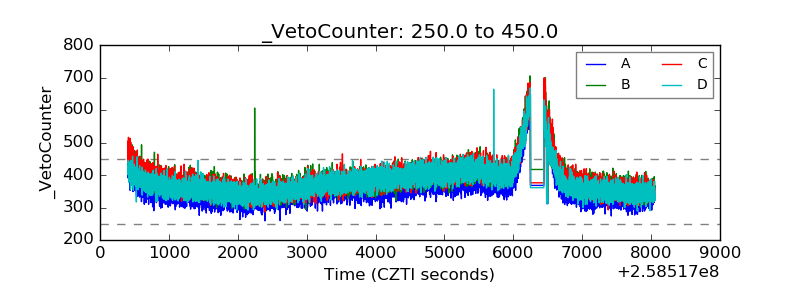

| Veto Counter |  |
