| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_077T01_9000001970_13264cztM0_level2.evt | modeM0/AS1G08_077T01_9000001970_13264cztM0_level2_quad_clean.evt |
| Size (bytes) | 746,968,320 | 81,578,880 |
| Size | 712.4 MB | 77.8 MB |
| Events in quadrant A | 10,321,576 | 367,360 |
| Events in quadrant B | 5,647,648 | 501,813 |
| Events in quadrant C | 3,102,836 | 568,143 |
| Events in quadrant D | 3,080,274 | 548,779 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 35279 | 2 |
| B | 0 | 21540 | 1 |
| C | 0 | 14190 | 1 |
| D | 0 | 14305 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6932 | 3084 | 44.489325% |
| B | 6932 | 1245 | 17.960185% |
| C | 6932 | 69 | 0.995384% |
| D | 6932 | 77 | 1.110791% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7238 | 6934 | 2774 | 2774 | 38.33% | 40.01% |  |
| B | 7238 | 6934 | 691 | 691 | 9.55% | 9.97% |  |
| C | 7238 | 6934 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7238 | 6934 | 6 | 6 | 0.08% | 0.09% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 8101139 | 71042.67 | 557 | 544 | 114.0 |
| A | 8 | 15 | 47209 | 409.25 | 557 | 544 | 114.0 |
| A | 1 | 162 | 15086 | 127.53 | 557 | 544 | 114.0 |
| B | 4 | 239 | 2777461 | 20244.6 | 715 | 695 | 137.2 |
| B | 3 | 64 | 30192 | 215.05 | 715 | 695 | 137.2 |
| B | 4 | 142 | 19054 | 133.85 | 715 | 695 | 137.2 |
| C | 3 | 233 | 49124 | 270.04 | 776 | 779 | 179.0 |
| C | 15 | 208 | 18711 | 100.16 | 776 | 779 | 179.0 |
| C | 13 | 61 | 5678 | 27.36 | 776 | 779 | 179.0 |
| D | 5 | 222 | 75158 | 398.27 | 771 | 749 | 186.8 |
| D | 1 | 52 | 64757 | 342.6 | 771 | 749 | 186.8 |
| D | 2 | 234 | 29685 | 154.88 | 771 | 749 | 186.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

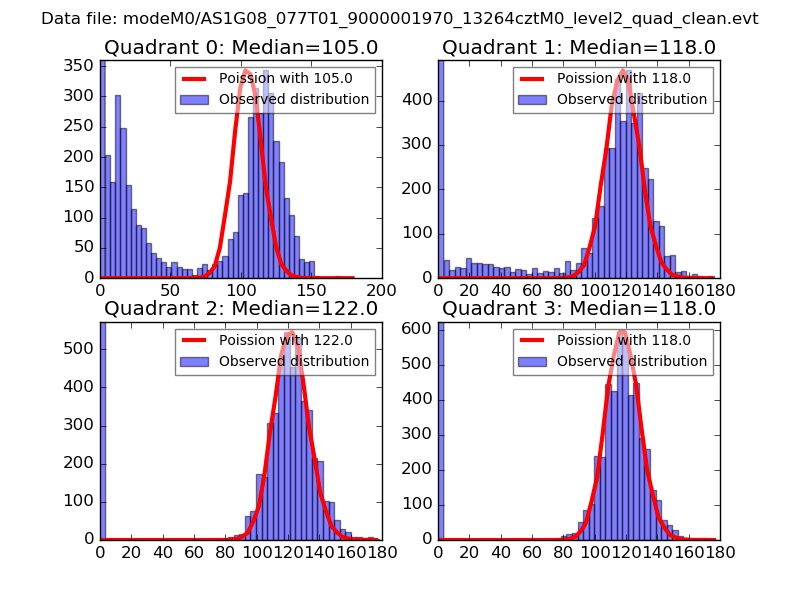

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

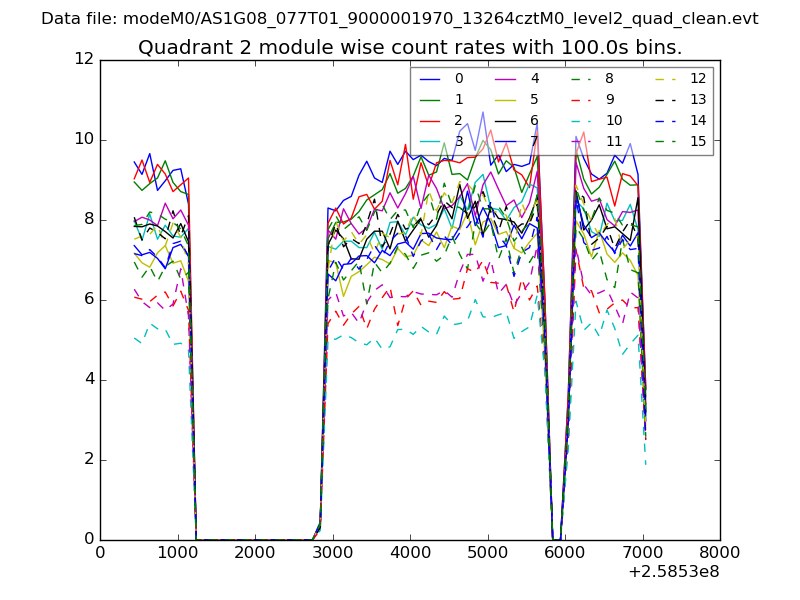

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

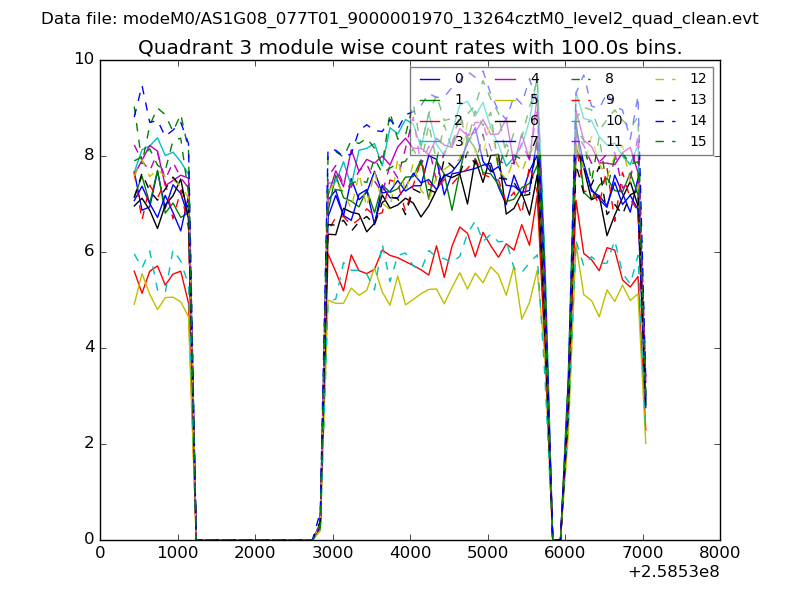

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
