| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_167T02_9000001974_13278cztM0_level2.evt | modeM0/AS1A04_167T02_9000001974_13278cztM0_level2_quad_clean.evt |
| Size (bytes) | 798,151,680 | 93,847,680 |
| Size | 761.2 MB | 89.5 MB |
| Events in quadrant A | 3,413,217 | 609,691 |
| Events in quadrant B | 7,330,086 | 551,877 |
| Events in quadrant C | 3,368,066 | 629,330 |
| Events in quadrant D | 9,559,098 | 533,726 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15162 | 2 |
| B | 0 | 26741 | 1 |
| C | 0 | 15168 | 1 |
| D | 0 | 33697 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7421 | 112 | 1.509231% |
| B | 7421 | 1932 | 26.034227% |
| C | 7421 | 58 | 0.781566% |
| D | 7421 | 1704 | 22.961865% |

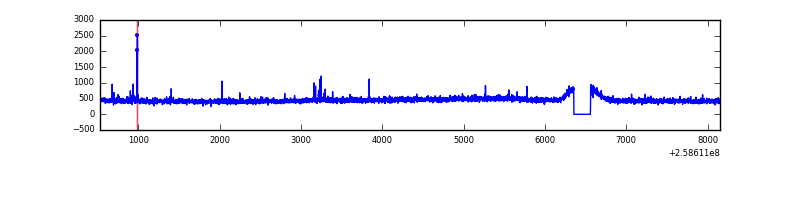

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7627 | 7423 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7627 | 7422 | 1214 | 1214 | 15.92% | 16.36% |  |
| C | 7627 | 7423 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7627 | 7423 | 1383 | 1383 | 18.13% | 18.63% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 32057 | 174.74 | 867 | 847 | 178.6 |
| A | 1 | 162 | 28390 | 154.21 | 867 | 847 | 178.6 |
| A | 1 | 178 | 9435 | 48.08 | 867 | 847 | 178.6 |
| B | 4 | 239 | 4137850 | 29482.56 | 720 | 701 | 140.3 |
| B | 0 | 244 | 113668 | 805.04 | 720 | 701 | 140.3 |
| B | 3 | 64 | 106753 | 755.76 | 720 | 701 | 140.3 |
| C | 15 | 208 | 37479 | 187.34 | 847 | 852 | 195.5 |
| C | 8 | 128 | 10368 | 48.67 | 847 | 852 | 195.5 |
| C | 14 | 234 | 6609 | 29.45 | 847 | 852 | 195.5 |
| D | 1 | 52 | 4733215 | 25296.75 | 768 | 744 | 187.1 |
| D | 13 | 249 | 1804783 | 9643.23 | 768 | 744 | 187.1 |
| D | 8 | 195 | 53677 | 282.95 | 768 | 744 | 187.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

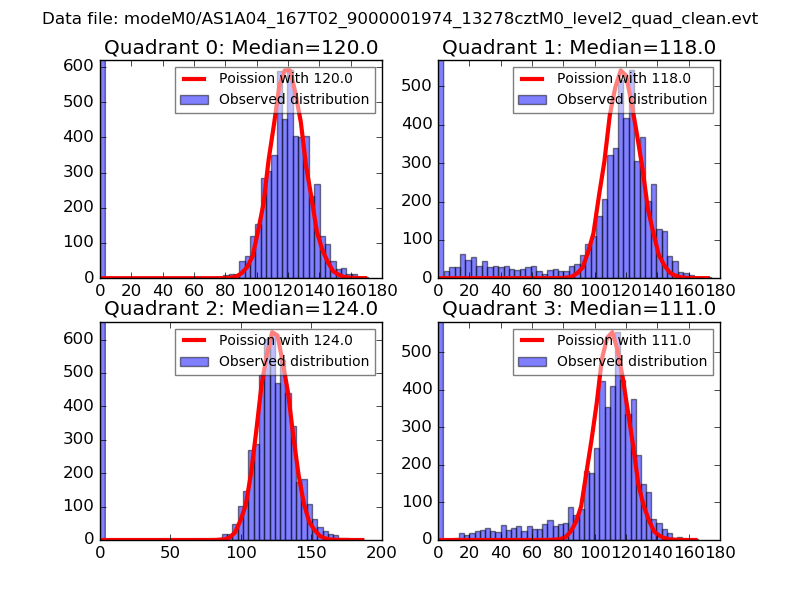

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

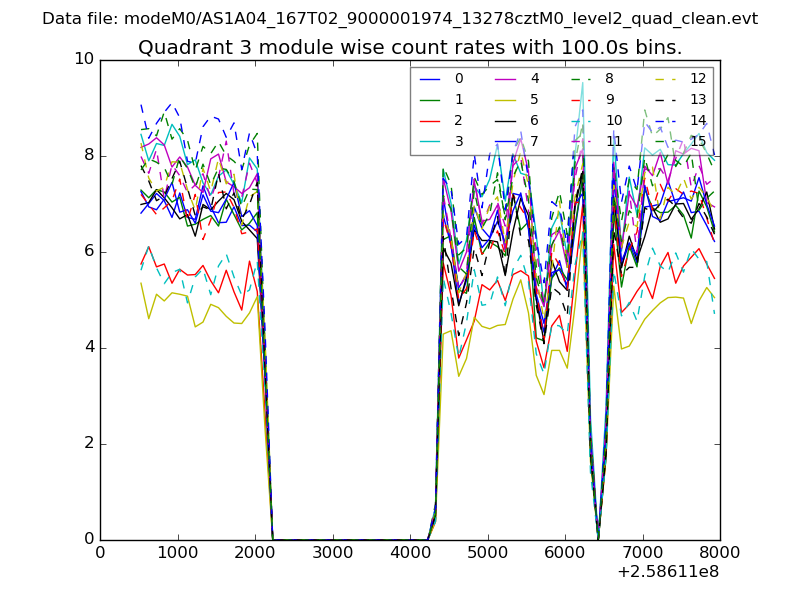

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

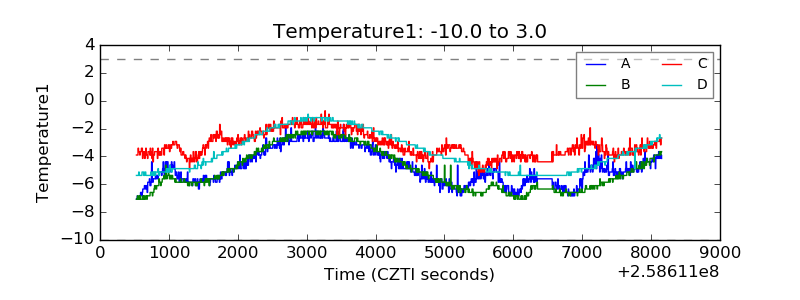

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

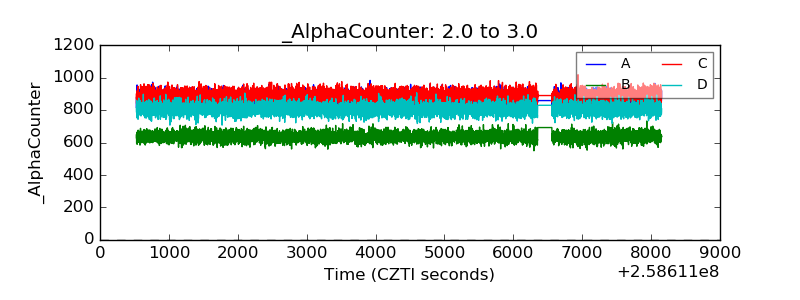

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

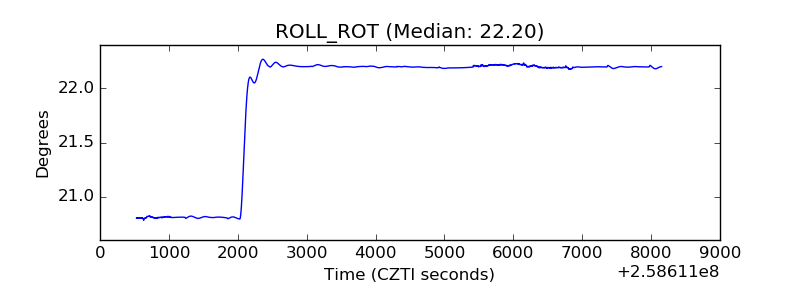

| _ROLL_ROT |  |

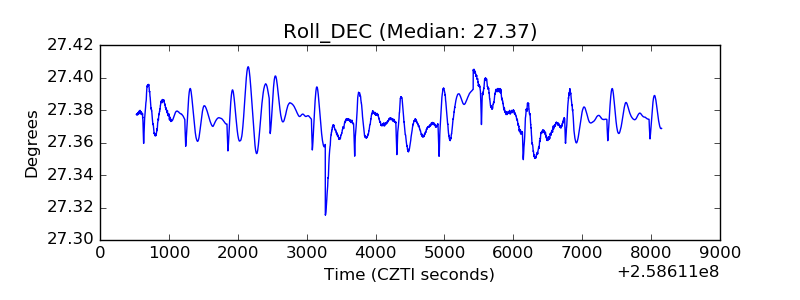

| _Roll_DEC |  |

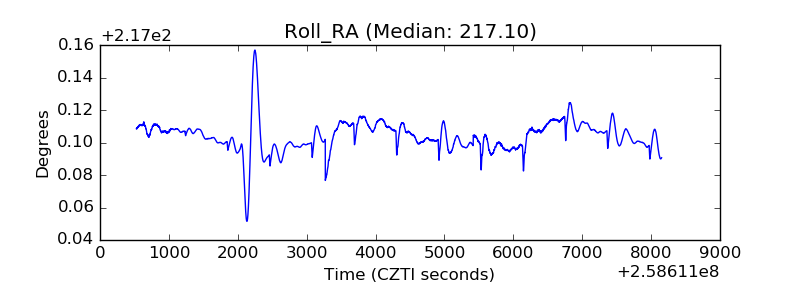

| _Roll_RA |  |
| Veto Counter |  |
