| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_031T03_9000001972_13270cztM0_level2.evt | modeM0/AS1G08_031T03_9000001972_13270cztM0_level2_quad_clean.evt |
| Size (bytes) | 573,906,240 | 105,716,160 |
| Size | 547.3 MB | 100.8 MB |
| Events in quadrant A | 5,729,479 | 678,081 |
| Events in quadrant B | 3,700,239 | 709,479 |
| Events in quadrant C | 3,208,779 | 694,340 |
| Events in quadrant D | 4,295,734 | 660,068 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21454 | 3 |
| B | 0 | 15388 | 2 |
| C | 0 | 13909 | 2 |
| D | 0 | 17184 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 15 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6588 | 837 | 12.704918% |
| B | 6588 | 178 | 2.701882% |
| C | 6588 | 52 | 0.789314% |
| D | 6588 | 181 | 2.747420% |

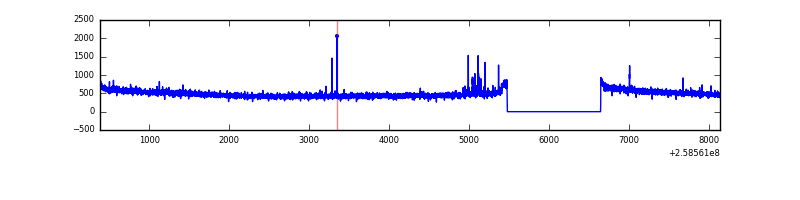

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7759 | 6590 | 526 | 526 | 6.78% | 7.98% |  |
| B | 7759 | 6590 | 61 | 61 | 0.79% | 0.93% |  |
| C | 7759 | 6590 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7759 | 6590 | 140 | 140 | 1.80% | 2.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 2524345 | 15283.3 | 817 | 802 | 165.1 |
| A | 8 | 15 | 17617 | 101.84 | 817 | 802 | 165.1 |
| A | 1 | 162 | 17570 | 101.55 | 817 | 802 | 165.1 |
| B | 4 | 239 | 216100 | 1377.56 | 825 | 804 | 156.3 |
| B | 3 | 64 | 129591 | 824.03 | 825 | 804 | 156.3 |
| B | 4 | 173 | 42977 | 269.84 | 825 | 804 | 156.3 |
| C | 15 | 208 | 24331 | 124.86 | 813 | 819 | 188.3 |
| C | 6 | 96 | 9560 | 46.42 | 813 | 819 | 188.3 |
| C | 13 | 61 | 5979 | 27.4 | 813 | 819 | 188.3 |
| D | 5 | 222 | 939120 | 4837.74 | 811 | 790 | 194.0 |
| D | 1 | 52 | 261218 | 1342.69 | 811 | 790 | 194.0 |
| D | 2 | 234 | 22345 | 111.13 | 811 | 790 | 194.0 |

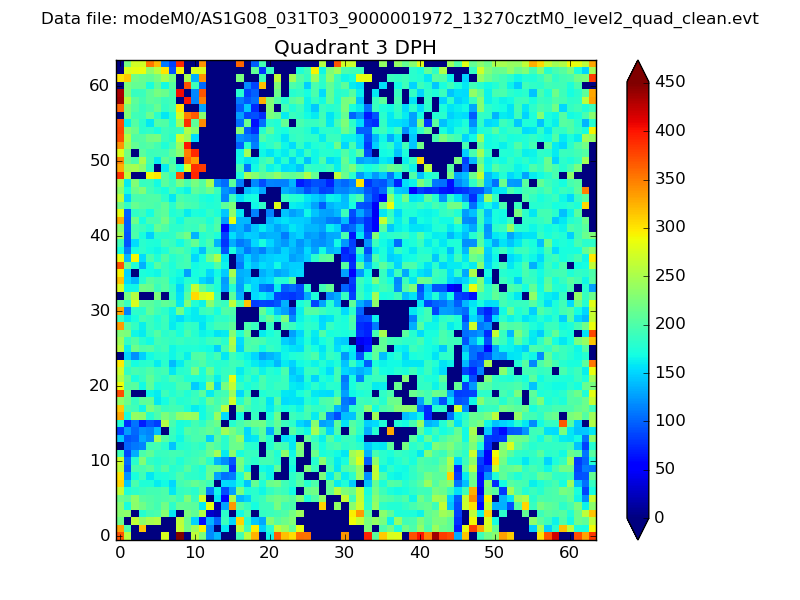

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

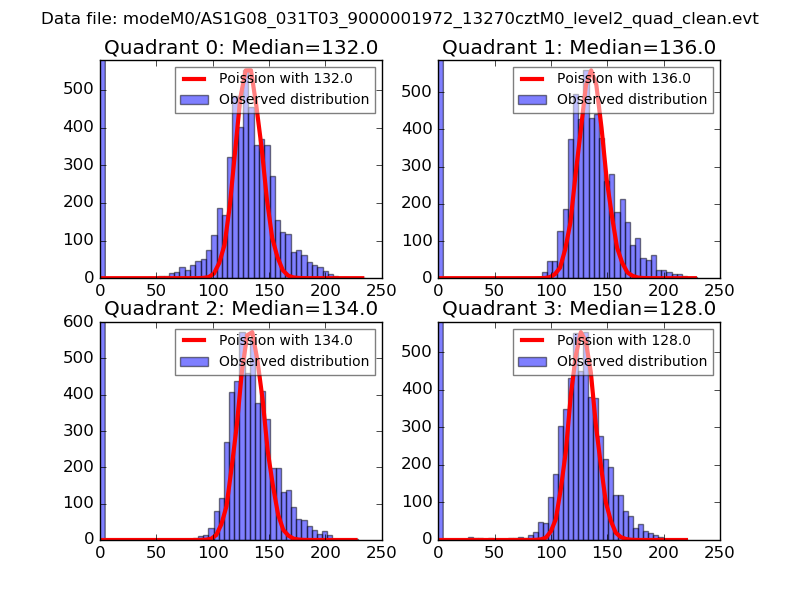

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

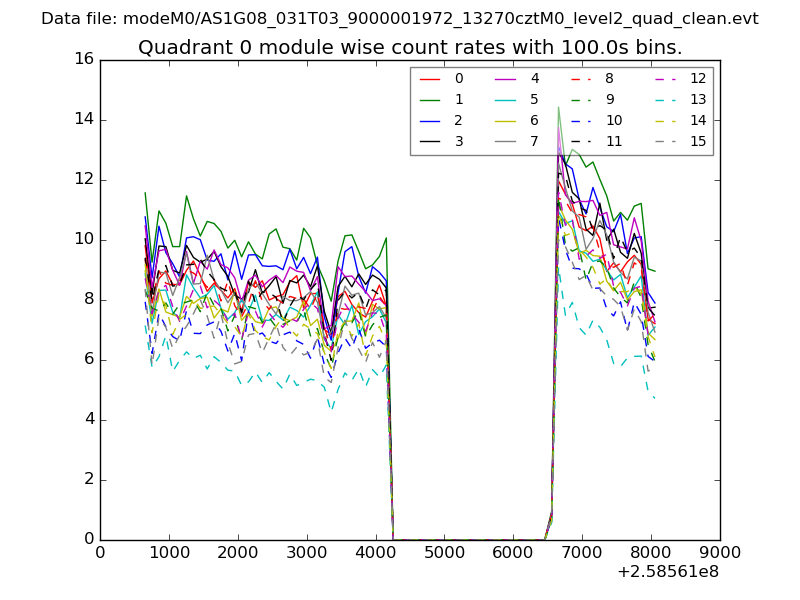

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

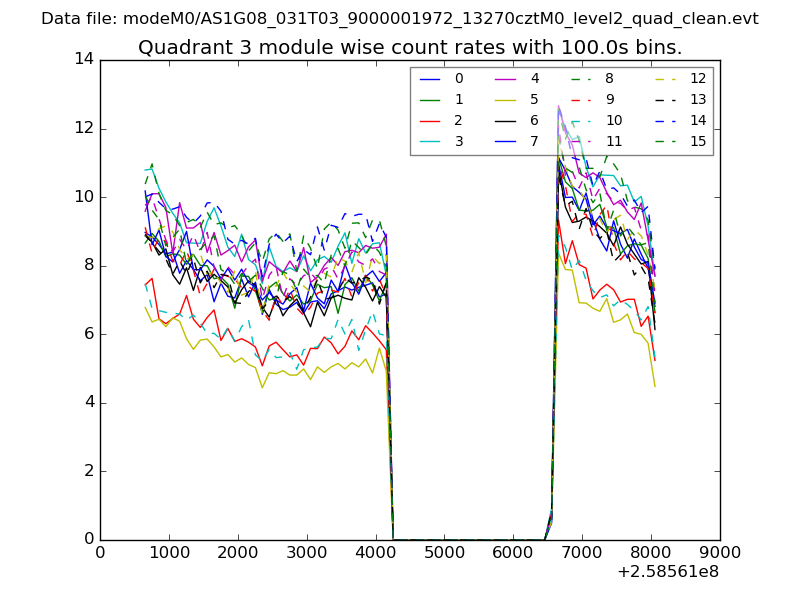

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

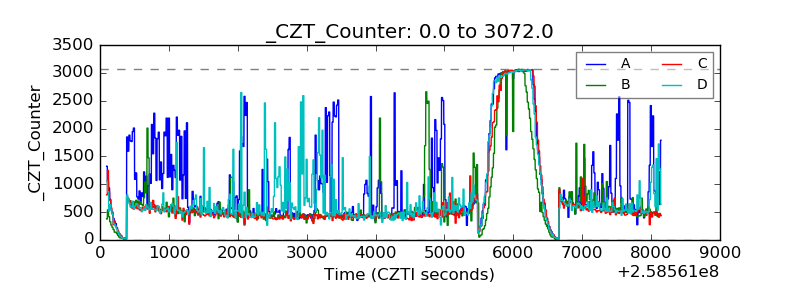

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

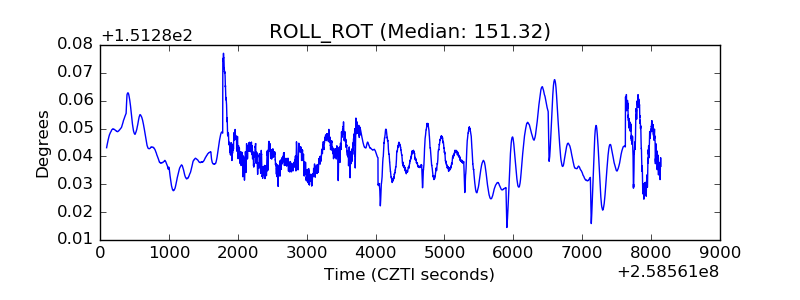

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
