| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_013T01_9000001976_13282cztM0_level2.evt | modeM0/AS1T02_013T01_9000001976_13282cztM0_level2_quad_clean.evt |
| Size (bytes) | 633,242,880 | 95,218,560 |
| Size | 603.9 MB | 90.8 MB |
| Events in quadrant A | 3,408,064 | 695,911 |
| Events in quadrant B | 8,463,706 | 386,151 |
| Events in quadrant C | 3,065,888 | 691,625 |
| Events in quadrant D | 3,798,633 | 655,054 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14226 | 2 |
| B | 0 | 29409 | 1 |
| C | 0 | 13389 | 1 |
| D | 0 | 15661 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6499 | 72 | 1.107863% |
| B | 6499 | 2946 | 45.330051% |
| C | 6499 | 32 | 0.492383% |
| D | 6499 | 121 | 1.861825% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7475 | 6501 | 16 | 16 | 0.21% | 0.25% |  |
| B | 7475 | 6501 | 1662 | 1662 | 22.23% | 25.57% |  |
| C | 7475 | 6501 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7475 | 6501 | 68 | 68 | 0.91% | 1.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 207271 | 1254.94 | 806 | 791 | 164.5 |
| A | 1 | 162 | 38906 | 231.65 | 806 | 791 | 164.5 |
| A | 9 | 143 | 18498 | 107.62 | 806 | 791 | 164.5 |
| B | 4 | 239 | 6071191 | 58001.91 | 544 | 530 | 104.7 |
| B | 3 | 64 | 111113 | 1056.56 | 544 | 530 | 104.7 |
| B | 10 | 245 | 55408 | 524.33 | 544 | 530 | 104.7 |
| C | 15 | 208 | 21046 | 112.11 | 779 | 786 | 180.7 |
| C | 14 | 234 | 8420 | 42.24 | 779 | 786 | 180.7 |
| C | 13 | 61 | 5706 | 27.23 | 779 | 786 | 180.7 |
| D | 1 | 52 | 564728 | 3020.27 | 774 | 754 | 186.7 |
| D | 13 | 249 | 171322 | 913.45 | 774 | 754 | 186.7 |
| D | 8 | 195 | 75940 | 402.65 | 774 | 754 | 186.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

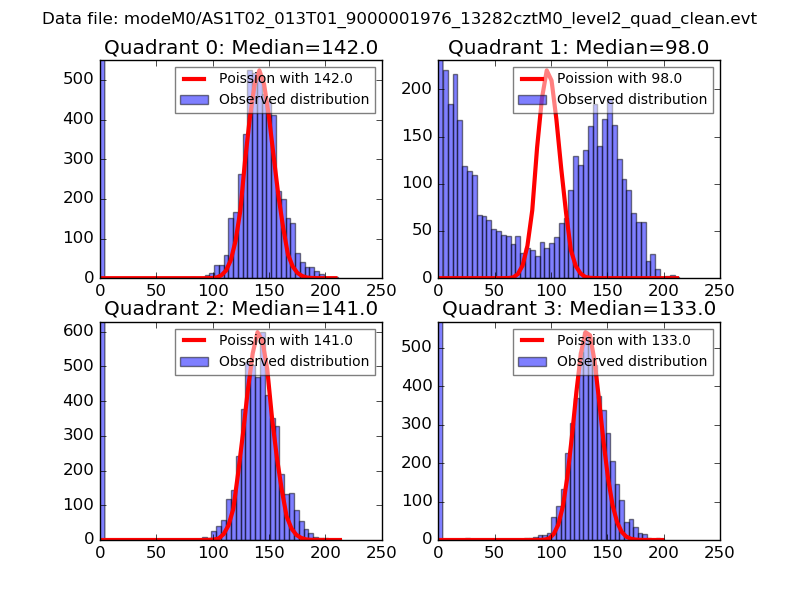

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

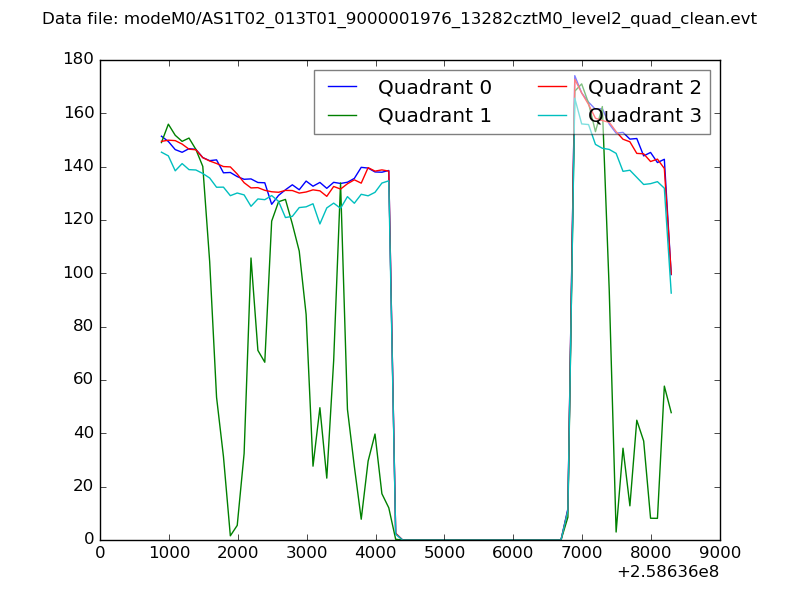

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

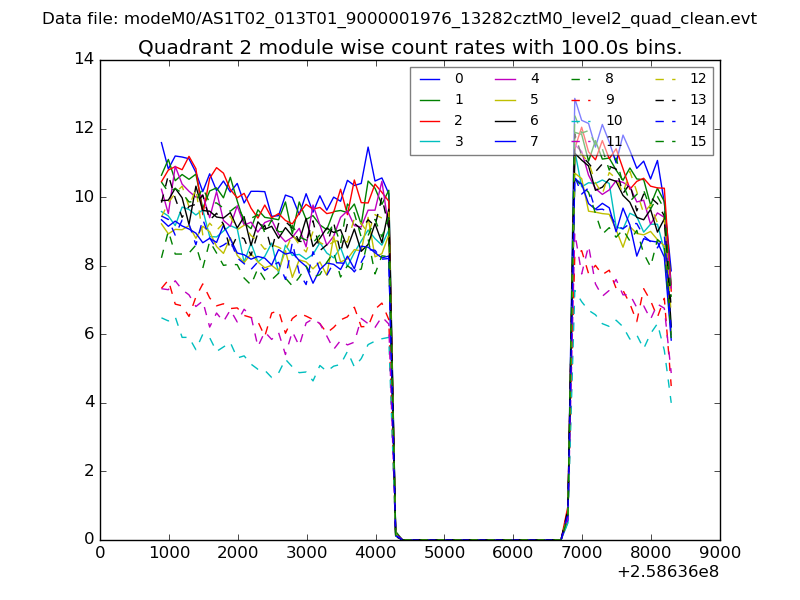

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

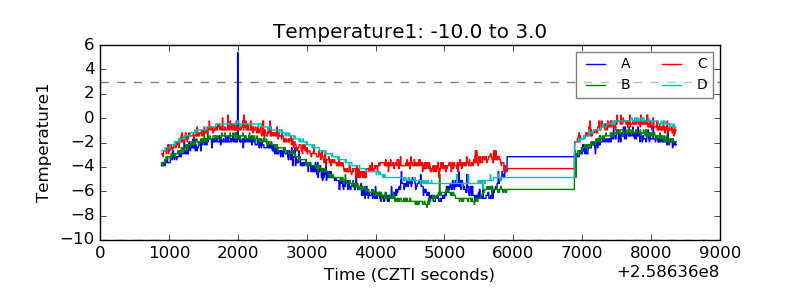

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

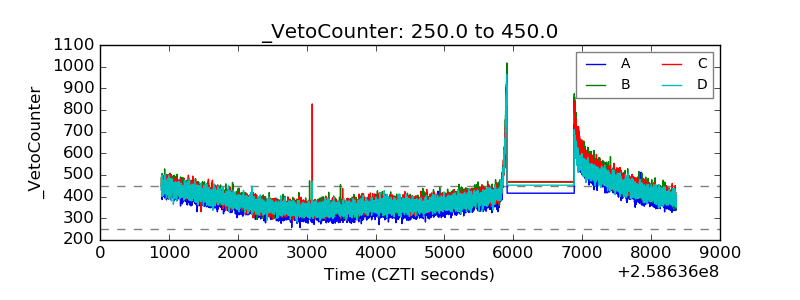

| Veto Counter |  |
