| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_013T01_9000001976_13286cztM0_level2.evt | modeM0/AS1T02_013T01_9000001976_13286cztM0_level2_quad_clean.evt |
| Size (bytes) | 653,241,600 | 83,594,880 |
| Size | 623.0 MB | 79.7 MB |
| Events in quadrant A | 3,423,043 | 621,800 |
| Events in quadrant B | 7,659,795 | 314,073 |
| Events in quadrant C | 3,000,818 | 617,422 |
| Events in quadrant D | 5,292,880 | 557,359 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14074 | 2 |
| B | 0 | 26684 | 1 |
| C | 0 | 12626 | 1 |
| D | 0 | 19777 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6001 | 87 | 1.449758% |
| B | 6001 | 2690 | 44.825862% |
| C | 6001 | 39 | 0.649892% |
| D | 6001 | 288 | 4.799200% |

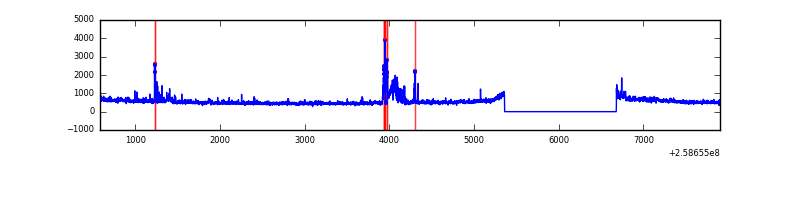

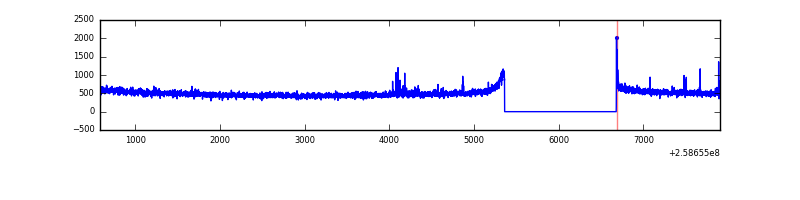

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7322 | 6003 | 16 | 16 | 0.22% | 0.27% |  |
| B | 7321 | 6000 | 1477 | 1477 | 20.17% | 24.62% |  |
| C | 7322 | 6003 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7322 | 6003 | 296 | 296 | 4.04% | 4.93% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 69 | 191470 | 1215.96 | 780 | 767 | 156.8 |
| A | 8 | 15 | 148962 | 944.92 | 780 | 767 | 156.8 |
| A | 1 | 162 | 28623 | 177.62 | 780 | 767 | 156.8 |
| B | 4 | 239 | 5481055 | 55177.44 | 527 | 515 | 99.3 |
| B | 3 | 64 | 23741 | 233.84 | 527 | 515 | 99.3 |
| B | 4 | 216 | 19423 | 190.36 | 527 | 515 | 99.3 |
| C | 15 | 208 | 27330 | 151.39 | 761 | 769 | 175.4 |
| C | 6 | 96 | 6335 | 31.73 | 761 | 769 | 175.4 |
| C | 13 | 61 | 5614 | 27.62 | 761 | 769 | 175.4 |
| D | 13 | 104 | 1717028 | 9606.32 | 743 | 724 | 178.7 |
| D | 13 | 249 | 302444 | 1688.76 | 743 | 724 | 178.7 |
| D | 1 | 52 | 180347 | 1005.37 | 743 | 724 | 178.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

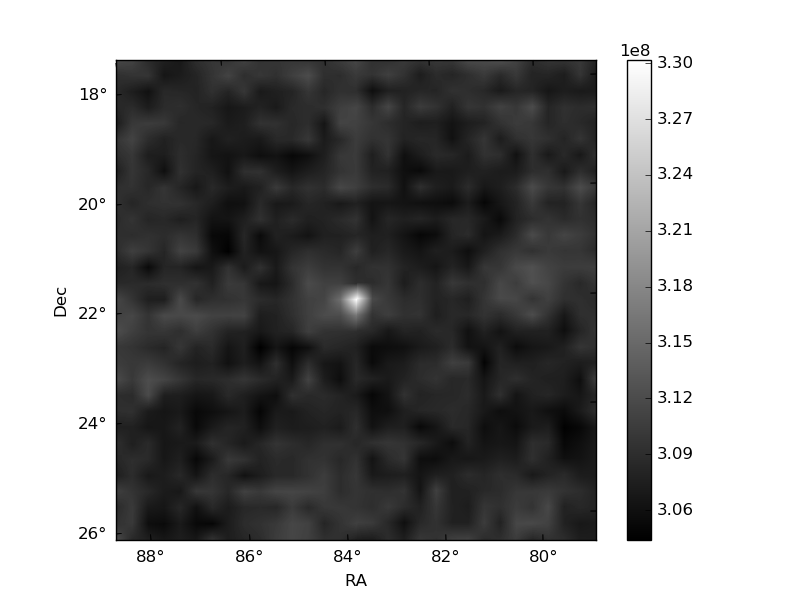

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

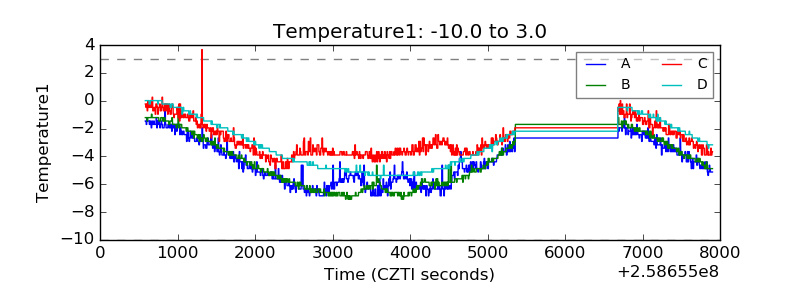

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

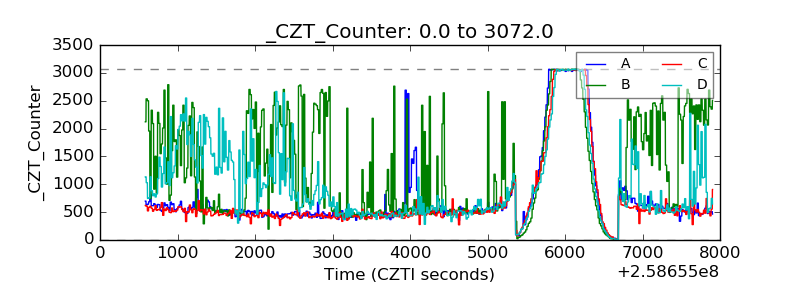

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

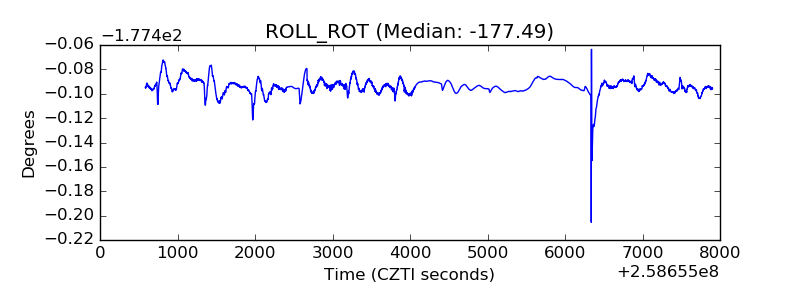

| _ROLL_ROT |  |

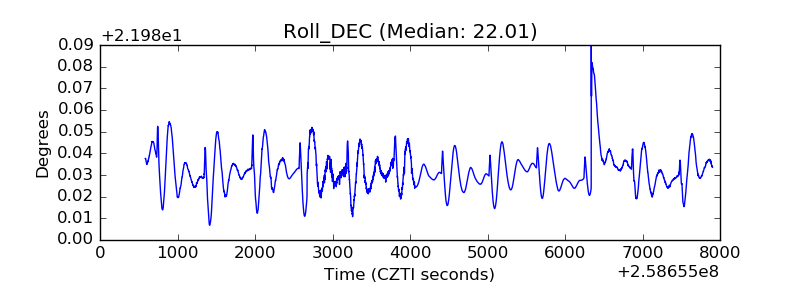

| _Roll_DEC |  |

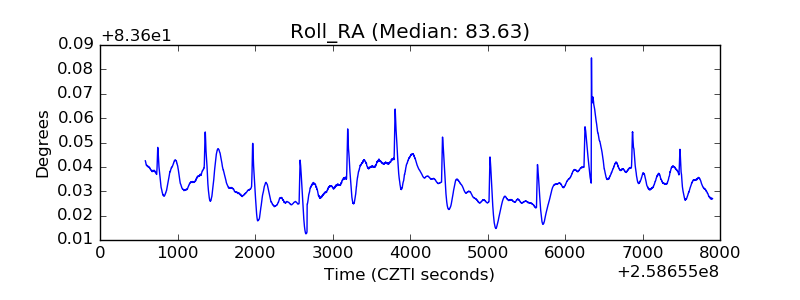

| _Roll_RA |  |
| Veto Counter |  |
