| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_101T01_9000001984_13317cztM0_level2.evt | modeM0/AS1A04_101T01_9000001984_13317cztM0_level2_quad_clean.evt |
| Size (bytes) | 139,394,880 | 23,169,600 |
| Size | 132.9 MB | 22.1 MB |
| Events in quadrant A | 981,934 | 145,382 |
| Events in quadrant B | 1,000,199 | 148,534 |
| Events in quadrant C | 927,784 | 146,972 |
| Events in quadrant D | 1,195,543 | 137,253 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 36 | 0 |
| B | 0 | 36 | 0 |
| C | 0 | 36 | 0 |
| D | 0 | 36 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3938 | 2 |
| B | 0 | 3981 | 1 |
| C | 0 | 3753 | 1 |
| D | 0 | 4674 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1671 | 70 | 4.189108% |
| B | 1671 | 107 | 6.403351% |
| C | 1671 | 34 | 2.034710% |
| D | 1671 | 93 | 5.565530% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

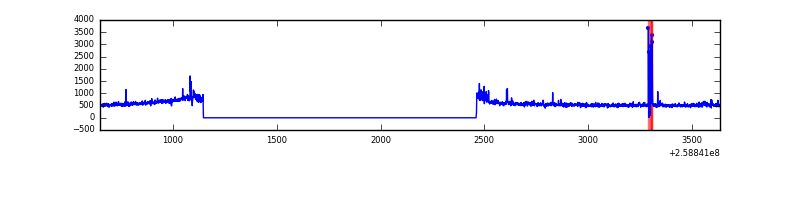

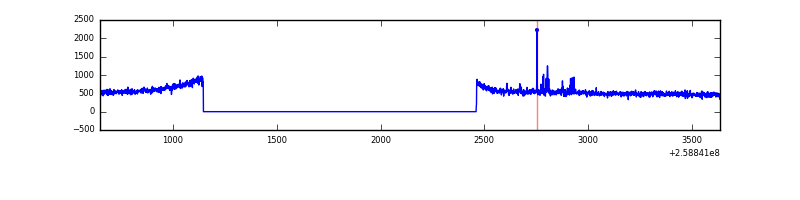

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 2987 | 1673 | 0 | 0 | 0.00% | 0.00% |  |

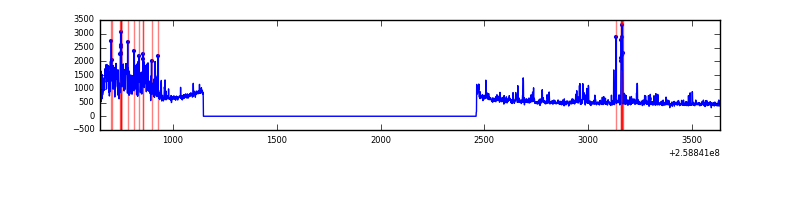

| B | 2987 | 1673 | 8 | 8 | 0.27% | 0.48% |  |
| C | 2987 | 1673 | 1 | 1 | 0.03% | 0.06% |  |
| D | 2987 | 1673 | 23 | 23 | 0.77% | 1.37% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 53008 | 1046.08 | 238 | 232 | 50.5 |
| A | 1 | 162 | 4771 | 89.97 | 238 | 232 | 50.5 |
| A | 15 | 69 | 4631 | 87.19 | 238 | 232 | 50.5 |
| B | 3 | 64 | 35121 | 723.29 | 238 | 232 | 48.2 |
| B | 4 | 173 | 19382 | 397.0 | 238 | 232 | 48.2 |
| B | 0 | 244 | 8823 | 178.1 | 238 | 232 | 48.2 |
| C | 6 | 96 | 15034 | 264.05 | 233 | 234 | 56.1 |
| C | 13 | 61 | 1727 | 26.64 | 233 | 234 | 56.1 |
| C | 15 | 208 | 1116 | 15.74 | 233 | 234 | 56.1 |
| D | 1 | 52 | 324853 | 5708.65 | 227 | 220 | 56.9 |
| D | 2 | 234 | 4590 | 76.85 | 227 | 220 | 56.9 |
| D | 13 | 122 | 3217 | 52.7 | 227 | 220 | 56.9 |

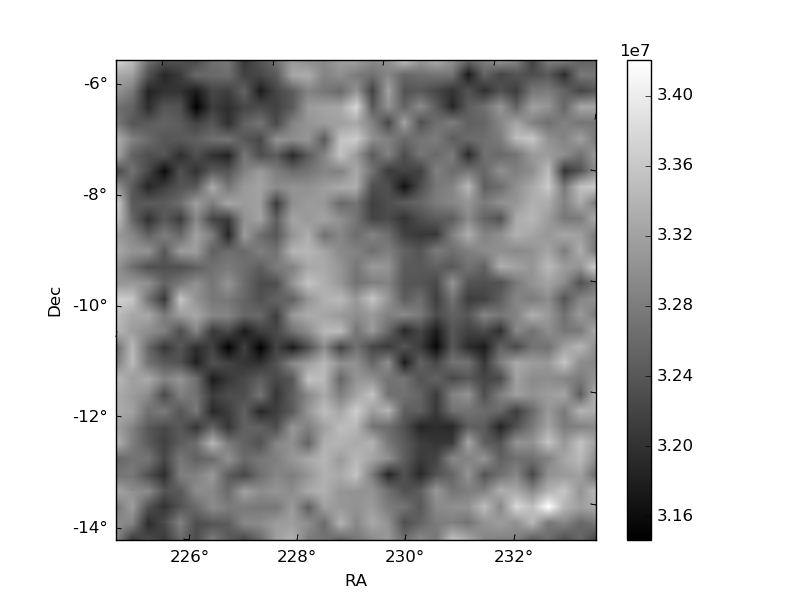

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

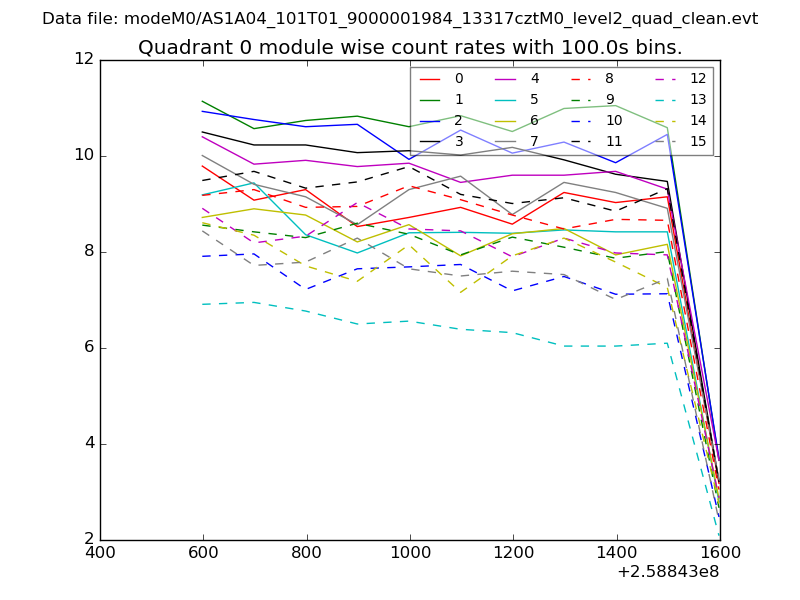

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

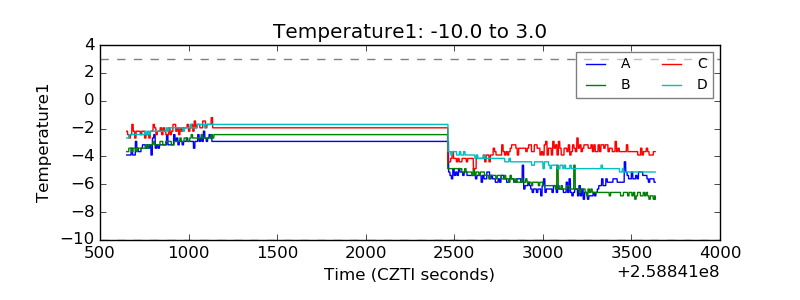

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

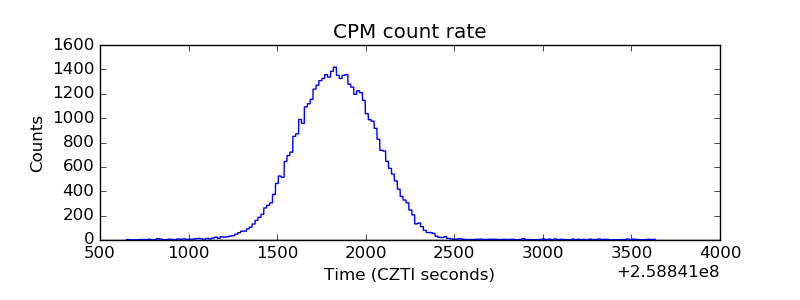

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

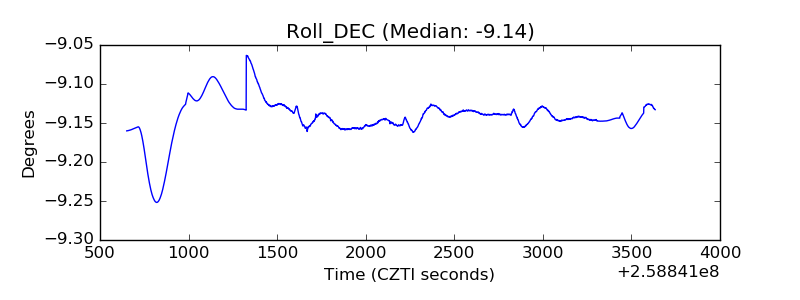

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
